0-42 | 0-42A FUEL PUMP AND PIPE
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

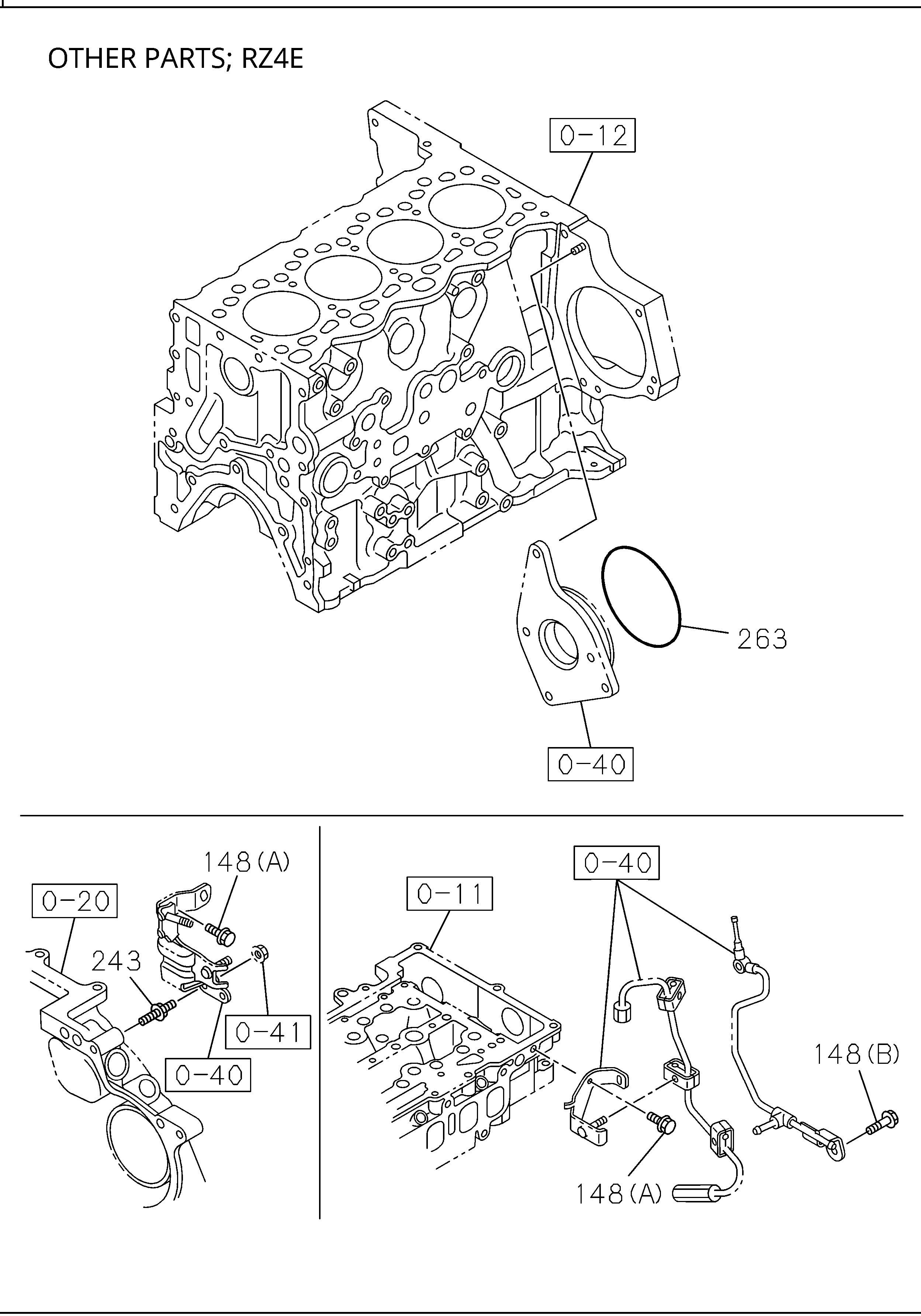

| 243 | I8-98357 011-0 | STUD; BRKT | 1 | 2410- 1 | A | EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) | ||
| 148 | I0-28050 816-0 | BOLT; BRKT | 2 | 2410- | B | (B) M8X16 FLANGE | ||
| 148 | I0-28050 845-0 | BOLT; BRKT | 2 | 2410- | B | (C) M8X45 FLANGE | ||

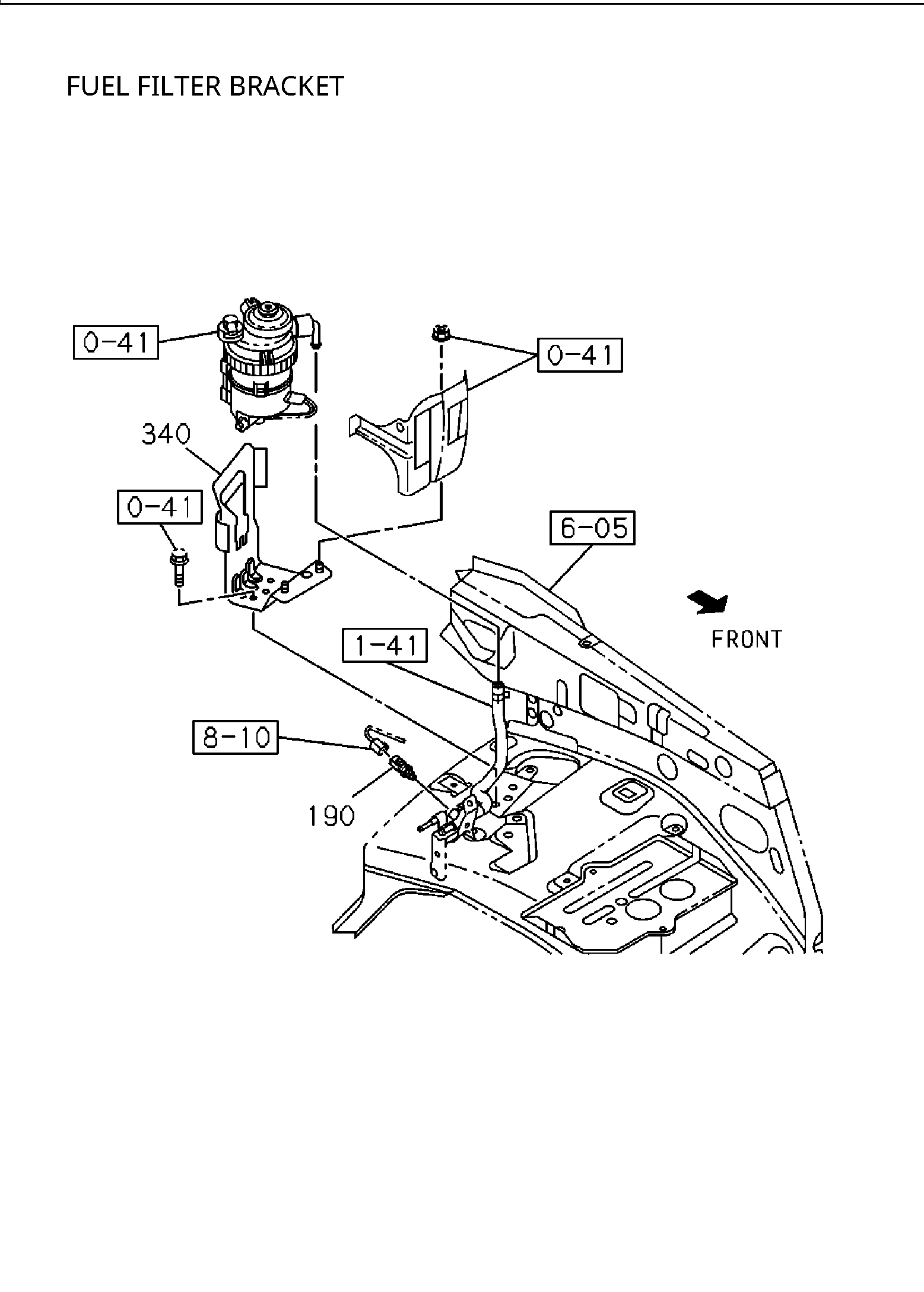

| 340 | I8-98388 204-3 | BRACKET; FUEL FILTER | 1 | 2410- 1 | AB | |||
| 092 | I8-97495 801-0 | BRACKET; FUEL PIPE | 1 | 2410- 1 | B | |||
| 190 | I8-98351 331-0 | SENSOR; FUEL TEMP | 1 | 2410- | B | EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) | ||
| 148 | I0-28050 612-0 | BOLT; BRKT | 1 | 2410- | A | (A) M6X12 FLANGE | ||
| 190 | I8-98351 331-0 | SENSOR; FUEL TEMP | 1 | 2410- | B | AUSTRALIA EQUIPMENT(B13) EURO5 SPECIFICATION(NT5) | ||
| 148 | I0-28050 816-0 | BOLT; BRKT | 1 | 2410- | A | EURO0 SPECIFICATION(K75),EURO2 SPECIFICATION(NT2) (B) M8X16 FLANGE | ||
| 263 | I8-98312 896-0 | GASKET; BRKT | 1 | 2410- 1 | A |
