0-50 | 0-50A OIL COOLER AND OIL FILTER
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 340 | I0-28650 840-0 | BOLT; BRKT | 1 | 2410- | B | M8X40 FLANGE | ||
| 108 | I8-98332 979-1 | BRACKET; OIL COOLER | 1 | 2410- | A | |||
| 410 | I8-98312 760-0 | GASKET | 1 | 2410- | A | (A) | ||
| 002 | I8-98270 524-0 | ELEMENT; OIL FILTER | 1 | 2410- | A | |||
| 496 | I8-97495 781-0 | FILTER ASM; | 1 | 2410- | B | |||
| 274 | I8-98226 841-0 | GASKET; OIL FILTER | 1 | 2410- | B | |||
| 067 | I1-09623 479-0 | GASKET; VLV | 1 | 2410- | A | (A) ID=31.2 | ||
| 105 | I0-41010 820-0 | STUD; OIL COOLER | 2 | 2410- | B | (A) M8X20 L=32 | ||
| 067 | I9-09566 226-0 | GASKET; VLV | 1 | 2410- | A | (B) ID=26.2 | ||
| 410 | I8-98312 765-0 | GASKET | 1 | 2410- | A | (F) | ||
| 410 | I8-98312 762-0 | GASKET | 1 | 2410- | A | (C) | ||
| 076 | I0-28050 800-0 | BOLT; OIL FILTER | 1 | 2410- | B | (A) M8X100 FLANGE | ||
| 026 | I8-98347 601-0 | CORE ASM; OIL COOLER | 1 | 2410- | A | |||
| 076 | I0-28050 880-0 | BOLT; OIL FILTER | 2 | 2410- | B | (C) M8X80 FLANGE | ||
| 097 | I8-98028 225-0 | STUD; OIL COOLER BRKT | 1 | 2410- | A | M8X12,M8X30 L=50 | ||
| 496 | I8-98347 600-3 | FILTER ASM; | 1 | 2410- | A | |||
| 546 | I8-98312 728-0 | CAP; OIL FILTER | 1 | 2410- | A | |||
| 410 | I8-98312 766-0 | GASKET | 1 | 2410- | A | (G) | ||
| 386 | I8-98322 217-0 | PLUG; OIL FILTER | 1 | 2410- | A | EURO0 SPECIFICATION(K75),EURO2 SPECIFICATION(NT2) PT1/8 | ||
| 306 | I8-98307 472-0 | VALVE; OIL FILTER | 1 | 2410- | A | |||
| 105 | I0-41010 825-0 | STUD; OIL COOLER | 2 | 2410- | B | (B) M8X25 L=37 | ||
| 362 | I0-91180 208-0 | NUT; OIL FILTER | 2 | 2410- | AB | M8 FLANGE | ||
| 103 | I8-98332 978-0 | BOLT; OIL COOLER | 6 | 2410- | A | (C) M8X1.25 | ||
| 062 | I8-97551 902-0 | COOLER ASM; OIL | 1 | 2410- | B | EURO2 SPECIFICATION(NT2) | ||
| 076 | I0-28050 825-0 | BOLT; OIL FILTER | 2 | 2410- | B | (B) M8X25 FLANGE | ||
| 009 | I9-09566 226-0 | GASKET; CENTER BOLT | 2 | 2410- | B | ID=26.2 | ||

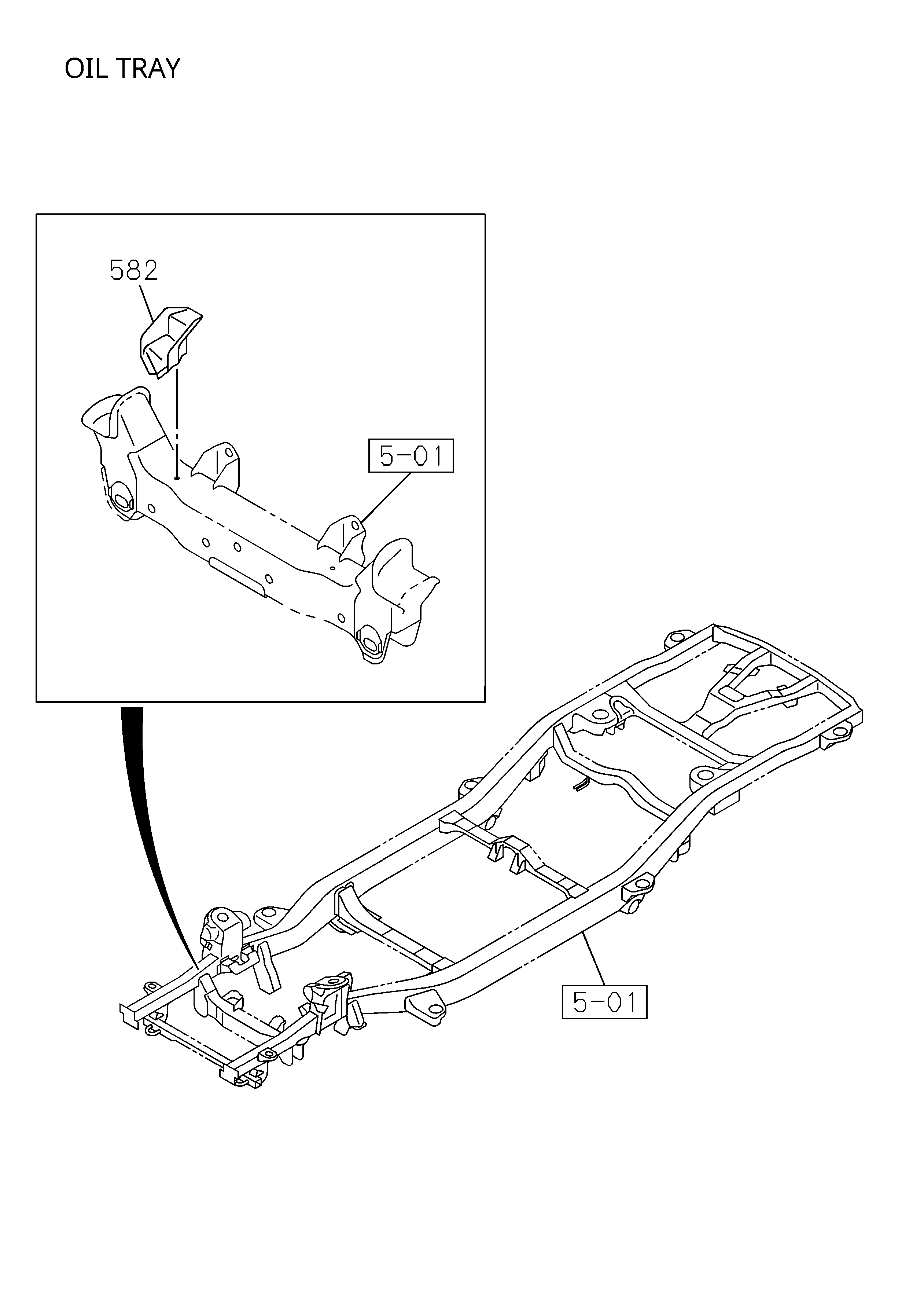

| 582 | I8-97539 204-0 | TRAY; OIL | 1 | 2410- | B | |||
| 008 | I8-94125 113-0 | GASKET; PLUG | 1 | 2410- | B | |||
| 103 | I0-28050 820-0 | BOLT; OIL COOLER | 1 | 2410- | B | (A) M8X20 FLANGE | ||
| 062 | I8-98317 616-0 | COOLER ASM; OIL | 1 | 2410- | B | EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) | ||
| 410 | I8-98312 763-0 | GASKET | 1 | 2410- | A | (D) | ||
| 002 | I8-98165 071-0 | ELEMENT; OIL FILTER | 1 | 2410- | B | |||
| 410 | I8-98312 761-0 | GASKET | 1 | 2410- | A | (B) | ||
| 538 | I8-98312 152-0 | CLIP; FLEX | 1 | 2410- | A | |||
| 410 | I8-98312 764-0 | GASKET | 2 | 2410- | A | (E) | ||
| 267 | I0-91180 208-0 | NUT; OIL COOLER | 2 | 2410- | B | M8 FLANGE | ||
| 076 | I0-28050 830-0 | BOLT; OIL FILTER | 5 | 2410- | A | (D) M8X30 FLANGE | ||
| 103 | I0-28050 845-0 | BOLT; OIL COOLER | 13 | 2410- | B | (B) M8X45 FLANGE |
