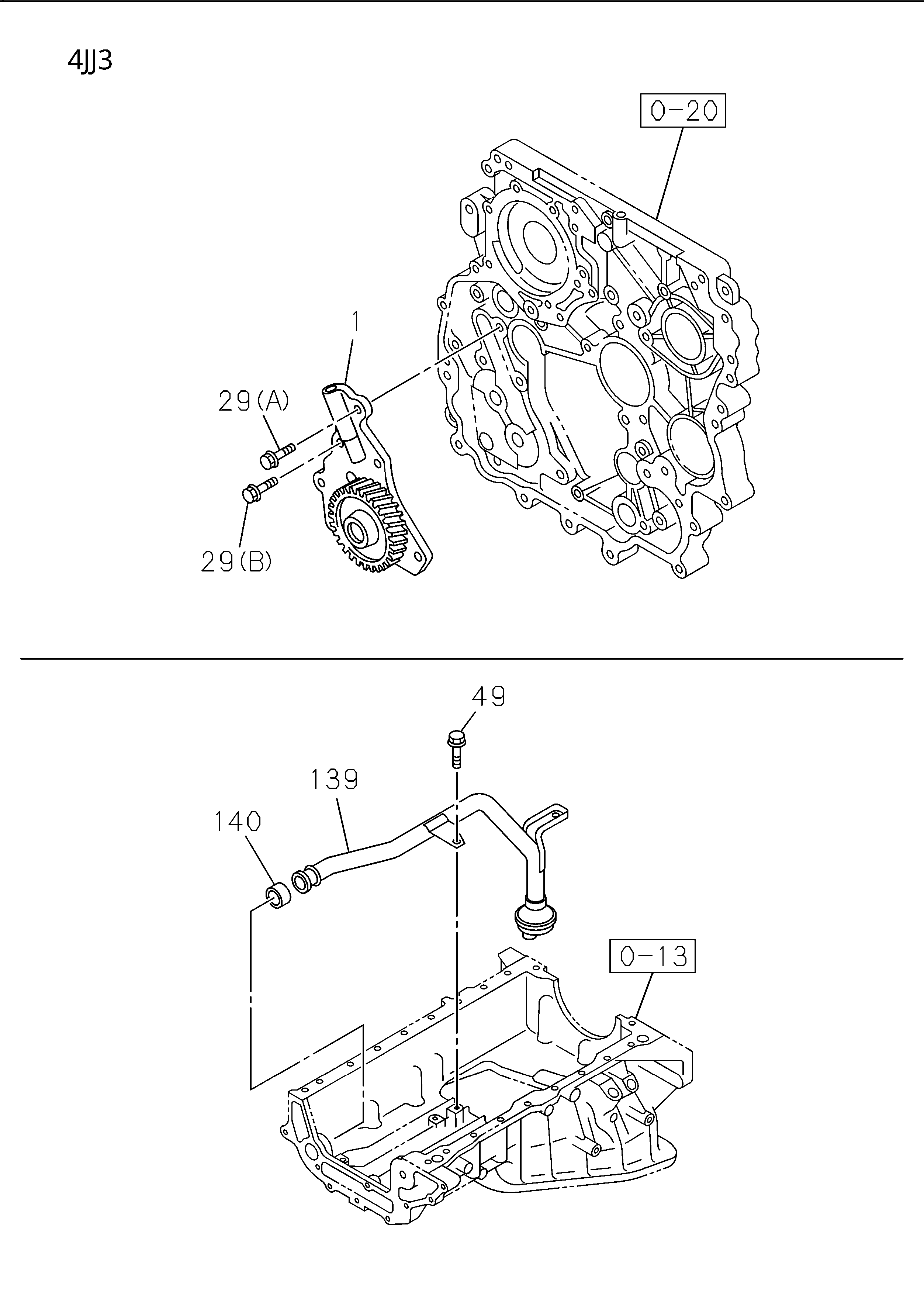

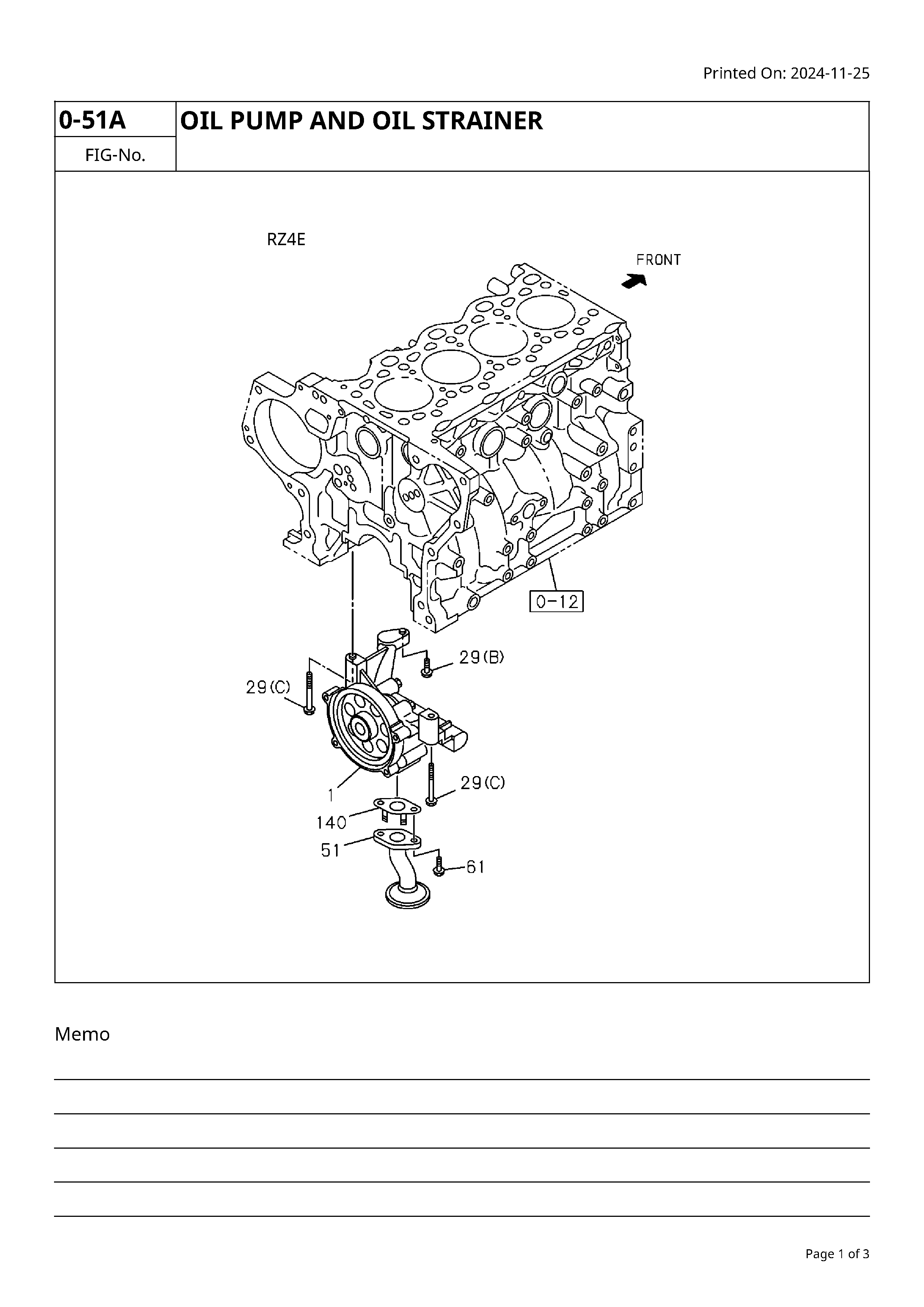

0-51 | 0-51A OIL PUMP AND OIL STRAINER
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 029 | I0-28050 860-0 | BOLT; OIL PUMP | 2 | 2410- | A | (C) M8X60 FLANGE | ||
| 061 | I0-58330 820-0 | BOLT; OIL STRAINER | 2 | 2410- | A | M8X20 HEX SOCKET | ||
| 001 | I8-97529 942-0 | PUMP ASM; OIL | 1 | 2410- | A | |||
| 029 | I0-28050 830-0 | BOLT; OIL PUMP | 1 | 2410- | A | (B) M8X30 FLANGE | ||
| 049 | I0-28050 816-0 | BOLT; STRAINER,OIL PUMP | 2 | 2410- | B | M8X16 FLANGE | ||
| 140 | I8-97356 150-0 | GASKET; OIL STRAINER | 1 | 2410- | B | |||
| 029 | I0-28050 830-0 | BOLT; OIL PUMP | 4 | 2410- | B | (B) M8X30 FLANGE | ||
| 029 | I0-28050 845-0 | BOLT; OIL PUMP | 2 | 2410- | B | (A) M8X45 FLANGE | ||
| 051 | I8-97534 006-1 | STRAINER & PIPE ASM; OIL | 1 | 2410- | A | |||
| 139 | I8-98127 247-0 | PIPE; OIL STRAINER | 1 | 2410- | B | 4X2(UCB***) | ||
| 140 | I8-98248 225-1 | GASKET; OIL STRAINER | 1 | 2410- | A | |||
| 139 | I8-98480 836-0 | PIPE; OIL STRAINER | 1 | 2410- | B | 4X4(UCS***) | ||
| 001 | I8-98232 624-1 | PUMP ASM; OIL | 1 | 2410- | B |
