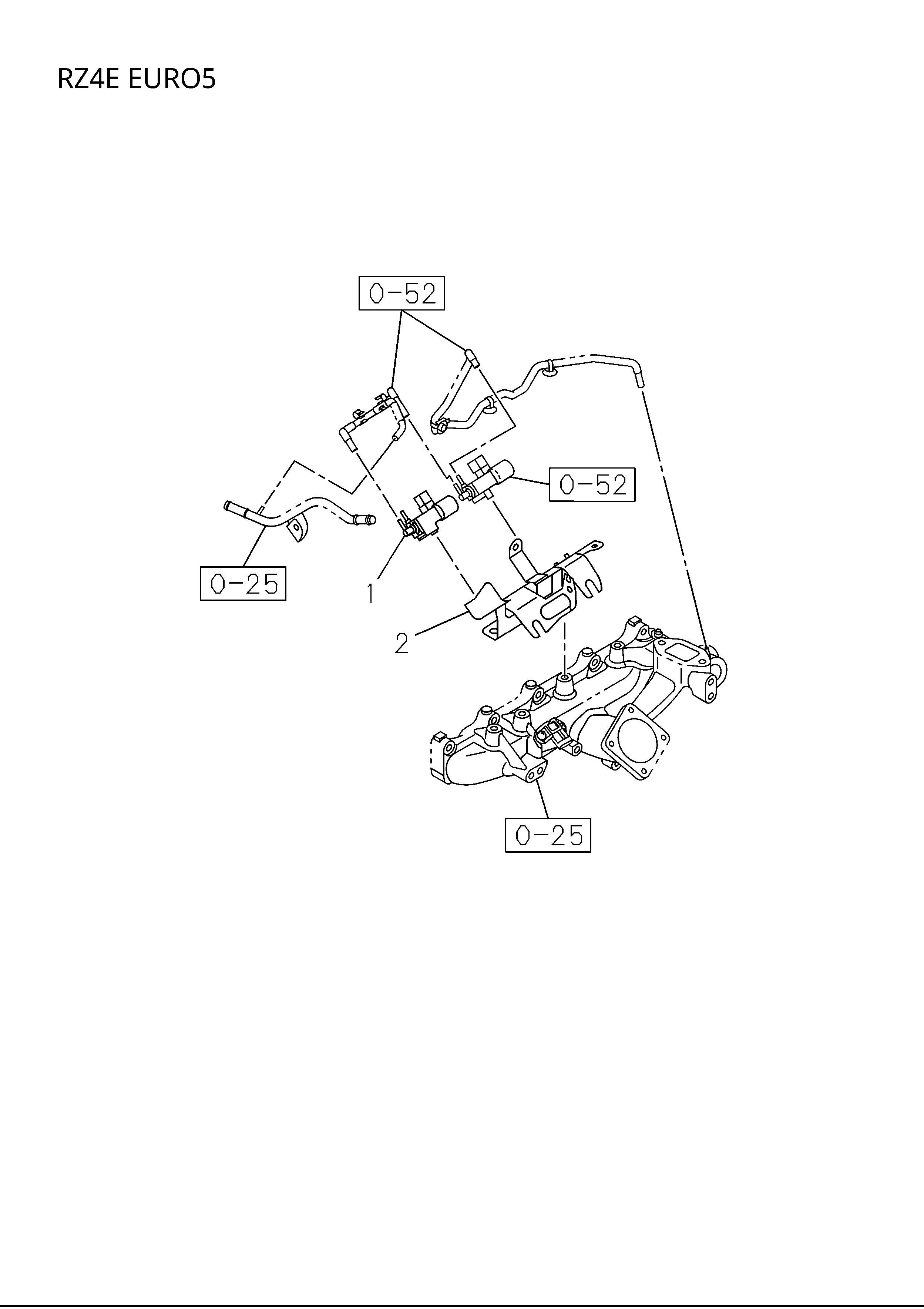

0-56 | 0-56A EMISSION SYSTEM
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 007 | I8-97378 077-0 | BOLT; BRKT,EGR PIPE | 2 | 2410- | B | EURO5 SPECIFICATION(NT5) (B) M8X23 FLANGE | ||
| 036 | I8-97379 384-0 | NUT; EGR PIPE | 1 | 2410- | B | EURO5 SPECIFICATION(NT5) M8 FLANGE | ||
| 036 | I0-91180 208-0 | NUT; EGR PIPE | 2 | 2410- | B | EURO2 SPECIFICATION(NT2) M8 FLANGE | ||
| 002 | I8-97655 185-1 | BRACKET; VSV | 1 | 2410- | A | EURO0 SPECIFICATION(K75) | ||
| 002 | I8-98368 047-3 | BRACKET; VSV | 1 | 2410- | A | EURO5 SPECIFICATION(NT5) | ||
| 383 | I8-97378 062-0 | STUD; EGR PIPE | 1 | 2410- | B | EURO5 SPECIFICATION(NT5) M8X25 L=36 | ||
| 383 | I8-94476 282-0 | STUD; EGR PIPE | 2 | 2410- | B | EURO2 SPECIFICATION(NT2) M8X25 L=36 | ||
| 001 | I8-97798 738-0 | VALVE; VAC SW,EGR | 1 | 2410- | A | EURO5 SPECIFICATION(NT5) | ||
| 001 | I8-94384 335-0 | VALVE; VAC SW,EGR | 1 | 2410- | A | EURO0 SPECIFICATION(K75) | ||
| 006 | I8-97555 003-0 | PIPE; EGR | 1 | 2410- | B | EURO2 SPECIFICATION(NT2) | ||
| 007 | I0-28050 840-0 | BOLT; BRKT,EGR PIPE | 2 | 2410- | B | EURO5 SPECIFICATION(NT5) (A) M8X40 FLANGE |
