0-65 | 0-65 STARTER
MUX
MU-X 2025

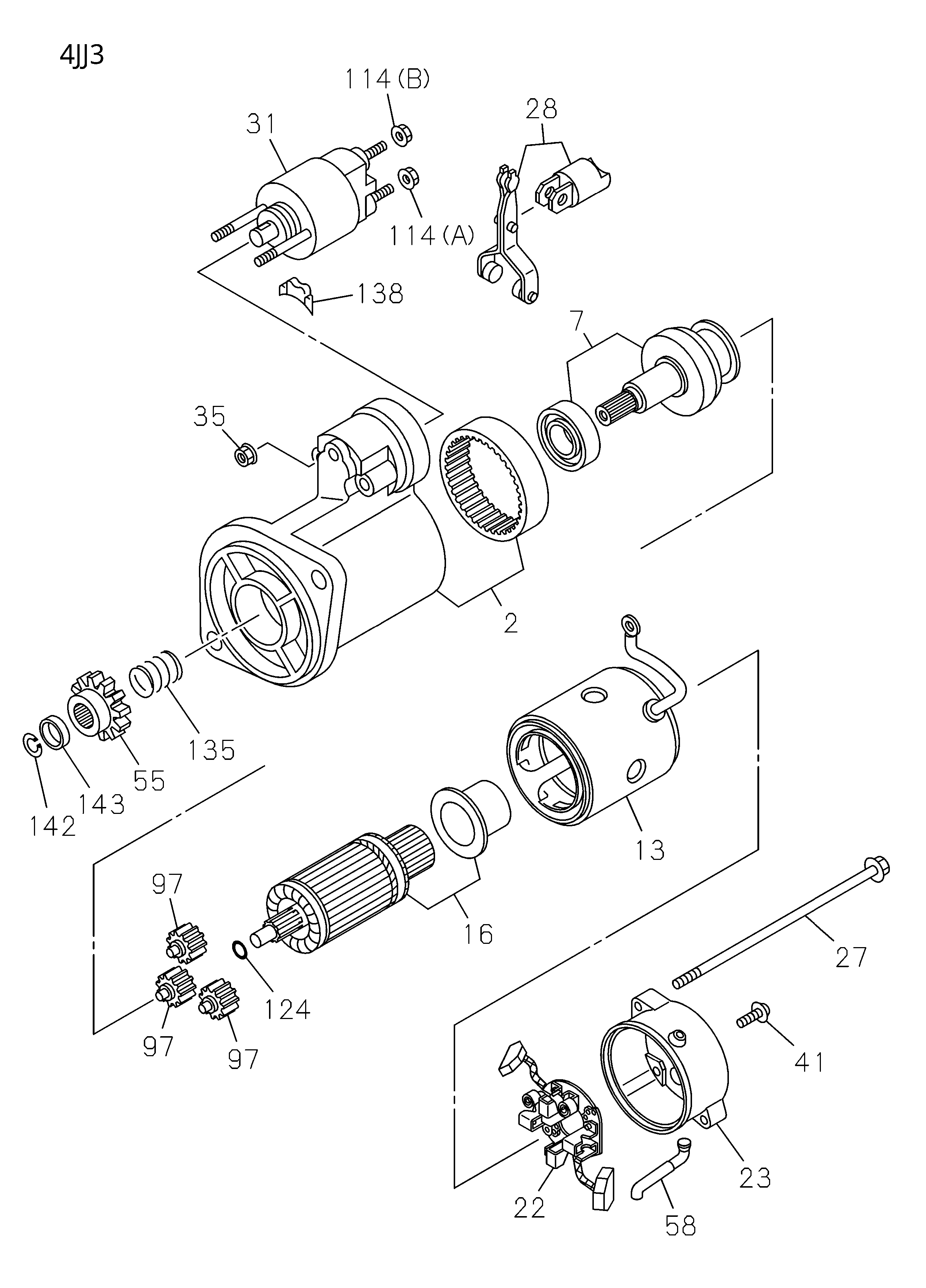

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 124 | I8-98317 301-0 | WASHER; STA | 2 | A | ||||
| 114 | I8-94154 639-0 | NUT; TERMIN | 1 | A | ||||
| 135 | I8-98163 142-0 | SPRING; STAI | 1 | A | ||||
| 058 | I8-97522 327-0 | PIPE; DRAIN | 1 | A | ||||
| 041 | I8-97125 853-0 | SCREW; RR C | 2 | A B | ||||
| 016 | I8-97522 313-0 | ARMATURE; | 1 | A | ||||
| 124 | I8-94367 789-0 | WASHER; STA | 1 | B | ||||
| 023 | I8-97522 318-0 | COVER; RR C< | 1 | A | ||||
| 022 | I8-98283 904-0 | HOLDER; BRl | 1 | B | ||||
| 091 | I8-98283 916-0 | COVER; STAR | 1 | B | ||||
| 035 | I8-98163 135-0 | NUT; MAG SW | 2 | A B | ||||
| 007 | I8-98283 908-0 | CLUTCH ASM | 1 | B | ||||
| 027 | I8-98283 912-0 | BOLT; THROl | 2 | A B | ||||
| 144 | I8-98283 911-0 | PLATE; START | 1 | B | ||||
| 138 | I8-98283 913-0 | SEAL; STARTE | 1 | A B | ||||
| 002 | I8-98283 906-0 | CASE; PINIOr | 1 | B | ||||
| 007 | I8-97522 321-0 | CLUTCH ASM | 1 | A | ||||
| 143 | I8-98163 147-0 | NUT; PINION | 1 | A | ||||
| 055 | I8-97522 314-0 | PINION; CLU | 1 | A | ||||
| 058 | I8-98283 914-0 | PIPE; DRAIN | 1 | B | ||||
| 022 | I8-98317 290-0 | HOLDER; BRl | 1 | A | ||||
| 031 | I8-98163 127-0 | SWITCH; ENG | 1 | A B | ||||
| 097 | I8-98317 295-0 | GEAR; START | 3 | A | ||||
| 002 | I8-97522 316-0 | CASE; PINIOr | 1 | A | ||||
| 114 | I8-94377 238-0 | NUT; TERMIN | 1 | A | ||||
| 142 | I8-98163 146-0 | RING; SNAP.F | 1 | A | ||||
| 023 | I8-98283 907-0 | COVER; RR C< | 1 | B | ||||
| 016 | I8-98283 905-0 | ARMATURE; | 1 | B | ||||
| 028 | I8-98283 909-0 | LEVER; SHIFT | 1 | A B | ||||
| 013 | I8-97522 311-0 | YOKE; START | 1 | A | ||||
| 013 | I8-98283 903-0 | YOKE; START | 1 | B | ||||
| 097 | I8-98283 910-0 | GEAR; START | 3 | B |
