1-10 | 1-10A RADIATOR
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 016 | I8-97942 268-1 | CAP; RAD | 1 | 2410- | AB | |||
| 002 | I8-97553 444-0 | GUIDE; FAN | 1 | 2410- | A | |||
| 566 | I8-97686 482-0 | COLLAR | 2 | 2410- | AB | |||
| 080 | I8-98189 890-0 | BOLT; FAN GUIDE | 3 | 2410- | AB | |||
| 281 | I8-98189 891-0 | NUT; FAN GUIDE | 2 | 2410- | AB | |||
| 311 | I8-97686 481-0 | RUBBER; MTG,RAD | 2 | 2410- | AB | (B) | ||

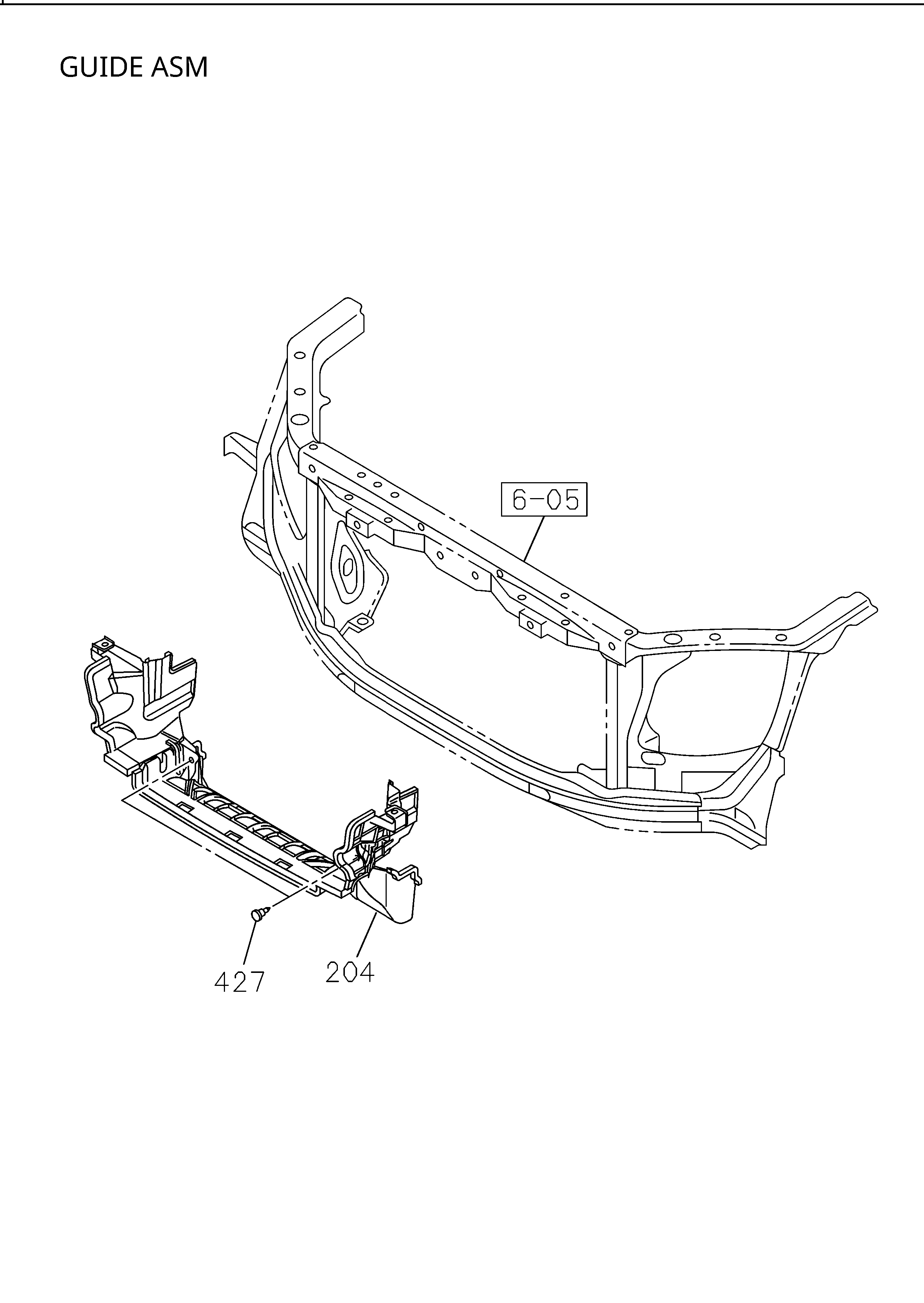

| 204 | I8-97885 521-0 | GUIDE ASM; AIR | 1 | 2410- | A | |||

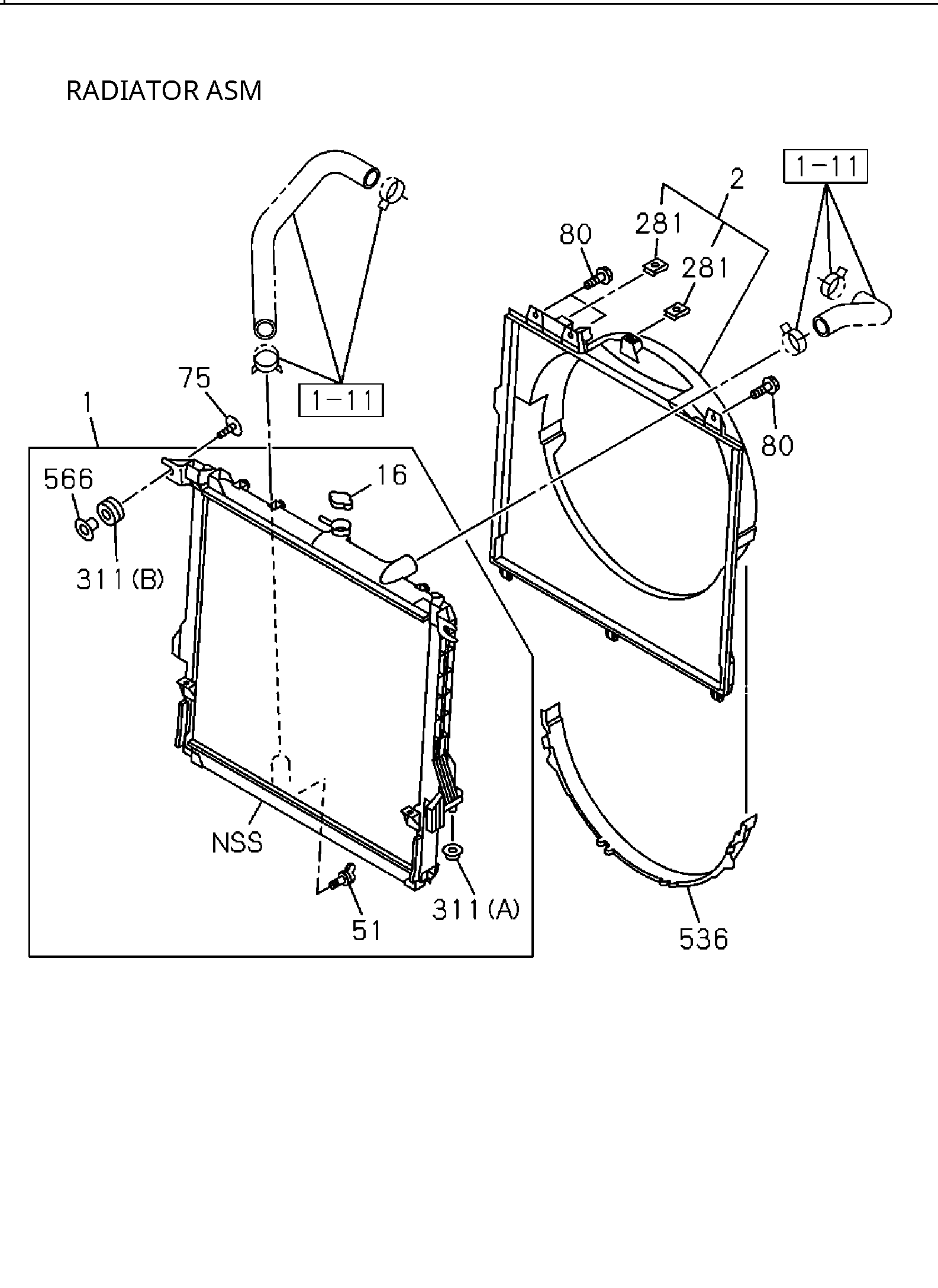

| 001 | I8-97553 432-1 | RADIATOR ASM | 1 | 2410- | A | |||
| 075 | I8-98044 006-0 | BOLT; CUSHION RUBBER,RAD MTG | 2 | 2410- | AB | M8X41 W/WASHER | ||
| 204 | I8-97885 522-0 | GUIDE ASM; AIR | 1 | 2410- | B | EURO5 SPECIFICATION(NT5) | ||
| 427 | I8-97301 188-0 | CLIP; FAN GUIDE | 4 | 2410- | AB | |||
| 204 | I8-97885 521-0 | GUIDE ASM; AIR | 1 | 2410- | B | EURO0 SPECIFICATION(K75),EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) | ||
| 311 | I8-97942 297-0 | RUBBER; MTG,RAD | 2 | 2410- | AB | (A) | ||
| 001 | I8-97553 431-1 | RADIATOR ASM | 1 | 2410- | B | |||
| 002 | I8-97553 442-0 | GUIDE; FAN | 1 | 2410- | B | |||
| 536 | I8-98396 412-0 | SHROUD; FAN | 1 | 2410- | AB | |||
| 051 | I8-97171 437-0 | PLUG; DRAIN | 1 | 2410- | AB | W/GASKET |
