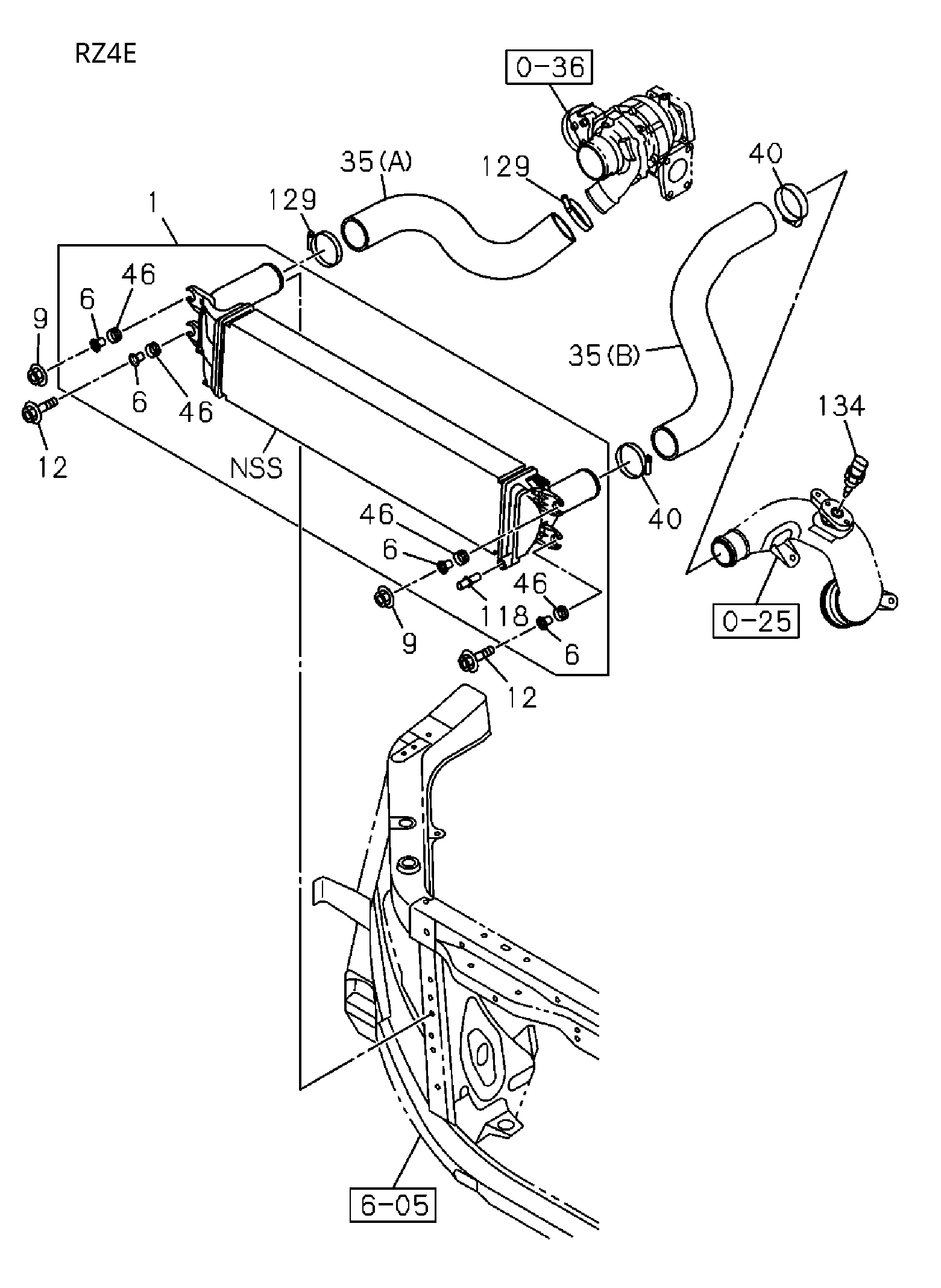

1-35 | 1-35A CHARGE AIR COOLER
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 040 | I8-98133 396-0 | CLIP; RUBBER HOSE | 2 | 2410- | AB | ID=45-65 | ||
| 035 | I8-98394 395-0 | HOSE; CONNECTING | 1 | 2410- | B | (C) | ||
| 118 | I8-98189 894-0 | COCK; DRAIN | 1 | 2410- | AB | |||
| 001 | I8-97551 202-0 | COOLER; CHARGE AIR | 1 | 2410- | B | EURO5 SPECIFICATION(NT5) | ||
| 001 | I8-98396 418-2 | COOLER; CHARGE AIR | 1 | 2410- | A | |||
| 046 | I8-97942 930-0 | RUBBER; MTG,CHARGE AIR COOLER | 4 | 2410- | AB | |||
| 035 | I8-98394 398-3 | HOSE; CONNECTING | 1 | 2410- | B | (D) | ||
| 001 | I8-98396 418-2 | COOLER; CHARGE AIR | 1 | 2410- | B | EURO0 SPECIFICATION(K75),EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) | ||
| 009 | I8-98049 361-0 | NUT; CHARGE AIR COOLER | 2 | 2410- | AB | M8 FLANGE | ||
| 134 | I8-98328 449-0 | SENSOR; INTAKE,AIR TEMPERATURE | 1 | 2410- | A | EURO5 SPECIFICATION(NT5) | ||
| 129 | I8-98194 605-0 | CLAMP; HOSE | 2 | 2410- | AB | ID=60-65 | ||
| 035 | I8-98394 394-0 | HOSE; CONNECTING | 1 | 2410- | A | (A) | ||
| 035 | I8-98394 397-1 | HOSE; CONNECTING | 1 | 2410- | A | EURO5 SPECIFICATION(NT5) (B) | ||
| 006 | I8-97942 932-0 | COLLAR; MTG,CHARGE AIR COOLER | 4 | 2410- | AB | |||
| 012 | I8-98136 077-0 | BOLT; CHARGE AIR COOLER | 2 | 2410- | AB | M8X32.5 W/PL WASHER | ||
| 035 | I8-98394 396-2 | HOSE; CONNECTING | 1 | 2410- | A | EURO0 SPECIFICATION(K75),EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) (B) |
