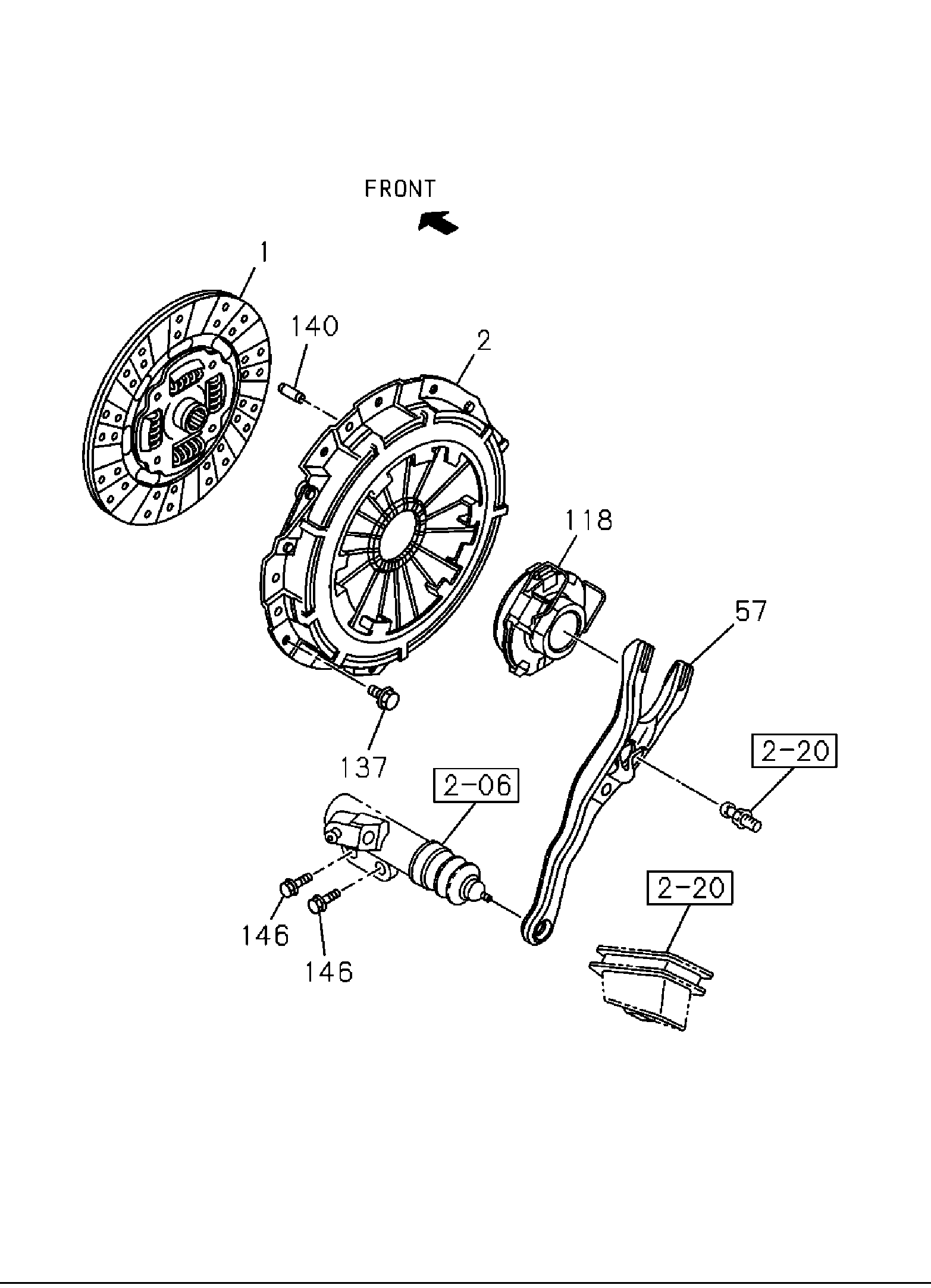

2-01 | 2-01A CLUTCH
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 137 | I0-28050 816-0 | BOLT; CLU C( | 8 | 2410- | A | M8X16 FLANGE | ||
| 146 | I0-28651 025-0 | BOLT; SLAVE | 2 | 2410- | A | M10X25 FLANGE | ||
| 002 | I8-98398 932-1 | PLATE ASM; F | 1 | 2410- | A | |||
| 057 | I8-97946 622-1 | FORK; SHIFT, | 1 | 2410- | A | |||
| 140 | I8-97945 592-0 | PIN;STRAIGH | 4 | 2410- | A | OD=6 L=27 | ||
| 001 | I8-97543 590-0 | DISC; CLUTCH | 1 | 2410- | A | |||
| 118 | I8-98169 826-1 | BEARING; CL | 1 | 2410- | A | NSKD=40.1 OD=78 |
