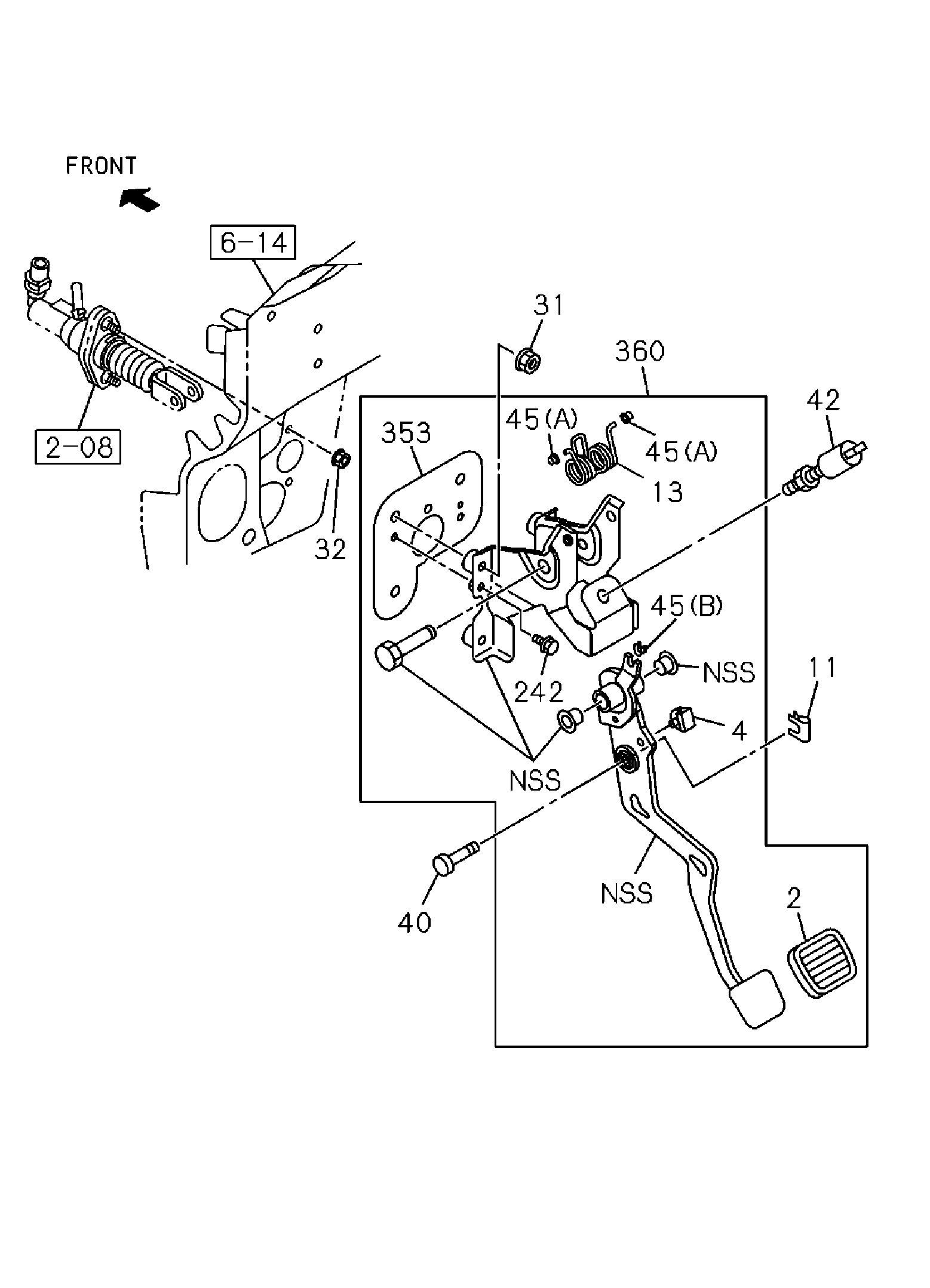

2-03 | 2-03A CLUTCH PEDAL AND CONTROL
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 013 | I8-97942 312-0 | SPRING; ASSIST,CLU PEDAL | 1 | 2410- | A | M/T MVL 6 SPEED 6Y(Y6P) | ||
| 360 | I8-97272 102-0 | PEDAL ASM; CLUTCH | 1 | 2410- | A | M/T MVL 6 SPEED 6Y(Y6P) | ||
| 242 | I0-28050 612-0 | BOLT; BRKT,CLUTCH | 2 | 2410- | A | M/T MVL 6 SPEED 6Y(Y6P) M6X12 FLANGE | ||
| 011 | I8-98007 161-0 | PIN; SNAP,PUSH ROD TO PEDAL | 1 | 2410- | A | M/T MVL 6 SPEED 6Y(Y6P) | ||
| 032 | I0-91180 108-0 | NUT; BRKT TO CLU M/CYL | 2 | 2410- | A | M/T MVL 6 SPEED 6Y(Y6P) M8 FLANGE | ||
| 042 | I8-98154 210-0 | SWITCH; CLU | 1 | 2410- | A | M/T MVL 6 SPEED 6Y(Y6P) | ||
| 045 | I8-97942 313-0 | BUSHING; ASSIST SPRING,CLU PEDAL | 2 | 2410- | A | M/T MVL 6 SPEED 6Y(Y6P) (A) | ||
| 002 | I8-97318 799-0 | COVER; CLU PEDAL | 1 | 2410- | A | M/T MVL 6 SPEED 6Y(Y6P) | ||
| 045 | I8-97942 314-0 | BUSHING; ASSIST SPRING,CLU PEDAL | 1 | 2410- | A | M/T MVL 6 SPEED 6Y(Y6P) (B) | ||
| 040 | I8-97312 338-0 | PIN; JOINT,CLU DAMPER | 1 | 2410- | A | M/T MVL 6 SPEED 6Y(Y6P) OD=7.9 L=27.5 | ||
| 031 | I0-91180 108-0 | NUT; MTG BRKTTO BODY | 3 | 2410- | A | M/T MVL 6 SPEED 6Y(Y6P) M8 FLANGE | ||
| 353 | I8-97279 740-0 | PLATE ASM; CLUTCH PEDAL | 1 | 2410- | A | M/T MVL 6 SPEED 6Y(Y6P) | ||
| 004 | I8-97947 783-0 | STOPPER; CLU PEDAL | 1 | 2410- | A | M/T MVL 6 SPEED 6Y(Y6P) |
