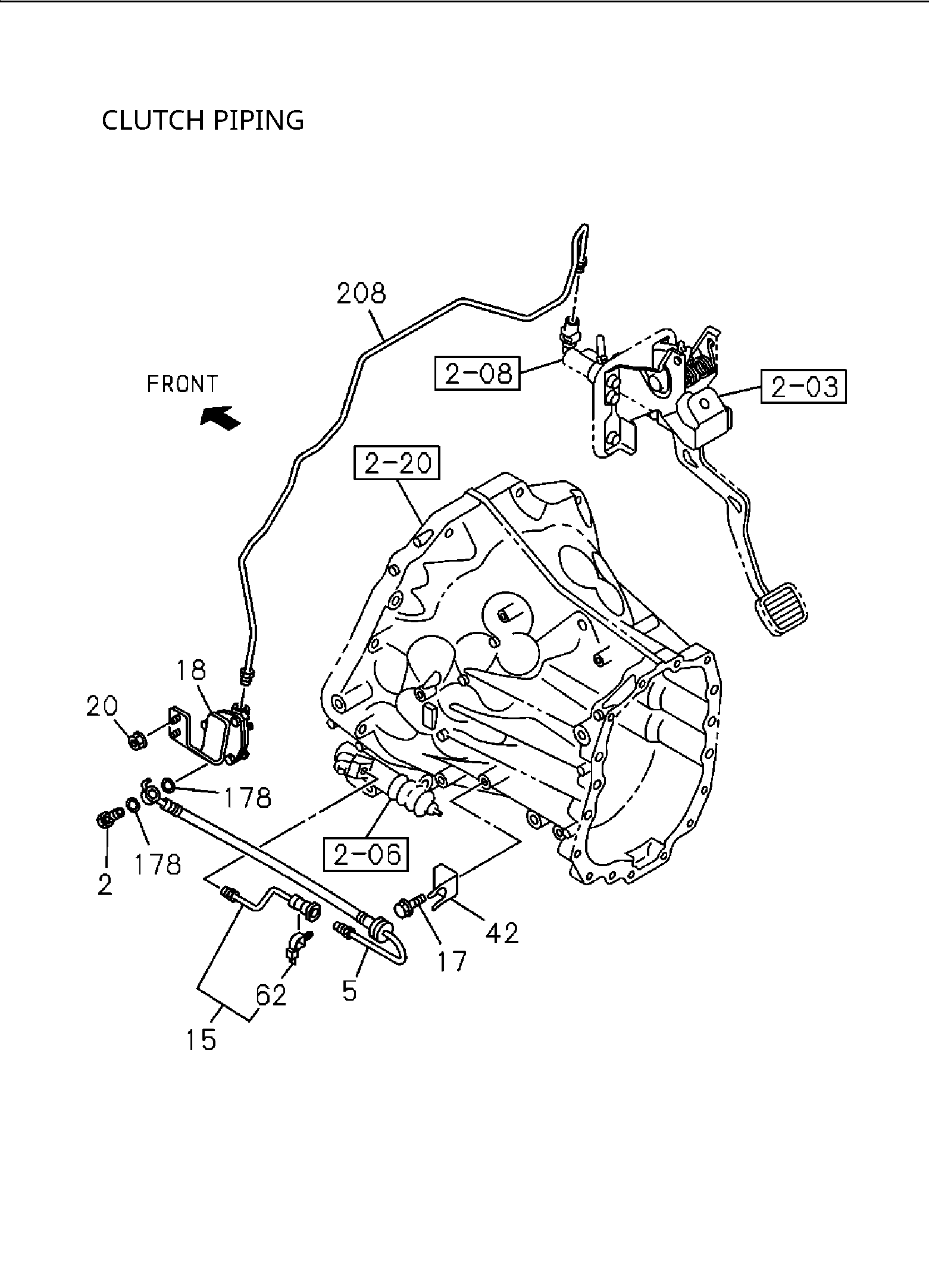

2-05 | 2-05A CLUTCH PIPING
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 020 | I0-91180 106-0 | NUT; CLU Oil | 2 | 2410- | A | M6 FLANGE | ||
| 002 | I8-97359 818-0 | BOLT; EYE,SL | 1 | 2410- | A | M10X22 EYE-BOLT | ||
| 208 | I8-98395 385-1 | PIPE; OIL,M/ | 1 | 2410- | A | |||
| 062 | I8-97553 111-0 | CLIP; CLU PIF | 1 | 2410- | A | |||
| 042 | I8-98398 927-0 | BRACKET; FLI | 1 | 2410- | A | |||
| 080 | I8-97947 824-0 | CLIP; HOSE | 2 | 2410- | A | ID=12 WO/PVC COATING | ||
| 005 | I8-97541 765-0 | HOSE; FLEX,C | 1 | 2410- | A | |||
| 017 | I0-28050 816-0 | BOLT; BRKT | 1 | 2410- | A | M8X16 FLANGE | ||
| 018 | I8-98398 919-0 | DAMPER ASM | 1 | 2410- | A | |||
| 015 | I8-97541 767-0 | PIPE; CLU,FLE | 1 | 2410- | A | |||
| 178 | I9-09571 410-0 | GASKET; FLE> | 2 | 2410- | A | ID=10.2 OD=16.0 | ||

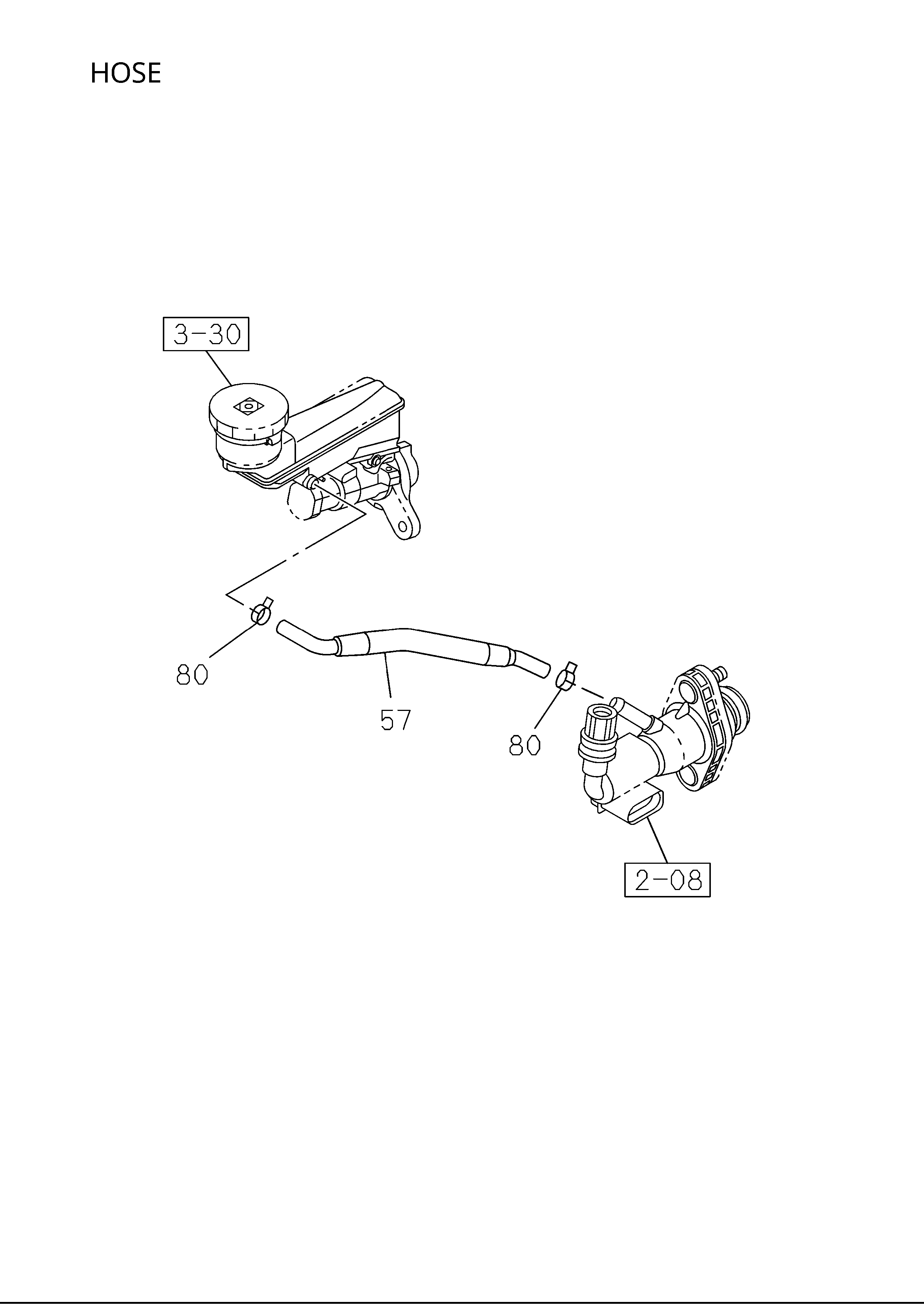

| 057 | I8-98398 912-0 | HOSE; CLU M | 1 | 2410- | A |
