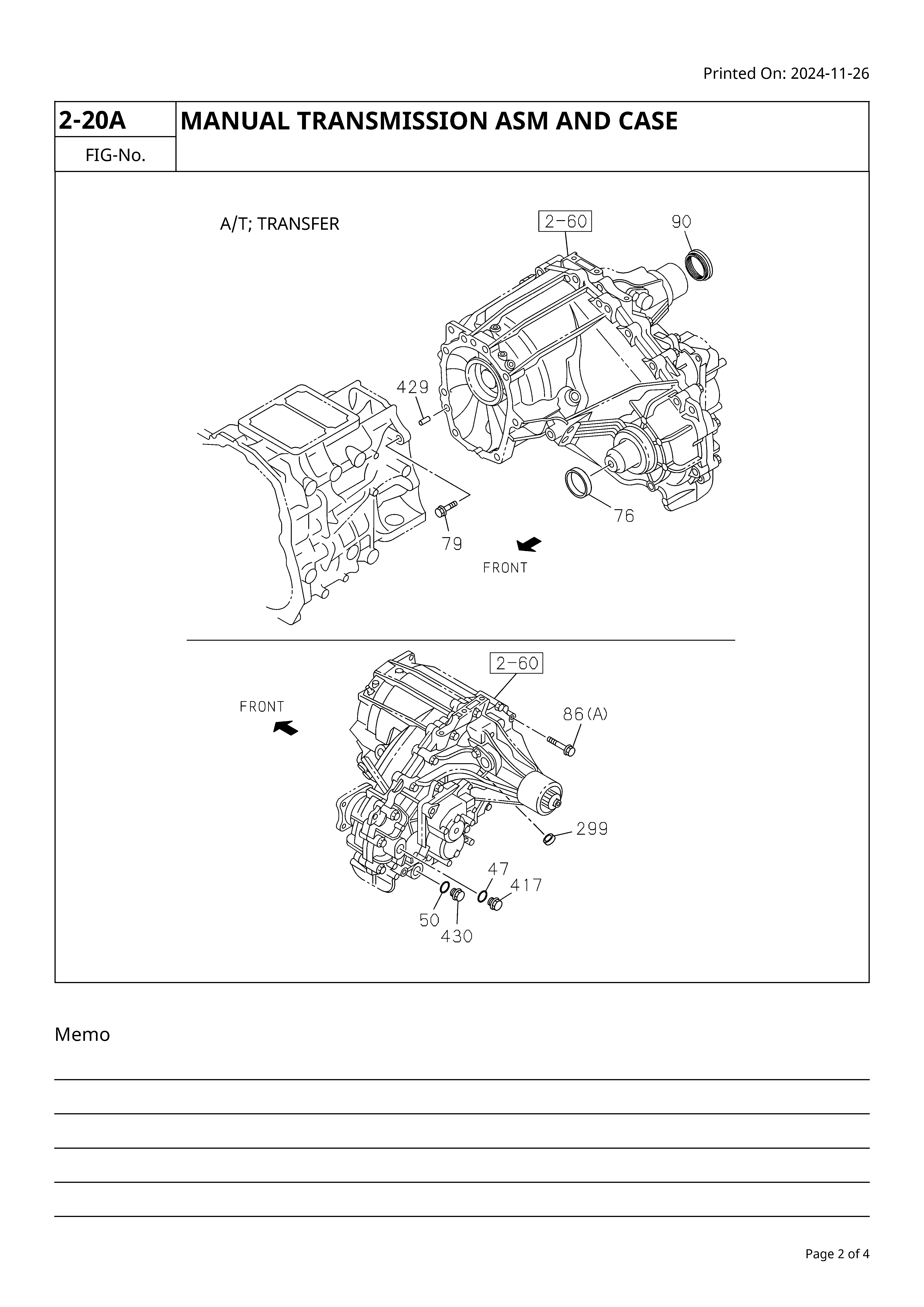

2-20 | 2-20A MANUAL TRANSMISSION ASM AND CASE
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 434 | I7-55227 236-0 | HOUSING; CLU | 1 | 2410- | A | EXC. MADEN JAPAN TRANSMISSION<8QP> | ||
| 033 | I8-97947 839-0 | SEAL; OIL,FRT COVER,T/M | 1 | 2410- | A | EXC. MADEN JAPAN TRANSMISSION<8QP> NOK | ||
| 430 | I8-97365 374-0 | PLUG; OIL DRAIN | 1 | 2410- | B | 4X4(UCS***) M20X12 W/MAGNET | ||
| 417 | I8-97365 373-0 | PLUG; OIL FILLER,TRANS | 1 | 2410- | A | M20X12 | ||
| 090 | I8-98189 443-0 | SEAL; OIL,RR COVER | 1 | 2410- | B | 4X4(UCS***) NOK | ||
| 050 | I8-97115 712-0 | GASKET; DRAIN PLUG | 1 | 2410- | A | ID=17 | ||
| 315 | I0-28050 840-0 | BOLT; CASE | 11 | 2410- | A | (A) M8X40 FLANGE | ||
| 045 | I8-97115 712-0 | GASKET; FILLER PLUG | 1 | 2410- | A | ID=17 | ||
| 028 | I8-98275 338-1 | COVER; FRT,TRANS CASE | 1 | 2410- | A | |||
| 029 | I8-98275 947-0 | BOLT; FRT COVER | 9 | 2410- | A | M8X30 FLANGE | ||
| 034 | I8-97500 668-0 | COVER; DUST,SHIFT FORK | 1 | 2410- | A | |||
| 013 | I8-97072 827-0 | SUPPORT; SHIFT FORK | 1 | 2410- | A | L=47.5 | ||
| 299 | I8-94173 641-0 | PLUG; SHIFTER ROD | 2 | 2410- | B | 4X4(UCS***) OD=15.6 | ||
| 414 | I8-98275 350-1 | COVER; DUST,RR COVER | 1 | 2410- 1 | A | |||
| 090 | I8-98189 443-0 | SEAL; OIL,RR COVER | 1 | 2410- | A | NOK | ||
| 430 | I8-97365 374-0 | PLUG; OIL DRAIN | 1 | 2410- | A | M20X12 W/MAGNET | ||
| 047 | I8-97115 712-0 | GASKET; FILLER PLUG,TRANSFER CASE | 1 | 2410- | B | 4X4(UCS***)D=17 | ||
| 316 | I8-94249 524-2 | MAGNET; TRANS CASE | 1 | 2410- 1 | A | |||
| 417 | I8-97365 373-0 | PLUG; OIL FILLER,TRANS | 1 | 2410- | B | 4X4(UCS***) M20X12 | ||
| 421 | I8-97494 008-0 | COVER; RR,TRANS | 1 | 2410- | A | MADEN JAPAN TRANSMISSION<8QP> | ||
| 033 | I8-97046 699-3 | SEAL; OIL,FRT COVER,T/M | 1 | 2410- | A | MADEN JAPAN TRANSMISSION<8QP> NOK | ||
| 086 | I0-28050 845-0 | BOLT; RR COVER | 16 | 2410- | B | 4X4(UCS***) (A) M8X45 FLANGE | ||
| 079 | I0-28051 045-0 | BOLT; TRANSFER CASE | 7 | 2410- | AB | 4X4(UCS***) M10X45 FLANGE | ||
| 076 | I8-97238 999-0 | SEAL; OIL,TRANSFER CASE | 1 | 2410- | B | 4X4(UCS***) NOK | ||
| 001 | I8-97660 746-0 | TRANSMISSION ASM; MANUAL | 1 | 2410- | A | EXC. MADEN JAPAN TRANSMISSION<8QP> | ||
| 315 | I0-28050 800-0 | BOLT; CASE | 6 | 2410- | A | (B) M8X100 FLANGE | ||
| 001 | I8-97660 739-0 | TRANSMISSION ASM; MANUAL | 1 | 2410- | A | MADEN JAPAN TRANSMISSION<8QP> | ||
| 421 | I8-97494 010-0 | COVER; RR,TRANS | 1 | 2410- | A | EXC. MADEN JAPAN TRANSMISSION<8QP> | ||
| 429 | I8-97135 423-0 | PIN; STRAIGHT | 2 | 2410- | AB | 4X4(UCS***) OD=10 L=20 | ||
| 689 | I9-09571 412-0 | GASKET | 1 | 2410- 1 | A | ID=12.2 OD=18 | ||
| 086 | I8-98275 948-0 | BOLT; RR COVER | 1 | 2410- | A | (B) M12X63 FLANGE | ||
| 434 | I8-98275 339-0 | HOUSING; CLU | 1 | 2410- | A | MADEN JAPAN TRANSMISSION<8QP> | ||
| 050 | I8-97115 712-0 | GASKET; DRAIN PLUG | 1 | 2410- | B | 4X4(UCS***)D=17 |
