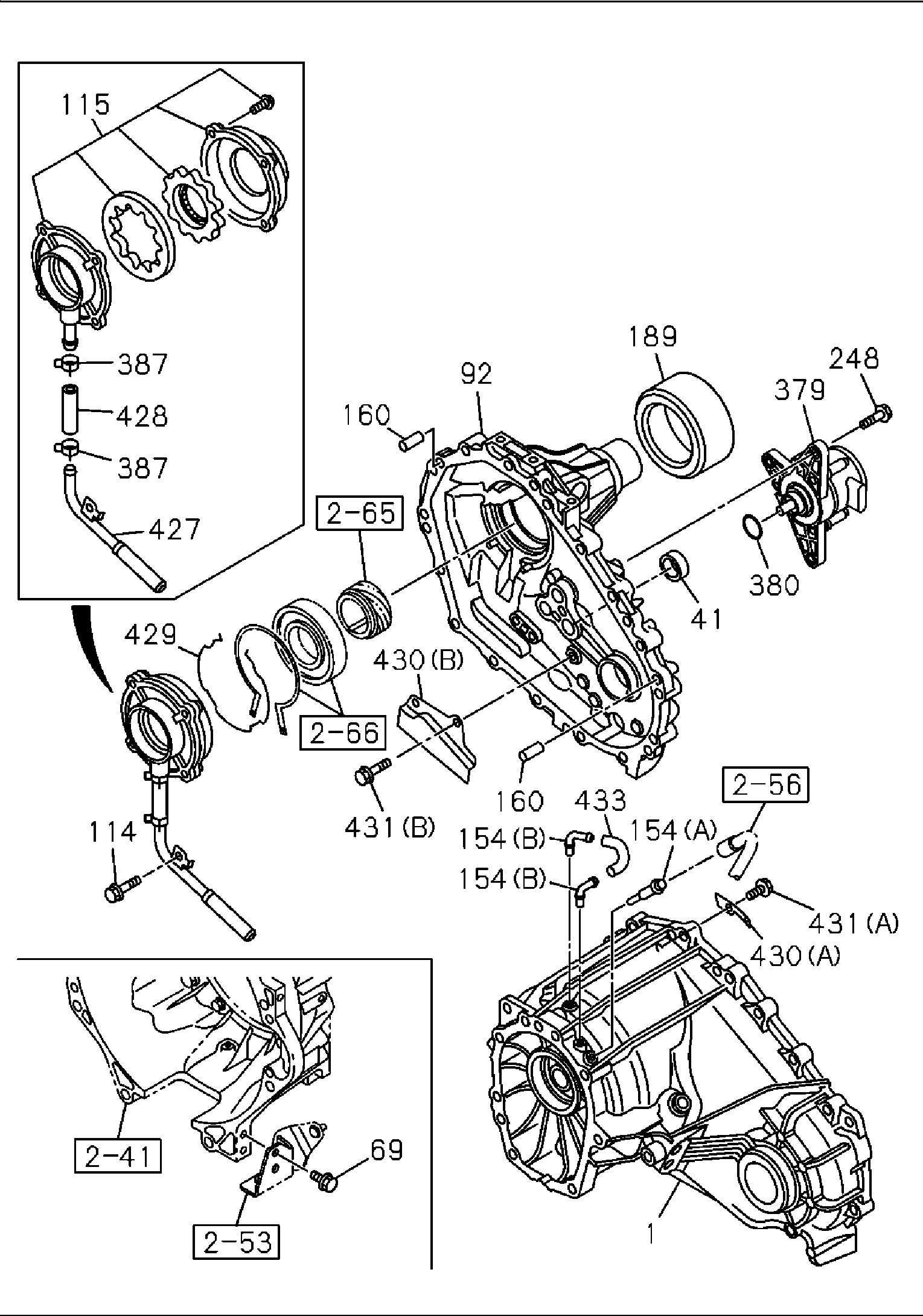

2-61 | 2-61A TRANSFER CASE AND GEAR SHIFTER
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 160 | I8-97135 423-0 | PIN; KNOCK,SHIFT CASE | 2 | 2410- | B | A/T 6 SPEED AISIN(Y6A) OD=10 L=20 | ||
| 154 | I8-97358 319-0 | PIPE; BREATHER | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) (A) | ||
| 001 | I7-55228 369-0 | CASE; TRANSFER | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) | ||
| 041 | I8-97238 998-0 | SEAL; OIL,SHIFT ROD | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) | ||
| 154 | I8-97358 318-0 | PIPE; BREATHER | 2 | 2410- | B | A/T 6 SPEED AISIN(Y6A) (B) | ||
| 114 | I0-28650 820-0 | BOLT; OIL PUMP,TRANSFER | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) M8X20 FLANGE | ||
| 115 | I8-97267 129-1 | PUMP ASM; OIL,TRANSFER | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) | ||
| 428 | I8-98064 220-0 | HOSE; OIL PUMP | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) L=50 | ||
| 069 | I0-28051 020-0 | BOLT; BRKT | 2 | 2410- | AB | 4JJ3 ENG(LNG) M10X20 FLANGE | ||
| 430 | I8-98063 360-0 | PLATE; BAFFLE | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) (B) | ||
| 429 | I8-97240 666-0 | RING; SNAP,OIL PUMP | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) | ||
| 069 | I0-28051 020-0 | BOLT; BRKT | 2 | 2410- | AB | RZ4E-TC ENG(RDZ) A/T 6 SPEED AISIN(Y6A) M10X20 FLANGE | ||
| 380 | I8-97318 475-0 | GASKET; ACTUATOR | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) ID=29.7 OD=36.7 | ||
| 248 | I0-28650 830-0 | BOLT | 3 | 2410- | B | A/T 6 SPEED AISIN(Y6A) M8X30 FLANGE | ||
| 387 | I8-97329 628-0 | CLAMP; HOSE | 2 | 2410- | B | A/T 6 SPEED AISIN(Y6A) ID=16 | ||
| 431 | I0-28650 820-0 | BOLT; BAFFLE PLATE | 2 | 2410- | B | A/T 6 SPEED AISIN(Y6A) (B) M8X20 FLANGE | ||
| 189 | I8-97483 602-0 | COVER; DUST,OIL SEAL | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) | ||
| 379 | I8-97244 446-0 | ACTUATOR; TRANSFER,2-4 SHIFT | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) | ||
| 427 | I8-98063 358-0 | SCREEN; OIL PUMP | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) | ||
| 433 | I8-97236 080-0 | HOSE; AIR,TRANSFER | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) | ||
| 430 | I8-97239 130-0 | PLATE; BAFFLE | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) (A) | ||
| 092 | I8-97497 447-0 | COVER; RR,TRANSFER | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) | ||
| 431 | I0-28650 616-0 | BOLT; BAFFLE PLATE | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) (A) M6X16 FLANGE |
