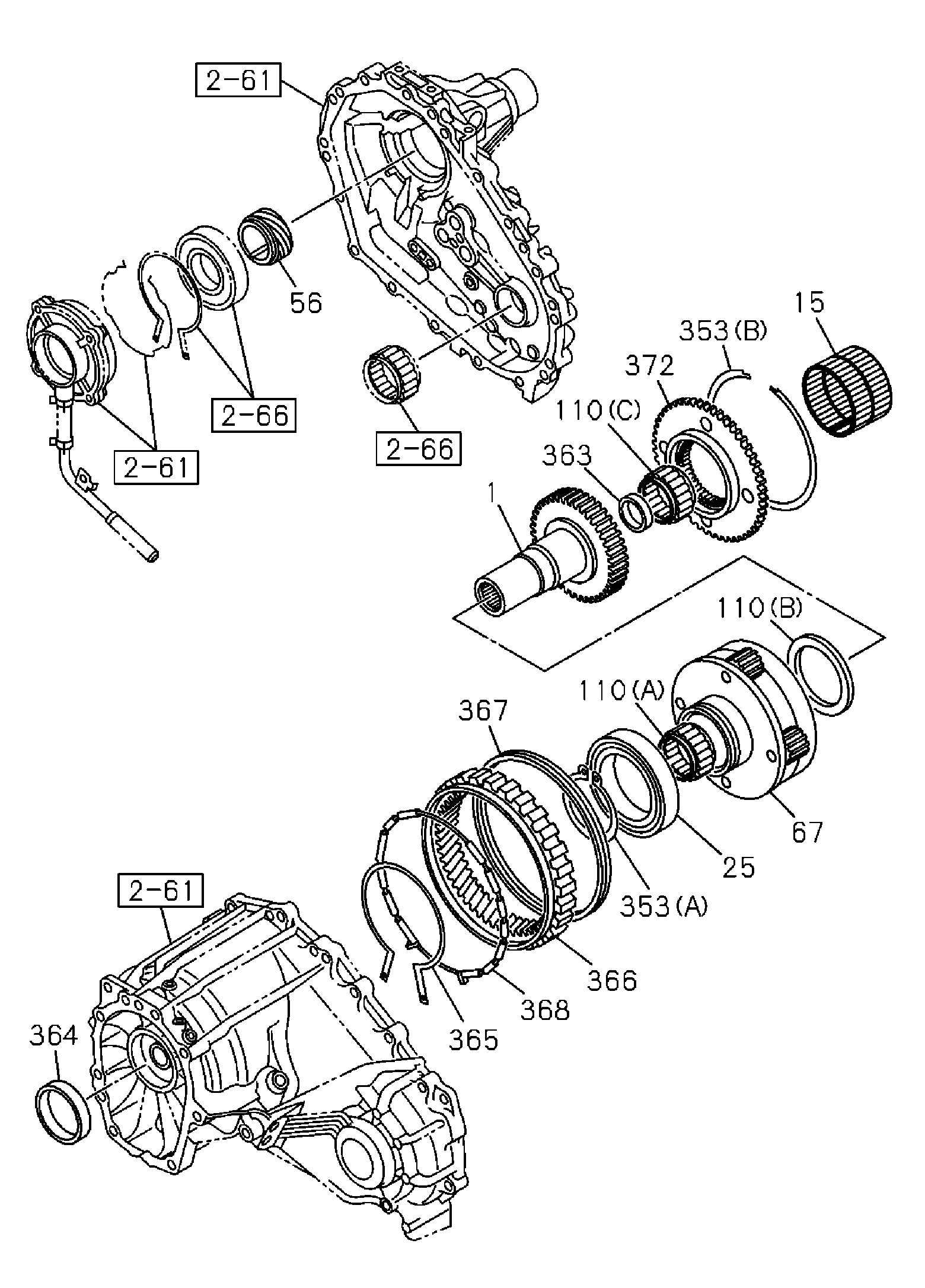

2-65 | 2-65A MANUAL TRANSFER GEAR; INPUT AND IDLE
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 353 | I8-97305 406-0 | RING; SNAP,CARRIER | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) (B) ID=137 | ||
| 372 | I8-97358 244-0 | TEETH; DOG,PLANETARY | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) Z=56 | ||
| 110 | I8-97234 739-0 | BEARING; NEEDLE | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) (A) ID=50 | ||
| 365 | I8-97305 010-1 | RING; RETAINING,OUTER INPUT | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) ID=97 | ||
| 056 | I8-97499 658-0 | GEAR; SPD DRIVE,TRANSFER | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) Z=6 | ||
| 364 | I8-97238 999-0 | SEAL; OIL,COVER,INPUT | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) NOK | ||
| 067 | I8-98158 116-0 | CARRIER; TRA | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) | ||
| 025 | I8-97234 735-0 | BEARING; BALL,INPUT SHAFT | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) NSK | ||
| 363 | I8-97238 725-0 | CAP; SEAL,INPUT SHAFT | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) NOK | ||
| 110 | I8-97234 741-0 | BEARING; NEEDLE | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) (B) ID=56 | ||
| 366 | I7-55228 370-0 | GEAR; INTERNAL,HIGH-LOW | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) Z=27 | ||
| 110 | I8-97234 743-0 | BEARING; NEEDLE | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) (C) ID=32 | ||
| 367 | I8-97247 459-0 | RING; RETAINING,SPIRAL TYPE | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) ID=162 OD=176 | ||
| 015 | I7-55184 857-0 | BEARING; HIGH GEAR,TRANSFER | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) | ||
| 353 | I8-97305 403-0 | RING; SNAP,CARRIER | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) (A) ID=65.5 | ||
| 368 | I7-55228 371-0 | RING; DAMPER,TRANSFER | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) ID=168.4 OD=178 | ||
| 001 | I8-98118 924-1 | SHAFT; GEAR,INPUT | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) |
