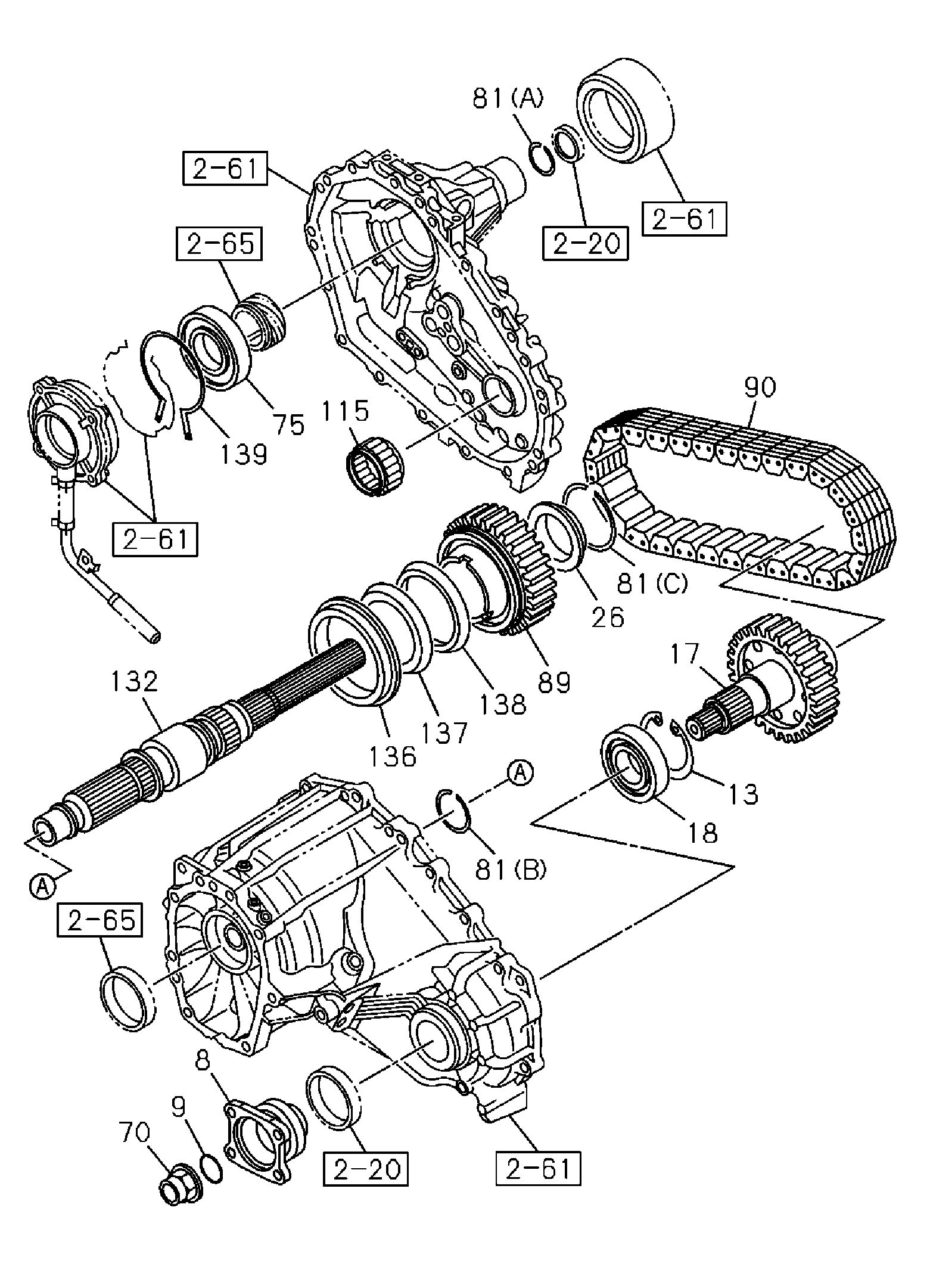

2-66 | 2-66A MANUAL TRANSFER GEAR; OUTPUT
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 136 | I8-94363 054-1 | BLOCK RING; 2-4 | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) Z=48 | ||
| 138 | I8-94363 056-0 | RING; INSIDE,2-4 | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) OD=95.8 | ||
| 018 | I8-94422 172-1 | BEARING; BALL,OUTPUT,FRT | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) NSK | ||
| 081 | I8-97305 407-0 | RING; SNAP | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) (C) T=2.15 RED | ||
| 089 | I7-55184 856-0 | SPROCKET; DRIVE | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) Z=48 | ||
| 139 | I8-97305 012-0 | RING; RETAINING,RR OUTPUT | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) ID=76 | ||
| 009 | I8-94483 035-0 | GASKET; SHAFT | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) ID=29.7 OD=36.1 | ||
| 081 | I8-97305 409-0 | RING; SNAP | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) (C) T=2.05 BLUE | ||
| 081 | I8-97305 408-0 | RING; SNAP | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) (C) T=2.10 NON COLOR | ||
| 008 | I8-97319 825-2 | FLANGE; OUTPUT | 1 | 2410- | | B | A/T 6 SPEED AISIN(Y6A) | ||
| 026 | I8-97239 774-0 | WASHER; THRUST | 1 | 2410- | | B | A/T 6 SPEED AISIN(Y6A) | ||
| 081 | I8-97305 410-0 | RING; SNAP | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) (C) T=2.00 WHITE | ||
| 137 | I8-94363 055-1 | RING; OUTSIDE,2-4 | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) OD=90.0 | ||
| 132 | I7-55184 855-0 | SHAFT; MAIN,TRANSFER | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) | ||
| 013 | I8-97305 402-0 | RING; SNAP,OUTPUT,FRT | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) ID=67 | ||
| 075 | I8-97234 737-0 | BEARING; BALL,RR OUTPUT | 1 | 2410- | | B | A/T 6 SPEED AISIN(Y6A) | ||
| 115 | I8-97234 747-0 | BEARING; NEEDLE | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) | ||
| 070 | I8-97358 603-0 | NUT; RR OUTPUT SHAFT,TRANSFER | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) M36 FLANGE | ||
| 017 | I7-55184 858-0 | SHAFT; OUTPUT | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) Z=35 | ||
| 090 | I7-55184 865-0 | CHAIN; DRIVE | 1 | 2410- | | B | A/T 6 SPEED AISIN(Y6A) | ||
| 081 | I8-97305 405-0 | RING; SNAP | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) (B) T=1.4 | ||
| 081 | I8-97305 404-1 | RING; SNAP | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) (A) T=1.9 |
