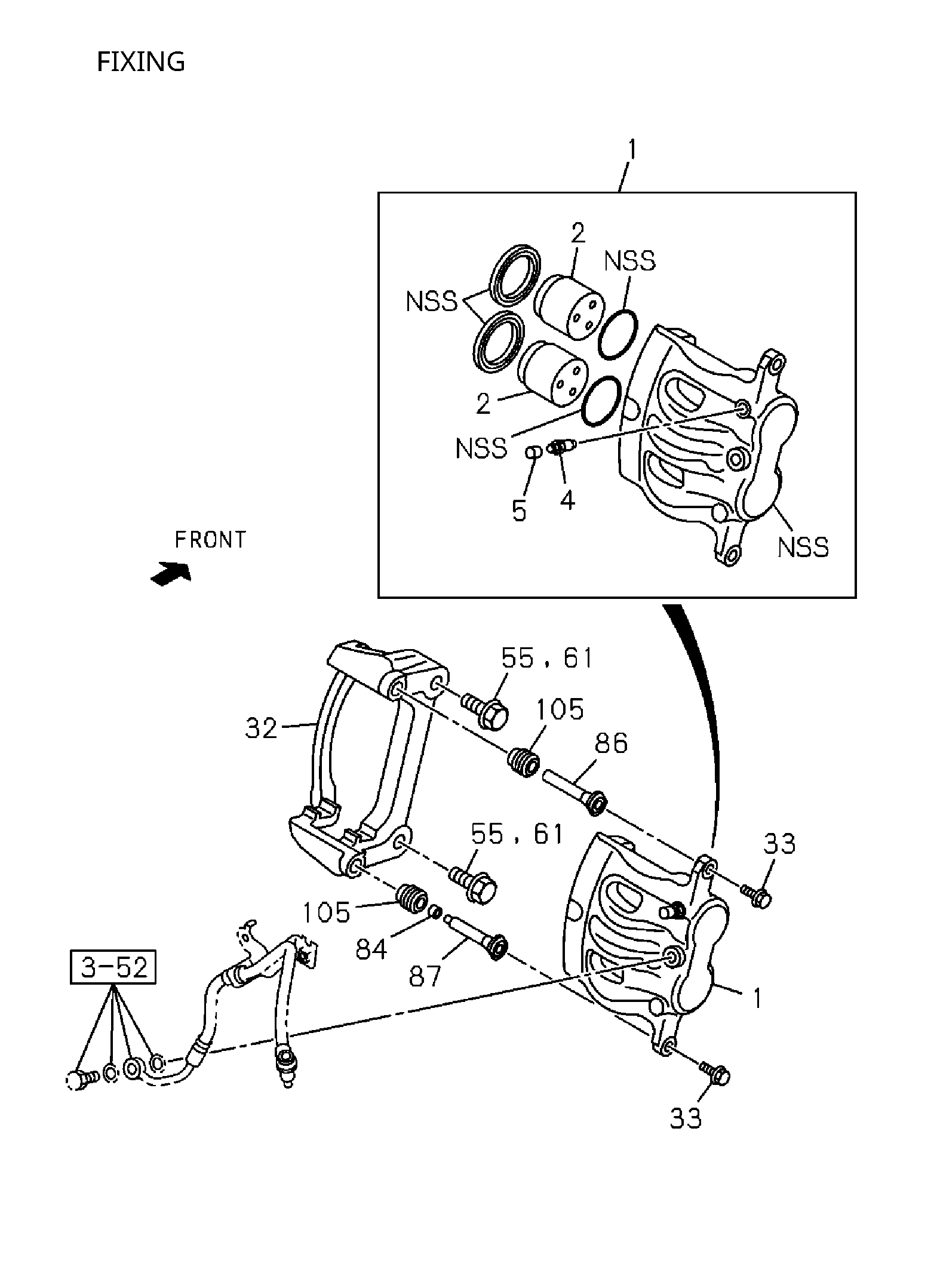

3-02 | 3-02A FRONT DISC BRAKE CALIPER
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 032 | I8-98489 324-0 | SUPPORT; FRT DISC BRK | 2 | 2410- | AB | |||
| 087 | I8-98489 325-0 | PIN; LOCK | 2 | 2410- | AB | |||
| 133 | I8-97827 960-1 | PAD KIT; DISC BRK,W/O SHIM & CLIP | 1 | 2410- | AB | INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF),CENTRAL AMERICA EQUIPMENT(E03),GENERAL EXPORT EQUIPMENT(TAA) W/GREASE | ||
| 001 | I8-98489 317-0 | CALIPER; FRT DISC BRK | 1 | 2410- | AB | |||
| 001 | I8-98489 318-0 | CALIPER; FRT DISC BRK | 1 | 2410- | AB | |||

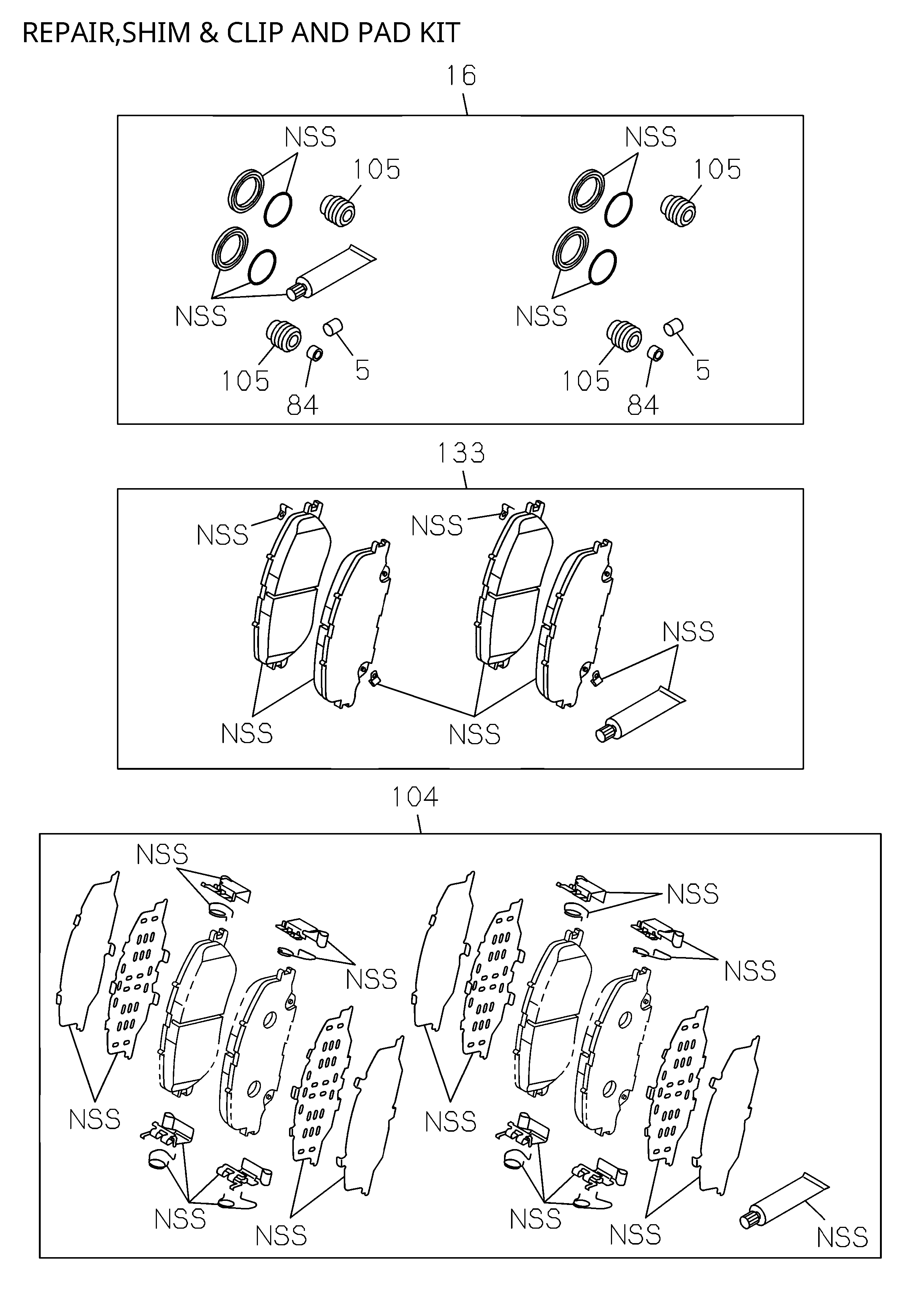

| 016 | I8-97505 681-0 | REPAIR KIT; CALIPER,DISC BRK,FRT | 1 | 2410- | AB | W/GREASE | ||
| 005 | I8-98050 479-0 | CAP; BLEEDER,DISC BRK,FRT | 2 | 2410- | AB | |||
| 086 | I8-98489 326-0 | PIN; GUIDE | 2 | 2410- | AB | |||
| 061 | I8-98395 588-0 | BOLT; SUPPORT BRKT TO KNUCKLE | 2 | 2410- | AB | |||
| 084 | I8-97487 324-0 | BUSHING; LOCK PIN | 2 | 2410- | AB | |||
| 104 | I8-97827 962-0 | SHIM & CLIP KIT; DISC BRK,FRT | 1 | 2410- | AB | W/GREASE | ||
| 055 | I8-98395 588-0 | BOLT; SUPPORT BRKT TO DISC BRK | 2 | 2410- | AB | |||
| 004 | I8-98050 476-0 | SCREW; BLEEDER,DISC BRK,FRT | 2 | 2410- | AB | |||
| 133 | I8-97827 961-0 | PAD KIT; DISC BRK,W/O SHIM & CLIP | 1 | 2410- | AB | SOUTH AFRICA EQUIPMENT(B02) W/GREASE | ||
| 002 | I8-98078 000-0 | PISTON; CALIPER,DISC BRK,FRT | 4 | 2410- | AB | |||
| 105 | I8-98078 193-0 | BOOT; CALIPER | 4 | 2410- | AB | |||
| 033 | I8-98078 192-0 | BOLT; SUPPORT BRKT TO DISC BRK | 4 | 2410- | AB |
