3-06 | 3-06A REAR DISC BRAKE CALIPER
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 045 | I8-97542 225-2 | BOLT; DUST COVER SET | 6 | 2410- | AB | M8X10 W/PL WASHER | ||

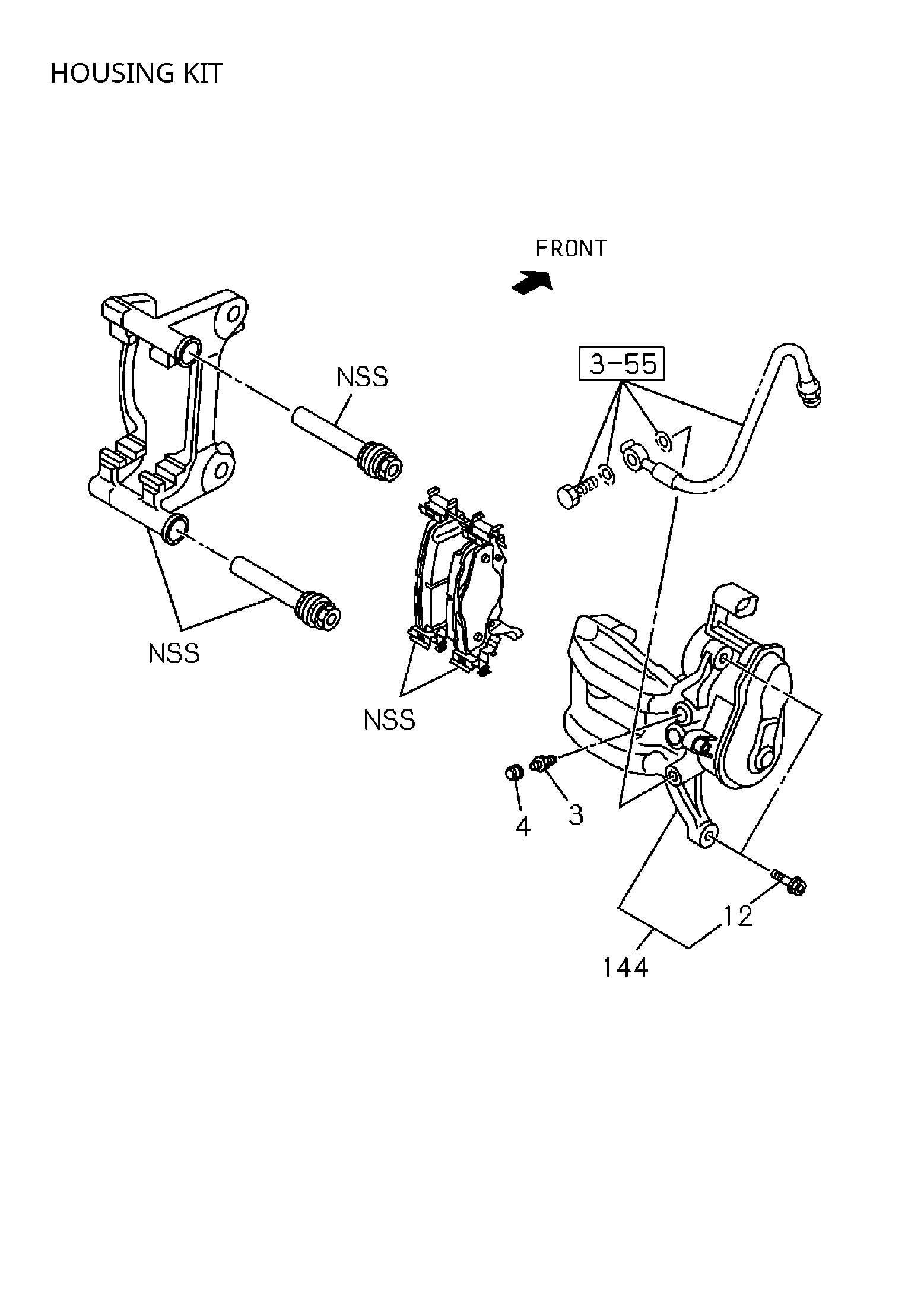

| 144 | I8-97655 209-1 | HOUSING KIT | 1 | 2410- | AB | |||
| 044 | I8-97503 585-0 | COVER; DUST | 1 | 2410- | AB | |||
| 004 | I8-97655 201-0 | CAP; BLEEDER SCREW,CALIPER,RR | 2 | 2410- | AB | |||
| 044 | I8-97503 584-0 | COVER; DUST | 1 | 2410- | AB | |||
| 009 | I7-55190 242-0 | PAD KIT; CALIPER,RR | 1 | 2410- | AB | |||

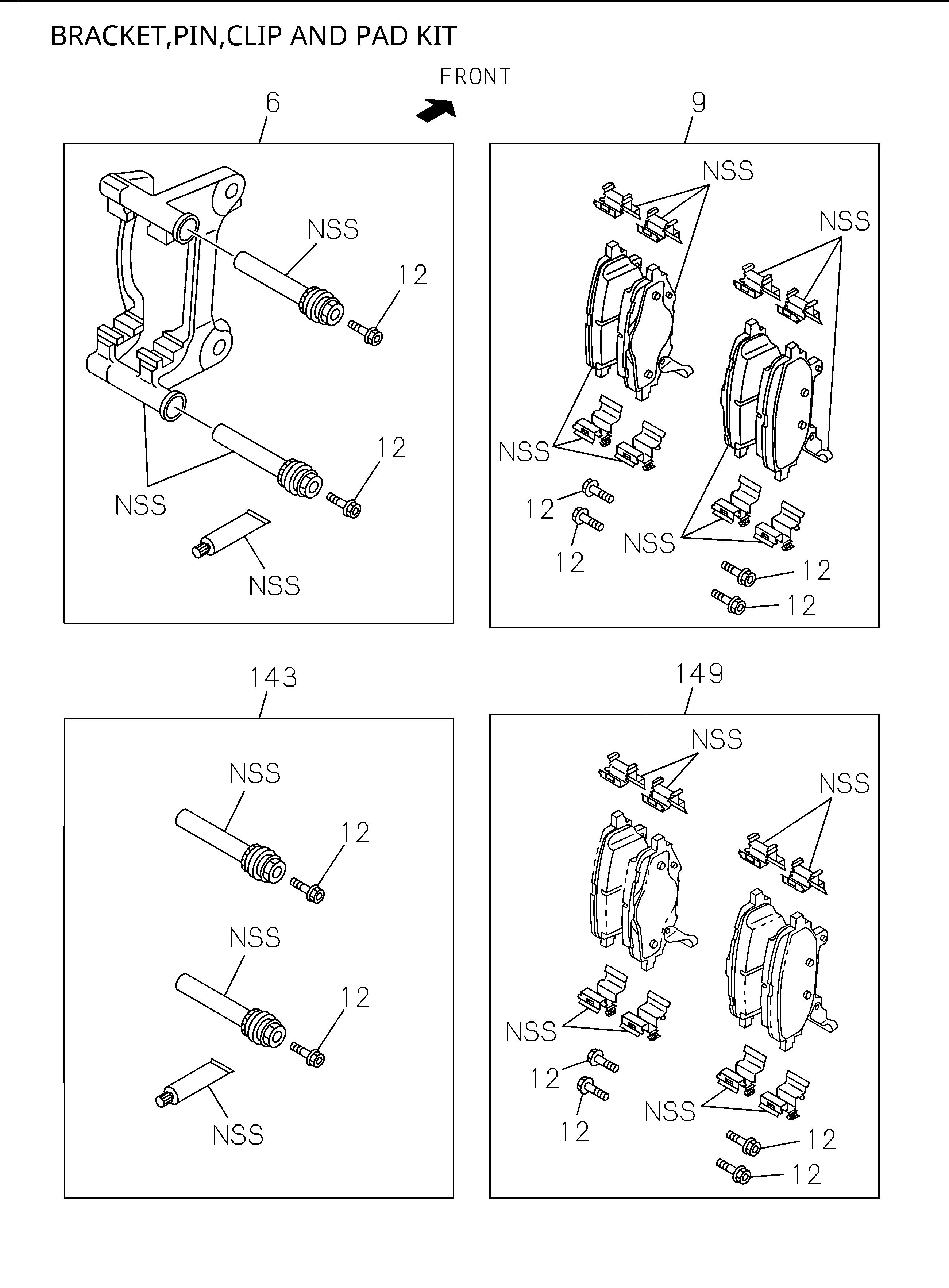

| 006 | I8-97655 204-1 | BRACKET; SUPPORT,RR DISC BRK | 1 | 2410- | AB | W/GREASE | ||
| 144 | I8-97655 205-1 | HOUSING KIT | 1 | 2410- | AB | |||
| 149 | I7-55190 243-0 | CLIP KIT; DISC BRAKE,RR | 1 | 2410- | AB | |||
| 006 | I8-97655 210-1 | BRACKET; SUPPORT,RR DISC BRK | 1 | 2410- | AB | W/GREASE | ||
| 143 | I8-97655 200-1 | PIN KIT | 2 | 2410- | AB | W/GREASE | ||
| 012 | I7-55209 142-0 | PIN; RET,CALIPER,RR DISC BRK | 4 | 2410- | AB | |||
| 003 | I8-97655 202-0 | SCREW; BLEEDER,CALIPERfRR | 2 | 2410- | AB |
