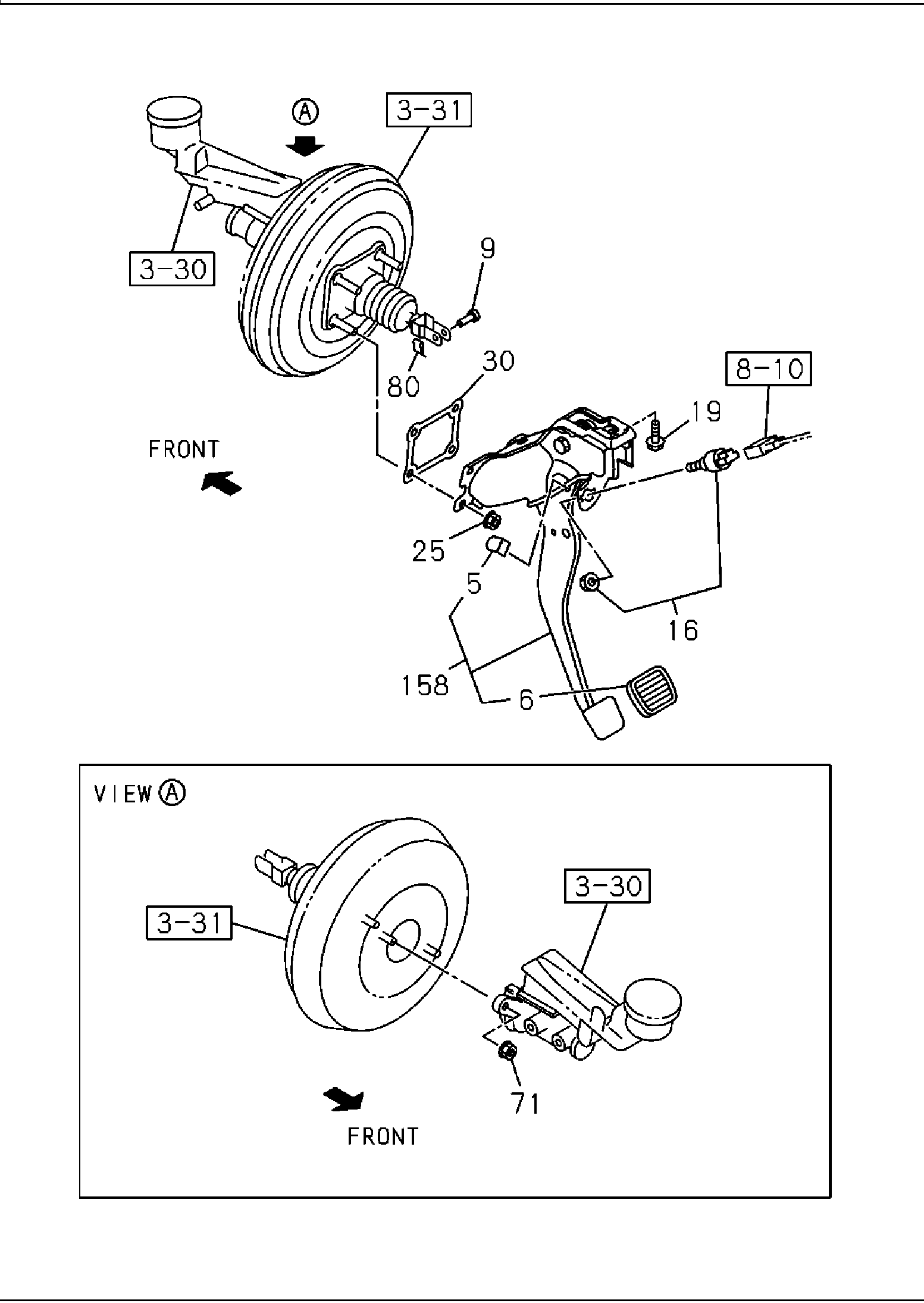

3-10 | 3-10A BRAKE PEDAL AND CONTROL
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 005 | I1-73996 231-1 | STOPPER; BRK PEDAL | 1 | 2410- | A | |||
| 158 | I8-97271 883-0 | PEDAL ASM; BRK | 1 | 2410- | AB | A/T 6 SPEED AISIN(Y6A) | ||
| 025 | I8-97581 233-0 | NUT; FLANGE,MTG BRKT TO BODY | 4 | 2410- | AB | M8 FLANGE | ||
| 005 | I1-73996 231-1 | STOPPER; BRK PEDAL | 1 | 2410- | B | A/T 6 SPEED AISIN(Y6A) | ||
| 016 | I8-98395 342-1 | SWITCH; STOP LAMP | 1 | 2410- | AB | |||
| 158 | I8-97271 884-0 | PEDAL ASM; BRK | 1 | 2410- | A | M/T MVL 6 SPEED 6Y(Y6P) | ||
| 006 | I8-97263 035-0 | COVER; BRK PEDAL | 1 | 2410- | AB | A/T 6 SPEED AISIN(Y6A) | ||
| 006 | I8-97318 799-0 | COVER; BRK PEDAL | 1 | 2410- | A | M/T MVL 6 SPEED 6Y(Y6P) | ||
| 030 | I8-97943 457-0 | GASKET; M/VAC TO BODY | 1 | 2410- | AB | |||
| 009 | I8-97311 602-0 | PIN; JAW JOINT | 1 | 2410- | AB | |||
| 071 | I8-98031 675-0 | NUT; BRK M/CYL | 2 | 2410- | AB | |||
| 080 | I8-98007 161-0 | PIN; SNAP,BRK PEDAL | 1 | 2410- | AB | |||
| 019 | I8-97947 104-1 | BOLT; BRKT | 1 | 2410- | AB | M8X22.5 W/PL WASHER |
