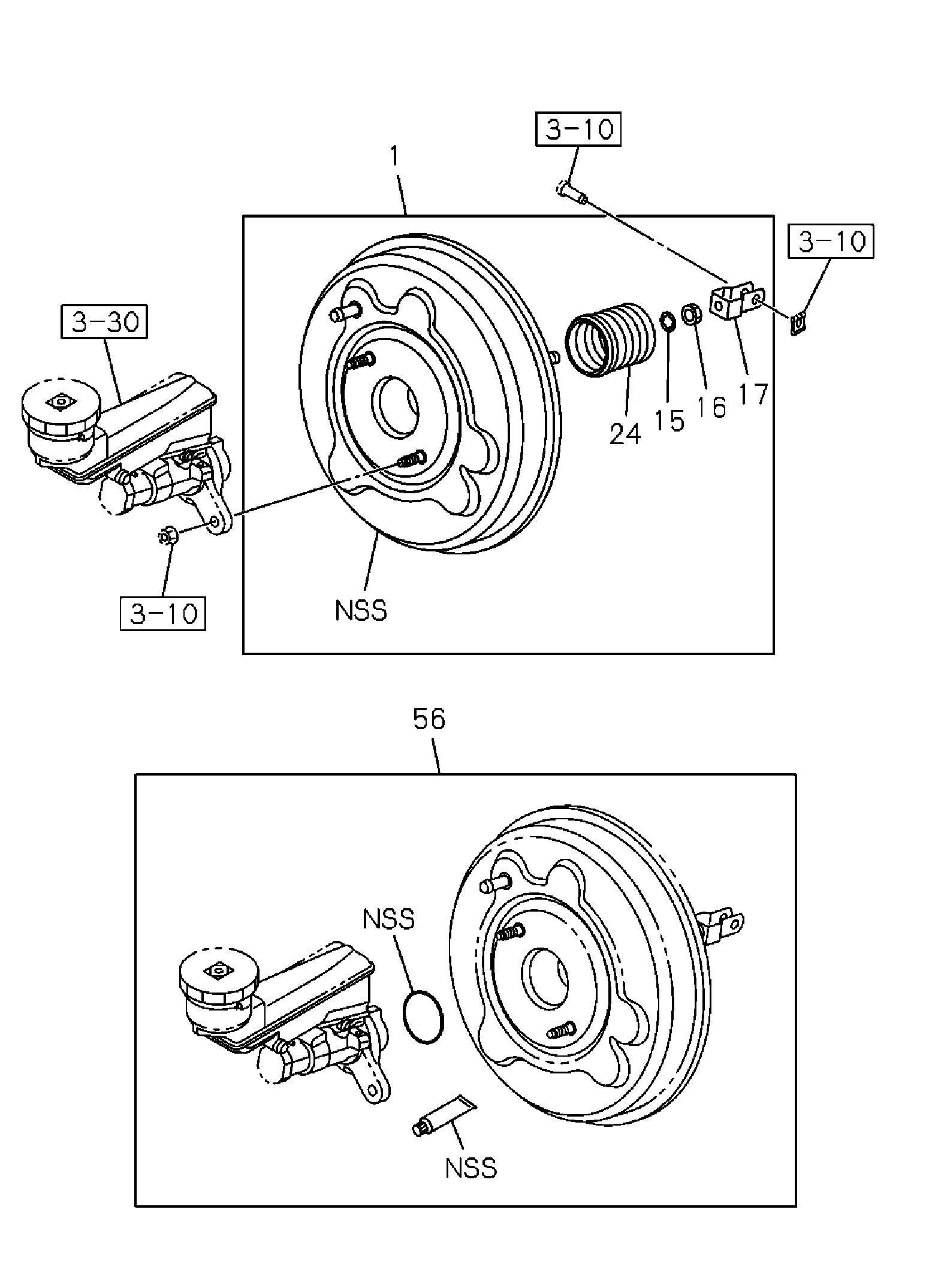

3-31 | 3-31A BRAKE MASTER VAC AND BRAKE BOOSTER
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 024 | I8-98185 212-0 | GUARD; VLV | 1 | 2410- | AB | |||
| 016 | I8-98048 038-0 | NUT; VLV RO | 1 | 2410- | AB | |||
| 017 | I8-98048 039-0 | CLEVIS; YOKE | 1 | 2410- | AB | |||
| 001 | I8-97504 358-2 | MASTER VAC | 1 | 2410- | AB | |||
| 015 | I8-98048 040-0 | RETAINER; Gl | 1 | 2410- | AB | |||
| 056 | I8-98185 211-0 | GASKET KIT; 1 | 1 | 2410- | AB | 1 W/GREASE |
