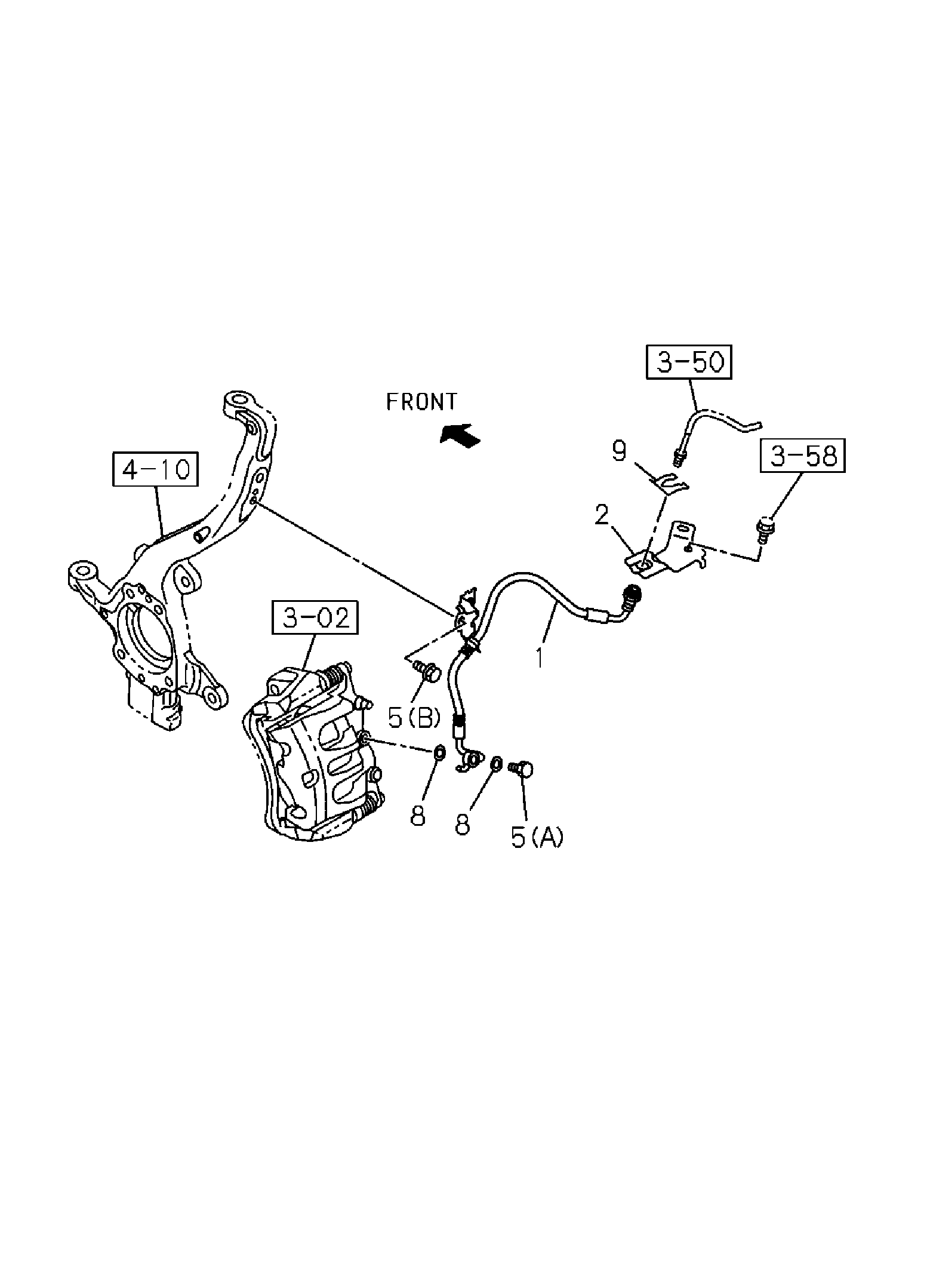

3-52 | 3-52A BRAKE PIPING; OIL,FRONT
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 002 | I8-98394 599-0 | BRACKET; FLEX HOSE,FRT BRK | 1 | 2410- | R | AB | ||
| 005 | I8-98076 109-0 | BOLT; EYE,FLEX HOSE,FRT BRK | 2 | 2410- | AB | (B) | ||
| 005 | I8-98014 005-0 | BOLT; EYE,FLEX HOSE,FRT BRK | 2 | 2410- | AB | (A) | ||
| 009 | I8-97360 054-0 | CLIP; FLEX HOSE,FRT BRK | 2 | 2410- | AB | |||
| 002 | I8-98394 601-1 | BRACKET; FLEX HOSE,FRT BRK | 1 | 2410- | L | AB | ||
| 008 | I9-09571 410-0 | GASKET; FLEX HOSE,FRT BRK | 4 | 2410- | AB | ID=10.2 OD=16.0 | ||
| 001 | I8-98394 597-0 | HOSE; FLEX,FRT BRK | 1 | 2410- | L | AB | ||
| 001 | I8-98394 598-0 | HOSE; FLEX,FRT BRK | 1 | 2410- | R | AB |
