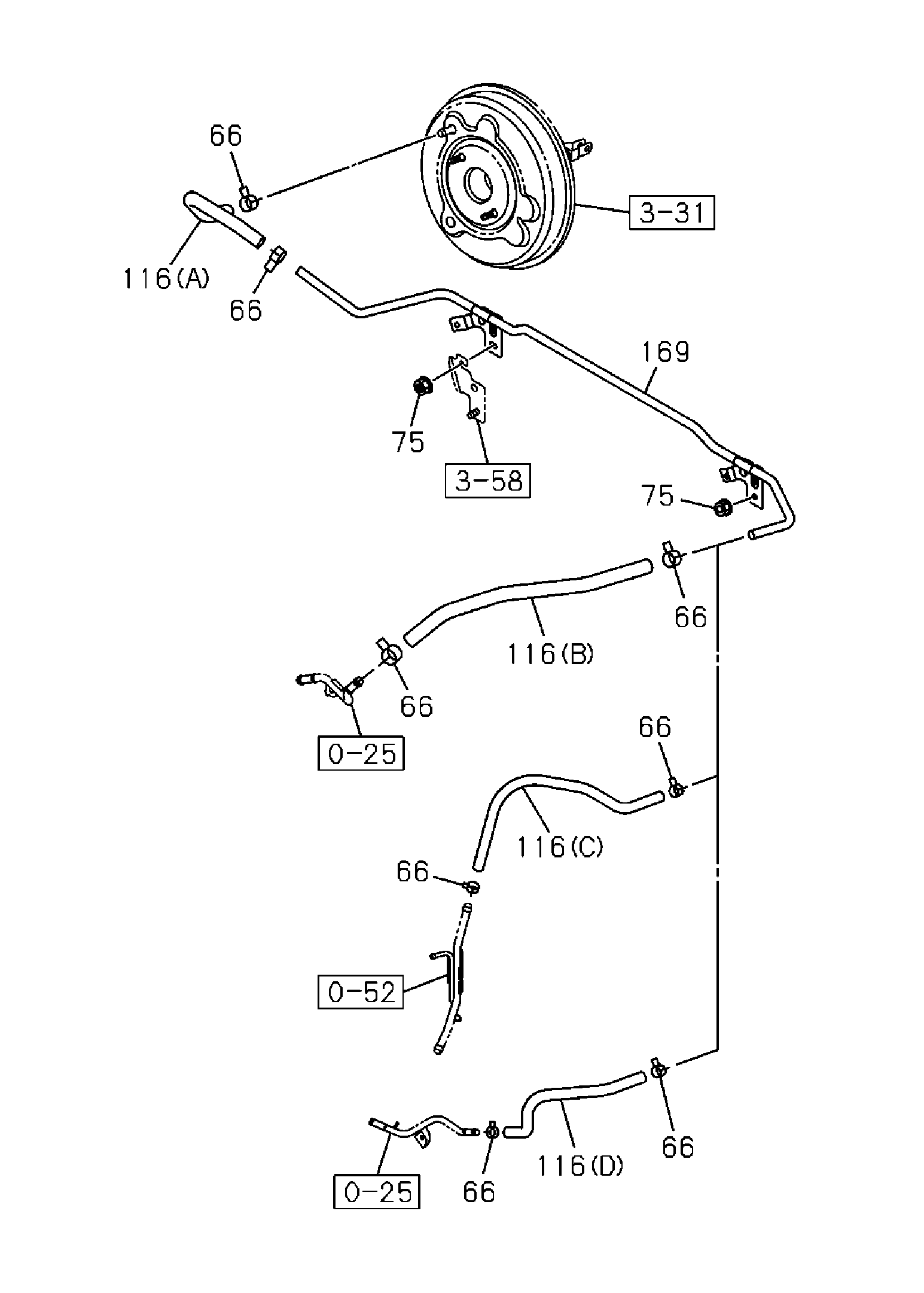

3-60 | 3-60A BRAKE PIPING; VACUUM
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 066 | I8-98036 539-0 | CLIP; VAC HOSE,M/VAC | 4 | 2410- | AB | ID=16 | ||
| 116 | I8-98274 256-1 | HOSE; VAC,M/VAC | 1 | 2410- | AB | RZ4E-TC ENG(RDZ) EURO0 SPECIFICATION(K75),EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) (B) | ||
| 116 | I8-98310 196-0 | HOSE; VAC,M/VAC | 1 | 2410- | AB | RZ4E-TC ENG(RDZ) EURO5 SPECIFICATION(NT5) (D) | ||
| 075 | I0-91180 106-0 | NUT; CLIP,VAC HOSE | 2 | 2410- | AB | M6 FLANGE | ||
| 116 | I8-98395 380-0 | HOSE; VAC,M/VAC | 1 | 2410- | AB | (A) | ||
| 169 | I8-98395 384-0 | PIPE; VAC,BOOSTER SIDE | 1 | 2410- | AB | |||
| 116 | I8-98395 381-1 | HOSE; VAC,M/VAC | 1 | 2410- | AB | 4JJ3 ENG(LNG) (C) |
