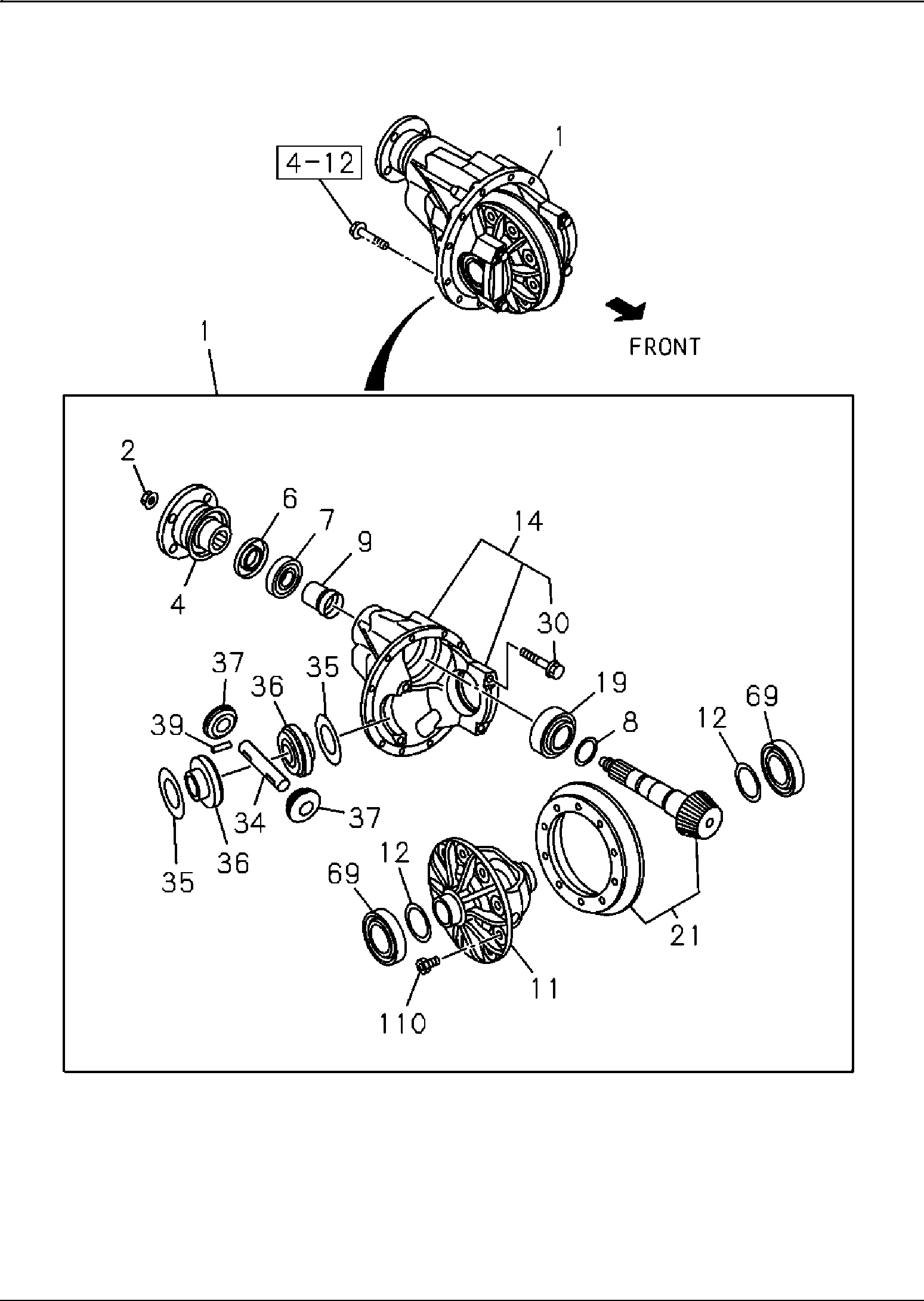

4-15 | 4-15A FRONT FINAL DRIVE
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 039 | I9-09878 096-0 | PIN; LK,CROSS PIN | 1 | 2410- | B | OD=5 L=35 | ||
| 008 | I9-41519 164-1 | SHIM; PINION,FINAL DRIVE | AR | 2410- | B | T=2.40 | ||
| 012 | I8-97130 387-0 | SHIM; FINAL PINION CAGE | AR | 2410- | B | T=0.50 | ||
| 012 | I9-41519 109-0 | SHIM; FINAL PINION CAGE | AR | 2410- | B | T=0.24 | ||
| 036 | I8-97481 633-0 | GEAR; SIDE,DIFF | 2 | 2410- | B | Z=17 | ||
| 008 | I9-41519 162-1 | SHIM; PINION,FINAL DRIVE | AR | 2410- | B | T=2.36 | ||
| 069 | I9-00093 074-1 | BEARING; DIFF SIDE | 2 | 2410- | B | NSK | ||
| 008 | I9-41519 163-1 | SHIM; PINION,FINAL DRIVE | AR | 2410- | B | T=2.38 | ||
| 008 | I9-41519 153-1 | SHIM; PINION,FINAL DRIVE | AR | 2410- | B | T=2.18 | ||
| 001 | I8-97481 629-0 | DRIVE ASM; FINAL,FRT | 1 | 2410- | B | FINAL GEAR RATIO 41/10(GT5) 41/10 | ||
| 014 | I8-97241 636-0 | CARRIER ASM; FINAL DRIVE,FRT AXLE | 1 | 2410- | B | FINAL GEAR RATIO 41/10(GT5) | ||
| 008 | I9-41519 159-1 | SHIM; PINION,FINAL DRIVE | AR | 2410- | B | T=2.30 | ||
| 110 | I8-97038 065-0 | BOLT; DIFF BOX | 10 | 2410- | B | M10X17 | ||
| 008 | I9-41519 172-1 | SHIM; PINION,FINAL DRIVE | AR | 2410- | B | T=2.56 | ||
| 011 | I8-97241 652-0 | CAGE; FINAL PINION | 1 | 2410- | B | FINAL GEAR RATIO 41/10(GT5) | ||
| 037 | I8-97079 518-0 | GEAR; PINION DIFF | 2 | 2410- | B | Z=10 | ||
| 008 | I9-41519 155-1 | SHIM; PINION,FINAL DRIVE | AR | 2410- | B | T=2.22 | ||
| 035 | I5-41562 006-1 | WASHER; THRUST,SIDE GEAR | 2 | 2410- | B | T=1.05 | ||
| 035 | I5-41562 005-1 | WASHER; THRUST,SIDE GEAR | 2 | 2410- | B | T=1.00 | ||
| 006 | I8-94318 520-2 | SEAL; OIL,FINAL PINION | 1 | 2410-2410 | B | |||
| 002 | I8-94376 262-0 | NUT; FINAL DRIVE PINION | 1 | 2410- | | B | M18 LOCK NUT | ||
| 012 | I8-97130 386-0 | SHIM; FINAL PINION CAGE | AR | 2410- | B | T=0.10 | ||
| 021 | I8-98104 945-2 | GEAR SET; FINAL DRIVE,FRT | 1 | 2410- | B | FINAL GEAR RATIO 41/10(GT5) 41/10 | ||
| 009 | I8-94472 118-0 | COLLAR; DIST,PINION | 1 | 2410- | | B | |||
| 007 | I8-94472 099-0 | BEARING; PINION,OUTER | 1 | 2410- | B | NSK | ||
| 001 | I8-97481 627-0 | DRIVE ASM; FINAL,FRT | 1 | 2410- | B | FINAL GEAR RATIO 41/11(GT4) 41/11 | ||
| 008 | I9-41519 158-1 | SHIM; PINION,FINAL DRIVE | AR | 2410- | B | T=2.28 | ||
| 019 | I9-00093 621-1 | BEARING; PINION,INNER | 1 | 2410- | B | NSK | ||
| 011 | I8-97481 632-1 | CAGE; FINAL PINION | 1 | 2410- | B | FINAL GEAR RATIO 41/11(GT4) | ||
| 008 | I9-41519 168-1 | SHIM; PINION,FINAL DRIVE | AR | 2410- | B | T=2.48 | ||
| 030 | I8-94376 322-0 | BOLT; DIFF CAGE SETTING | 4 | 2410- | B | M12X62 | ||
| 008 | I9-41519 166-1 | SHIM; PINION,FINAL DRIVE | AR | 2410- | B | T=2.44 | ||
| 008 | I9-41519 170-1 | SHIM; PINION,FINAL DRIVE | AR | 2410- | B | T=2.52 | ||
| 008 | I9-41519 169-1 | SHIM; PINION,FINAL DRIVE | AR | 2410- | B | T=2.50 | ||
| 008 | I9-41519 171-1 | SHIM; PINION,FINAL DRIVE | AR | 2410- | B | T=2.54 | ||
| 008 | I9-41519 161-1 | SHIM; PINION,FINAL DRIVE | AR | 2410- | B | T=2.34 | ||
| 035 | I5-41562 007-1 | WASHER; THRUST,SIDE GEAR | 2 | 2410- | B | T=1.10 | ||
| 008 | I9-41519 154-1 | SHIM; PINION,FINAL DRIVE | AR | 2410- | B | T=2.20 | ||
| 012 | I9-41519 111-0 | SHIM; FINAL PINION CAGE | AR | 2410- | B | T=0.15 | ||
| 008 | I9-41519 156-1 | SHIM; PINION,FINAL DRIVE | AR | 2410- | B | T=2.24 | ||
| 008 | I9-41519 167-1 | SHIM; PINION,FINAL DRIVE | AR | 2410- | B | T=2.46 | ||
| 007 | I8-94472 100-1 | BEARING; PINION,OUTER | 1 | 2410- | B | JTEKT | ||
| 004 | I8-97798 061-0 | COUPLING; FINAL DRIVE PINION | 1 | 2410- | | B | |||
| 008 | I9-41519 157-1 | SHIM; PINION,FINAL DRIVE | AR | 2410- | B | T=2.26 | ||
| 021 | I8-98104 929-2 | GEAR SET; FINAL DRIVE,FRT | 1 | 2410- | B | FINAL GEAR RATIO 41/11(GT4) 41/11 | ||
| 014 | I8-98104 910-2 | CARRIER ASM; FINAL DRIVE,FRT AXLE | 1 | 2410- | B | FINAL GEAR RATIO 41/11(GT4) | ||
| 034 | I9-41521 044-1 | PIN; CROSS,DIFF PINION | 1 | 2410- | B | |||
| 008 | I9-41519 165-1 | SHIM; PINION,FINAL DRIVE | AR | 2410- | B | T=2.42 | ||
| 008 | I9-41519 160-1 | SHIM; PINION,FINAL DRIVE | AR | 2410- | B | T=2.32 | ||
| 006 | I7-55246 420-0 | SEAL; OIL,FINAL PINION | 1 | 2411- | B |
