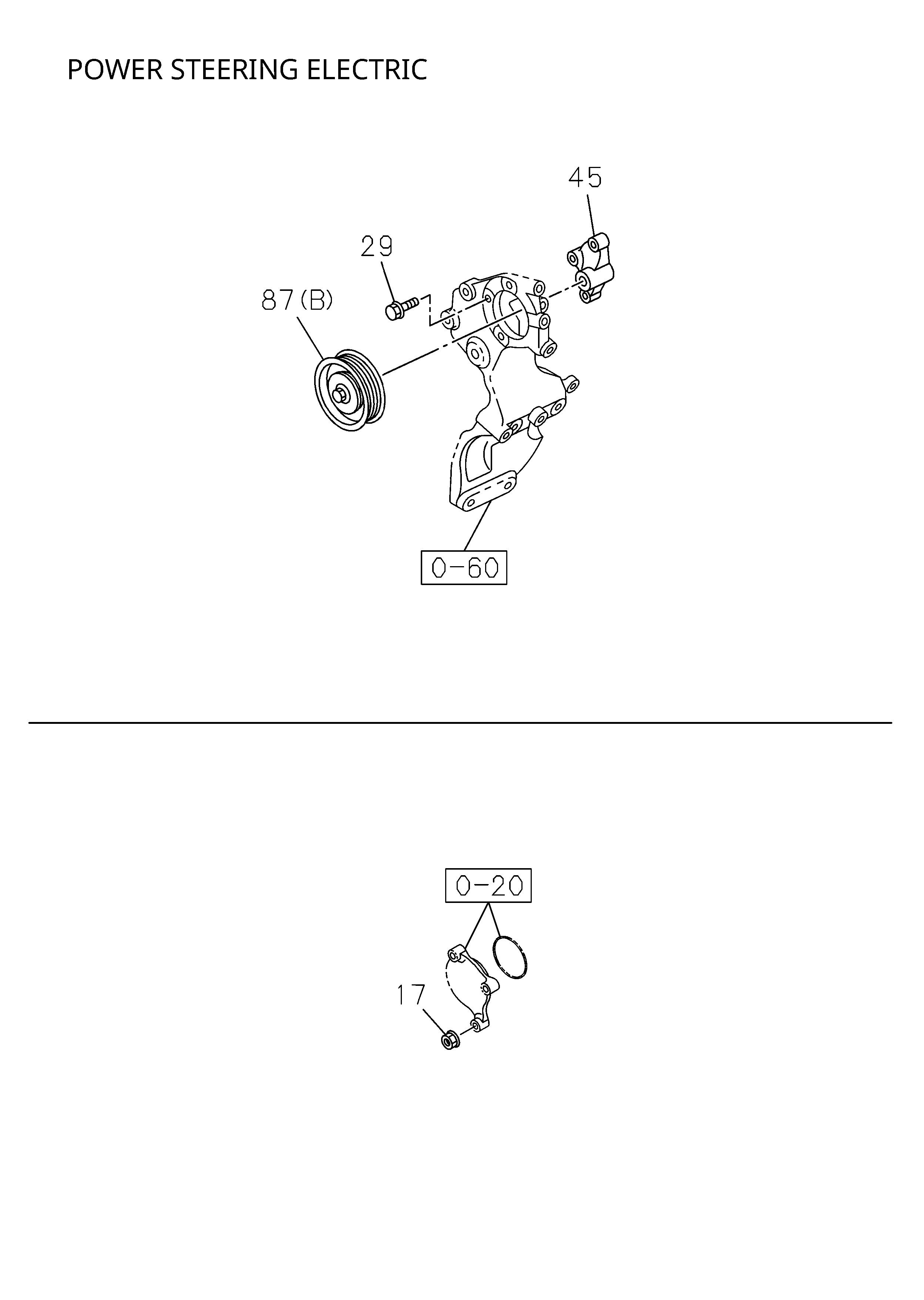

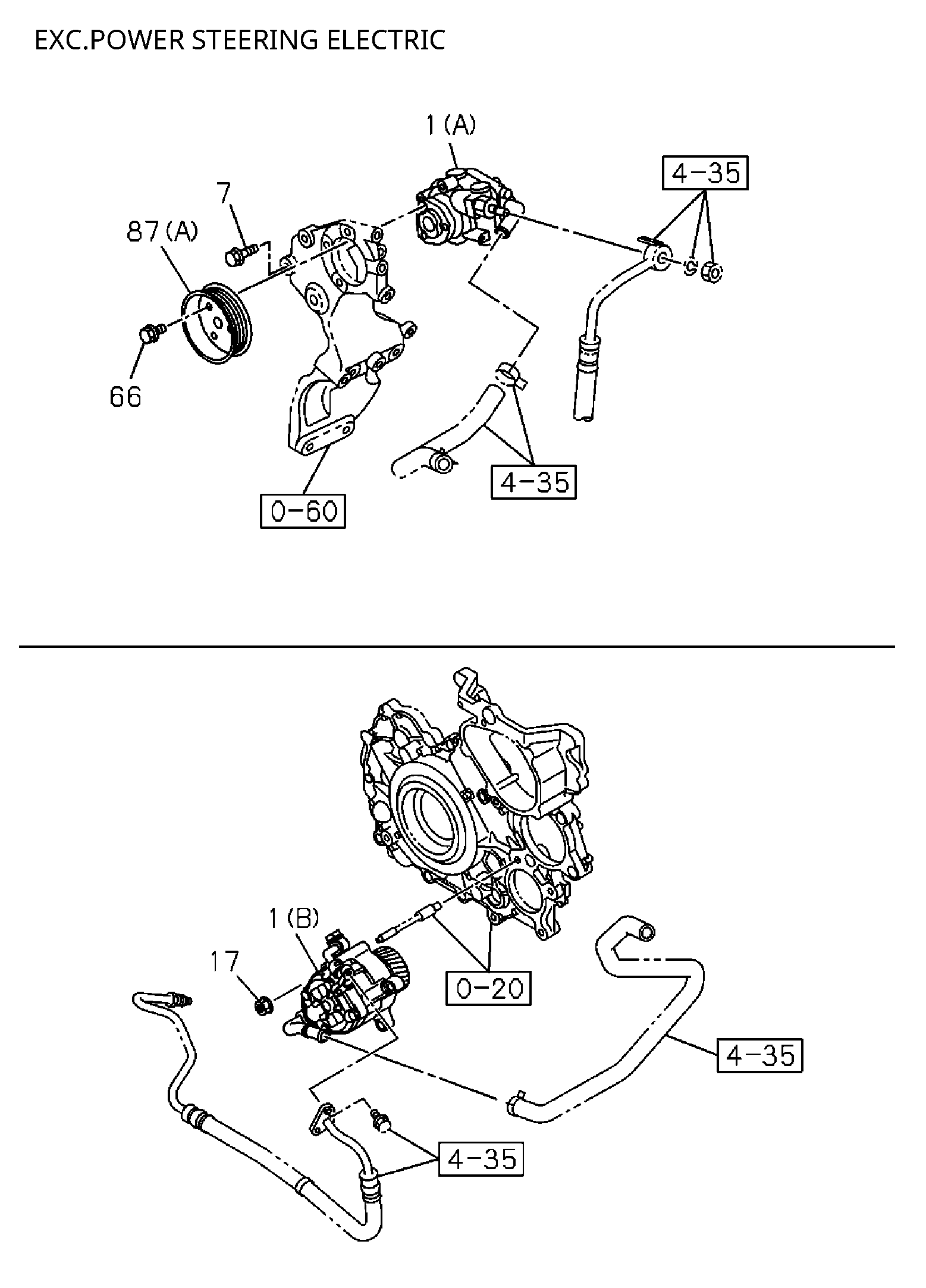

4-36 | 4-36A POWER STEERING CONTROL; ENGINE SIDE
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 001 | I8-97824 300-2 | PUMP ASM; OIL,P/S | 1 | 2410- | AB | RZ4E-TC ENG(RDZ) EXC. POWER STEERING ELECTRIC<NV9> (A) | ||
| 001 | I8-98489 892-0 | PUMP ASM; OIL,P/S | 1 | 2410- | AB | 4JJ3 ENG(LNG) EXC. POWER STEERING ELECTRIC<NV9> (B) | ||
| 029 | I0-28050 830-0 | BOLT; BRKT,POWER STRG | 3 | 2410- | AB | RZ4E-TC ENG(RDZ) POWER STEERING ELECTRIC<NV9> M8X30 FLANGE | ||
| 007 | I0-28050 830-0 | BOLT; OIL PUMP,P/S | 3 | 2410- | AB | RZ4E-TC ENG(RDZ) EXC. POWER STEERING ELECTRIC<NV9> M8X30 FLANGE | ||
| 087 | I8-98383 519-0 | PULLEY; P/S PUMP | 1 | 2410- | AB | RZ4E-TC ENG(RDZ) EXC. POWER STEERING ELECTRIC<NV9> (A) | ||
| 087 | I8-97533 814-0 | PULLEY; P/S PUMP | 1 | 2410- | AB | RZ4E-TC ENG(RDZ) POWER STEERING ELECTRIC<NV9> (B) | ||
| 017 | I0-91180 208-0 | NUT; POWER STRG PUMP | 3 | 2410- | AB | M8 FLANGE | ||
| 045 | I8-97533 614-0 | BRACKET; IDLE PULLEY,P/S | 1 | 2410- | AB | RZ4E-TC ENG(RDZ) POWER STEERING ELECTRIC<NV9> | ||
| 066 | I0-28050 812-0 | BOLT; PULLEY | 3 | 2410- | AB | RZ4E-TC ENG(RDZ) EXC. POWER STEERING ELECTRIC<NV9> M8X12 FLANGE |
