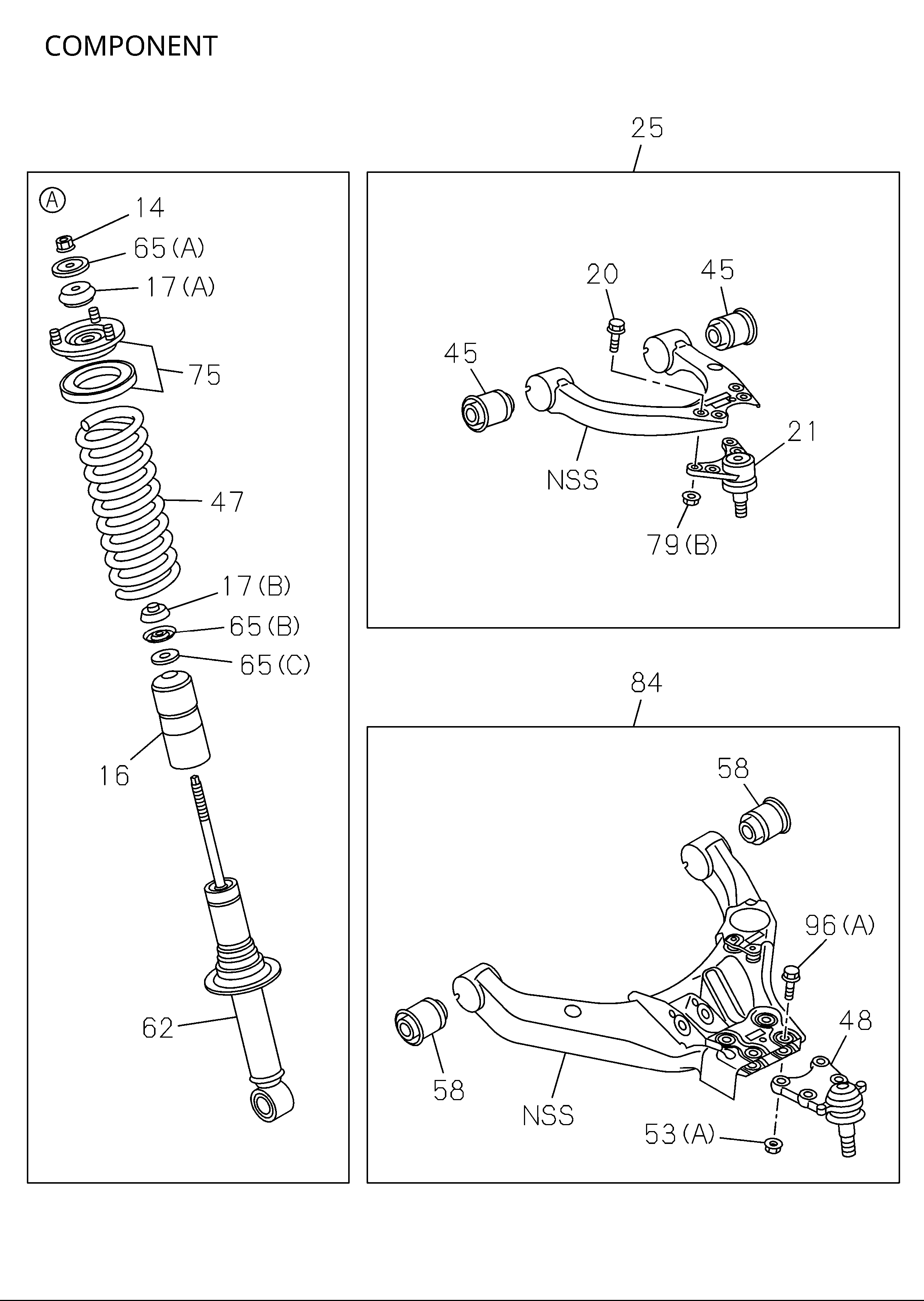

4-50 | 4-50A FRONT SUSPENSION
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 047 | I8-98394 075-1 | SPRING; COIL,FRT SUSP | 2 | 2410- | B | RZ4E-TC ENG(RDZ) | ||
| 084 | I8-98389 433-1 | ARM; LWRCONT | 1 | 2410- | AB | |||
| 060 | I8-97947 455-0 | BOLT; S/ABS TO LWR LINK | 2 | 2410- | AB | M14X74 | ||
| 240 | I8-97946 180-0 | BUMPER; LWR CONT ARM | 2 | 2410- | AB | |||
| 025 | I8-98389 431-1 | ARM;UPRCONT | 1 | 2410- | AB | |||
| 088 | I8-97245 631-0 | NUT; LWR LINK | 4 | 2410- | AB | M16 FLANGE | ||
| 048 | I8-98005 875-0 | JOINT ASM; BALL,LWR CONT ARM | 2 | 2410- | AB | |||
| 096 | I8-98186 404-0 | BOLT; LWR LINK | 4 | 2410- | AB | (B) M16X102 W/PLATE | ||
| 025 | I8-98389 432-1 | ARM;UPRCONT | 1 | 2410- | AB | |||
| 003 | I0-29261 490-0 | BOLT; UPR LINK TO FRAME | 4 | 2410- | AB | M14X90 | ||
| 053 | I0-91180 212-0 | NUT; LWR LINK | 8 | 2410- | AB | (A) M12 FLANGE | ||
| 014 | I8-97236 304-0 | NUT; S/ABS,UPR | 2 | 2410- | AB | M12 FLANGE | ||
| 084 | I8-98389 434-1 | ARM; LWRCONT | 1 | 2410- | AB | |||
| 096 | I8-97245 639-0 | BOLT; LWR LINK | 8 | 2410- | AB | (A) M12X37 FLANGE | ||
| 017 | I8-97264 184-0 | BUSHING; RUBBER,S/ABS | 2 | 2410- | AB | (A) | ||
| 092 | I0-91180 210-0 | NUT; FRT SUSP | 4 | 2410- | AB | M10 FLANGE | ||
| 103 | I8-97245 635-0 | NUT; S/ABS TO LWR LINK | 2 | 2410- | AB | (A) M14FLANGE | ||
| 047 | I8-97653 848-0 | SPRING; COIL,FRT SUSP | 2 | 2410- | B | 4JJ3 ENG(LNG) | ||
| 021 | I8-98480 997-0 | JOINT ASM; BALL,UPR CONT ARM | 2 | 2410- | AB | |||
| 047 | I8-97653 847-0 | SPRING; COIL,FRT SUSP | 2 | 2410- | A | 4JJ3 ENG(LNG) | ||
| 081 | I0-81123 028-0 | PIN; SPLIT,LWR LINK TO KNUCKLE | 2 | 2410- | AB | OD=2.8 L=28 | ||
| 079 | I0-91110 514-0 | NUT; UPR LINK END TO KNUCKLE | 2 | 2410- | AB | (A) M14 | ||
| 053 | I0-91110 518-0 | NUT; LWR LINK | 2 | 2410- | AB | (B) M18 | ||
| 103 | I8-97245 637-0 | NUT; S/ABS TO LWR LINK | 6 | 2410- | AB | (B) M10 FLANGE | ||
| 065 | I8-98005 971-0 | WASHER; S/ABS | 2 | 2410- | AB | (A) | ||
| 020 | I0-28060 825-0 | BOLT; UPR LINK END TO UPR LINK | 8 | 2410- | AB | M8X25 FLANGE | ||
| 058 | I8-98389 670-0 | BUSHING; LWR LINK | 4 | 2410- | AB | |||
| 005 | I8-97245 635-0 | NUT; UPR LINK TO FRAME | 4 | 2410- | AB | M14FLANGE | ||
| 035 | I8-97214 814-0 | PLATE; BUSHING SUPPORT | 4 | 2410- | AB | |||
| 077 | I0-81123 028-0 | PIN; SPLIT,LINK END TO KNUCKLE | 2 | 2410- | AB | OD=2.8 L=28 | ||
| 065 | I8-97944 892-0 | WASHER; S/ABS | 2 | 2410- | AB | (C) | ||
| 079 | I0-91180 208-0 | NUT; UPR LINK END TO KNUCKLE | 8 | 2410- | AB | (B) M8 FLANGE | ||
| 065 | I8-98005 972-0 | WASHER; S/ABS | 2 | 2410- | AB | (B) | ||
| 062 | I7-55218 890-0 | ABSORBER ASM; SHOCK,FRT | 2 | 2410- | AB | |||
| 019 | I0-28061 000-0 | BOLT; FRT SUSP TO C/MBR | 4 | 2410- | AB | M10X100 FLANGE | ||
| 045 | I8-98389 666-1 | BUSHING; UPR LINK,FRT | 4 | 2410- | AB | |||
| 075 | I8-98177 899-1 | BRACKET; FRT S/ABS | 2 | 2410- | AB | |||
| 047 | I8-97653 846-0 | SPRING; COIL,FRT SUSP | 2 | 2410- | A | RZ4E-TC ENG(RDZ) | ||
| 016 | I8-97947 100-0 | COVER; DUST,FRT S/ABS | 2 | 2410- | AB | |||
| 017 | I8-97236 303-0 | BUSHING; RUBBER,S/ABS | 2 | 2410- | AB | (B) |
