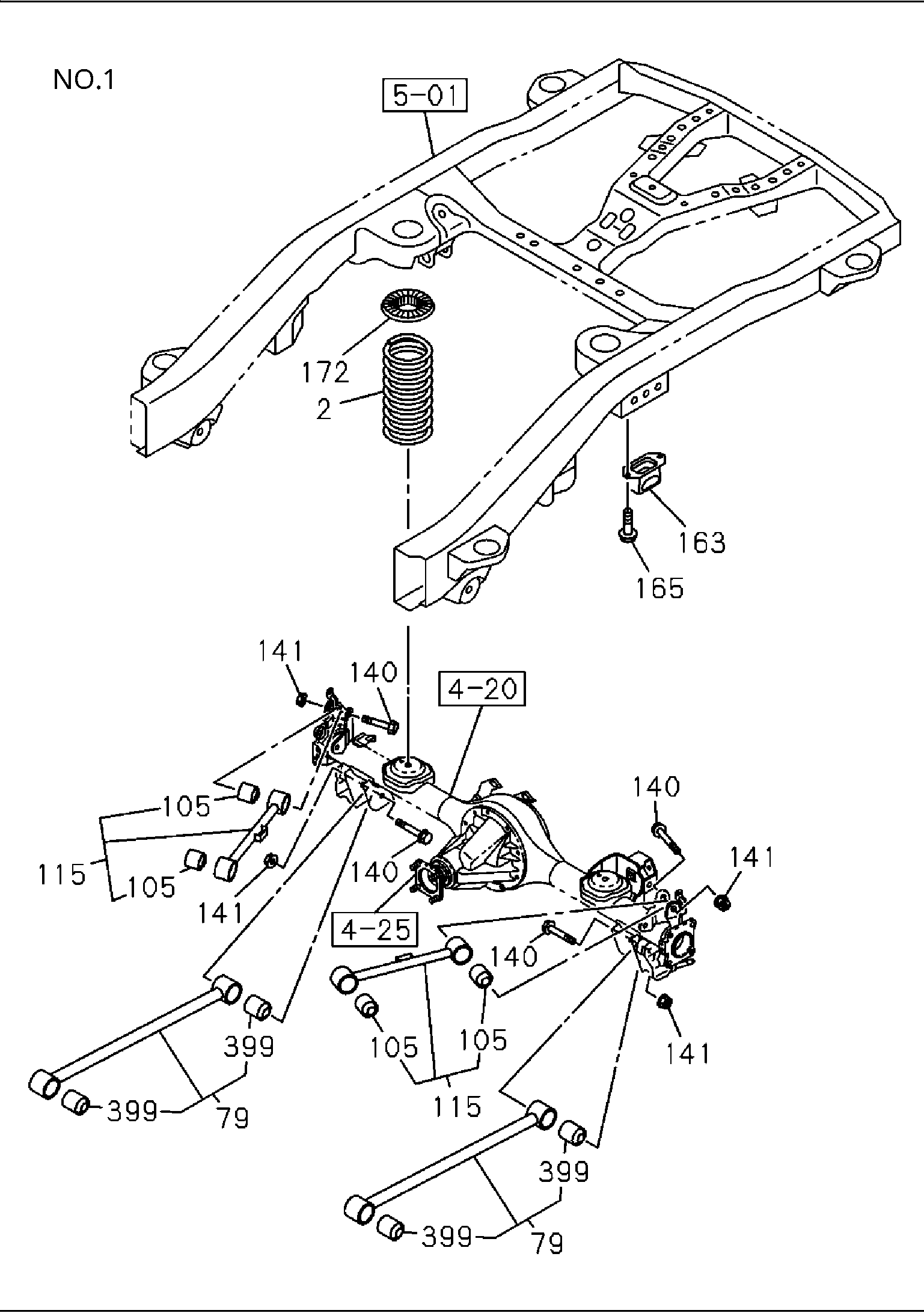

4-60 | 4-60A REAR SUSPENSION
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 163 | I8-97947 790-0 | RUBBER; HEL | 2 | 2410- | AB | |||
| 115 | I8-97947 367-1 | LINK; UPR,W | 2 | 2410- | AB | |||
| 428 | I8-97559 024-0 | LINK; RR STA | 1 | 2410- | AB | |||
| 172 | I8-97947 789-0 | INSULATOR; | 2 | 2410- | AB | |||
| 428 | I8-97559 025-0 | LINK; RR STA | 1 | 2410- | AB | |||
| 520 | I0-29261 490-0 | BOLT; ROD | 1 | 2410- | AB | M14X90 | ||
| 087 | I8-97506 917-0 | LINK; LATERA | 1 | 2410- | AB | |||
| 165 | I0-28661 025-0 | BOLT; HELPE | 4 | 2410- | AB | M10X25 FLANGE | ||
| 429 | I8-98395 346-0 | NUT; LINK | 4 | 2410- | AB | M12 FLANGE | ||
| 002 | I8-97506 772-2 | SPRING; COII | 2 | 2410- | AB | |||
| 399 | I8-97947 788-0 | BUSHING; TR | 4 | 2410- | AB | |||
| 141 | I8-98217 474-0 | NUT; CONT A | 8 | 2410- | AB | M14 | ||
| 330 | I8-97245 637-0 | NUT; STAB | 4 | 2410- | AB | M10 FLANGE | ||
| 277 | I8-97559 026-0 | BUSHING; ST | 2 | 2410- | AB | |||
| 140 | I8-97947 834-0 | BOLT; CONT | 8 | 2410- | AB | |||
| 516 | I8-98217 474-0 | NUT; ROD | 1 | 2410- | AB | M14 | ||
| 079 | I8-97506 916-0 | LINK; TRAILI | 2 | 2410- | AB | |||
| 297 | I8-97844 530-0 | CAP; STAB BA | 2 | 2410- | AB | |||
| 073 | I8-97947 786-0 | BUSHING; LA | 2 | 2410- | AB | |||
| 025 | I8-97843 045-0 | BAR ASM; ST | 1 | 2410- | AB | |||
| 105 | I8-97947 787-0 | BUSHING; UF | 4 | 2410- | AB | |||
| 200 | I0-29261 490-0 | BOLT; BRKT | 1 | 2410- | AB | M14X90 |
