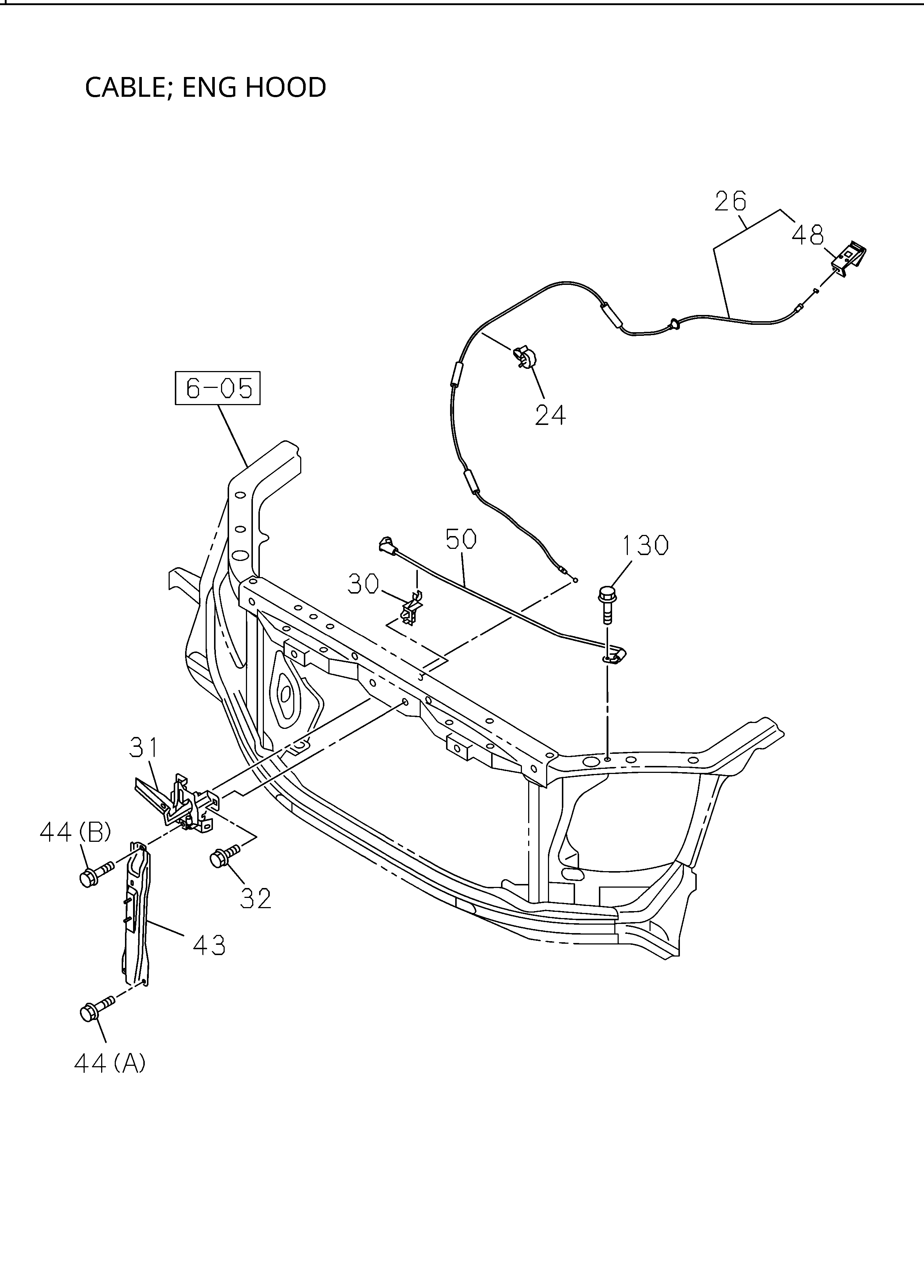

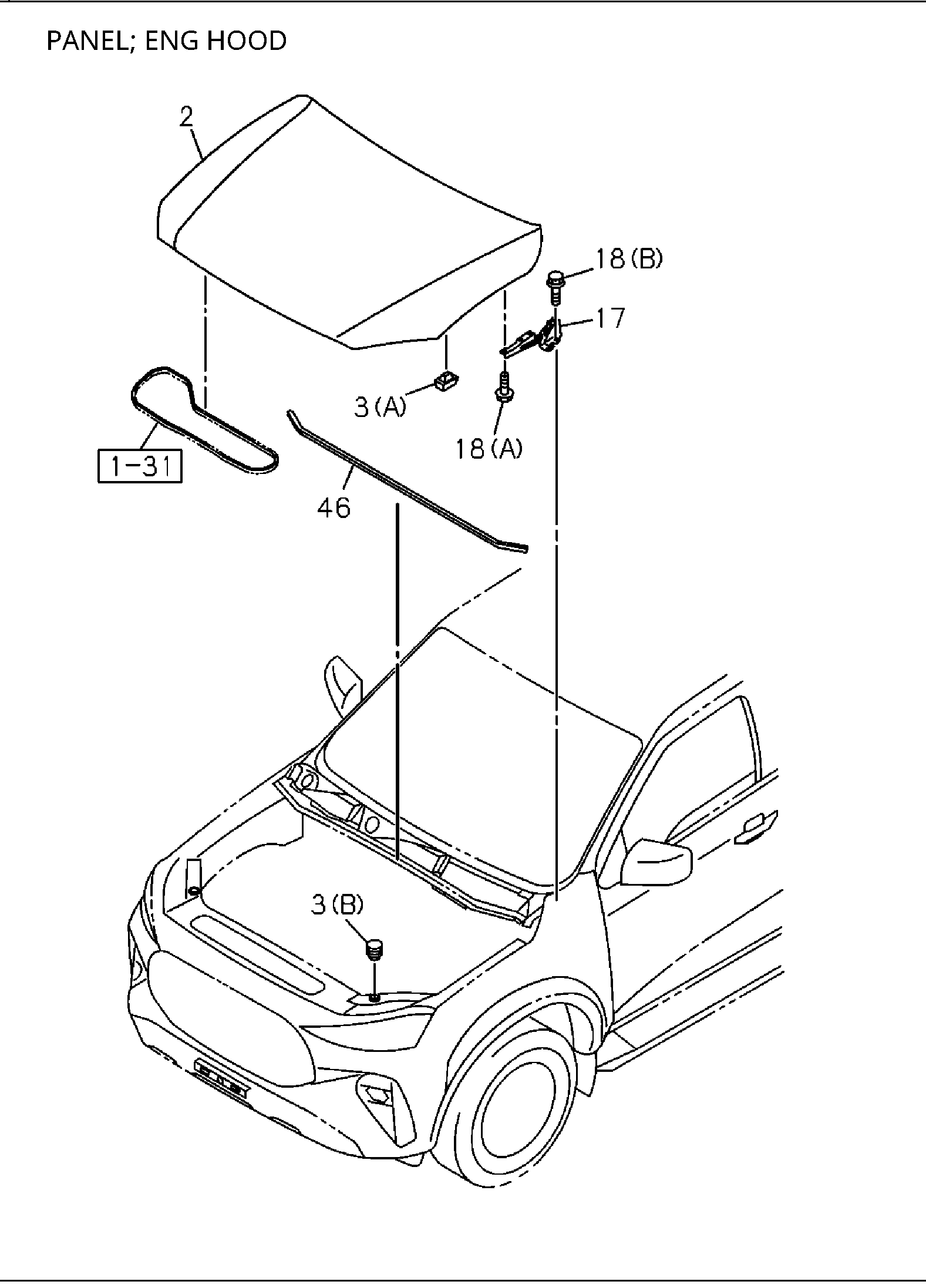

6-10 | 6-10A ENGINE HOOD AND LOCK
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 032 | I8-97370 668-0 | BOLT; HOOD LK | 2 | 2410- | AB | M6X20 W/PL WASHER | ||
| 043 | I8-98370 366-1 | STAY; ENG HOOD,FRT END | 1 | 2410- | AB | |||
| 046 | I8-98394 032-3 | SEAL; ENG HOOD | 1 | 2410- | AB | |||
| 044 | I0-28660 820-0 | BOLT; STAY,HOOD | 2 | 2410- | AB | (A) M8X20 FLANGE | ||
| 017 | I8-98386 276-1 | HINGE; ENG HOOD | 1 | 2410- | R | AB | ||
| 048 | I8-97555 705-0 | LEVER; ENG HOOD | 1 | 2410- | R | AB | ||
| 031 | I8-97846 127-0 | LOCK; ENG HOOD | 1 | 2410- | AB | EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> | ||
| 024 | I8-97182 405-0 | CLIP; CONT CABLE | 4 | 2410- | AB | |||
| 002 | I7-55262 299-0 | PANEL; ENG HOOD | 1 | 2410- | AB | |||
| 003 | I8-98312 732-0 | BUFFER; ENG HOOD,FRT | 4 | 2410- | AB | (A) | ||
| 031 | I8-97846 125-0 | LOCK; ENG HOOD | 1 | 2410- | AB | REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> | ||
| 017 | I8-98386 268-1 | HINGE; ENG HOOD | 1 | 2410- | L | AB | ||
| 050 | I8-98391 469-1 | ROD; SUPPORTING HOOD | 1 | 2410- | AB | |||
| 130 | I0-28650 616-0 | BOLT; SUPPO | 1 | 2410- | AB I M6X16 FLANGE | |||
| 003 | I7-55216 896-0 | BUFFER; ENG HOOD,FRT | 2 | 2410- | AB | (B) | ||
| 026 | I8-98393 091-0 | CABLE; ENG HOOD CONT | 1 | 2410- | R | AB | ||
| 018 | I8-98208 786-0 | BOLT; HINGE | 4 | 2410- | AB | (B) M8X27 | ||
| 044 | I8-97370 668-0 | BOLT; STAY,HOOD | 1 | 2410- | AB | (B) M6X20 W/PL WASHER | ||
| 018 | I8-98056 122-0 | BOLT; HINGE | 4 | 2410- | AB | (A) M8X16 | ||
| 030 | I8-98391 471-0 | CLIP; SUPPORT ROD,HOOD | 1 | 2410- | AB | |||
| 031 | I8-97846 125-0 | LOCK; ENG HOOD | 1 | 2410- | AB | PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> |
