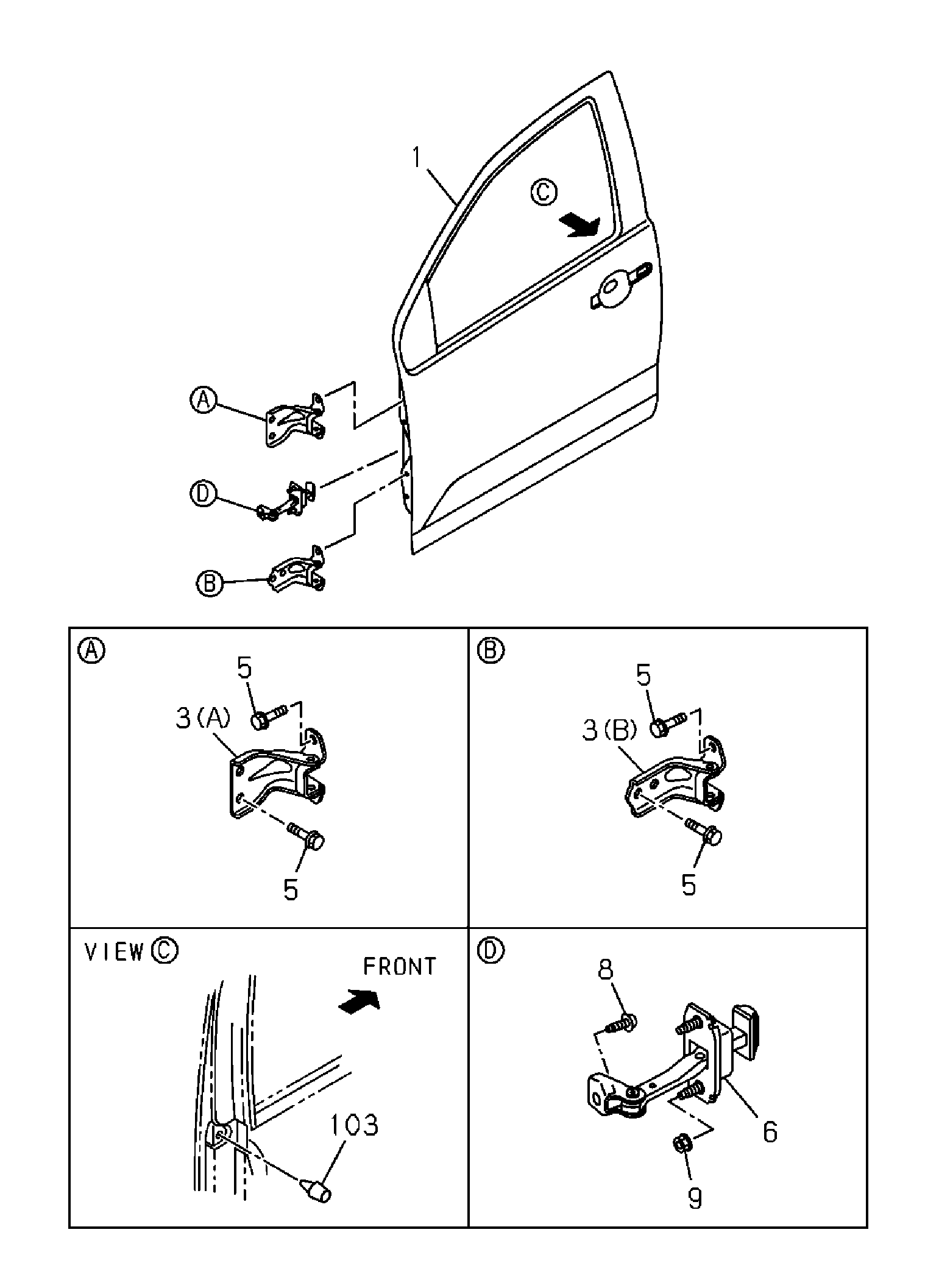

6-30 | 6-30A FRONT DOOR AND HINGE
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 001 | I8-97820 935-0 | DOOR ASM; FRT,WO/TRIM | 1 | 2410- | AB | |||
| 006 | I8-97798 557-0 | ARM; CHECK,FRT DOOR | 2 | 2410- | AB | |||
| 009 | I8-98049 362-0 | NUT; CHECK ARM | 4 | 2410- | AB | M6 FLANGE | ||
| 003 | I8-98398 908-0 | HINGE; DOOR FRT | 2 | 2410- | AB | (A) UPPER | ||
| 001 | I8-97820 936-0 | DOOR ASM; FRT,WO/TRIM | 1 | 2410- | AB | |||
| 103 | I8-98202 864-0 | PROTECTOR; FRT DOOR | 2 | 2410- | AB | |||
| 005 | I8-98005 842-0 | BOLT; HINGE | 16 | 2410- | AB | M8X23 FLANGE | ||
| 008 | I8-98166 694-0 | BOLT; CHECK ARM | 2 | 2410- | AB | M8X23 | ||
| 003 | I8-98398 909-0 | HINGE; DOOR FRT | 2 | 2410- | AB | (B) LOWER |
