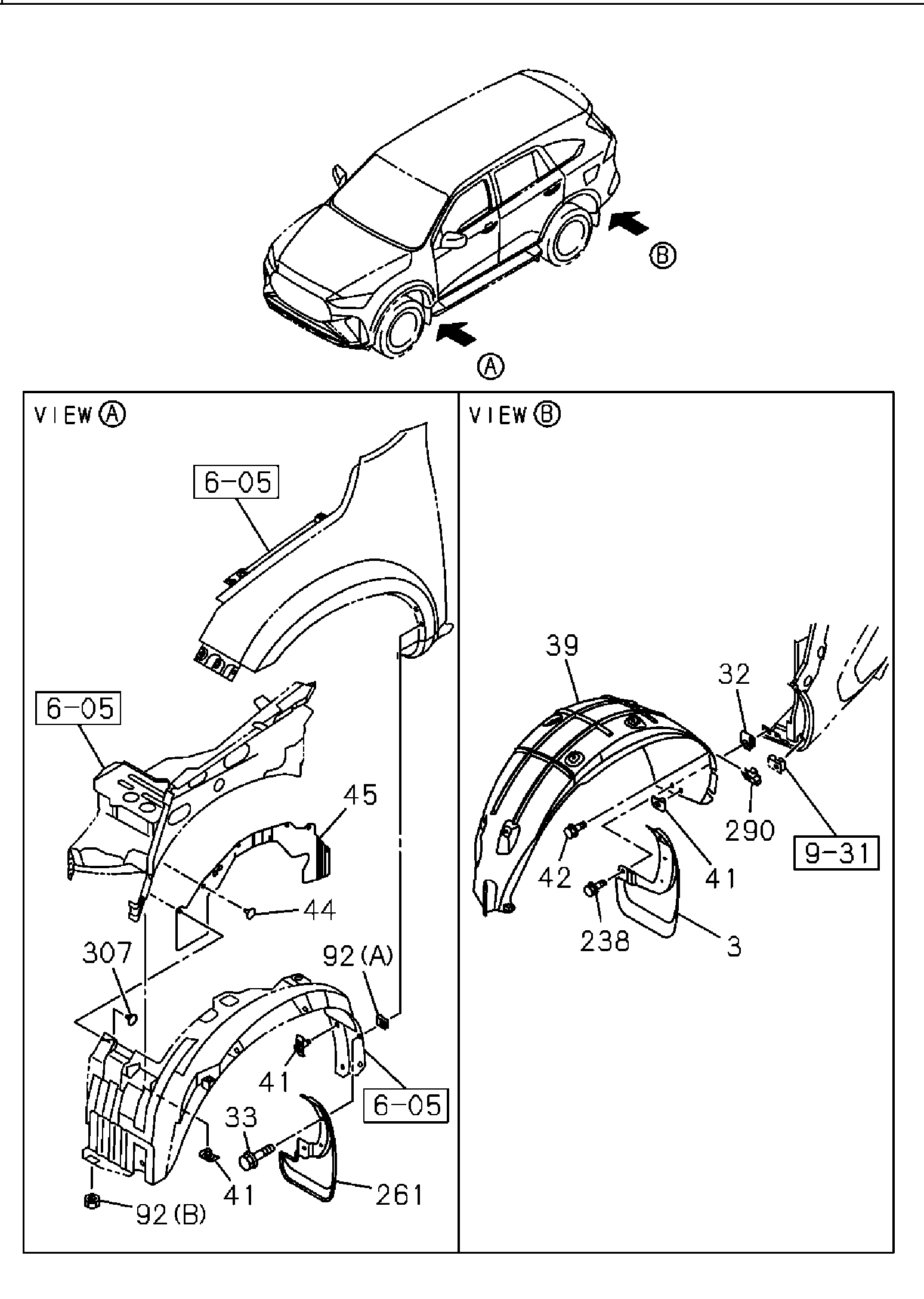

6-47 | 6-47A MUD GUARD AND INSULATOR
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 041 | I8-94221 150-0 | RIVET; INNER LINER | 30 | 2410- | AB | FORMED MUD FLAP FRT & RR<Q8H> | ||
| 261 | I8-98356 195-1 | RUBBER; FRT,MUD GUARD | 1 | 2410- | AB | FORMED MUD FLAP FRT & RR<Q8H> | ||
| 003 | I8-98363 232-1 | GUARD; MUD,RR | 1 | 2410- | AB | FORMED MUD FLAP FRT & RR<Q8H> | ||
| 042 | I8-98167 444-0 | BOLT; INNER LINER TO FENDER | 4 | 2410- | AB | EXC. FORMED MUD FLAP FRT & RR<Q8H> SCREW M6X20 TAPPING W/PL WASHER | ||
| 261 | I8-98356 196-1 | RUBBER; FRT,MUD GUARD | 1 | 2410- | AB | FORMED MUD FLAP FRT & RR<Q8H> | ||
| 045 | I8-98393 944-2 | COVER; MUD,FENDER SKIRT | 1 | 2410- | AB | |||
| 307 | I8-98050 462-0 | RETAINER | 6 | 2410- | AB | |||
| 003 | I8-98363 231-1 | GUARD; MUD,RR | 1 | 2410- | AB | FORMED MUD FLAP FRT & RR<Q8H> | ||
| 041 | I8-94221 150-0 | RIVET; INNER LINER | 40 | 2410- | AB | EXC. FORMED MUD FLAP FRT & RR<Q8H> | ||
| 092 | I8-97125 519-0 | NUT; MUD COVER | 8 | 2410- | AB | FORMED MUD FLAP FRT & RR<Q8H> (A) | ||
| 033 | I8-98167 444-0 | BOLT; MUD COVER | 8 | 2410- | AB | FORMED MUD FLAP FRT & RR<Q8H> SCREW M6X20 TAPPING W/PL WASHER | ||
| 032 | I8-97125 519-0 | NUT; MUD GUARD | 2 | 2410- | AB | FORMED MUD FLAP FRT & RR<Q8H> | ||
| 044 | I8-94215 211-0 | CLIP; ANCHOR | 10 | 2410- | AB | OD=22 L=10.7 | ||
| 039 | I8-98363 214-2 | LINER; FENDER | 1 | 2410- | AB | |||
| 092 | I8-98049 368-0 | NUT; MUD COVER | 2 | 2410- | AB | (B) M6 W/DISHED WASHER | ||
| 039 | I8-98363 215-2 | LINER; FENDER | 1 | 2410- | AB | |||
| 238 | I8-98167 444-0 | SCREW; MUD GUARD | 10 | 2410- | AB | FORMED MUD FLAP FRT & RR<Q8H> M6X20 TAPPING W/PL WASHER | ||
| 290 | I8-98245 063-0 | NUT; LINER | 2 | 2410- | AB | |||
| 045 | I8-98393 945-2 | COVER; MUD,FENDER SKIRT | 1 | 2410- | AB |
