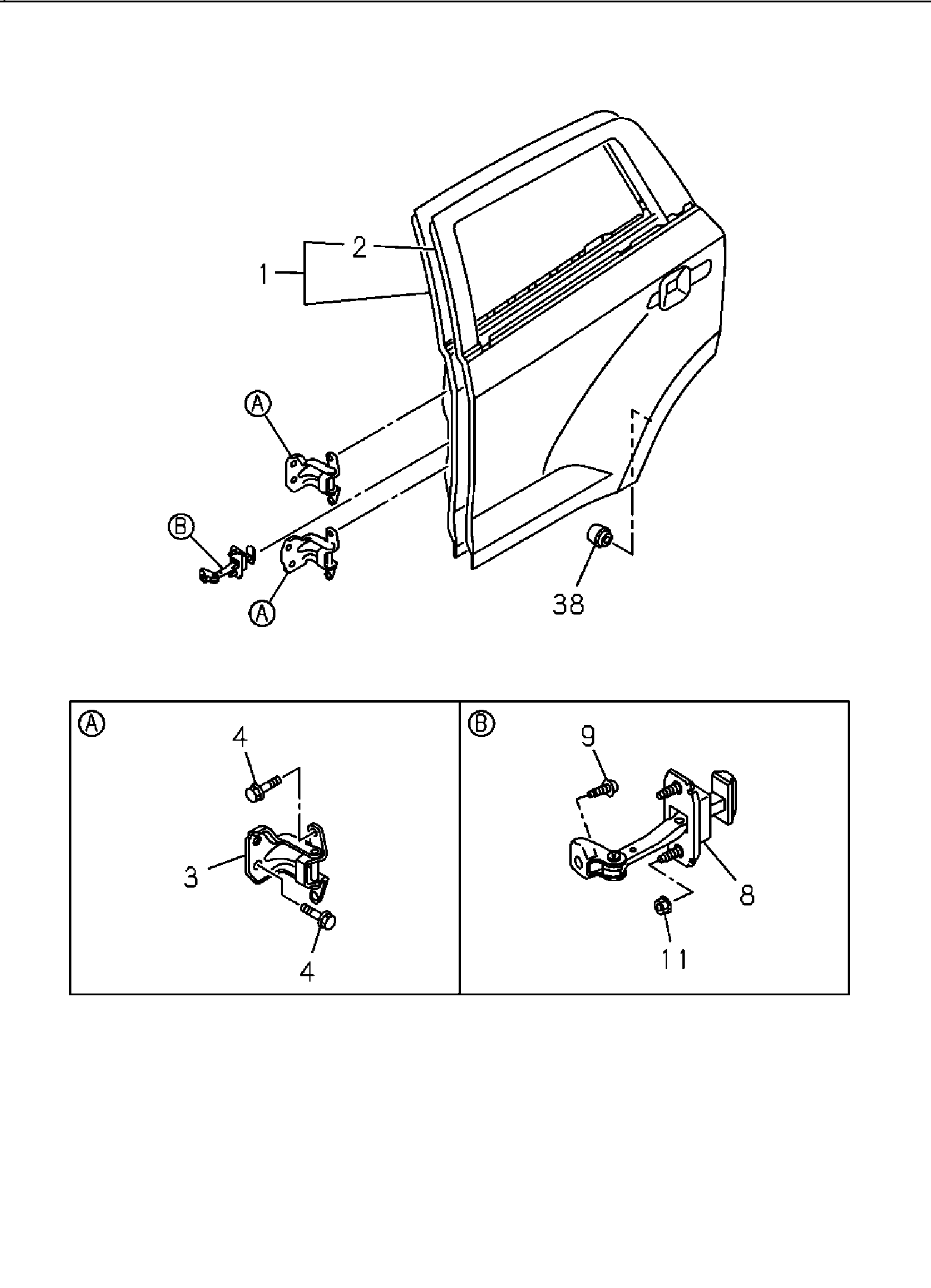

6-50 | 6-50A REAR DOOR AND HINGE
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 001 | I8-97503 517-6 | DOOR ASM; REAR | 1 | 2410- | AB | |||
| 009 | I8-98166 694-0 | BOLT; CHECK ARM | 2 | 2410- | AB | M8X23 | ||
| 004 | I8-98005 842-0 | BOLT; HINGE | 16 | 2410- | AB | M8X23 FLANGE | ||
| 008 | I8-97798 558-0 | ARM; CHECK,RR DOOR | 2 | 2410- | AB | |||
| 011 | I8-98049 362-0 | NUT | 4 | 2410- | AB | M6 FLANGE | ||
| 003 | I8-97490 841-1 | HINGE; RR DOOR | 1 | 2410- | AB | LOWER | ||
| 003 | I8-98398 784-1 | HINGE; RR DOOR | 1 | 2410- | AB | UPPER | ||
| 002 | I8-97503 520-3 | PANEL; RR DOOR OUTER | 1 | 2410- | AB | |||
| 038 | I8-98202 864-0 | PROTECTOR; RR DOOR | 2 | 2410- | AB | |||
| 003 | I8-97490 840-1 | HINGE; RR DOOR | 1 | 2410- | AB | LOWER | ||
| 003 | I8-98398 783-1 | HINGE; RR DOOR | 1 | 2410- | AB | UPPER | ||
| 001 | I8-97503 518-6 | DOOR ASM; REAR | 1 | 2410- | AB | |||
| 002 | I8-97503 521-3 | PANEL; RR DOOR OUTER | 1 | 2410- | AB |
