| 598 |
I8-98164 685-0 |
|
GROMMET; SCREW |
4 |
2410- |
|
AB |
COOLER W/FRESH AIR(C65) 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> (B) |
| 265 |
I8-97908 604-1 |
|
HOLDER; CUP |
1 |
2410- |
|
A |
INDONESIA EQUIPMENT(B00),SOUTH AFRICA EQUIPMENT(B02),GENERAL EXPORT EQUIPMENT(TAA) BLACK |
| 121 |
I8-98336 064-0 |
|
CLIP; RADIO,INST PNL |
12 |
2410- |
|
AB |
|
| 277 |
I8-97553 901-0 |
|
RUBBER; STOPPER GLOVE LID |
2 |
2410- |
|
AB |
(B) |
| 304 |
I7-47542 012-1 |
|
GARNISH; INST CLUSTER CENTER |
1 |
2410- |
|
B |
GRADE ROYAL(RBE) SILVER |
| 287 |
I7-47507 342-4 |
|
PANEL; CLUSTER SIDE |
1 |
2410- |
|
AB |
(A) BLACK |
| 042 |
I7-47502 187-4 |
|
BOX; GLOVE,INST PNL |
1 |
2410- |
|
AB |
INTERIOR COLOR GRAY(160) GRADE LUXURY(RBC) (B) BLACK |
| 108 |
I8-97471 685-1 |
|
GRILLE; INST PNL |
1 |
2410- |
|
AB |
BLACK |
| 734 |
I7-47542 007-0 |
|
MOLDING; INST PNL |
1 |
2410- |
|
AB |
INTERIOR COLOR GRAY(160) GRADE LUXURY(RBC) (B) BLACK |
| 656 |
I8-98164 677-0 |
|
CLIP; TRIM |
6 |
2410- |
|
AB |
|
| 265 |
I8-97908 604-1 |
|
HOLDER; CUP |
1 |
2410- |
|
B |
INDONESIA EQUIPMENT(B00),SOUTH AFRICA EQUIPMENT(B02),CONGO EQUIPMENT(CDF),CENTRAL AMERICA EQUIPMENT(E03),GENERAL EXPORT EQUIPMENT(TAA) BLACK |
| 042 |
I8-97471 680-2 |
|
BOX; GLOVE,INST PNL |
1 |
2410- |
|
AB |
LOCK GLOVE BOX<A99> (A) BLACK |
| 304 |
I7-47542 011-1 |
|
GARNISH; INST CLUSTER CENTER |
1 |
2410- |
|
AB |
GRADE CUSTOM(RBD) SILVER |
| 124 |
I8-97269 908-1 |
|
REINFORCEMENT; INST PNL,UPR |
1 |
2410- |
|
AB |
AUSTRALIA EQUIPMENT(B13) AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) |
| 626 |
I8-97472 347-0 |
|
RETAINER |
1 |
2410- |
|
A |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (B) BLACK |
| 124 |
I8-98398 489-5 |
|
REINFORCEMENT; INST PNL,UPR |
1 |
2410- |
|
A |
INDONESIA EQUIPMENT(B00),SOUTH AFRICA EQUIPMENT(B02),GENERAL EXPORT EQUIPMENT(TAA) AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) |
| 016 |
I8-97509 764-0 |
|
BRACKET; INST PNL |
1 |
2410- |
|
B |
RZ4E-TC ENG(RDZ) EURO2 SPECIFICATION(NT2) (E) |
| 729 |
I8-97905 145-0 |
|
COVER; GRILLE |
1 |
2410- |
|
AB |
COOLER W/FRESH AIR(C65) (B) BLACK |
| 125 |
I8-98164 677-0 |
|
CLIP; INST PANEL |
5 |
2410- | |
|
AB |
|
| 178 |
I0-91180 106-0 |
|
NUT; INST PANEL |
2 |
2410- | |
|
AB |
M6 FLANGE |
| 003 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
27 |
2410- |
|
AB |
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C) M5X16 |
| 734 |
I7-47541 255-1 |
|
MOLDING; INST PNL |
1 |
2410- |
|
AB |
INTERIOR COLOR GRAY(160) GRADE LUXURY(RBC) (A) BLACK |
| 726 |
I7-47507 034-0 |
|
PANEL; INST LW |
1 |
2410- |
|
B |
INTERIOR COLOR BLACK(101) GRADE ROYAL(RBE) AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (D) BLACK |
| 626 |
I8-98164 677-0 |
|
RETAINER |
4 |
2410- |
|
AB |
(A) |
| 016 |
I8-98386 338-0 |
|
BRACKET; INST PNL |
1 |
2410- |
|
AB |
(C) |
| 694 |
I8-98164 677-0 |
|
CLIP; INST PNL |
10 |
2410- |
|
AB |
(B) |
| 457 |
I7-47541 273-0 |
|
PLATE; INST PANEL |
1 |
2410- |
|
AB |
INTERIOR COLOR GRAY(160) GRADE LUXURY(RBC) RADIO DELETE(UL5) BLACK |
| 265 |
I8-97907 997-1 |
|
HOLDER; CUP |
1 |
2410- |
|
AB |
AUSTRALIA EQUIPMENT(B13) BLACK |
| 003 |
I8-97553 417-0 |
|
SCREW; BINDER HD |
13 |
2410- |
|
AB |
AM/FM,DVD,NAVI W/DISPLAY,SMART PHONE(8RW),AM/FM,MEMORY NAVI W/DISPLAY,SMART PHONE(8TG),SCREEN 9" WO/DVD(8TK) (B) M4X16 |
| 256 |
I7-47541 261-1 |
|
BEZEL ASM; CENTER |
1 |
2410- |
|
AB |
GRADE CUSTOM(RBD) BLACK |
| 734 |
I7-47542 006-0 |
|
MOLDING; INST PNL |
1 |
2410- |
|
AB |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) (B) BLACK |
| 265 |
I8-97908 603-1 |
|
HOLDER; CUP |
1 |
2410- |
|
B |
INDONESIA EQUIPMENT(B00),SOUTH AFRICA EQUIPMENT(B02),CONGO EQUIPMENT(CDF),CENTRAL AMERICA EQUIPMENT(E03),GENERAL EXPORT EQUIPMENT(TAA) BLACK |
| 287 |
I7-47507 346-1 |
|
PANEL; CLUSTER SIDE |
1 |
2410- |
|
AB |
INTERIOR COLOR GRAY(160) GRADE LUXURY(RBC) (B) SILVER |
| 001 |
I7-47541 921-0 |
|
PANEL; INST |
1 |
2410- |
|
B |
INTERIOR COLOR BLACK(101) AIR CONDITIONER AUTOMATIC CONT(C61) GRADE ROYAL(RBE) 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> EXC. SAFETY PACKAGE FRT(8SW),SAFETY PACKAGE FRT & RR(8SY) (A) BLACK |
| 729 |
I8-97907 637-0 |
|
COVER; GRILLE |
1 |
2410- |
|
AB |
COOLER W/FRESH AIR(C65) (A) BLACK |
| 011 |
I8-98057 964-0 |
|
BOLT; INST PNL |
1 |
2410- |
|
AB |
(C) M8X30 W/LK&PL WASHER |
| 070 |
I8-97905 023-0 |
|
GRILLE; CENTER,AIR OUTLET |
1 |
2410- |
|
AB |
INTERIOR COLOR GRAY(160) GRADE LUXURY(RBC) BLACK |
| 003 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
8 |
2410- |
|
AB |
(A) M5X16 |
| 170 |
I8-97905 138-0 |
|
COVER; HOLE |
1 |
2410- |
|
AB |
AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) BLACK |
| 016 |
I8-98337 947-1 |
|
BRACKET; INST PNL |
1 |
2410- |
|
AB |
4JJ3 ENG(LNG) (A) |
| 626 |
I8-97472 347-0 |
|
RETAINER |
1 |
2410- |
|
B |
AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (B) BLACK |
| 070 |
I8-97907 363-0 |
|
GRILLE; CENTER,AIR OUTLET |
1 |
2410- |
|
AB |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) BLACK |
| 582 |
I8-97477 997-0 |
|
LID; FUSE & RELAY |
1 |
2410- | |
|
AB |
BLACK |
| 016 |
I8-97509 764-0 |
|
BRACKET; INST PNL |
1 |
2410- |
|
A |
RZ4E-TC ENG(RDZ) EURO0 SPECIFICATION(K75),EURO2 SPECIFICATION(NT2) (E) |
| 581 |
I8-98167 449-0 |
|
SCREW |
4 |
2410- |
|
AB |
RADIO DELETE(UL5) M5X16 TAPPING |
| 003 |
I8-97553 417-0 |
|
SCREW; BINDER HD |
17 |
2410- |
|
AB |
INTERIOR COLOR GRAY(160) GRADE LUXURY(RBC),GRADE CUSTOM(RBD) RADIO DELETE(UL5) (B) M4X16 |
| 011 |
I0-28450 825-0 |
|
BOLT; INST PNL |
6 |
2410- |
|
AB |
(A) M8X25 FLANGE |
| 277 |
I8-97553 227-0 |
|
RUBBER; STOPPER GLOVE LID |
2 |
2410- |
|
AB |
(A) |
| 016 |
I8-98398 508-0 |
|
BRACKET; INST PNL |
1 |
2410- |
|
B |
RZ4E-TC ENG(RDZ) EURO2 SPECIFICATION(NT2) (F) |
| 304 |
I7-47542 010-1 |
|
GARNISH; INST CLUSTER CENTER |
1 |
2410- |
|
AB |
INTERIOR COLOR GRAY(160) GRADE LUXURY(RBC) SILVER |
| 069 |
I8-97905 017-0 |
|
GRILLE; SIDE,AIR OUTLET |
1 |
2410- |
|
AB |
INTERIOR COLOR GRAY(160) GRADE LUXURY(RBC) (A) BLACK |
| 148 |
I8-98038 450-0 |
|
NUT; INST PANEL BRKT |
4 |
2410- | |
|
AB |
|
| 016 |
I8-98386 340-0 |
|
BRACKET; INST PNL |
1 |
2410- |
|
AB |
(C) |
| 069 |
I8-97907 373-0 |
|
GRILLE; SIDE,AIR OUTLET |
1 |
2410- |
|
AB |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) (B) BLACK |
| 726 |
I8-97471 679-2 |
|
PANEL; INST LW |
1 |
2410- |
|
AB |
(C) BLACK |
| 235 |
I8-97553 417-0 |
|
SCREW; GRILLE |
9 |
2410- |
|
AB |
M4X16 |
| 265 |
I8-97908 603-1 |
|
HOLDER; CUP |
1 |
2410- |
|
A |
INDONESIA EQUIPMENT(B00),SOUTH AFRICA EQUIPMENT(B02),GENERAL EXPORT EQUIPMENT(TAA) BLACK |
| 729 |
I8-97907 636-0 |
|
COVER; GRILLE |
1 |
2410- |
|
AB |
COOLER W/FRESH AIR(C65) (A) BLACK |
| 457 |
I7-47501 235-0 |
|
PLATE; INST PANEL |
1 |
2410- |
|
AB |
GRADE CUSTOM(RBD) INTERIOR COLOR GRAY(160) RADIO DELETE(UL5) BLACK |
| 011 |
I8-97847 879-0 |
|
BOLT; INST PNL |
8 |
2410- |
|
AB |
(E) M8X17.5 W/PL WASHER |
| 018 |
I8-94358 694-0 |
|
BOLT; BRKT |
2 |
2410- |
|
AB |
(B) SCREW M5X16 |
| 016 |
I8-98398 508-0 |
|
BRACKET; INST PNL |
1 |
2410- |
|
A |
RZ4E-TC ENG(RDZ) EURO0 SPECIFICATION(K75),EURO2 SPECIFICATION(NT2) (F) |
| 265 |
I8-97907 996-1 |
|
HOLDER; CUP |
1 |
2410- |
|
AB |
AUSTRALIA EQUIPMENT(B13) BLACK |
| 262 |
I8-97907 900-0 |
|
GRILLE; DEFROSTER |
1 |
2410- |
|
AB |
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) BLACK |
| 042 |
I7-47502 186-4 |
|
BOX; GLOVE,INST PNL |
1 |
2410- |
|
AB |
GRADE CUSTOM(RBD) (B) BLACK |
| 341 |
I8-97471 684-3 |
|
LID; FUSE BOX |
1 |
2410- |
|
AB |
BLACK |
| 262 |
I8-97907 901-0 |
|
GRILLE; DEFROSTER |
1 |
2410- |
|
AB |
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) BLACK |
| 001 |
I7-47506 572-0 |
|
PANEL; INST |
1 |
2410- |
|
B |
INTERIOR COLOR BLACK(101) AIR CONDITIONER AUTOMATIC CONT(C61) GRADE ROYAL(RBE) 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> SAFETY PACKAGE FRT(8SW),SAFETY PACKAGE FRT & RR(8SY) (A) BLACK |
| 001 |
I7-47506 574-0 |
|
PANEL; INST |
1 |
2410- |
|
AB |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR GRAY(160) AIR CONDITIONER MANUAL CONT(C60) 4-SPEAKER SYSTEM BASE<UQ4> EXC. SAFETY PACKAGE FRT(8SW),SAFETY PACKAGE FRT & RR(8SY) (A) BLACK |
| 069 |
I8-97907 391-0 |
|
GRILLE; SIDE,AIR OUTLET |
1 |
2410- |
|
AB |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) (A) BLACK |
| 001 |
I7-47506 571-0 |
|
PANEL; INST |
1 |
2410- |
|
AB |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) AIR CONDITIONER AUTOMATIC CONT(C61) 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> SAFETY PACKAGE FRT(8SW),SAFETY PACKAGE FRT & RR(8SY) (A) BLACK |
| 726 |
I8-97471 677-3 |
|
PANEL; INST LW |
1 |
2410- |
|
AB |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (D) BLACK |
| 341 |
I8-97471 683-3 |
|
LID; FUSE BOX |
1 |
2410- |
|
AB |
BLACK |
| 235 |
I8-97553 417-0 |
|
SCREW; GRILLE |
25 |
2410- |
|
AB |
M4X16 |
| 001 |
I8-97477 993-1 |
|
PANEL; INST |
1 |
2410- |
|
AB |
(B) BLACK |
| 546 |
I7-47501 608-1 |
|
PANEL; INST,SUB |
1 |
2410- |
|
AB |
PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR>,PASSIVE ENTRY W/PUSH START<8WY> BLACK |
| 546 |
I7-47501 607-1 |
|
PANEL; INST,SUB |
1 |
2410- |
|
AB |
INTERIOR COLOR GRAY(160) REMOTE CONT DOOR LOCK<AP5> BLACK |
| 070 |
I8-97907 364-0 |
|
GRILLE; CENTER,AIR OUTLET |
1 |
2410- |
|
AB |
GRADE CUSTOM(RBD),GRADE ROYAL(RBE) BLACK |
| 001 |
I7-47506 578-0 |
|
PANEL; INST |
1 |
2410- |
|
AB |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR GRAY(160) COOLER W/FRESH AIR(C65) 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> EXC. SAFETY PACKAGE FRT(8SW),SAFETY PACKAGE FRT & RR(8SY) (A) BLACK |
| 016 |
I7-55187 947-2 |
|
BRACKET; INST PNL |
1 |
2410- |
|
AB |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) (D) |
| 016 |
I8-98337 945-1 |
|
BRACKET; INST PNL |
1 |
2410- |
|
AB |
RZ4E-TC ENG(RDZ) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (B) |
| 016 |
I8-98337 947-1 |
|
BRACKET; INST PNL |
1 |
2410- |
|
AB |
RZ4E-TC ENG(RDZ) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A) |
| 598 |
I8-98164 685-0 |
|
GROMMET; SCREW |
2 |
2410- |
|
AB |
AIR CONDITIONER MANUAL CONT(C60) 4-SPEAKER SYSTEM BASE<UQ4> (B) |
| 004 |
I7-47541 251-4 |
|
COVER; INST PNL |
1 |
2410- | |
|
AB |
BLACK |
| 598 |
I8-98164 685-0 |
|
GROMMET; SCREW |
14 |
2410- |
|
AB |
(A) |
| 001 |
I7-47506 575-0 |
|
PANEL; INST |
1 |
2410- |
|
AB |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) AIR CONDITIONER AUTOMATIC CONT(C61) 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> EXC. SAFETY PACKAGE FRT(8SW),SAFETY PACKAGE FRT & RR(8SY) (A) BLACK |
| 530 |
I8-98336 064-0 |
|
CLIP; GLOVE BOX |
12 |
2410- | |
|
AB |
|
| 729 |
I8-97905 146-0 |
|
COVER; GRILLE |
1 |
2410- |
|
AB |
COOLER W/FRESH AIR(C65) (B) BLACK |
| 694 |
I8-98164 677-0 |
|
CLIP; INST PNL |
6 |
2410- |
|
AB |
(A) |
| 001 |
I7-47506 576-0 |
|
PANEL; INST |
1 |
2410- |
|
AB |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR GRAY(160) COOLER W/FRESH AIR(C65) 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> SAFETY PACKAGE FRT(8SW),SAFETY PACKAGE FRT & RR(8SY) (A) BLACK |
| 287 |
I7-47507 344-1 |
|
PANEL; CLUSTER SIDE |
1 |
2410- |
|
AB |
GRADE CUSTOM(RBD) STEERING COLUMN TILT TELESCOPING<N37> (B) SILVER |
| 069 |
I8-97905 003-0 |
|
GRILLE; SIDE,AIR OUTLET |
1 |
2410- |
|
AB |
INTERIOR COLOR GRAY(160) GRADE LUXURY(RBC) (B) BLACK |
| 598 |
I8-98164 685-0 |
|
GROMMET; SCREW |
6 |
2410- |
|
AB |
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> (B) |
| 732 |
I8-97684 833-0 |
|
BEZEL |
1 |
2410- |
|
AB |
|
| 011 |
I8-98167 449-0 |
|
BOLT; INST PNL |
4 |
2410- |
|
AB |
(B) SCREW M5X16 TAPPING |
| 287 |
I7-47507 345-1 |
|
PANEL; CLUSTER SIDE |
1 |
2410- |
|
B |
GRADE ROYAL(RBE) (B) BLACK |
| 256 |

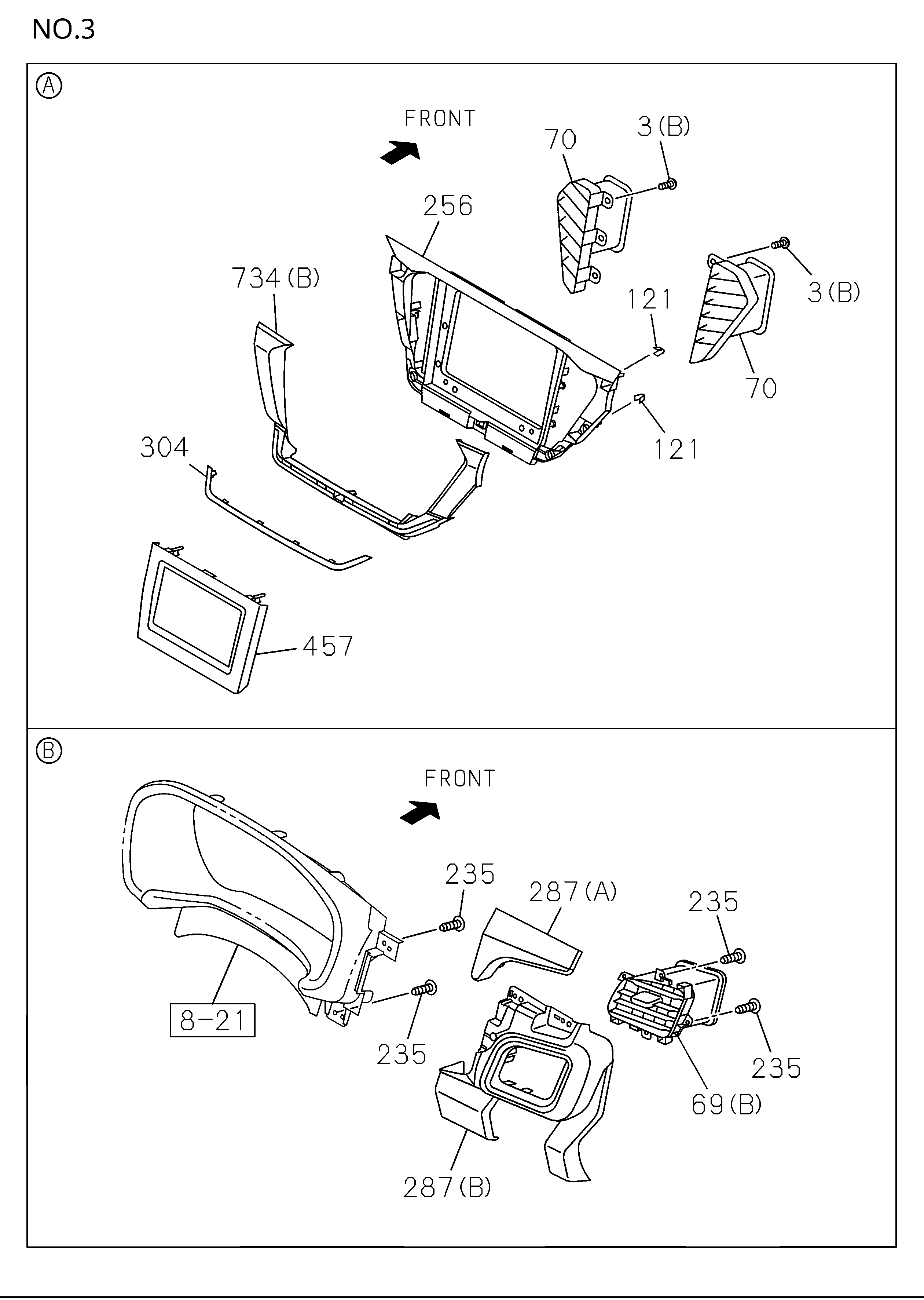

I7-47541 263-1 |
|
BEZEL ASM; CENTER |
1 |
2410- |
|
AB |
INTERIOR COLOR GRAY(160) GRADE LUXURY(RBC) BLACK |
| 001 |

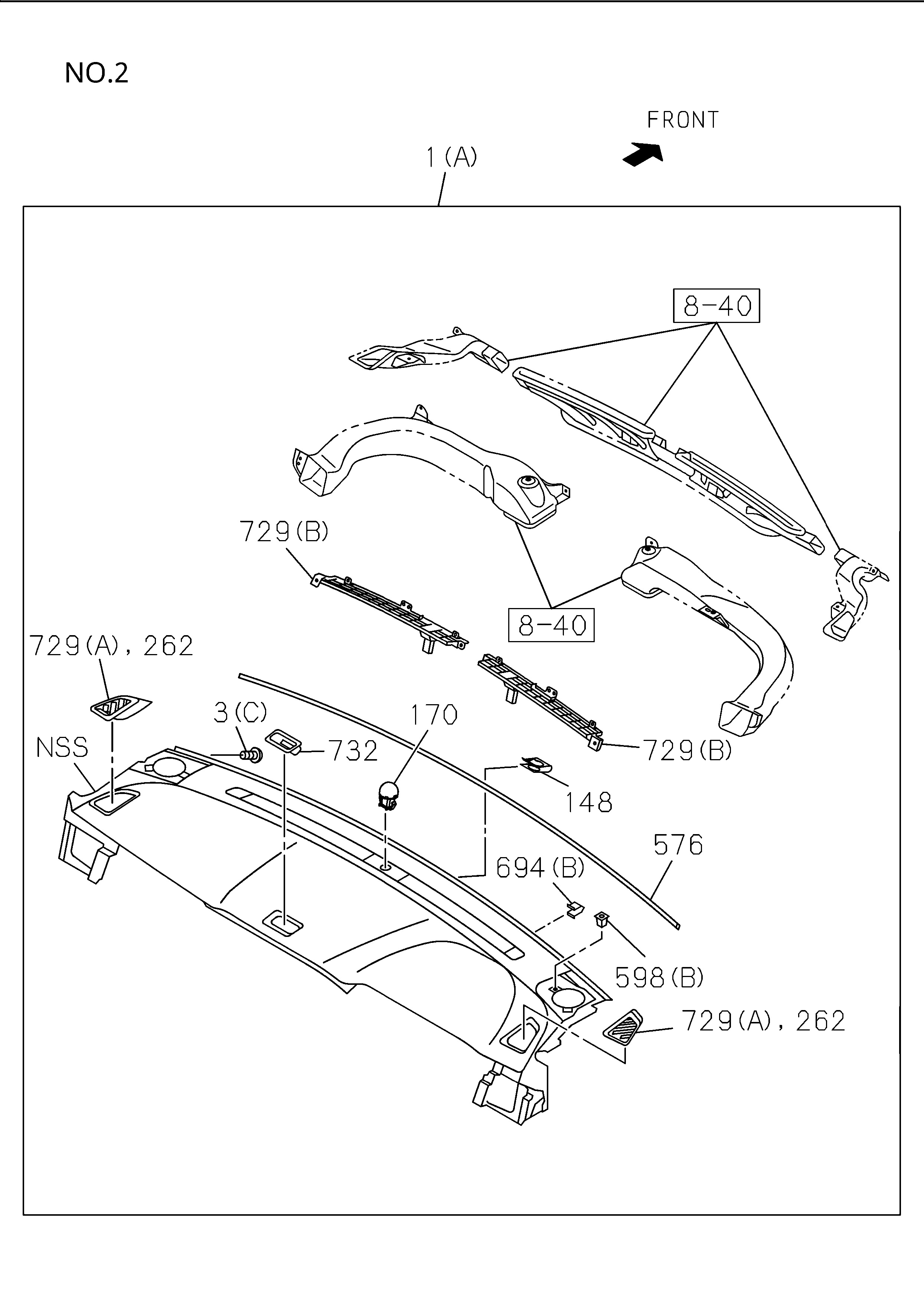

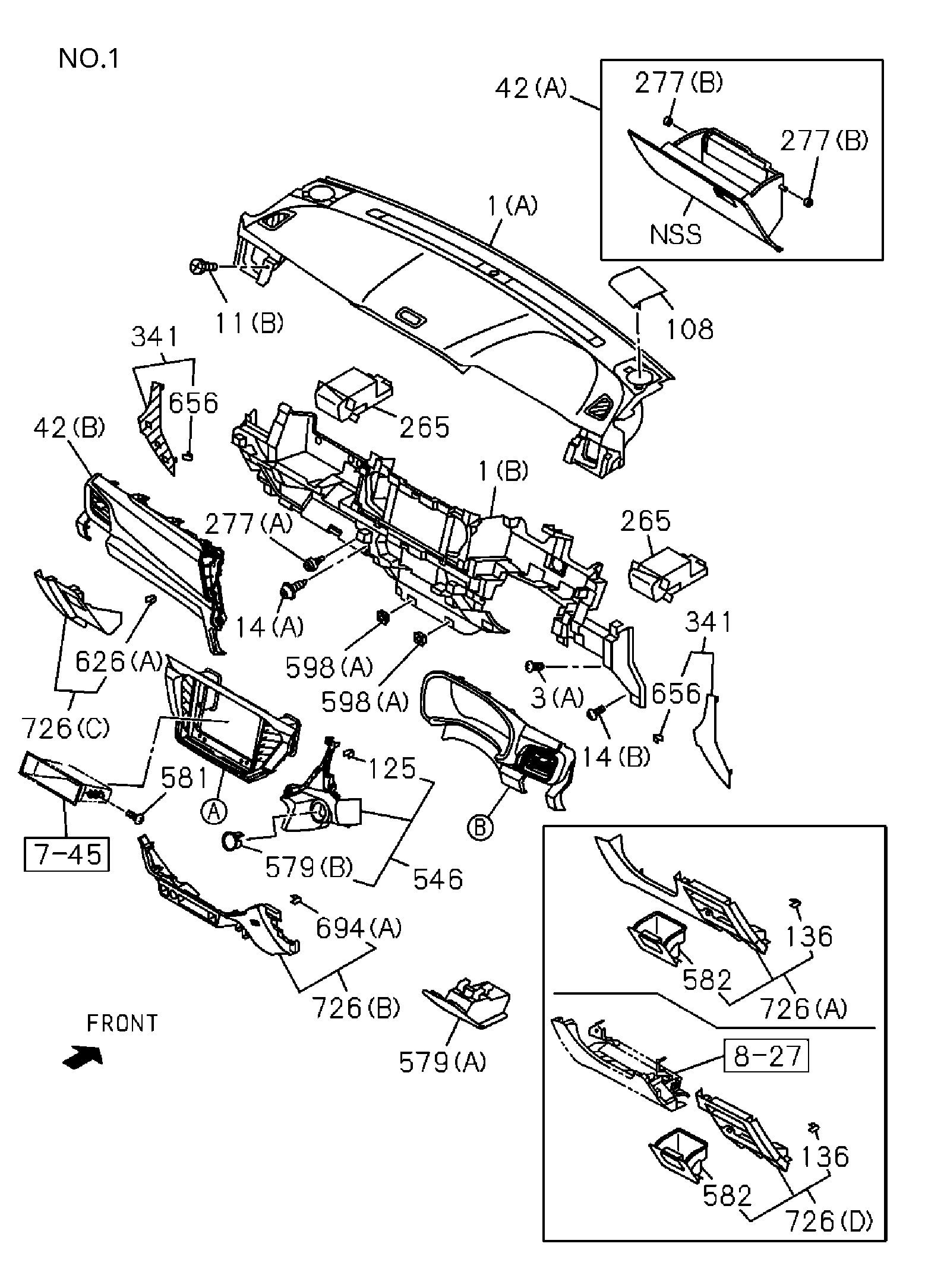

I7-47506 570-0 |
|
PANEL; INST |
1 |
2410- |
|
AB |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR GRAY(160) AIR CONDITIONER MANUAL CONT(C60) 4-SPEAKER SYSTEM BASE<UQ4> SAFETY PACKAGE FRT(8SW),SAFETY PACKAGE FRT & RR(8SY) (A) BLACK |
| 124 |

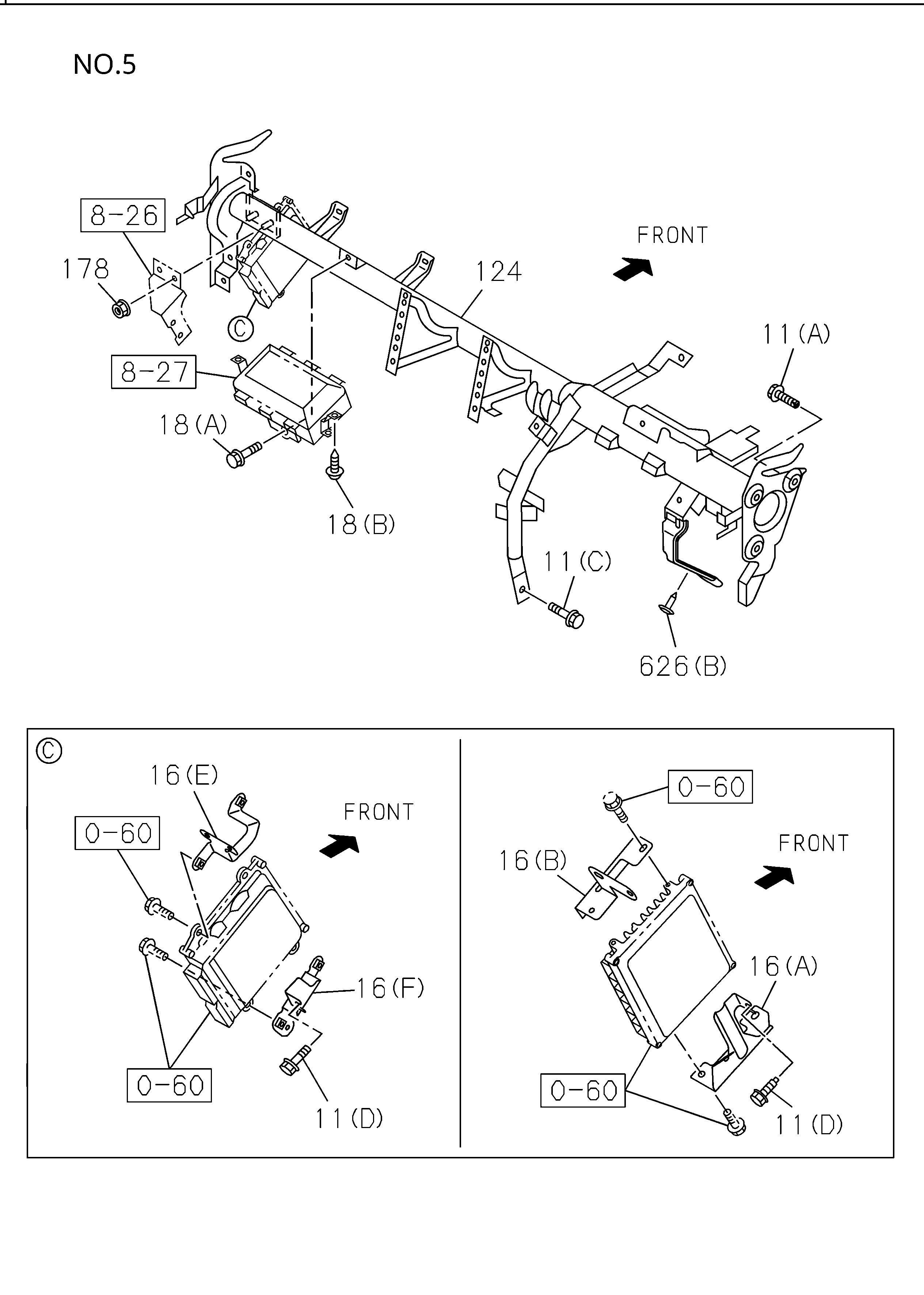

I8-98398 489-5 |
|
REINFORCEMENT; INST PNL,UPR |
1 |
2410- |
|
B |
INDONESIA EQUIPMENT(B00),SOUTH AFRICA EQUIPMENT(B02),CONGO EQUIPMENT(CDF),CENTRAL AMERICA EQUIPMENT(E03),GENERAL EXPORT EQUIPMENT(TAA) AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) |
| 734 |
I7-47541 253-1 |
|
MOLDING; INST PNL |
1 |
2410- |
|
AB |
GRADE CUSTOM(RBD) (A) BLACK |
| 042 |
I8-97471 681-2 |
|
BOX; GLOVE,INST PNL |
1 |
2410- |
|
AB |
INTERIOR COLOR GRAY(160) EXC. LOCK GLOVE BOX<A99> (A) BLACK |
| 579 |
I8-97907 382-0 |
|
COVER; INST PNL |
1 |
2410- |
|
AB |
INTERIOR COLOR GRAY(160) REMOTE CONT DOOR LOCK<AP5> (B) BLACK |
| 136 |
I8-98164 677-0 |
|
CLIP; INST COVER |
6 |
2410- |
|
AB |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) |
| 014 |
I8-98167 220-0 |
|
SCREW; INST PNL |
1 |
2410- |
|
AB |
(A) M5X16 |
| 042 |
I7-47507 035-4 |
|
BOX; GLOVE,INST PNL |
1 |
2410- |
|
B |
INTERIOR COLOR BLACK(101) SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) GRADE ROYAL(RBE) (B) BLACK |
| 726 |
I8-97474 460-2 |
|
PANEL; INST LW |
1 |
2410- |
|
AB |
(B) BLACK |
| 003 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
29 |
2410- |
|
AB |
COOLER W/FRESH AIR(C65) (C) M5X16 |
| 070 |
I8-97905 024-0 |
|
GRILLE; CENTER,AIR OUTLET |
1 |
2410- |
|
AB |
INTERIOR COLOR GRAY(160) GRADE LUXURY(RBC) BLACK |
| 108 |
I8-97471 686-1 |
|
GRILLE; INST PNL |
1 |
2410- |
|
AB |
BLACK |
| 726 |
I8-97471 678-4 |
|
PANEL; INST LW |
1 |
2410- |
|
AB |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR GRAY(160) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (A) BLACK |
| 136 |
I8-98164 677-0 |
|
CLIP; INST COVER |
3 |
2410- |
|
AB |
AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) |
| 001 |
I7-47506 573-0 |
|
PANEL; INST |
1 |
2410- |
|
AB |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR GRAY(160) COOLER W/FRESH AIR(C65) 4-SPEAKER SYSTEM BASE<UQ4> EXC. SAFETY PACKAGE FRT(8SW),SAFETY PACKAGE FRT & RR(8SY) (A) BLACK |
| 011 |
I8-98136 167-0 |
|
BOLT; INST PNL |
1 |
2410- |
|
AB |
(D) M6X22 W/PL WASHER |
| 734 |
I7-47541 254-1 |
|
MOLDING; INST PNL |
1 |
2410- |
|
B |
INTERIOR COLOR BLACK(101) SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) GRADE ROYAL(RBE) (A) SILVER |
| 001 |
I7-47506 579-0 |
|
PANEL; INST |
1 |
2410- |
|
AB |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR GRAY(160) AIR CONDITIONER MANUAL CONT(C60) 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> EXC. SAFETY PACKAGE FRT(8SW),SAFETY PACKAGE FRT & RR(8SY) (A) BLACK |
| 018 |
I0-28650 840-0 |
|
BOLT; BRKT |
1 |
2410- |
|
AB |
(A) M8X40 FLANGE |
| 579 |
I8-97474 856-1 |
|
COVER; INST PNL |
1 |
2410- |
|
AB |
(A) BLACK |
| 016 |
I8-98337 945-1 |
|
BRACKET; INST PNL |
1 |
2410- |
|
AB |
4JJ3 ENG(LNG) (B) |
| 001 |
I7-47506 580-0 |
|
PANEL; INST |
1 |
2410- |
|
AB |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) INTERIOR COLOR GRAY(160) AIR CONDITIONER MANUAL CONT(C60) 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> SAFETY PACKAGE FRT(8SW),SAFETY PACKAGE FRT & RR(8SY) (A) BLACK |
| 726 |
I7-47506 366-1 |
|
PANEL; INST LW |
1 |
2410- |
|
B |
INTERIOR COLOR BLACK(101) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) GRADE ROYAL(RBE) (A) BLACK |
| 014 |
I8-98167 449-0 |
|
SCREW; INST PNL |
14 |
2410- |
|
AB |
(B) M5X16 TAPPING |
| 124 |
I8-98337 943-5 |
|
REINFORCEMENT; INST PNL,UPR |
1 |
2410- |
|
AB |
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) |
| 576 |
I8-97553 498-0 |
|
CUSHION |
1 |
2410- | |
|
AB |
|
| 256 |
I7-47541 262-1 |
|
BEZEL ASM; CENTER |
1 |
2410- |
|
B |
GRADE ROYAL(RBE) SILVER |
