| 397 |
I8-97688 428-0 |
|
CABLE; SEAT |
1 |
2410- |
R |
AB |
(A) |
| 362 |
I8-97907 737-0 |
|
COVER; REAR SEAT LATCH |
1 |
2410- |
R |
AB |
BLACK |
| 420 |
I8-97540 564-0 |
|
SENSOR; REMINDER |
3 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) 2ND SEAT |
| 272 |
I8-97688 495-0 |
|
SCREW; COVER |
5 |
2410- |
R |
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) |
| 009 |
I7-47507 519-0 |
|
COVER ASM; TRIM,RR,CUSHION |
1 |
2410- |
L |
B |
INTERIOR COLOR BLACK(101) SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> GRADE ROYAL(RBE) SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) BLACK |
| 382 |
I8-97688 575-0 |
|
PAD; CUSHION 3RD |
1 |
2410- |
L |
AB |
INDICATOR SEAT BELT WARNING(6SD) |
| 423 |
I8-97688 525-0 |
|
PLATE |
2 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) |
| 309 |
I8-97688 506-0 |
|
CLIP; SEAT |
2 |
2410- |
R |
AB |
|
| 253 |
I8-97688 504-0 |
|
CLIP; CABLE |
1 |
2410- |
R |
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> INDICATOR SEAT BELT WARNING FR & RR(8TF) EXC. POWER STEERING ELECTRIC<NV9> (B) |
| 415 |
I8-98253 629-0 |
|
COVER; ARM |
1 |
2410- |
L |
AB |
(B) |
| 022 |
I8-97907 758-0 |
|
COVER; RECLINING ADJ |
1 |
2410- |
L |
AB |
(E) BLACK |
| 420 |
I8-97540 564-0 |
|
SENSOR; REMINDER |
1 |
2410- |
R |
AB |
INTERIOR COLOR GRAY(160) SEAT TRIM HIGH CLOTH<8LM> SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> INDICATOR SEAT BELT WARNING FR & RR(8TF) 2ND SEAT |
| 281 |
I8-97688 494-0 |
|
SCREW |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> |
| 253 |
I8-97688 503-0 |
|
CLIP; CABLE |
3 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) (C) |
| 091 |
I8-97907 715-0 |
|
COVER; RR SEAT BACK |
1 |
2410- |
L |
AB |
SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK> (B) BLACK |
| 100 |
I8-97908 071-1 |
|
REST; ARM,RR SEAT |
1 |
2410- |
L |
AB |
SEAT TRIM LEATHER<6TB> BLACK |
| 004 |
I8-97688 430-0 |
|
PAD; RR,SEAT BACK |
1 |
2410- |
R |
AB |
|
| 413 |
I8-97907 749-0 |
|
COVER; TETHER |
2 |
2410- |
L |
AB |
SEAT TRIM HIGH CLOTH<8LM> POWER STEERING ELECTRIC<NV9> BLACK |
| 011 |
I8-97688 483-1 |
|
FRAME ASM; CUSHION,RR SEAT |
1 |
2410- |
R |
AB |
|
| 010 |
I8-97688 507-0 |
|
PAD; CUSHION,RR SEAT |
1 |
2410- |
L |
AB |
EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) |
| 017 |
I7-47507 479-0 |
|
REST; HD,RR SEAT |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) (A) BLACK |
| 413 |
I8-97907 749-0 |
|
COVER; TETHER |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK> BLACK |
| 253 |
I8-97688 503-0 |
|
CLIP; CABLE |
2 |
2410- |
L |
AB |
SEAT TRIM HIGH CLOTH<8LM> POWER STEERING ELECTRIC<NV9> (C) |
| 017 |
I8-97907 723-0 |
|
REST; HD,RR SEAT |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK> (A) BLACK |
| 423 |
I8-97688 525-0 |
|
PLATE |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> |
| 056 |
I8-97688 496-0 |
|
WIRE; RELEASE,RR SEAT |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) |
| 227 |
I8-97907 676-0 |
|
HOLDER; GUIDE,RR HD REST |
2 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> LOCK BLACK |
| 227 |
I8-97907 675-0 |
|
HOLDER; GUIDE,RR HD REST |
2 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) FREE BLACK |
| 100 |
I8-97908 840-1 |
|
REST; ARM,RR SEAT |
1 |
2410- |
L |
AB |
SEAT TRIM HIGH CLOTH<8LM> BLACK |
| 415 |
I8-98253 629-0 |
|
COVER; ARM |
1 |
2410- |
L |
AB |
(B) |
| 381 |
I8-97688 571-0 |
|
FRAME; CUSHION 3RD |
1 |
2410- |
R |
AB |
|
| 352 |
I8-97688 487-0 |
|
SPRING; RR CUSHION |
1 |
2410- |
L |
AB |
|
| 227 |
I8-97907 676-0 |
|
HOLDER; GUIDE,RR HD REST |
2 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING(6SD) LOCK BLACK |
| 415 |
I8-98253 628-0 |
|
COVER; ARM |
1 |
2410- |
L |
AB |
(A) |
| 416 |
I8-98253 642-0 |
|
BOLT; ARM REST |
2 |
2410- |
L |
AB |
|
| 227 |
I8-97907 675-0 |
|
HOLDER; GUIDE,RR HD REST |
2 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING(6SD) FREE BLACK |
| 227 |
I8-97907 675-0 |
|
HOLDER; GUIDE,RR HD REST |
2 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK> FREE BLACK |
| 410 |
I7-47507 574-0 |
|
TRIM; 3RD SEAT BACK |
1 |
2410- |
R |
AB |
GRADE CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK |
| 253 |
I8-97688 524-0 |
|
CLIP; CABLE |
2 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> (A) |
| 423 |
I8-97688 525-0 |
|
PLATE |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> |
| 091 |
I8-97907 713-0 |
|
COVER; RR SEAT BACK |
1 |
2410- |
L |
AB |
SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK> (C) BLACK |
| 281 |
I8-97688 494-0 |
|
SCREW |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) |
| 395 |
I8-97907 705-0 |
|
COVER; 3RD SEAT |
2 |
2410- |
L |
AB |
SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK> (B) BLACK |
| 009 |
I8-97908 861-0 |
|
COVER ASM; TRIM,RR,CUSHION |
1 |
2410- |
R |
AB |
SEAT TRIM BASE CLOTH<8LK> BLACK |
| 226 |
I8-98220 068-0 |
|
RING; HOG |
AR |
2410- |
|
AB |
|
| 154 |
I8-98050 319-0 |
|
BOLT; STRIKER TO FLOOR |
6 |
2410- |
|
AB |
M12X27.5 W/PL WASHER |
| 272 |
I8-97688 495-0 |
|
SCREW; COVER |
6 |
2410- |
L |
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) |
| 406 |
I8-97688 506-0 |
|
STRAP |
4 |
2410- |
|
AB |
INDICATOR SEAT BELT WARNING FR & RR(8TF) (B) L=50 |
| 323 |
I8-97688 523-0 |
|
CLIP; COVER |
2 |
2410- |
L |
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> (A) |
| 393 |
I8-97688 873-0 |
|
SCREW; 3RD SEAT |
12 |
2410- |
|
AB |
|
| 003 |
I7-47507 498-0 |
|
COVER; TRIM,RR SEAT BACK |
1 |
2410- |
L |
AB |
SEAT TRIM HIGH CLOTH<8LM> EXC. POWER STEERING ELECTRIC<NV9> BLACK |
| 017 |
I8-97907 723-0 |
|
REST; HD,RR SEAT |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK> (A) BLACK |
| 091 |
I8-97907 747-0 |
|
COVER; RR SEAT BACK |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) (A) BLACK |
| 333 |
I8-97907 746-0 |
|
LEVER ASM; RR SEAT |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> (A) BLACK |
| 003 |
I7-47507 504-0 |
|
COVER; TRIM,RR SEAT BACK |
1 |
2410- |
L |
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) BLACK |
| 022 |
I8-97907 729-0 |
|
COVER; RECLINING ADJ |
1 |
2410- |
R |
AB |
(C) BLACK |
| 227 |
I8-97907 676-0 |
|
HOLDER; GUIDE,RR HD REST |
2 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK> LOCK BLACK |
| 423 |
I8-97688 525-0 |
|
PLATE |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> |
| 287 |
I8-97688 495-0 |
|
SCREW; COVER |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> |
| 003 |
I8-97907 745-0 |
|
COVER; TRIM,RR SEAT BACK |
1 |
2410- |
R |
AB |
SEAT TRIM BASE CLOTH<8LK> BLACK |
| 091 |
I8-97907 747-0 |
|
COVER; RR SEAT BACK |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) (A) BLACK |
| 382 |
I8-97688 574-0 |
|
PAD; CUSHION 3RD |
1 |
2410- |
R |
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> INDICATOR SEAT BELT WARNING FR & RR(8TF) |
| 253 |
I8-97688 524-0 |
|
CLIP; CABLE |
2 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> (A) |
| 420 |
I8-97540 564-0 |
|
SENSOR; REMINDER |
1 |
2410- |
R |
AB |
INTERIOR COLOR GRAY(160) SEAT TRIM HIGH CLOTH<8LM> SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> INDICATOR SEAT BELT WARNING FR & RR(8TF) 2ND SEAT |
| 091 |
I8-97907 747-0 |
|
COVER; RR SEAT BACK |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> (A) BLACK |
| 309 |
I8-97688 506-0 |
|
CLIP; SEAT |
2 |
2410- |
R |
AB |
|
| 333 |
I8-97907 746-0 |
|
LEVER ASM; RR SEAT |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> (A) BLACK |
| 395 |
I8-97907 717-0 |
|
COVER; 3RD SEAT |
1 |
2410- |
R |
AB |
SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK> (A) BLACK |
| 009 |
I8-97908 852-0 |
|
COVER ASM; TRIM,RR,CUSHION |
1 |
2410- |
L |
AB |
SEAT TRIM BASE CLOTH<8LK> BLACK |
| 005 |
I8-97688 424-0 |
|
FRAME ASM; |
1 |
2410- |
L |
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> INDICATOR SEAT BELT WARNING FR & RR(8TF) |
| 395 |
I8-97907 704-0 |
|
COVER; 3RD SEAT |
2 |
2410- |
R |
AB |
SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK> (B) BLACK |
| 022 |
I8-97907 708-0 |
|
COVER; RECLINING ADJ |
1 |
2410- |
R |
AB |
SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK> (I) BLACK |
| 003 |
I7-47507 529-0 |
|
COVER; TRIM,RR SEAT BACK |
1 |
2410- |
R |
AB |
INTERIOR COLOR BLACK(101) GRADE CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK |
| 309 |
I8-97688 506-0 |
|
CLIP; SEAT |
1 |
2410- |
|
AB |
|
| 009 |
I7-47507 542-0 |
|
COVER ASM; TRIM,RR,CUSHION |
1 |
2410- |
R |
AB |
INTERIOR COLOR BLACK(101) GRADE CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK |
| 017 |
I7-47507 479-0 |
|
REST; HD,RR SEAT |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) (A) BLACK |
| 017 |
I7-47507 483-0 |
|
REST; HD,RR SEAT |
1 |
2410- |
L |
AB |
SEAT TRIM HIGH CLOTH<8LM> (B) BLACK |
| 017 |
I7-47507 479-0 |
|
REST; HD,RR SEAT |
2 |
2410- |
|
AB |
GRADE CUSTOM(RBD) SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) (A) BLACK |
| 253 |
I8-97688 524-0 |
|
CLIP; CABLE |
2 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) (A) |
| 227 |
I8-97907 675-0 |
|
HOLDER; GUIDE,RR HD REST |
1 |
2410- |
R |
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) FREE BLACK |
| 376 |
I8-97688 546-1 |
|
FRAME ASM; 3RD SEAT BACK |
1 |
2410- |
L |
AB |
|
| 287 |
I8-97688 495-0 |
|
SCREW; COVER |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> |
| 253 |
I8-97688 524-0 |
|
CLIP; CABLE |
2 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) (A) |
| 382 |
I8-97688 575-0 |
|
PAD; CUSHION 3RD |
1 |
2410- |
L |
AB |
INDICATOR SEAT BELT WARNING FR & RR(8TF) EXC. POWER STEERING ELECTRIC<NV9> |
| 416 |
I8-98253 642-0 |
|
BOLT; ARM REST |
2 |
2410- |
L |
AB |
|
| 383 |
I7-47507 566-0 |
|
TRIM; CUSHION 3RD |
1 |
2410- |
L |
B |
INTERIOR COLOR BLACK(101) SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> GRADE ROYAL(RBE) SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) BLACK |
| 423 |
I8-97688 525-0 |
|
PLATE |
2 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) |
| 005 |
I8-97688 423-0 |
|
FRAME ASM; |
1 |
2410- |
L |
AB |
EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) |
| 299 |
I8-98253 643-0 |
|
BOLT; LEG |
4 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) |
| 022 |
I8-97907 706-0 |
|
COVER; RECLINING ADJ |
1 |
2410- |
R |
AB |
SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK> (J) BLACK |
| 422 |
I8-97688 500-0 |
|
JOINT; WIRE |
1 |
2410- |
R |
AB |
|
| 232 |
I8-98253 634-0 |
|
SCREW; RR SEAT |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> |
| 071 |
I8-98255 645-0 |
|
SPRING; HOOK,FLOOR LOCK,RR SEAT |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> |
| 413 |
I8-97907 749-0 |
|
COVER; TETHER |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) BLACK |
| 009 |
I7-47507 543-0 |
|
COVER ASM; TRIM,RR,CUSHION |
1 |
2410- |
R |
B |
INTERIOR COLOR BLACK(101) SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> GRADE ROYAL(RBE) SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) BLACK |
| 091 |
I8-97907 747-0 |
|
COVER; RR SEAT BACK |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> (A) BLACK |
| 306 |
I8-97688 534-0 |
|
BOLT; RR CUSHION |
2 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) |
| 410 |
I7-47507 555-0 |
|
TRIM; 3RD SEAT BACK |
1 |
2410- |
L |
B |
INTERIOR COLOR BLACK(101) SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> GRADE ROYAL(RBE) SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) BLACK |
| 333 |
I8-97907 746-0 |
|
LEVER ASM; RR SEAT |
2 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) (A) BLACK |
| 410 |
I7-47507 575-0 |
|
TRIM; 3RD SEAT BACK |
1 |
2410- |
R |
B |
INTERIOR COLOR BLACK(101) SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> GRADE ROYAL(RBE) SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) BLACK |
| 420 |
I8-97540 564-0 |
|
SENSOR; REMINDER |
2 |
2410- |
L |
AB |
SEAT TRIM HIGH CLOTH<8LM> POWER STEERING ELECTRIC<NV9> 2ND SEAT |
| 006 |
I8-98050 319-0 |
|
BOLT; RR SEAT |
8 |
2410- |
|
AB |
M12X27.5 W/PL WASHER |
| 377 |
I8-97688 552-0 |
|
PAD; 3RD SEAT BACK |
1 |
2410- |
L |
AB |
|
| 227 |
I8-97907 675-0 |
|
HOLDER; GUIDE,RR HD REST |
5 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) FREE BLACK |
| 272 |
I8-97688 495-0 |
|
SCREW; COVER |
5 |
2410- |
R |
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> |
| 382 |
I8-97688 573-0 |
|
PAD; CUSHION 3RD |
1 |
2410- |
R |
AB |
INDICATOR SEAT BELT WARNING(6SD) |
| 253 |
I8-97688 524-0 |
|
CLIP; CABLE |
4 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) (A) |
| 232 |
I8-98253 634-0 |
|
SCREW; RR SEAT |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) |
| 281 |
I8-97688 494-0 |
|
SCREW |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) |
| 323 |
I8-97688 523-0 |
|
CLIP; COVER |
2 |
2410- |
L |
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) (A) |
| 309 |
I8-97688 505-0 |
|
CLIP; SEAT |
2 |
2410- |
|
AB |
|
| 323 |
I8-97688 523-0 |
|
CLIP; COVER |
1 |
2410- |
R |
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) (A) |
| 056 |
I8-97688 496-0 |
|
WIRE; RELEASE,RR SEAT |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) |
| 227 |
I8-97907 675-0 |
|
HOLDER; GUIDE,RR HD REST |
2 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) EXC. POWER STEERING ELECTRIC<NV9> FREE BLACK |
| 420 |
I8-97540 564-0 |
|
SENSOR; REMINDER |
2 |
2410- |
L |
AB |
SEAT TRIM HIGH CLOTH<8LM> POWER STEERING ELECTRIC<NV9> 2ND SEAT |
| 392 |
I8-97688 586-0 |
|
BOLT; 3RD SEAT |
4 |
2410- |
|
AB |
(A) |
| 227 |
I8-97907 675-0 |
|
HOLDER; GUIDE,RR HD REST |
2 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> FREE BLACK |
| 409 |
I8-97907 716-0 |
|
COVER; STRAP |
2 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK> BLACK |
| 302 |
I0-91180 110-0 |
|
NUT; RR SEAT |
2 |
2410- |
|
AB |
(B) M10 FLANGE |
| 410 |
I8-97907 689-0 |
|
TRIM; 3RD SEAT BACK |
1 |
2410- |
L |
AB |
SEAT TRIM BASE CLOTH<8LK> BLACK |
| 003 |
I7-47507 502-0 |
|
COVER; TRIM,RR SEAT BACK |
1 |
2410- |
L |
AB |
GRADE CUSTOM(RBD) SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) BLACK |
| 420 |
I8-97540 564-0 |
|
SENSOR; REMINDER |
3 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) 2ND SEAT |
| 238 |
I8-97474 848-0 |
|
COVER; LEG |
1 |
2410- |
|
AB |
(B) BLACK |
| 420 |
I8-97540 565-0 |
|
SENSOR; REMINDER |
2 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> INDICATOR SEAT BELT WARNING FR & RR(8TF) 3RD SEAT |
| 299 |
I8-98253 643-0 |
|
BOLT; LEG |
4 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> |
| 309 |
I8-97688 505-0 |
|
CLIP; SEAT |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) L=170 |
| 306 |
I8-97688 534-0 |
|
BOLT; RR CUSHION |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> |
| 071 |
I8-98255 645-0 |
|
SPRING; HOOK,FLOOR LOCK,RR SEAT |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> |
| 022 |
I8-97907 709-0 |
|
COVER; RECLINING ADJ |
1 |
2410- |
L |
AB |
SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK> (I) BLACK |
| 423 |
I8-97688 525-0 |
|
PLATE |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> |
| 056 |
I8-97688 496-0 |
|
WIRE; RELEASE,RR SEAT |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> |
| 253 |
I8-97688 504-0 |
|
CLIP; CABLE |
3 |
2410- |
L |
AB |
SEAT TRIM HIGH CLOTH<8LM> POWER STEERING ELECTRIC<NV9> (B) |
| 413 |
I8-97907 749-0 |
|
COVER; TETHER |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> POWER STEERING ELECTRIC<NV9> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) BLACK |
| 333 |
I8-97907 746-0 |
|
LEVER ASM; RR SEAT |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) (A) BLACK |
| 383 |
I8-97907 698-1 |
|
TRIM; CUSHION 3RD |
1 |
2410- |
R |
AB |
SEAT TRIM BASE CLOTH<8LK> BLACK |
| 323 |
I8-97688 523-0 |
|
CLIP; COVER |
1 |
2410- |
R |
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> (A) |
| 238 |
I8-97474 847-0 |
|
COVER; LEG |
3 |
2410- |
|
AB |
(A) BLACK |
| 413 |
I8-97907 749-0 |
|
COVER; TETHER |
3 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) BLACK |
| 253 |
I8-97688 504-0 |
|
CLIP; CABLE |
5 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) (B) |
| 377 |
I8-97688 551-0 |
|
PAD; 3RD SEAT BACK |
1 |
2410- |
R |
AB |
|
| 383 |
I7-47507 588-0 |
|
TRIM; CUSHION 3RD |
1 |
2410- |
R |
B |
INTERIOR COLOR BLACK(101) SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> GRADE ROYAL(RBE) SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) BLACK |
| 020 |
I8-97907 760-0 |
|
KNOB; RECLINING DEVICE |
1 |
2410- |
L |
AB |
BLACK |
| 309 |
I8-97688 506-0 |
|
CLIP; SEAT |
3 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) L=50 SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) L=50 SEAT TRIM BASE CLOTH<8LK> L=50 SEAT TRIM HIGH CLOTH<8LM> INDICATOR SEAT BELT WARNING FR & RR(8TF) L=50 SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> INDICATOR SEAT BELT WARNING FR & RR(8TF) L=170 |
| 022 |
I8-97907 759-0 |
|
COVER; RECLINING ADJ |
1 |
2410- |
R |
AB |
(A) BLACK |
| 397 |
I8-97688 489-0 |
|
CABLE; SEAT |
1 |
2410- |
L |
AB |
(D) |
| 287 |
I8-97688 495-0 |
|
SCREW; COVER |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) |
| 299 |
I8-98253 643-0 |
|
BOLT; LEG |
8 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) |
| 309 |
I8-97688 506-0 |
|
CLIP; SEAT |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> L=50 SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) L=50 SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH CLOTH<8LM> INDICATOR SEAT BELT WARNING(6SD) L=50 SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) L=170 |
| 091 |
I8-97907 714-0 |
|
COVER; RR SEAT BACK |
1 |
2410- |
R |
AB |
SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK> (B) BLACK |
| 003 |
I7-47507 501-0 |
|
COVER; TRIM,RR SEAT BACK |
1 |
2410- |
L |
AB |
SEAT TRIM HIGH CLOTH<8LM> POWER STEERING ELECTRIC<NV9> BLACK |
| 299 |
I8-98253 643-0 |
|
BOLT; LEG |
4 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) |
| 253 |
I8-97688 504-0 |
|
CLIP; CABLE |
1 |
2410- |
R |
AB |
SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) (B) |
| 309 |
I8-97688 505-0 |
|
CLIP; SEAT |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) L=170 |
| 005 |
I8-97688 425-0 |
|
FRAME ASM; |
1 |
2410- |
R |
AB |
|
| 306 |
I8-97688 534-0 |
|
BOLT; RR CUSHION |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) |
| 302 |
I8-98253 635-0 |
|
NUT; RR SEAT |
1 |
2410- |
L |
AB |
(A) |
| 227 |
I8-97907 676-0 |
|
HOLDER; GUIDE,RR HD REST |
1 |
2410- |
R |
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) LOCK BLACK |
| 395 |
I8-97907 718-0 |
|
COVER; 3RD SEAT |
1 |
2410- |
L |
AB |
SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK> (A) BLACK |
| 333 |
I8-97907 710-0 |
|
LEVER ASM; RR SEAT |
1 |
2410- |
R |
AB |
SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK> (B) BLACK |
| 410 |
I8-97907 686-0 |
|
TRIM; 3RD SEAT BACK |
1 |
2410- |
R |
AB |
SEAT TRIM BASE CLOTH<8LK> BLACK |
| 422 |
I8-97688 499-0 |
|
JOINT; WIRE |
1 |
2410- |
L |
AB |
|
| 335 |
I8-97688 484-0 |
|
LINK ASM; RR SEAT |
1 |
2410- |
L |
AB |
|
| 423 |
I8-97907 749-0 |
|
PLATE |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> POWER STEERING ELECTRIC<NV9> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) BLACK |
| 420 |
I8-97540 565-0 |
|
SENSOR; REMINDER |
2 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> INDICATOR SEAT BELT WARNING FR & RR(8TF) 3RD SEAT |
| 004 |
I8-97688 429-0 |
|
PAD; RR,SEAT BACK |
1 |
2410- |
L |
AB |
|
| 009 |
I7-47507 517-0 |
|
COVER ASM; TRIM,RR,CUSHION |
1 |
2410- |
L |
AB |
SEAT TRIM HIGH CLOTH<8LM> BLACK |
| 421 |
I8-97688 501-0 |
|
HARNESS; SENSOR |
1 |
2410- |
L |
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> INDICATOR SEAT BELT WARNING FR & RR(8TF) EXC. POWER STEERING ELECTRIC<NV9> |
| 333 |
I8-97907 711-0 |
|
LEVER ASM; RR SEAT |
1 |
2410- |
L |
AB |
SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK> (B) BLACK |
| 352 |
I8-97688 488-0 |
|
SPRING; RR CUSHION |
1 |
2410- |
R |
AB |
|
| 227 |
I8-97907 676-0 |
|
HOLDER; GUIDE,RR HD REST |
5 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) LOCK BLACK |
| 410 |
I7-47507 554-0 |
|
TRIM; 3RD SEAT BACK |
1 |
2410- |
L |
AB |
GRADE CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK |
| 017 |
I7-47507 478-0 |
|
REST; HD,RR SEAT |
1 |
2410- |
|
AB |
SEAT TRIM HIGH CLOTH<8LM> (A) BLACK |
| 383 |
I8-97907 701-1 |
|
TRIM; CUSHION 3RD |
1 |
2410- |
L |
AB |
SEAT TRIM BASE CLOTH<8LK> BLACK |
| 011 |
I8-97688 482-1 |
|
FRAME ASM; CUSHION,RR SEAT |
1 |
2410- |
L |
AB |
INDICATOR SEAT BELT WARNING FR & RR(8TF) |
| 100 |
I8-97907 751-1 |
|
REST; ARM,RR SEAT |
1 |
2410- |
L |
AB |
SEAT TRIM BASE CLOTH<8LK> BLACK |
| 392 |
I8-97688 534-0 |
|
BOLT; 3RD SEAT |
8 |
2410- |
|
AB |
(B) |
| 232 |
I8-98253 634-0 |
|
SCREW; RR SEAT |
2 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) |
| 422 |
I8-97688 499-0 |
|
JOINT; WIRE |
1 |
2410- |
L |
AB |
|
| 003 |
I7-47507 503-0 |
|
COVER; TRIM,RR SEAT BACK |
1 |
2410- |
L |
B |
INTERIOR COLOR BLACK(101) SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> GRADE ROYAL(RBE) SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) BLACK |
| 091 |
I8-97907 747-0 |
|
COVER; RR SEAT BACK |
2 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) (A) BLACK |
| 009 |
I7-47507 518-0 |
|
COVER ASM; TRIM,RR,CUSHION |
1 |
2410- |
L |
AB |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK |
| 286 |
I8-98393 619-0 |
|
COVER; HINGE |
1 |
2410- |
R |
AB |
|
| 281 |
I8-97688 494-0 |
|
SCREW |
2 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) |
| 413 |
I8-97907 749-0 |
|
COVER; TETHER |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> BLACK |
| 003 |
I7-47507 530-0 |
|
COVER; TRIM,RR SEAT BACK |
1 |
2410- |
R |
B |
INTERIOR COLOR BLACK(101) SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> GRADE ROYAL(RBE) SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) BLACK |
| 017 |
I7-47507 486-0 |
|
REST; HD,RR SEAT |
1 |
2410- |
L |
B |
INTERIOR COLOR BLACK(101) SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> GRADE ROYAL(RBE) SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) (B) BLACK |
| 017 |
I7-47507 478-0 |
|
REST; HD,RR SEAT |
1 |
2410- |
|
AB |
SEAT TRIM HIGH CLOTH<8LM> (A) BLACK |
| 022 |
I8-97907 731-0 |
|
COVER; RECLINING ADJ |
1 |
2410- |
R |
AB |
(D) BLACK |
| 022 |
I8-97907 756-0 |
|
COVER; RECLINING ADJ |
1 |
2410- |
L |
AB |
(F) BLACK |
| 421 |
I8-97688 501-0 |
|
HARNESS; SENSOR |
1 |
2410- |
L |
AB |
SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) |
| 383 |
I7-47507 585-0 |
|
TRIM; CUSHION 3RD |
1 |
2410- |
R |
AB |
GRADE CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK |
| 017 |
I7-47507 484-0 |
|
REST; HD,RR SEAT |
1 |
2410- |
L |
AB |
GRADE LUXURY(RBC),GRADE CUSTOM(RBD) SEAT TRIM LEATHER<6TB> (B) BLACK |
| 323 |
I8-97198 646-0 |
|
CLIP; COVER |
2 |
2410- |
|
AB |
(B) BLACK |
| 272 |
I8-97688 495-0 |
|
SCREW; COVER |
11 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) |
| 400 |
I8-97907 677-0 |
|
REST; HD,3RD SEAT |
2 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK> BLACK |
| 022 |
I8-97907 707-0 |
|
COVER; RECLINING ADJ |
1 |
2410- |
L |
AB |
SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK> (J) BLACK |
| 091 |
I8-97907 712-0 |
|
COVER; RR SEAT BACK |
1 |
2410- |
R |
AB |
SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK> (C) BLACK |
| 022 |
I8-97907 757-0 |
|
COVER; RECLINING ADJ |
1 |
2410- |
R |
AB |
(B) BLACK |
| 281 |
I8-97688 494-0 |
|
SCREW |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> |
| 400 |
I7-47507 546-0 |
|
REST; HD,3RD SEAT |
2 |
2410- |
|
AB |
GRADE CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK |
| 309 |
I8-97688 506-0 |
|
CLIP; SEAT |
1 |
2410- |
|
AB |
|
| 286 |
I8-98253 646-0 |
|
COVER; HINGE |
1 |
2410- |
L |
AB |
|
| 071 |
I8-98255 645-0 |
|
SPRING; HOOK,FLOOR LOCK,RR SEAT |
2 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) |
| 421 |
I8-97688 501-0 |
|
HARNESS; SENSOR |
1 |
2410- |
L |
AB |
SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) |
| 421 |
I8-97688 501-0 |
|
HARNESS; SENSOR |
1 |
2410- |
L |
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> INDICATOR SEAT BELT WARNING FR & RR(8TF) EXC. POWER STEERING ELECTRIC<NV9> |
| 010 |
I8-97688 510-0 |
|
PAD; CUSHION,RR SEAT |
1 |
2410- |
R |
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> INDICATOR SEAT BELT WARNING FR & RR(8TF) |
| 400 |
I7-47507 547-0 |
|
REST; HD,3RD SEAT |
2 |
2410- |
|
B |
INTERIOR COLOR BLACK(101) SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> GRADE ROYAL(RBE) SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) BLACK |
| 227 |
I8-97907 676-0 |
|
HOLDER; GUIDE,RR HD REST |
1 |
2410- |
R |
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> LOCK BLACK |
| 022 |
I8-97907 728-0 |
|
COVER; RECLINING ADJ |
1 |
2410- |
L |
AB |
(H) BLACK |
| 323 |
I8-97688 523-0 |
|
CLIP; COVER |
3 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) (A) |
| 253 |
I8-97688 504-0 |
|
CLIP; CABLE |
2 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) (B) |
| 376 |
I8-97688 545-1 |
|
FRAME ASM; 3RD SEAT BACK |
1 |
2410- |
R |
AB |
|
| 383 |
I7-47507 564-0 |
|
TRIM; CUSHION 3RD |
1 |
2410- |
L |
AB |
GRADE CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK |
| 397 |
I8-97688 427-0 |
|
CABLE; SEAT |
1 |
2410- |
L |
AB |
(C) |
| 309 |
I8-97688 506-0 |
|
CLIP; SEAT |
2 |
2410- |
R |
AB |
|
| 009 |
I7-47507 542-0 |
|
COVER ASM; TRIM,RR,CUSHION |
1 |
2410- |
R |
AB |
INTERIOR COLOR GRAY(160) SEAT TRIM LEATHER<6TB> BLACK |
| 010 |
I8-97688 509-0 |
|
PAD; CUSHION,RR SEAT |
1 |
2410- |
R |
AB |
INDICATOR SEAT BELT WARNING(6SD) |
| 272 |
I8-97688 495-0 |
|
SCREW; COVER |
6 |
2410- |
L |
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> |
| 335 |
I8-97688 485-0 |
|
LINK ASM; RR SEAT |
1 |
2410- |
R |
AB |
|
| 010 |
I8-97688 508-0 |
|
PAD; CUSHION,RR SEAT |
1 |
2410- |
L |
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> INDICATOR SEAT BELT WARNING FR & RR(8TF) |
| 309 |
I8-97688 505-0 |
|
CLIP; SEAT |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> INDICATOR SEAT BELT WARNING FR & RR(8TF) L=170 |
| 020 |
I8-97907 761-0 |
|
KNOB; RECLINING DEVICE |
1 |
2410- |
R |
AB |
BLACK |
| 232 |
I8-98253 634-0 |
|
SCREW; RR SEAT |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> |
| 306 |
I8-97688 534-0 |
|
BOLT; RR CUSHION |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) |
| 056 |
I8-97688 496-0 |
|
WIRE; RELEASE,RR SEAT |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> |
| 362 |
I8-97907 736-0 |
|
COVER; REAR SEAT LATCH |
1 |
2410- |
L |
AB |
BLACK |
| 017 |
I7-47507 481-0 |
|
REST; HD,RR SEAT |
2 |
2410- |
|
B |
INTERIOR COLOR BLACK(101) SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> GRADE ROYAL(RBE) SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) (A) BLACK |
| 227 |
I8-97907 676-0 |
|
HOLDER; GUIDE,RR HD REST |
2 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) LOCK BLACK |
| 287 |
I8-97688 495-0 |
|
SCREW; COVER |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) |
| 415 |
I8-98253 628-0 |
|
COVER; ARM |
1 |
2410- |
L |
AB |
(A) |
| 017 |
I8-97907 722-0 |
|
REST; HD,RR SEAT |
1 |
2410- |
L |
AB |
SEAT TRIM BASE CLOTH<8LK> (B) BLACK |
| 227 |
I8-97907 676-0 |
|
HOLDER; GUIDE,RR HD REST |
2 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) EXC. POWER STEERING ELECTRIC<NV9> LOCK BLACK |
| 009 |
I7-47507 541-0 |
|
COVER ASM; TRIM,RR,CUSHION |
1 |
2410- |
R |
AB |
SEAT TRIM HIGH CLOTH<8LM> BLACK |
| 253 |
I8-97688 504-0 |
|
CLIP; CABLE |
2 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> INDICATOR SEAT BELT WARNING FR & RR(8TF) EXC. AUSTRALIA EQUIPMENT(B13),POWER STEERING ELECTRIC<NV9> (B) |
| 010 |
I8-97688 509-0 |
|
PAD; CUSHION,RR SEAT |
1 |
2410- |
R |
AB |
INDICATOR SEAT BELT WARNING FR & RR(8TF) EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) |
| 422 |
I8-97688 500-0 |
|
JOINT; WIRE |
1 |
2410- |
R |
AB |
|
| 406 |
I8-97907 670-0 |
|
STRAP |
2 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB>,SEAT TRIM BASE CLOTH<8LK> (A) BLACK |
| 333 |
I8-97907 746-0 |
|
LEVER ASM; RR SEAT |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) (A) BLACK |
| 397 |
I8-97688 490-0 |
|
CABLE; SEAT |
1 |
2410- |
R |
AB |
(B) |
| 238 |
I8-97474 850-1 |
|
COVER; LEG |
1 |
2410- |
|
AB |
(C) BLACK |
| 232 |
I8-98253 634-0 |
|
SCREW; RR SEAT |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) |
| 382 |
I8-97688 576-0 |
|
PAD; CUSHION 3RD |
1 |
2410- |
L |
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> INDICATOR SEAT BELT WARNING FR & RR(8TF) |
| 309 |
I8-97688 505-0 |
|
CLIP; SEAT |
1 |
2410- |
|
AB |
|
| 299 |
I8-98253 643-0 |
|
BOLT; LEG |
4 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> |
| 003 |
I8-97907 744-0 |
|
COVER; TRIM,RR SEAT BACK |
1 |
2410- |
L |
AB |
SEAT TRIM BASE CLOTH<8LK> BLACK |
| 056 |
I8-97688 496-0 |
|
WIRE; RELEASE,RR SEAT |
2 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) |
| 003 |
I7-47507 526-0 |
|
COVER; TRIM,RR SEAT BACK |
1 |
2410- |
R |
AB |
SEAT TRIM HIGH CLOTH<8LM> BLACK |
| 306 |
I8-97688 534-0 |
|
BOLT; RR CUSHION |
1 |
2410- |
|
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> |
| 382 |
I8-97688 573-0 |
|
PAD; CUSHION 3RD |
1 |
2410- |
R |
AB |
INDICATOR SEAT BELT WARNING FR & RR(8TF) EXC. POWER STEERING ELECTRIC<NV9> |
| 253 |
I8-97688 504-0 |
|
CLIP; CABLE |
2 |
2410- |
|
AB |
SEAT TRIM HIGH CLOTH<8LM> INDICATOR SEAT BELT WARNING FR & RR(8TF) POWER STEERING ELECTRIC<NV9> (B) |
| 003 |
I7-47507 529-0 |
|
COVER; TRIM,RR SEAT BACK |
1 |
2410- |
R |
AB |
INTERIOR COLOR GRAY(160) SEAT TRIM LEATHER<6TB> BLACK |
| 381 |

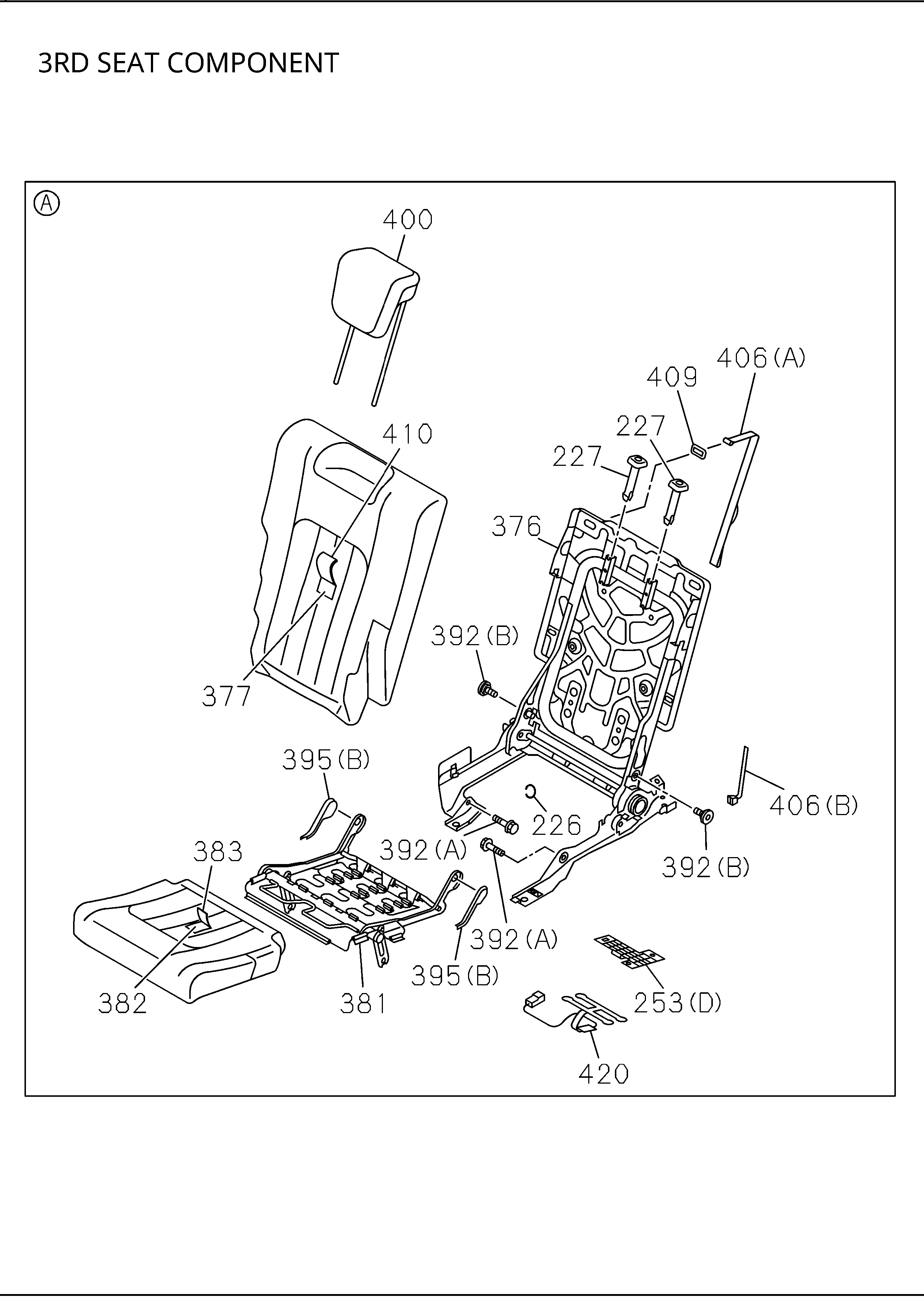

I8-97688 572-0 |
|
FRAME; CUSHION 3RD |
1 |
2410- |
L |
AB |
|
| 413 |
I8-97907 749-0 |
|
COVER; TETHER |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH CLOTH<8LM> EXC. AUSTRALIA EQUIPMENT(B13),POWER STEERING ELECTRIC<NV9> BLACK |
| 287 |
I8-97688 495-0 |
|
SCREW; COVER |
2 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> SEAT TRIM LEATHER<6TB> INDICATOR SEAT BELT WARNING FR & RR(8TF) |
| 071 |
I8-98255 645-0 |
|
SPRING; HOOK,FLOOR LOCK,RR SEAT |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) |
| 071 |
I8-98255 645-0 |
|
SPRING; HOOK,FLOOR LOCK,RR SEAT |
1 |
2410- |
|
AB |
SEAT TRIM LEATHER<6TB> EXC. SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) |
| 022 |
I8-97907 730-0 |
|
COVER; RECLINING ADJ |
1 |
2410- |
L |
AB |
(G) BLACK |
| 011 |
I8-97688 481-1 |
|
FRAME ASM; CUSHION,RR SEAT |
1 |
2410- |
L |
AB |
INDICATOR SEAT BELT WARNING(6SD) |
| 253 |
I8-97688 503-0 |
|
CLIP; CABLE |
1 |
2410- |
R |
AB |
INTERIOR COLOR GRAY(160) SEAT TRIM HIGH CLOTH<8LM> SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> INDICATOR SEAT BELT WARNING FR & RR(8TF) (C) |
| 421 |
I8-97688 502-0 |
|
HARNESS; SENSOR |
1 |
2410- |
L |
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> INDICATOR SEAT BELT WARNING FR & RR(8TF) |
| 421 |
I8-97688 502-0 |
|
HARNESS; SENSOR |
1 |
2410- |
L |
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> INDICATOR SEAT BELT WARNING FR & RR(8TF) |
| 253 |
I8-97688 577-0 |
|
CLIP; CABLE |
2 |
2410- |
|
AB |
SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) POWER STEERING ELECTRIC<NV9> INDICATOR SEAT BELT WARNING FR & RR(8TF) (D) |
| 227 |
I8-97907 675-0 |
|
HOLDER; GUIDE,RR HD REST |
1 |
2410- |
R |
AB |
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH CLOTH<8LM> FREE BLACK |
