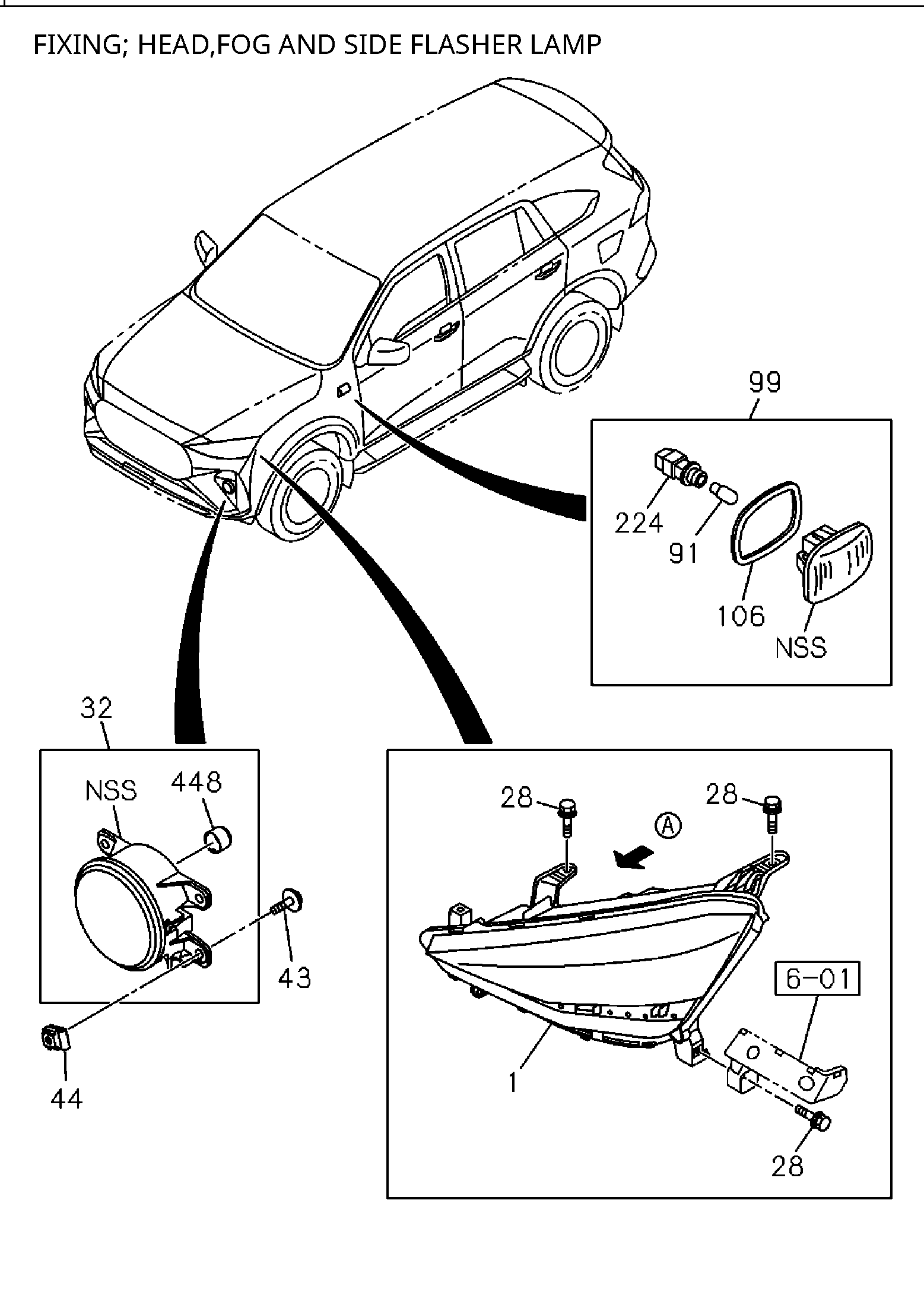

8-01 | 8-01A LAMP; FRONT AND FRONT SIDE
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 032 | I8-97822 098-0 | LAMP ASM; FOG | 1 | 2410- | AB | FOG LAMP<T96> | ||
| 408 | I7-55197 517-0 | CAP; BREATHER,HEADLAMP | 2 | 2410- | AB | |||
| 044 | I8-97502 880-1 | NUT; FOG LAMP | 4 | 2410- | AB | FOG LAMP<T96> | ||
| 032 | I8-97822 099-0 | LAMP ASM; FOG | 1 | 2410- | AB | FOG LAMP<T96> | ||
| 224 | I8-97310 953-0 | SOCKET; SIDE FLASHER LAMP | 2 | 2410- | AB | DOOR MIRROR HEATED MATERIAL BLACK<DL8>,DOOR MIRROR POWER ADJUST MATERIAL BLACK<D22>,DOOR MIRROR MATERIAL BLACK<RT9> | ||

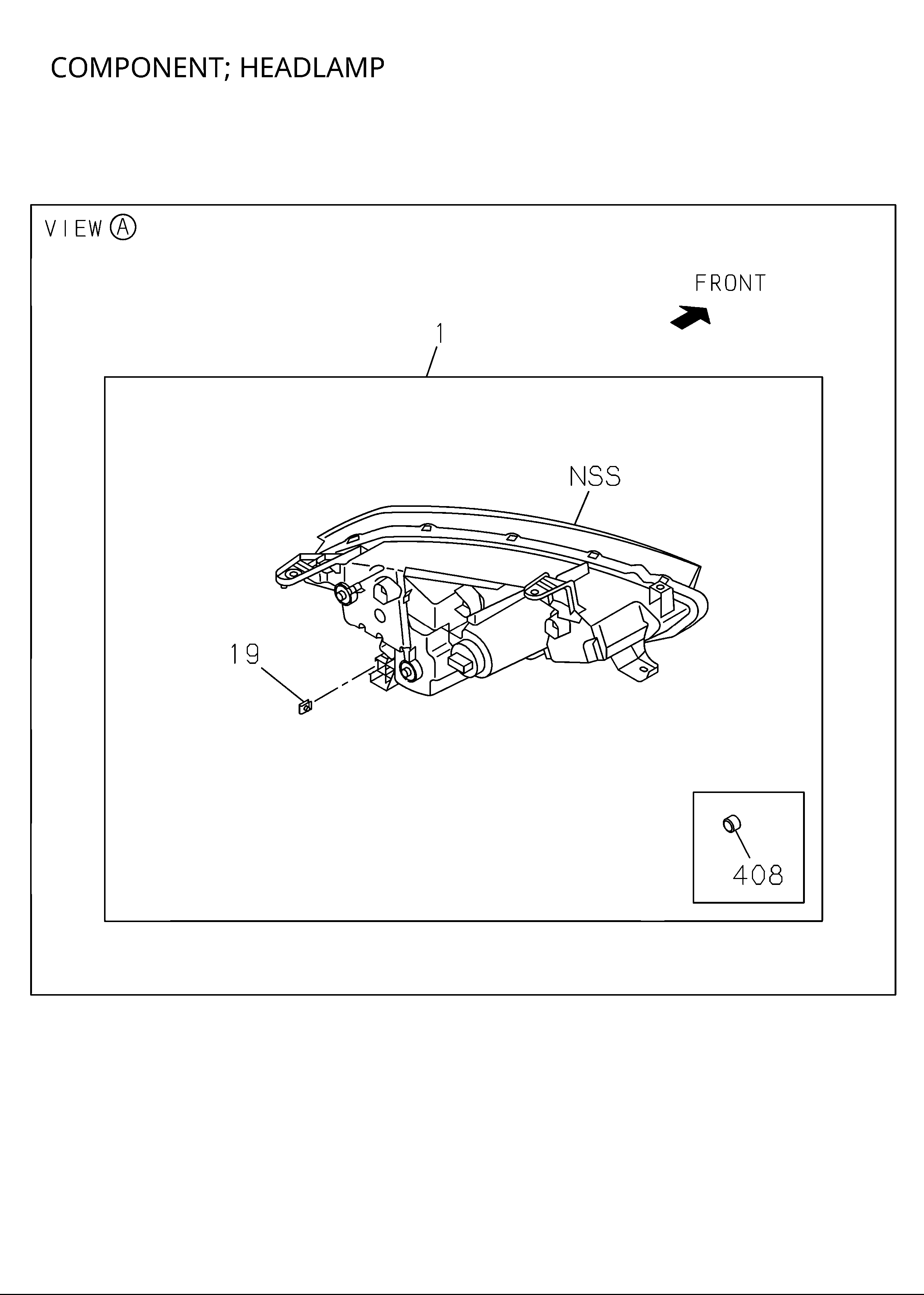

| 001 | I8-97870 888-3 | LAMP ASM; HEAD | 1 | 2410- | AB | |||
| 019 | I7-55238 250-0 | NUT; HEADLAMP | 2 | 2410- | AB | |||
| 001 | I8-97870 889-3 | LAMP ASM; HEAD | 1 | 2410- | AB | |||
| 106 | I8-97333 420-0 | GASKET; SIDE TURN SIGNAL | 2 | 2410- | AB | DOOR MIRROR HEATED MATERIAL BLACK<DL8>,DOOR MIRROR POWER ADJUST MATERIAL BLACK<D22>,DOOR MIRROR MATERIAL BLACK<RT9> | ||
| 028 | I8-98062 140-0 | BOLT; HEADLAMP | 8 | 2410- | AB | M6X18 TAPPING W/LK&PL WASHER | ||
| 091 | I8-97310 952-0 | BULB; SIDE TURN SIGNAL | 2 | 2410- | AB | DOOR MIRROR HEATED MATERIAL BLACK<DL8>,DOOR MIRROR POWER ADJUST MATERIAL BLACK<D22>,DOOR MIRROR MATERIAL BLACK<RT9> 12V 5W | ||
| 448 | I8-97515 122-0 | CAP ASM; LAMP | 2 | 2410- | AB | FOG LAMP<T96> | ||
| 043 | I8-98167 444-0 | BOLT; FOG LAMP | 4 | 2410- | AB | FOG LAMP<T96> M6X20 TAPPING W/PL WASHER | ||
| 099 | I8-98395 031-0 | LAMP; SIDE FLASHER | 2 | 2410- | AB | DOOR MIRROR HEATED MATERIAL BLACK<DL8>,DOOR MIRROR POWER ADJUST MATERIAL BLACK<D22>,DOOR MIRROR MATERIAL BLACK<RT9> |
