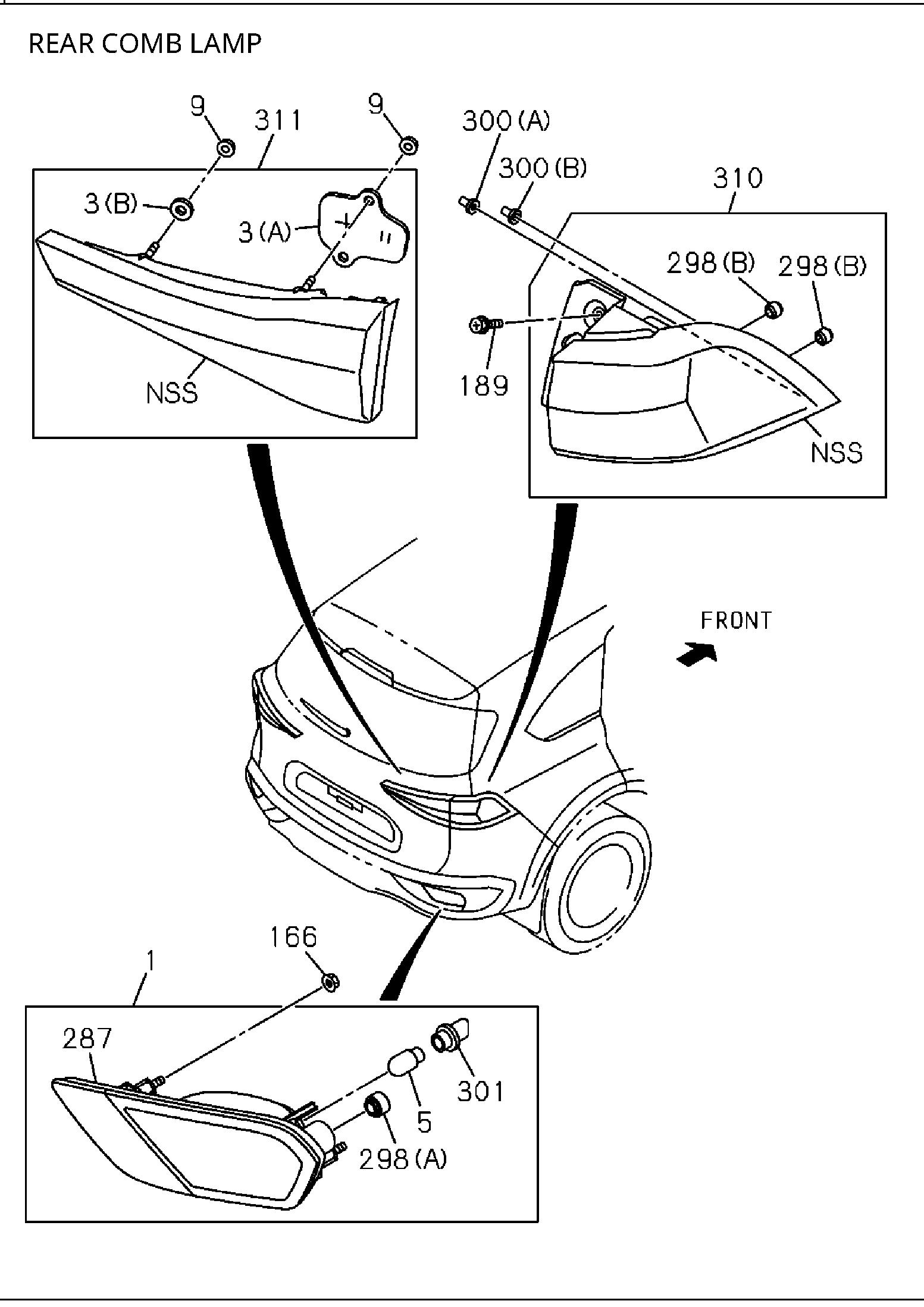

8-03 | 8-03A LAMP; REAR AND REAR SIDE
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

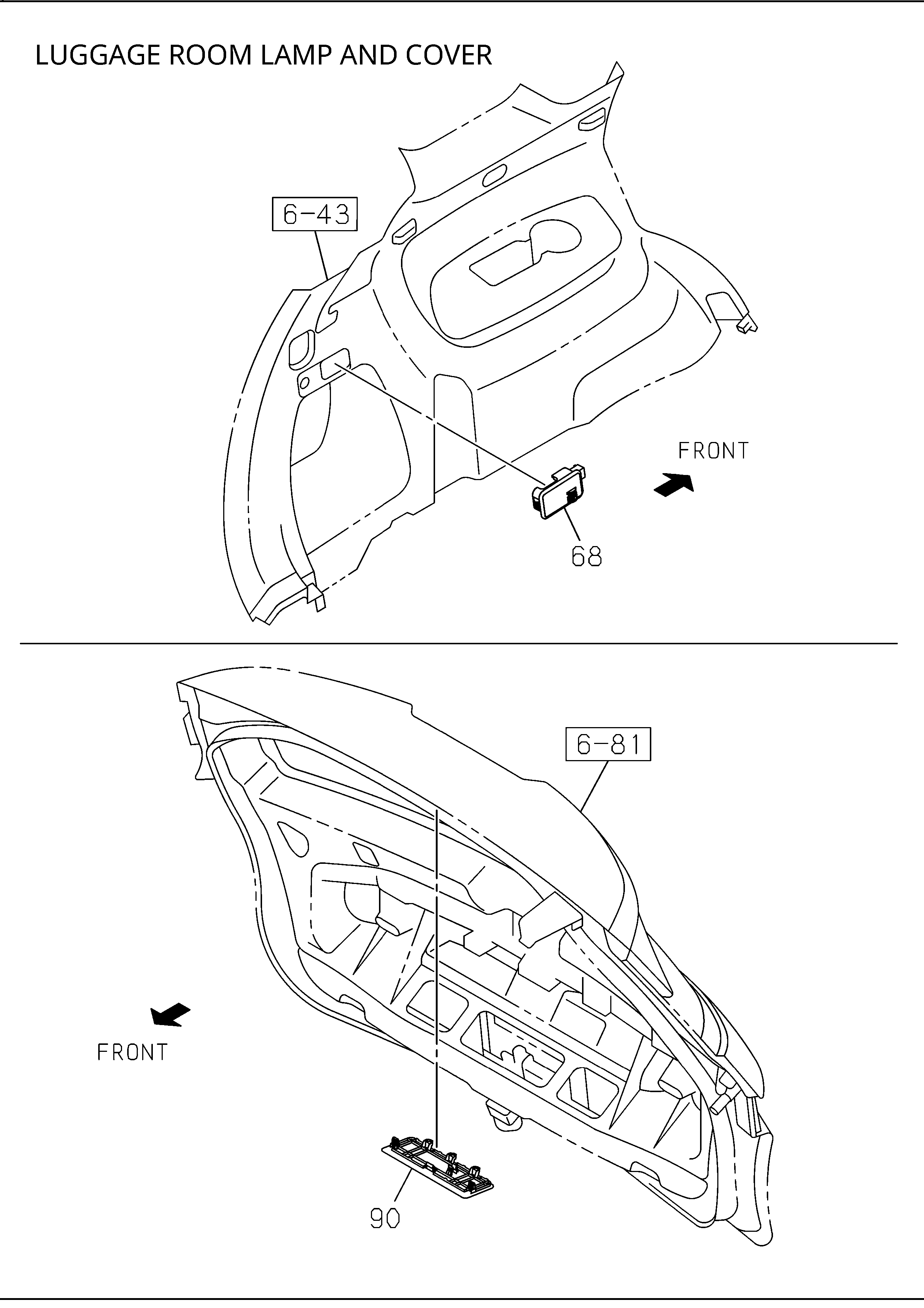

| 068 | I8-97494 804-0 | LAMP; LUGGAGE ROOM | 1 | 2410- | AB | |||
| 287 | I8-97684 401-0 | LAMP UNIT; RR COMB | 1 | 2410- | AB | RR FOG LAMP<T79> | ||
| 301 | I8-97184 970-0 | SOCKET ASM; RR COMB | 1 | 2410- | AB | |||
| 003 | I8-97678 935-0 | GASKET; RR COMB LAMP | 2 | 2410- | AB | (B) | ||
| 005 | I8-97678 926-0 | BULB; RR COMB LAMP | 1 | 2410- | AB | RR FOG LAMP<T79> | ||
| 298 | I8-97515 122-0 | CAP; BREATHER,RR COMB LAMP | 1 | 2410- | AB | (A) | ||
| 003 | I7-55197 485-0 | GASKET; RR COMB LAMP | 2 | 2410- | AB | (A) | ||
| 057 | I8-94279 043-0 | WASHER; PL,LICENSE PLATE LAMP | 2 | 2410- | AB | D=7.8X7.8 L=18 NATURAL | ||
| 300 | I8-97839 184-0 | HOLDER; LAMP | 2 | 2410- | AB | (B) | ||

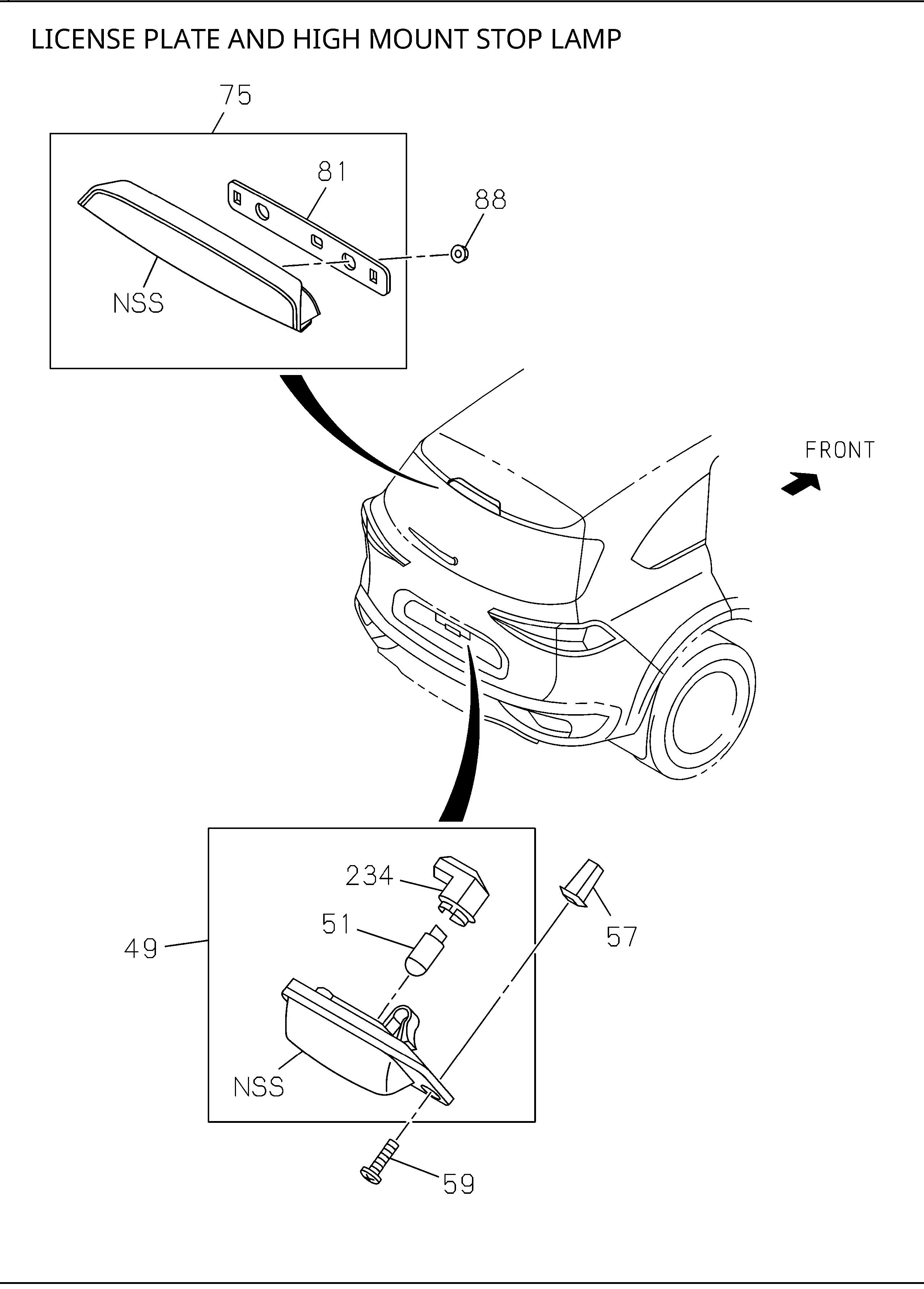

| 049 | I8-98386 269-1 | LAMP; LICENSE PLATE | 2 | 2410- | AB | |||
| 009 | I8-98055 704-0 | NUT; LAMP,RR COMB | 6 | 2410- | AB | M6 FLANGE | ||
| 166 | I0-91180 106-0 | NUT; BACKUP LAMP | 4 | 2410- | AB | M6 FLANGE | ||
| 005 | I8-94372 897-0 | BULB; RR COMB LAMP | 1 | 2410- | AB | 12V 16W | ||
| 189 | I8-97555 328-0 | BOLT; FIX | 4 | 2410- | AB | M6X23.5 W/LK+PL WASHER | ||
| 090 | I8-98381 335-0 | COVER; STOP LAMP | 1 | 2410- | AB | |||
| 287 | I8-97684 403-0 | LAMP UNIT; RR COMB | 1 | 2410- | AB | EXC. RR FOG LAMP<T79> | ||
| 311 | I8-97870 895-3 | LAMP ASM; RR COMB,GATE SIDE | 1 | 2410- | AB | |||
| 075 | I8-98328 815-4 | LAMP ASM; STOP,HIGHMOUNTED | 1 | 2410- | AB | |||
| 300 | I8-97175 217-0 | HOLDER; LAMP | 2 | 2410- | AB | (A) | ||
| 298 | I7-55197 579-0 | CAP; BREATHER,RR COMB LAMP | 4 | 2410- | AB | (B) | ||
| 310 | I8-97870 893-3 | LAMP ASM; RR COMB,BODY SIDE | 1 | 2410- | AB | |||
| 088 | I0-91180 106-0 | NUT; STOP LAMP | 2 | 2410- | AB | M6 FLANGE | ||
| 298 | I8-97515 122-0 | CAP; BREATHER,RR COMB LAMP | 1 | 2410- | AB | (A) | ||
| 001 | I8-98374 510-1 | LAMP ASM; RR COMB | 1 | 2410- | AB | |||
| 311 | I8-97870 894-3 | LAMP ASM; RR COMB,GATE SIDE | 1 | 2410- | AB | |||
| 001 | I8-98374 511-1 | LAMP ASM; RR COMB | 1 | 2410- | AB | RR FOG LAMP<T79> | ||
| 287 | I8-97684 404-0 | LAMP UNIT; RR COMB | 1 | 2410- | AB | |||
| 081 | I8-97684 585-0 | GASKET; STOP LAMP | 1 | 2410- | AB | |||
| 051 | I8-94124 595-0 | BULB; LICENSE PLATE LAMP | 2 | 2410- | AB | 12V 5W | ||
| 301 | I8-97184 970-0 | SOCKET ASM; RR COMB | 1 | 2410- | AB | EXC. RR FOG LAMP<T79> | ||
| 059 | I8-98167 449-0 | SCREW; TAP,LICENSE LAMP BODY | 2 | 2410- | AB | M5X16 TAPPING | ||
| 005 | I8-94372 897-0 | BULB; RR COMB LAMP | 1 | 2410- | AB | EXC. RR FOG LAMP<T79> 12V 16W | ||
| 234 | I8-98251 882-0 | SOCKET ASM; LICENSE PLATE LAMP | 2 | 2410- | AB | |||
| 001 | I8-98374 509-1 | LAMP ASM; RR COMB | 1 | 2410- | AB | EXC. RR FOG LAMP<T79> | ||
| 310 | I8-97870 892-3 | LAMP ASM; RR COMB,BODY SIDE | 1 | 2410- | AB |
