8-05 | 8-05A INTERIOR LAMP
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

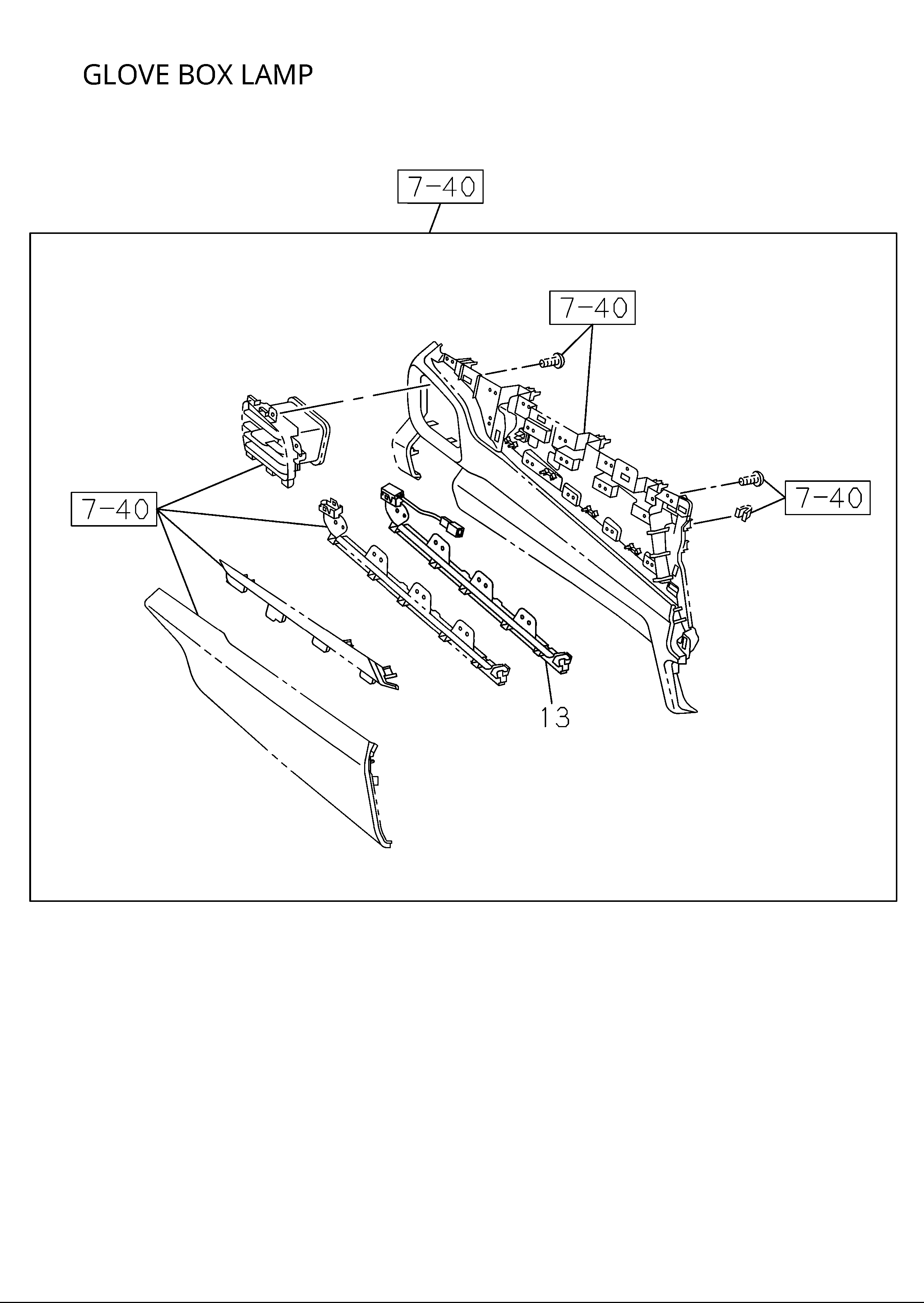

| 013 | I7-55187 946-2 | LAMP ASM; GLOVE BOX | 1 | 2410- | B | INTERIOR COLOR BLACK(101) SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13) GRADE ROYAL(RBE) | ||

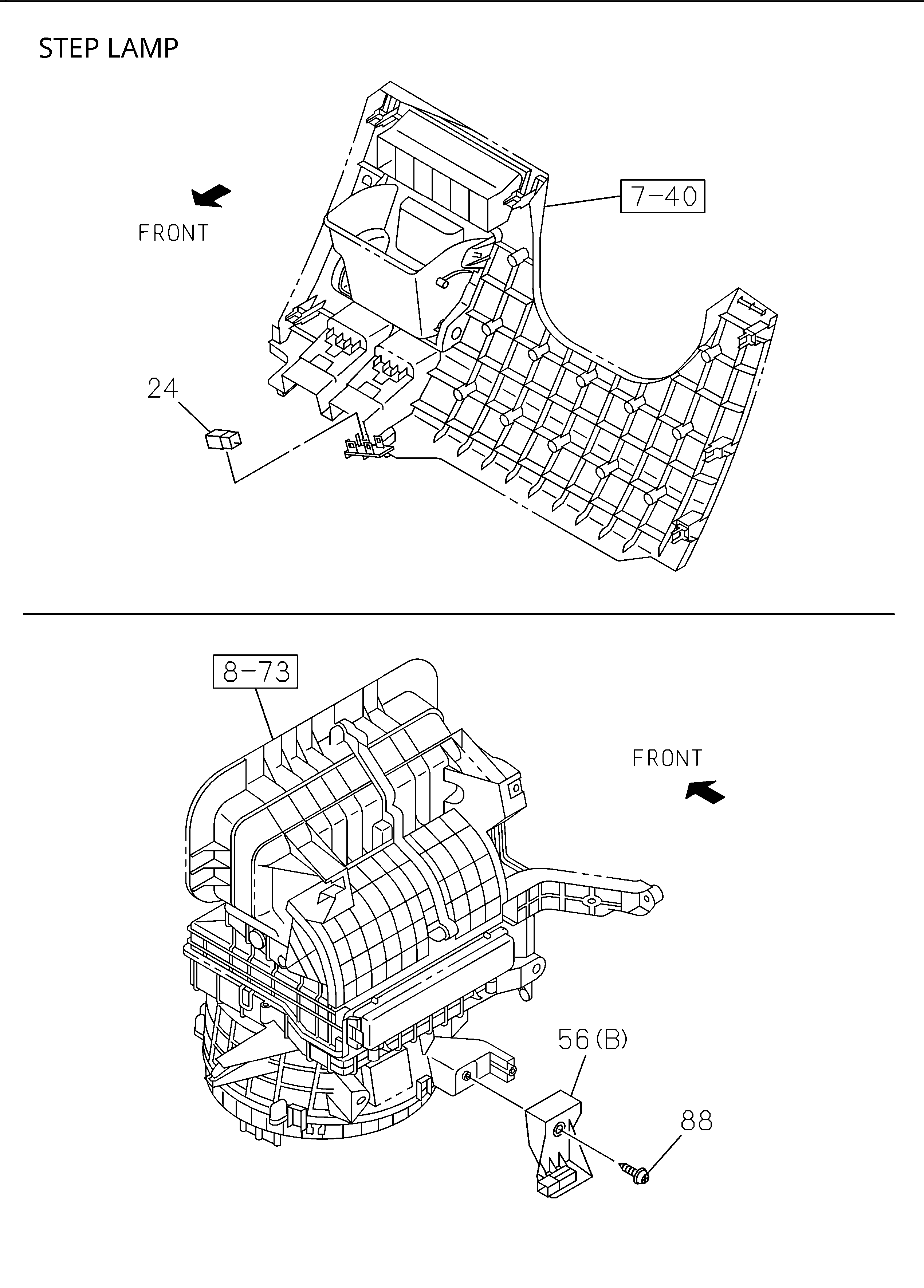

| 024 | I7-55194 300-0 | LAMP; STEP | 1 | 2410- | B | GRADE ROYAL(RBE) | ||

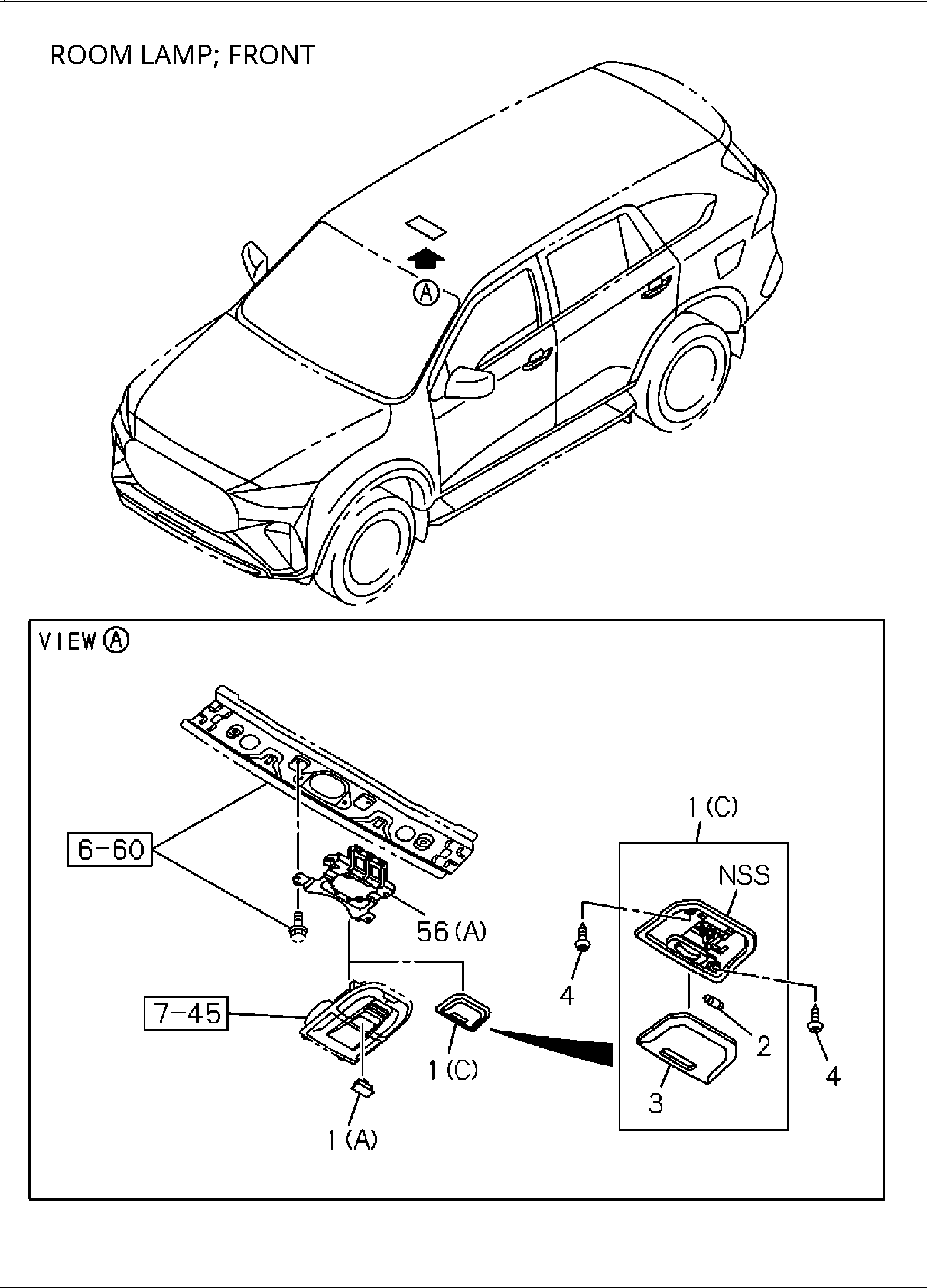

| 001 | I8-97474 897-2 | LAMP ASM; ROOM | 1 | 2410- | AB | INTERIOR COLOR GRAY(160) HEADER CONSOLE<DK6> LAMP DOOR TRIM ILLUMINATED&ROOF CONSOLE DOWN<8UZ> (A) LIGHT GRAY | ||

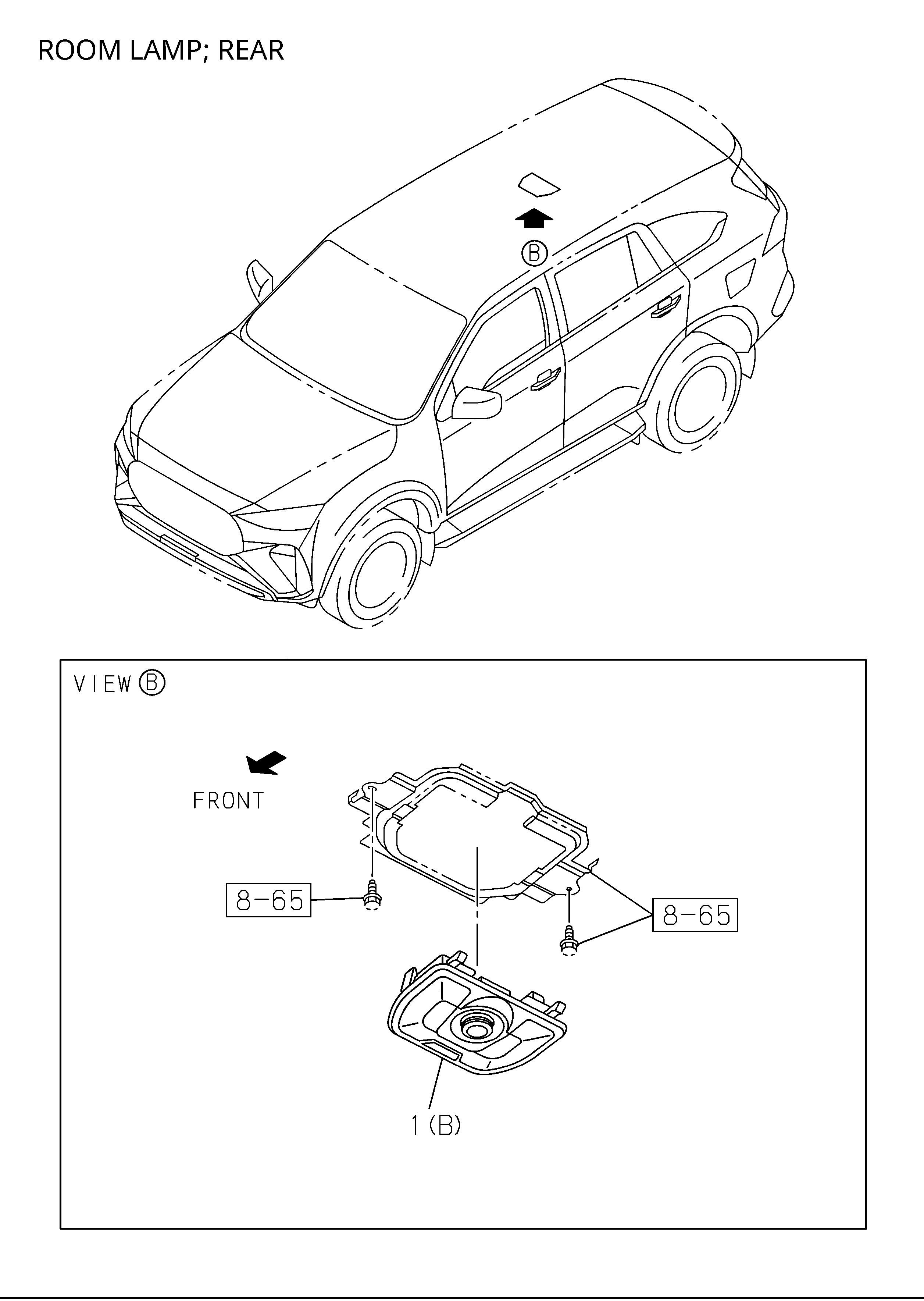

| 001 | I8-97474 896-1 | LAMP ASM; ROOM | 1 | 2410- | AB | INTERIOR COLOR GRAY(160) (B) LIGHT GRAY | ||
| 001 | I8-97472 028-2 | LAMP ASM; ROOM | 1 | 2410- | AB | INTERIOR COLOR GRAY(160) EXC. HEADER CONSOLE<DK6> (C) LIGHT GRAY | ||
| 088 | I8-98167 220-0 | BOLT; LAMP | 1 | 2410- | B | GRADE ROYAL(RBE) M5X16 | ||
| 004 | I0-71040 512-0 | SCREW; ROOM LAMP | 2 | 2410- | AB | EXC. HEADER CONSOLE<DK6> M5X12 TAPPING | ||
| 002 | I8-97128 771-0 | BULB; ROOM LAMP | 1 | 2410- | AB | INTERIOR COLOR GRAY(160) EXC. HEADER CONSOLE<DK6> 12V 10W | ||
| 001 | I7-47501 701-1 | LAMP ASM; ROOM | 1 | 2410- | AB | INTERIOR COLOR BLACK(101) (B) BLACK | ||
| 056 | I7-55194 232-0 | BRACKET; LAMP | 1 | 2410- | B | GRADE ROYAL(RBE) (B) | ||
| 003 | I8-97510 314-0 | LENS; ROOM LAMP | 1 | 2410- | AB | INTERIOR COLOR GRAY(160) EXC. HEADER CONSOLE<DK6> | ||
| 056 | I8-97538 250-2 | BRACKET; LAMP | 1 | 2410- | AB | EXC. HEADER CONSOLE<DK6> (A) | ||
| 001 | I7-47501 440-2 | LAMP ASM; ROOM | 1 | 2410- | AB | INTERIOR COLOR BLACK(101) HEADER CONSOLE<DK6> LAMP DOOR TRIM ILLUMINATED&ROOF CONSOLE DOWN<8UZ> (A) BLACK |
