8-15 | 8-15A FIXING PARTS; WIRING HARNESS
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

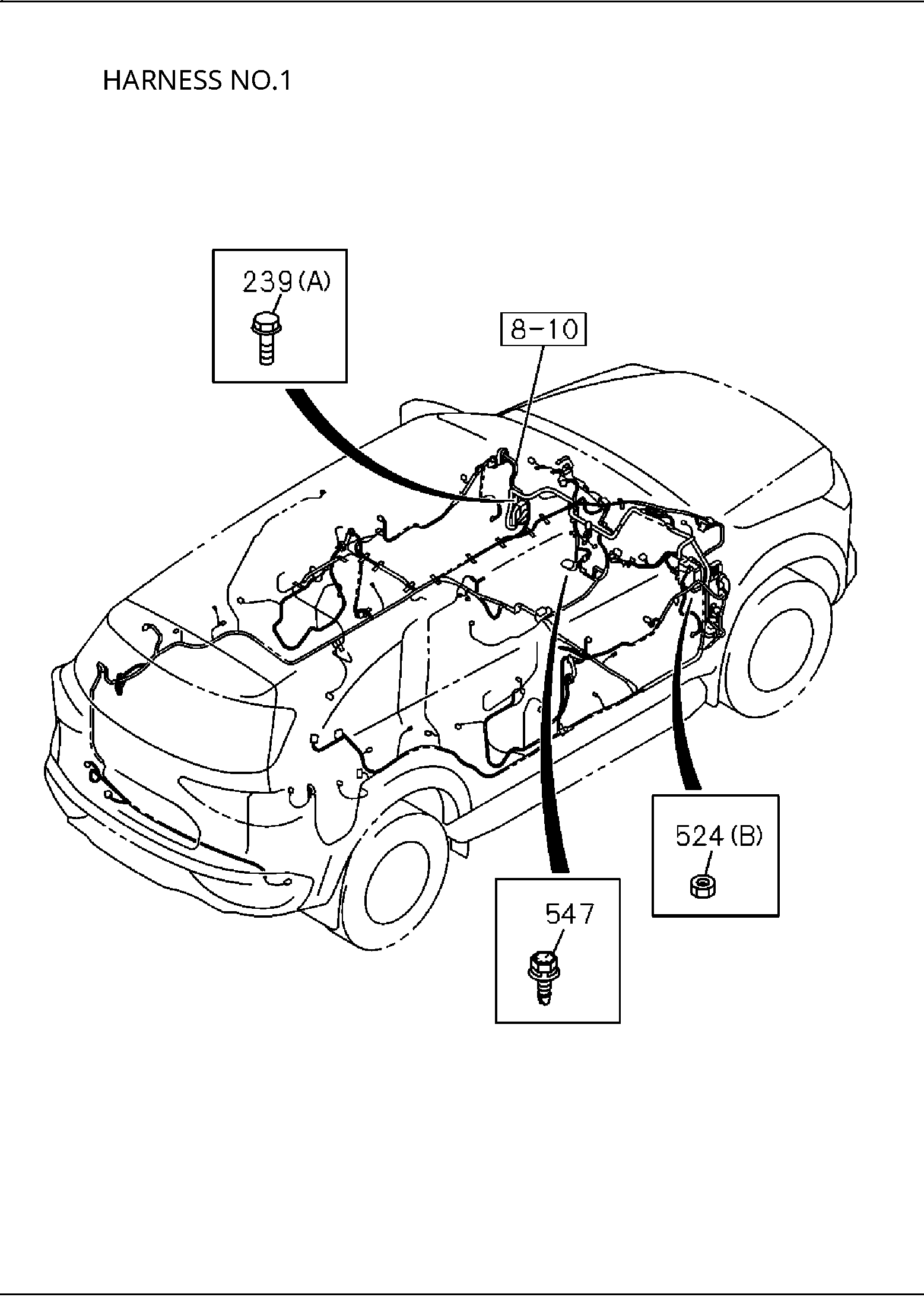

| 239 | I8-98164 836-0 | BOLT; GRAND | 4 | 2410- | AB | (B) M6X14 W/PL WASHER | ||
| 038 | I0-28050 816-0 | BOLT; CLIP,HARNESS | 2 | 2410- | AB | 4JJ3 ENG(LNG) EURO5 SPECIFICATION(NT5) (B) M8X16 FLANGE | ||

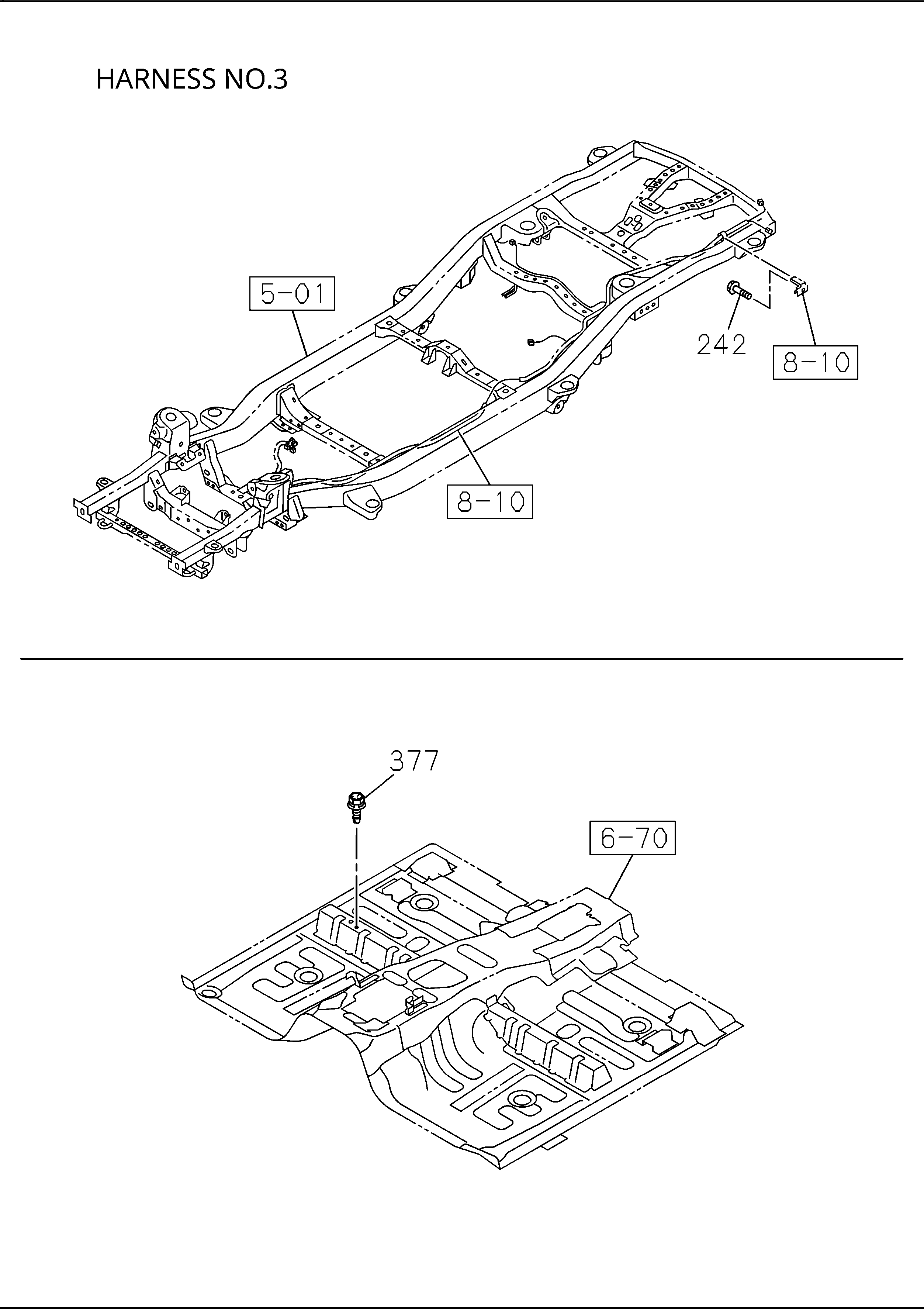

| 242 | I0-28650 616-0 | BOLT; BRKT,HARNESS | 1 | 2410- | AB | M6X16 FLANGE | ||
| 038 | I0-28050 816-0 | BOLT; CLIP,HARNESS | 6 | 2410- | AB | RZ4E-TC ENG(RDZ) EURO4 SPECIFICATION(NT4) (B) M8X16 FLANGE | ||
| 239 | I0-28650 616-0 | BOLT; GRAND | 1 | 2410- | AB | (A) M6X16 FLANGE | ||
| 038 | I0-28050 820-0 | BOLT; CLIP,HARNESS | 1 | 2410- | AB | RZ4E-TC ENG(RDZ) EUROO SPECIFICATION(K75),EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) (A) M8X20 FLANGE | ||
| 552 | I0-91180 108-0 | NUT; BRKT,HARNESS | 1 | 2410- | AB | RZ4E-TC ENG(RDZ) EURO5 SPECIFICATION(NT5) M8 FLANGE | ||

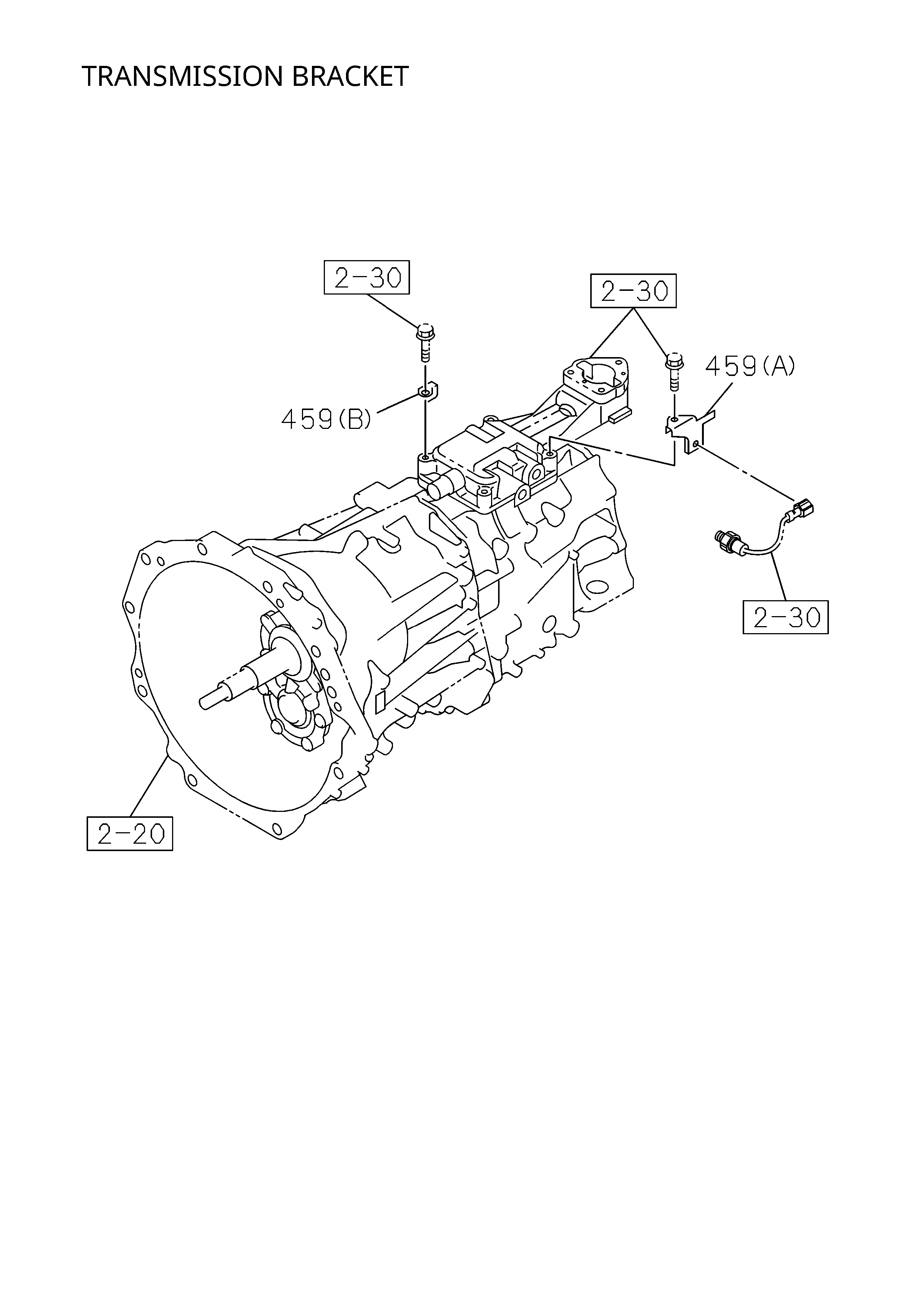

| 459 | I8-98274 916-1 | BRACKET; SUPPORT,HARNESS | 1 | 2410- | A | RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P) (B) | ||
| 022 | I8-94145 893-0 | CLIP; ENG HARNESS | 1 | 2410- | A | RZ4E-TC ENG(RDZ) EUROO SPECIFICATION(K75) ID=12 & 6 | ||
| 038 | I8-97378 077-0 | BOLT; CLIP,HARNESS | 1 | 2410- | AB | RZ4E-TC ENG(RDZ) EURO5 SPECIFICATION(NT5) (E) M8X23 FLANGE | ||

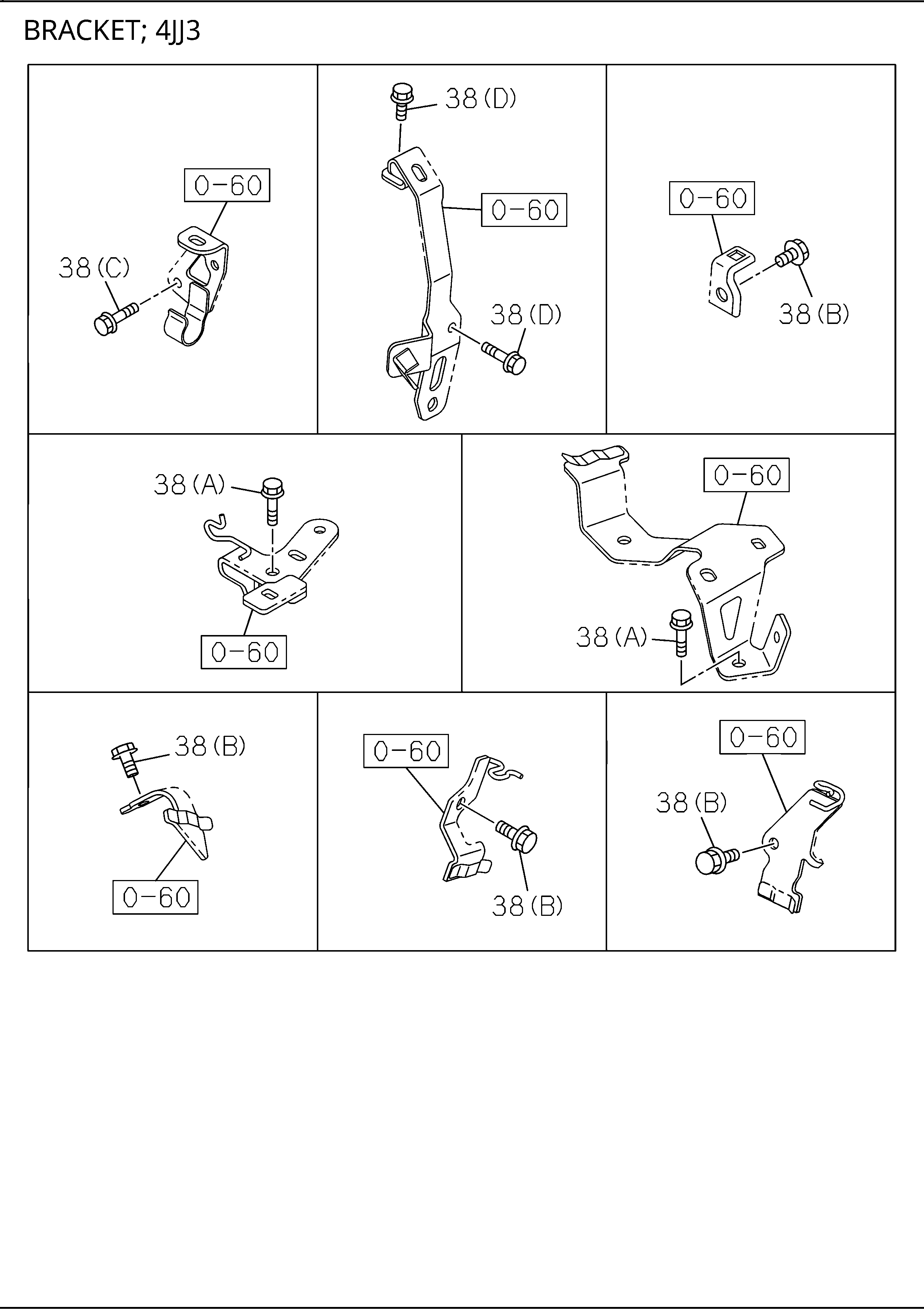

| 038 | I0-28050 612-0 | BOLT; CLIP,HARNESS | 2 | 2410- | AB | 4JJ3 ENG(LNG) (D) M6X12 FLANGE | ||
| 016 | I8-97378 707-0 | CLIP; HARNESS | 3 | 2410- | AB | (B) L=140 | ||
| 524 | I8-98073 372-0 | NUT; HARNESS | 2 | 2410- | AB | (B) M6 W/DISHED WASHER | ||
| 038 | I0-28050 816-0 | BOLT; CLIP,HARNESS | 1 | 2410- | AB | 4JJ3 ENG(LNG) (B) M8X16 FLANGE | ||

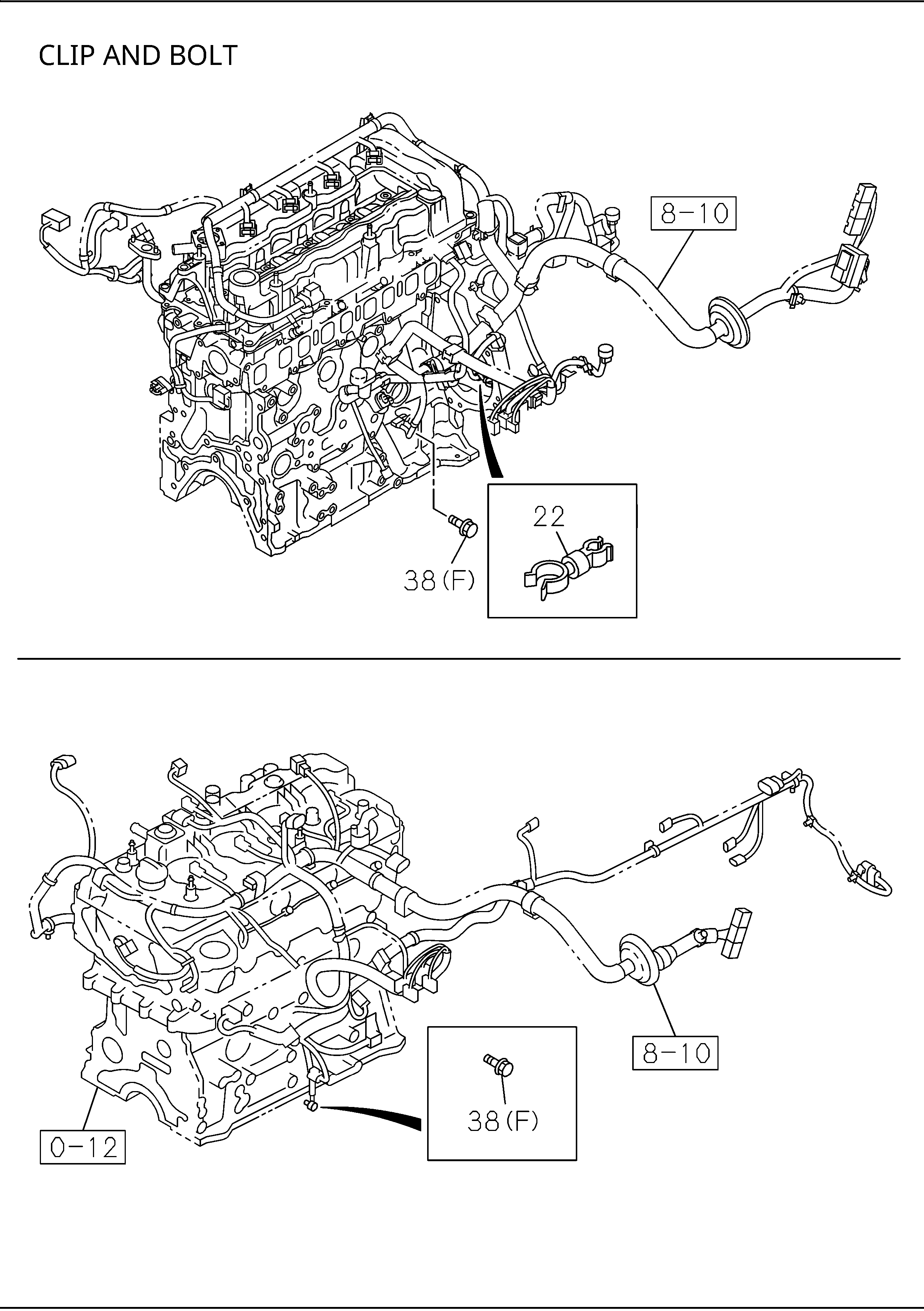

| 038 | I0-28050 812-0 | BOLT; CLIP,HARNESS | 1 | 2410- | AB | (F) M8X12 FLANGE | ||
| 459 | I8-98274 915-0 | BRACKET; SUPPORT,HARNESS | 1 | 2410- | A | RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P) (A) | ||
| 038 | I0-28050 820-0 | BOLT; CLIP,HARNESS | 3 | 2410- | AB | 4JJ3 ENG(LNG) EURO5 SPECIFICATION(NT5) (A) M8X20 FLANGE | ||
| 016 | I8-97173 307-0 | CLIP; HARNESS | 2 | 2410- | AB | (A) L=155 | ||
| 377 | I8-98164 836-0 | BOLT; CAB EARTH | 2 | 2410- | AB | M6X14 W/PL WASHER | ||
| 038 | I0-28050 816-0 | BOLT; CLIP,HARNESS | 9 | 2410- | AB | RZ4E-TC ENG(RDZ) EURO5 SPECIFICATION(NT5) (B) M8X16 FLANGE | ||
| 038 | I0-28050 616-0 | BOLT; CLIP,HARNESS | 2 | 2410- | AB | 4JJ3 ENG(LNG) (C) M6X16 FLANGE | ||
| 022 | I8-94145 893-0 | CLIP; ENG HARNESS | 1 | 2410- | AB | RZ4E-TC ENG(RDZ) EUROO SPECIFICATION(K75),EURO2 SPECIFICATION(NT2) ID=12 & 6 | ||
| 547 | I8-98164 836-0 | BOLT | 1 | 2410- | AB | M6X14 W/PL WASHER | ||

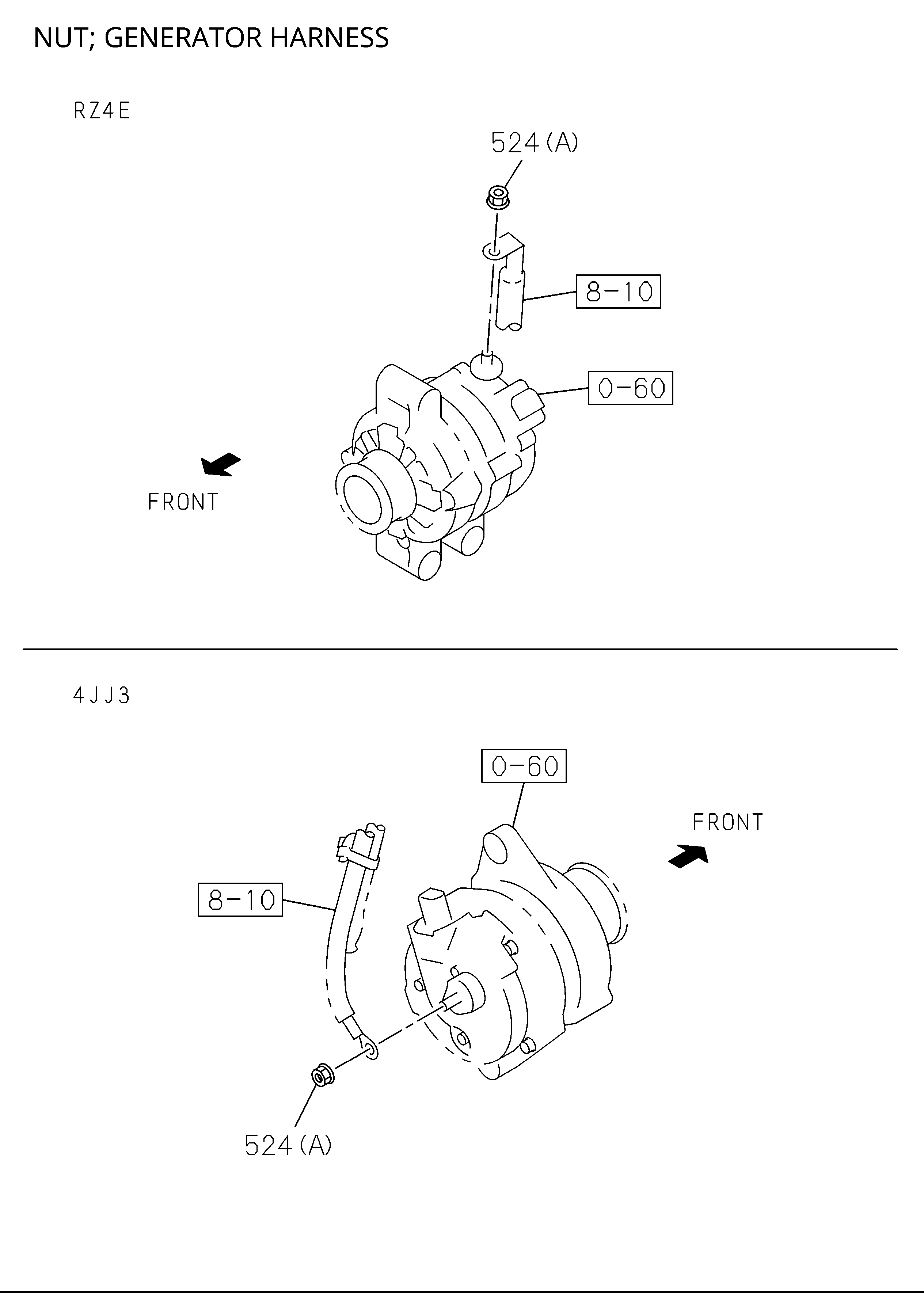

| 524 | I0-91180 108-0 | NUT; HARNESS | 1 | 2410- | AB | (A) M8 FLANGE | ||
| 239 | I8-98164 836-0 | BOLT; GRAND | 1 | 2410- | AB | POWER STEERING ELECTRIC<NV9> (B) M6X14 W/PL WASHER | ||
| 038 | I0-28650 616-0 | BOLT; CLIP,HARNESS | 2 | 2410- | AB | (G) M6X16 FLANGE |
