8-27 | 8-27A SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

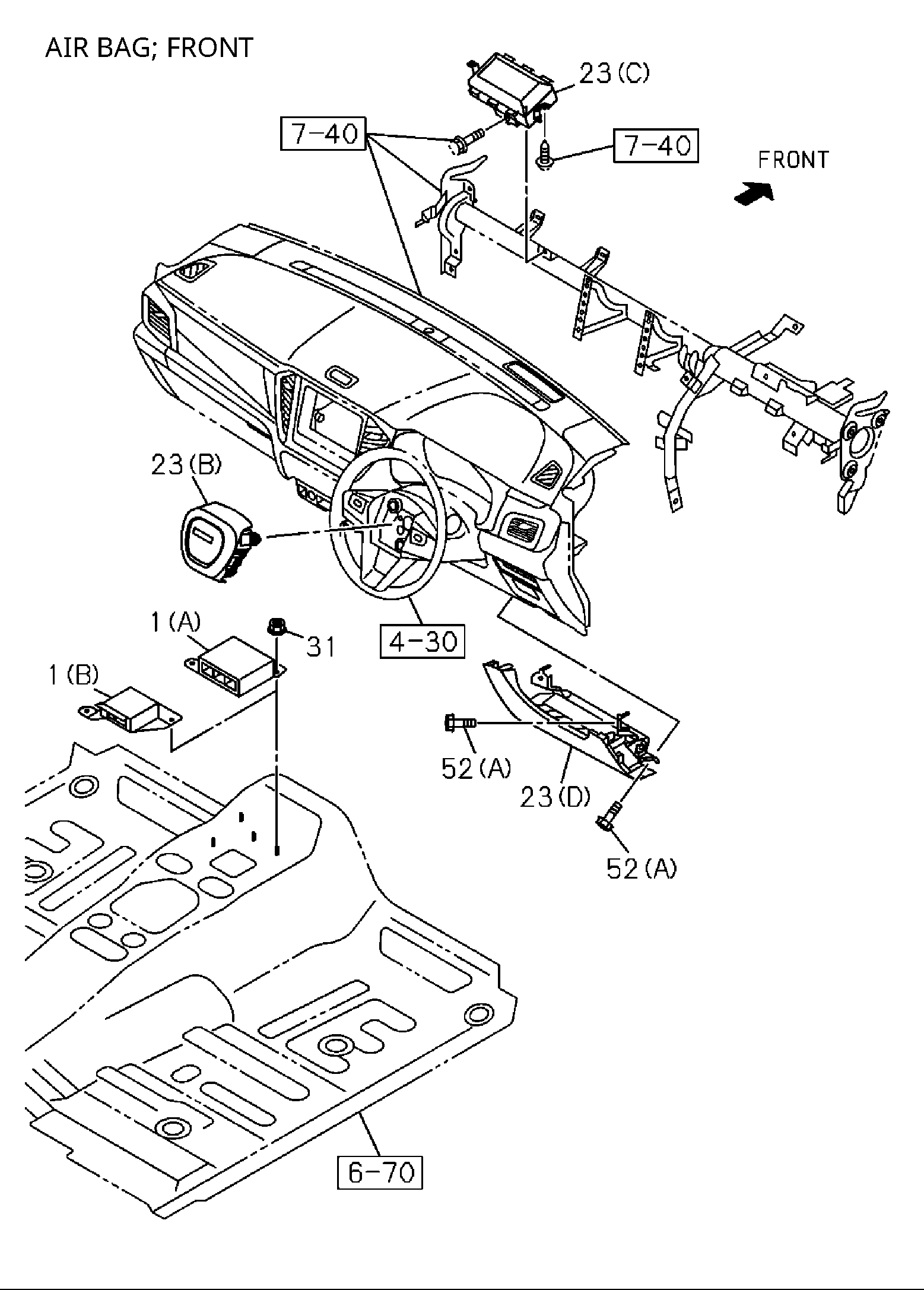

| 001 | I8-97274 917-1 | CONTROL UNIT; SIR | 1 | 2410- | AB | |||
| 001 | I8-97526 547-2 | CONTROL UNIT; SIR | 1 | 2410- | AB | AIR BAG DRIVER & PASSENGER(AK5) PASSENGER AIRBAG CUT-OFF SW<C99> EXC. ELR WITH PRE-TENSIONER<A71> (B) AIR BAG DRIVER & PASSENGER(AK5) EXC. ELR WITH PRE-TENSIONER<A71>,PASSENGER AIRBAG CUT-OFF SW<C99> (B) AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) PASSENGER AIRBAG CUT-OFF SW<C99> EXC. ELR WITH PRE-TENSIONER<A71> (A) AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. ELR WITH PRE-TENSIONER<A71>,PASSENGER AIRBAG CUT-OFF SW<C99> (A) ELR WITH PRE-TENSIONER<A71> PASSENGER AIRBAG CUT-OFF SW<C99> AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX) (A) ELR WITH PRE-TENSIONER<A71> PASSENGER AIRBAG CUT-OFF SW<C99> A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (A) PASSENGER AIRBAG CUT-OFF SW<C99> AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX) EXC. ELR WITH PRE-TENSIONER<A71> (A) SAFETY PACKAGE FRT(8SW),SAFETY PACKAGE FRT & RR(8SY) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) EXC. ELR WITH PRE-TENSIONER<A71>,PASSENGER AIRBAG CUT-OFF SW<C99> (A) AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX) EXC. ELR WITH PRE-TENSIONER<A71>,PASSENGER AIRBAG CUT-OFF SW<C99> (A) | ||
| 023 | I8-97937 145-2 | AIR BAG UNI' | 1 | 2410- | AB | (B) BLACK | ||
| 001 | I8-97687 722-0 | CONTROL UNIT; SIR | 1 | 2410- | AB | |||
| 001 | I8-97267 003-1 | CONTROL UNIT; SIR | 1 | 2410- | AB | |||
| 001 | I8-98347 452-4 | CONTROL UNIT; SIR | 1 | 2410- | AB | |||
| 031 | I0-91180 206-0 | NUT | 3 | 2410- | | AB | M6 FLANGE | ||
| 023 | I8-97904 055-3 | AIR BAG UNI' | 1 | 2410- | AB | AUSTRALIA EQUIPMENT(B13) A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (D) BLACK | ||
| 023 | I8-97471 593-2 | AIR BAG UNI' | 1 | 2410- | B | INDONESIA EQUIPMENT(B00),CONGO EQUIPMENT(CDF),CENTRAL AMERICA EQUIPMENT(E03),GENERAL EXPORT EQUIPMENT(TAA) AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX) (D) BLACK | ||
| 023 | I8-97902 768-1 | AIR BAG UNI' | 1 | 2410- | AB | SOUTH AFRICA EQUIPMENT(B02) AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (D) BLACK | ||
| 001 | I8-97267 000-1 | CONTROL UNIT; SIR | 1 | 2410- | AB | |||
| 023 | I8-97496 562-2 | AIR BAG UNI' | 1 | 2410- | AB | AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (A) | ||
| 023 | I8-97471 593-2 | AIR BAG UNI' | 1 | 2410- | A | INDONESIA EQUIPMENT(B00),GENERAL EXPORT EQUIPMENT(TAA) AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX) (D) BLACK | ||
| 001 | I8-97274 918-1 | CONTROL UNIT; SIR | 1 | 2410- | AB | |||
| 001 | I7-55211 113-0 | CONTROL UNIT; SIR | 1 | 2410- | AB | |||
| 001 | I8-97687 712-0 | CONTROL UNIT; SIR | 1 | 2410- | AB | |||
| 052 | I0-28650 620-0 | BOLT; AIR BAG | 16 | 2410- | AB | AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (B) M6X20 FLANGE | ||

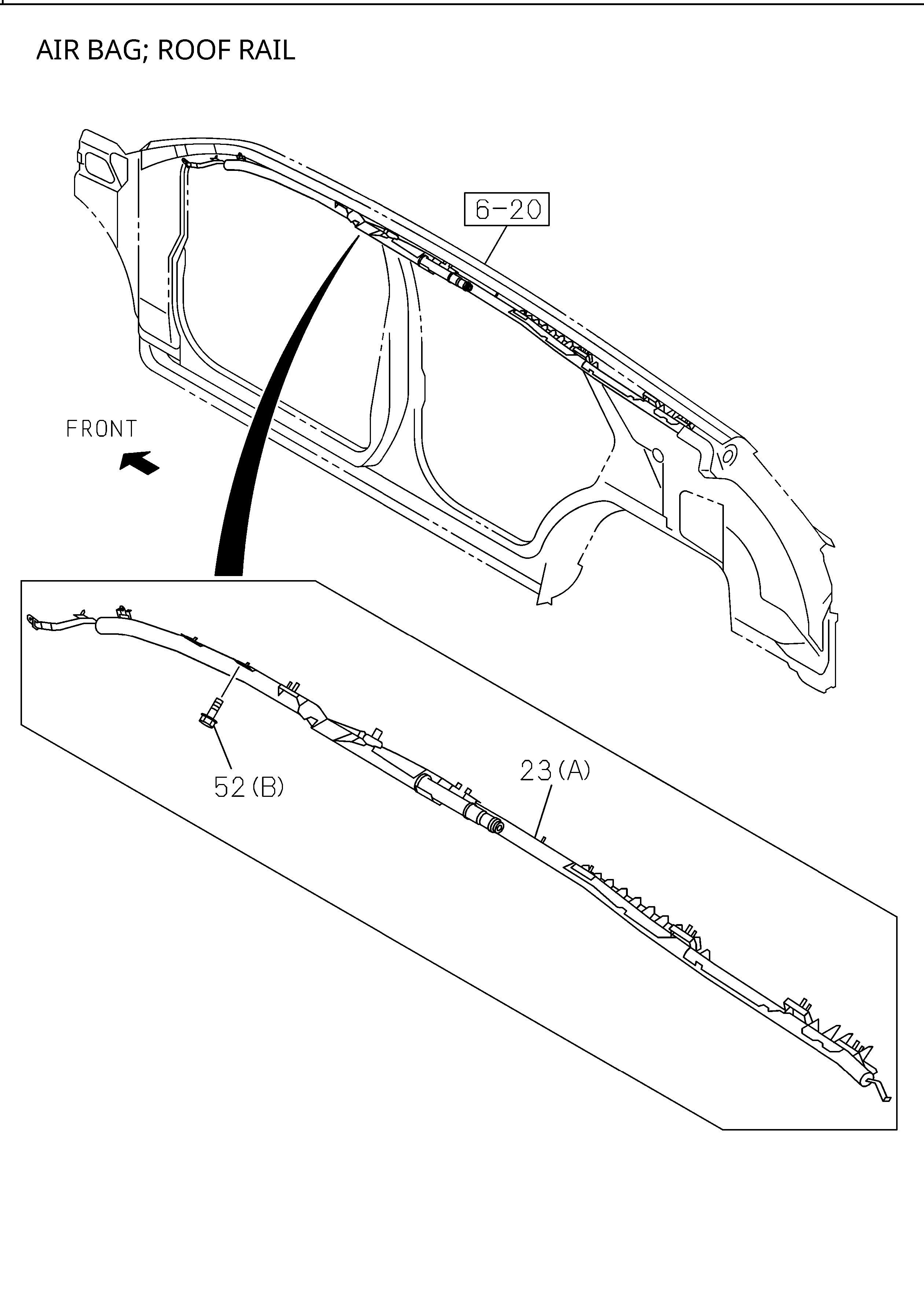

| 023 | I8-97496 563-2 | AIR BAG UNI' | 1 | 2410- | AB | AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (A) | ||
| 023 | I8-98331 964-4 | AIR BAG UNI' | 1 | 2410- | AB | (C) | ||
| 052 | I8-98018 440-0 | BOLT; AIR BAG | 4 | 2410- | AB | AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (A) M6X25 W/LK&PL WASHER |
