8-28 | 8-28A CHASSIS ELECTRICAL
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 555 | I8-97524 409-0 | SWITCH; TAIL GATE | 1 | 2410- 1 | AB | POWER TAIL GATE<E61> | ||

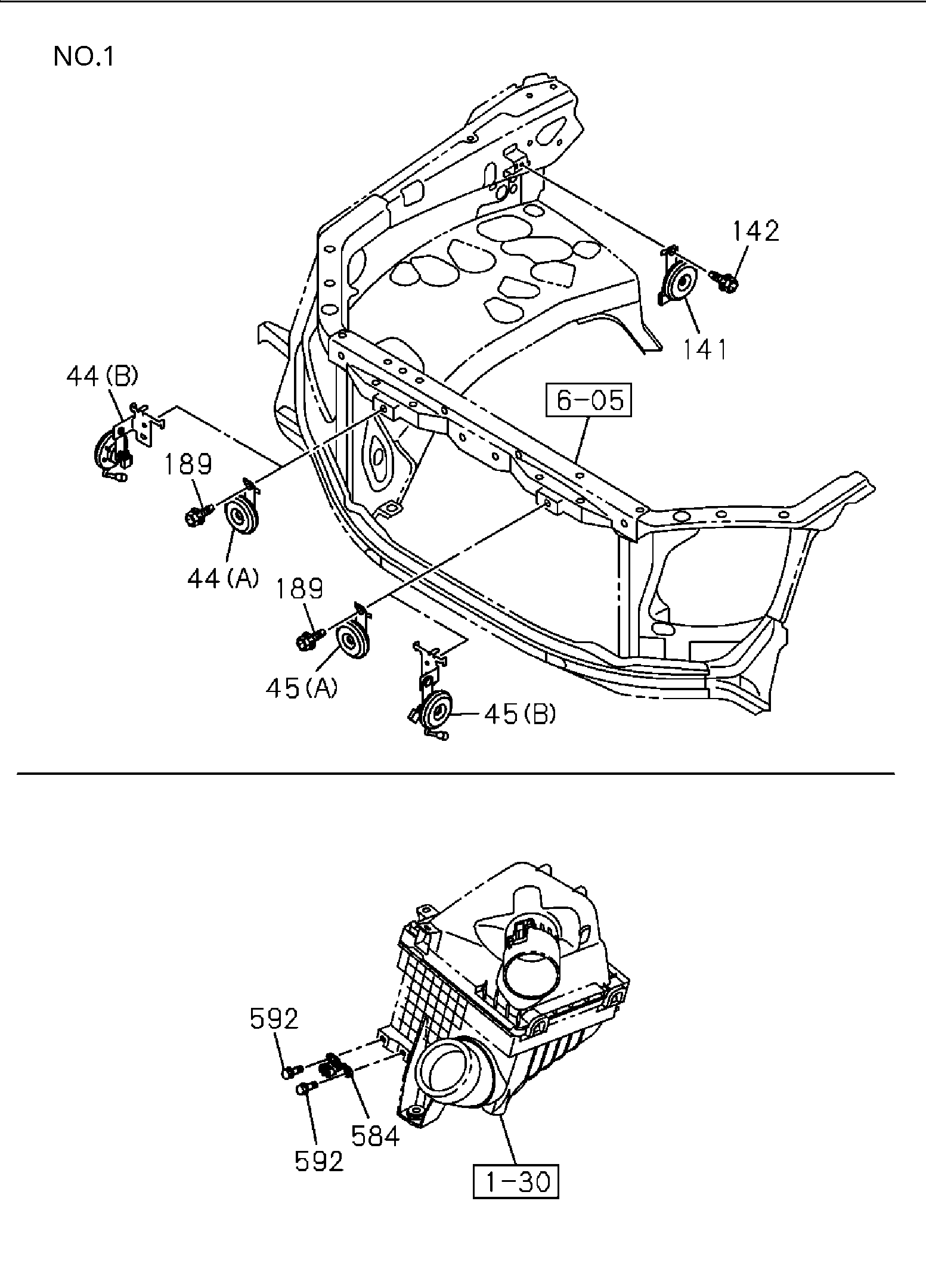

| 044 | I8-97654 522-0 | HORN; HIGH NOTE | 1 | 2410- | AB | EXC. INDONESIA EQUIPMENT(B00) (A) | ||

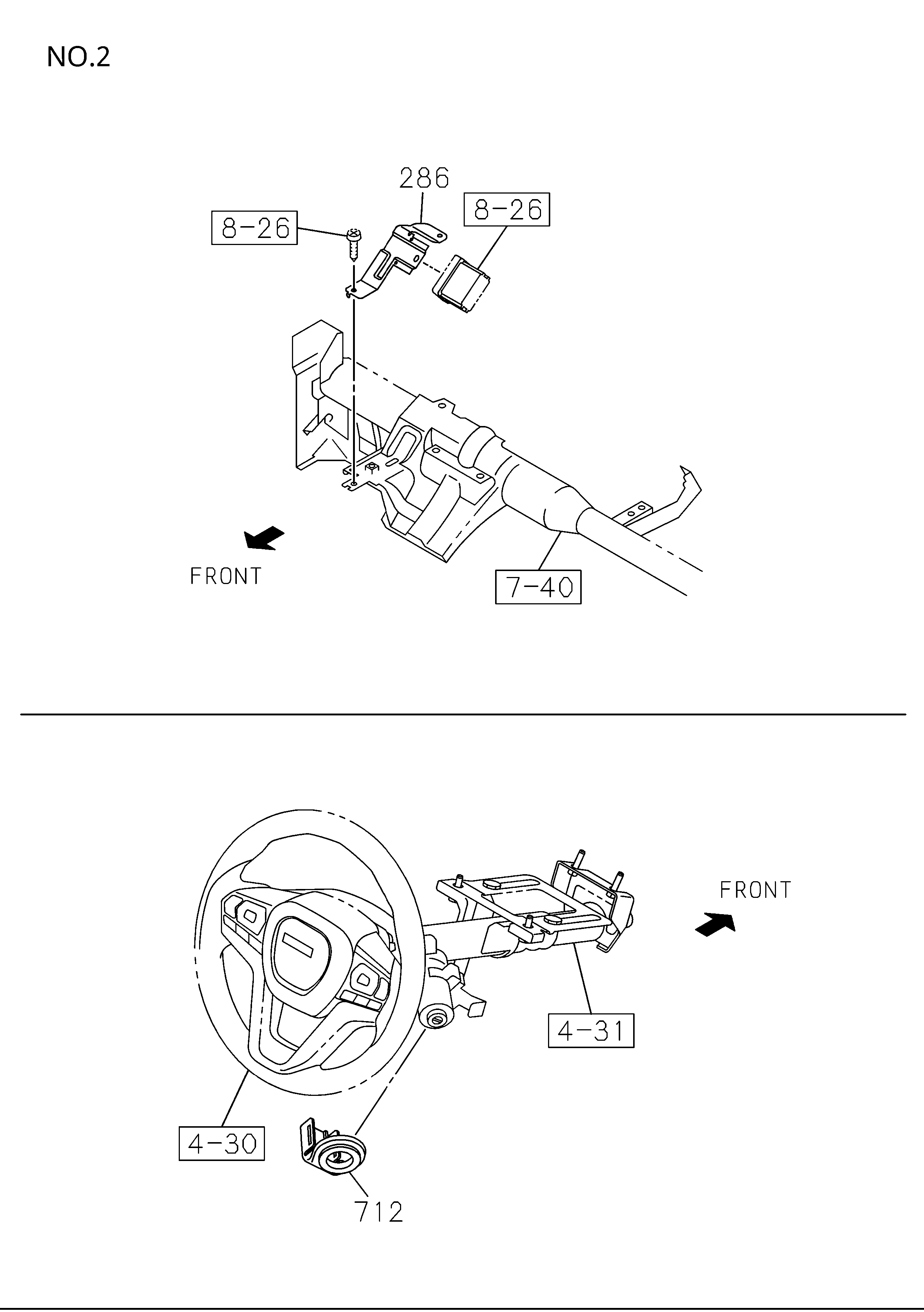

| 712 | I8-98394 787-0 | CONTROL UNIT; ANTI THEFT | 1 | 24l0- | AB | REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> | ||
| 045 | I8-97654 523-0 | HORN; LOW NOTE | 1 | 2410- | B | SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF),CENTRAL AMERICA EQUIPMENT(E03),GENERAL EXPORT EQUIPMENT(TAA) (A) | ||
| 734 | I8-98l92 897-0 | ALARM; MULTI | 1 | 24l0- | AB | POWER TAIL GATE<E61> | ||
| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 2410- | A | RZ4E-TC ENG(RDZ) EUROO SPECIFICATION(K75),EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. HIGH ALTITUDE COMPENSATOR<EE2> | ||
| 734 | I8-98l92 897-0 | ALARM; MULTI | 1 | 24l0- | AB | PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR>,PASSIVE ENTRY W/PUSH START<8WY> | ||
| 189 | I8-98164 836-0 | BOLT; HORN | 2 | 2410- 1 | AB | M6X14 W/PL WASHER | ||
| 286 | I8-97516 345-0 | BRACKET | 1 | 2410- 1 | AB | |||
| 500 | I8-97539 329-0 | COVER; HOLE,SWITCH | 1 | 2410- 1 | AB | EXC. POWER TAIL GATE<E61> | ||

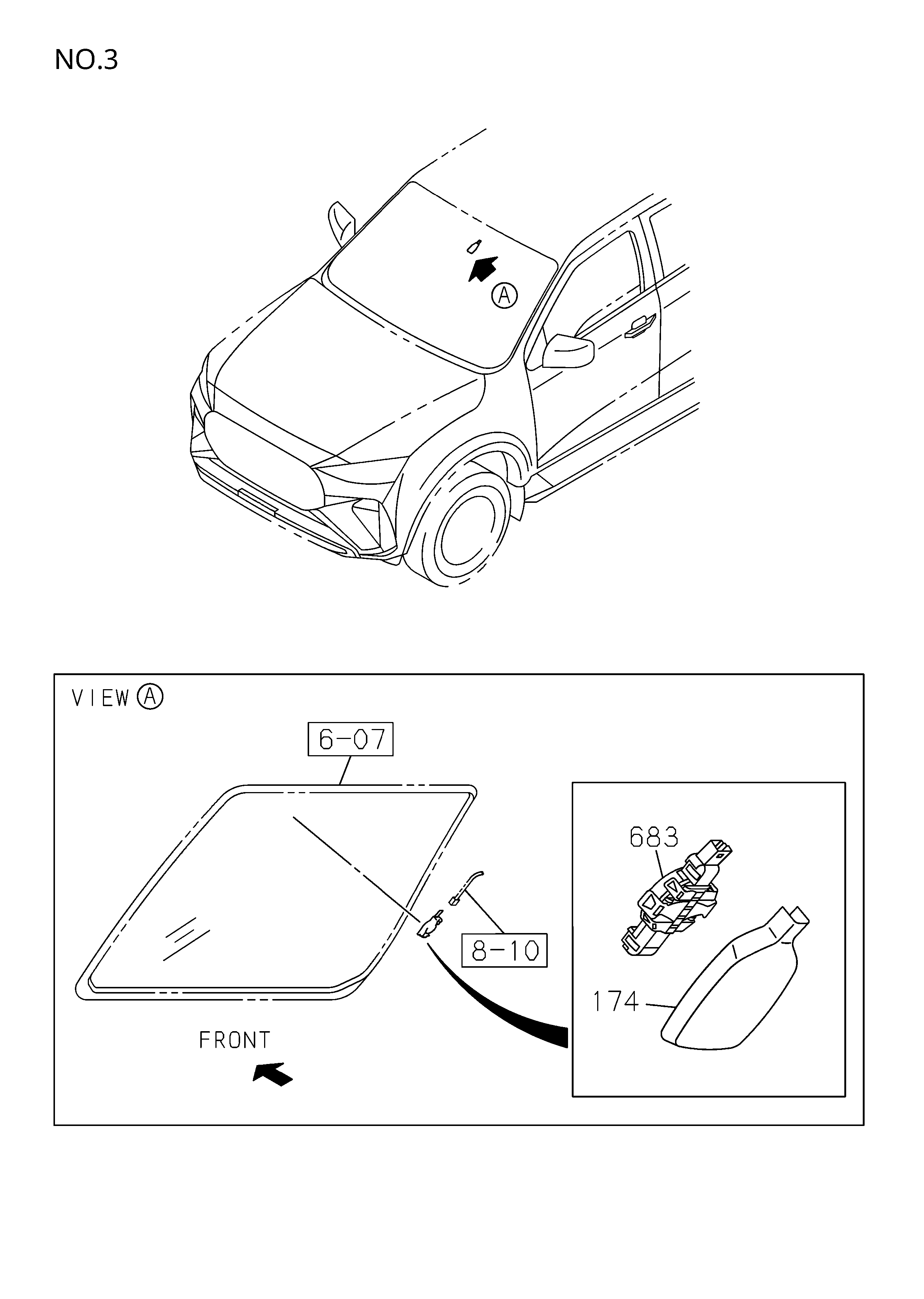

| 683 | I8-98395 347-2 | SENSOR;SUN | 1 | 24l0- | AB | AUTO LIGHT & AUTOMATIC HIGH BEAM<T80>,AUTO LIGHT<T82> AUTO WIPER<8SN> | ||
| 142 | I8-98164 836-0 | BOLT; HORN,ANTI THEFT | 1 | 2410- | AB | REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/PL WASHER | ||
| 174 | I8-97472 024-0 | COVER | 1 | 2410- | AB | INTERIOR COLOR GRAY(160) AUTO LIGHT & AUTOMATIC HIGH BEAM<T80>,AUTO LIGHT<T82> AUTO WIPER<8SN> EXC. SAFETY PACKAGE FRT(8SW),SAFETY PACKAGE FRT & RR(8SY) BLACK | ||
| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 2410- | B | RZ4E-TC ENG(RDZ) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. HIGH ALTITUDE COMPENSATOR<EE2> | ||
| 045 | I8-97656 713-0 | HORN; LOW NOTE | 1 | 2410- | AB | INDONESIA EQUIPMENT(B00) (B) | ||
| 045 | I8-97654 523-0 | HORN; LOW NOTE | 1 | 2410- | A | SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13),GENERAL EXPORT EQUIPMENT(TAA) (A) | ||
| 044 | I8-97656 712-0 | HORN; HIGH NOTE | 1 | 2410- | AB | INDONESIA EQUIPMENT(B00) (B) | ||
| 141 | I8-98164 588-0 | HORN; ANTI THEFT | 1 | 2410- 1 | AB | REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> |
