8-40 | 8-40A HEATER SYSTEM
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

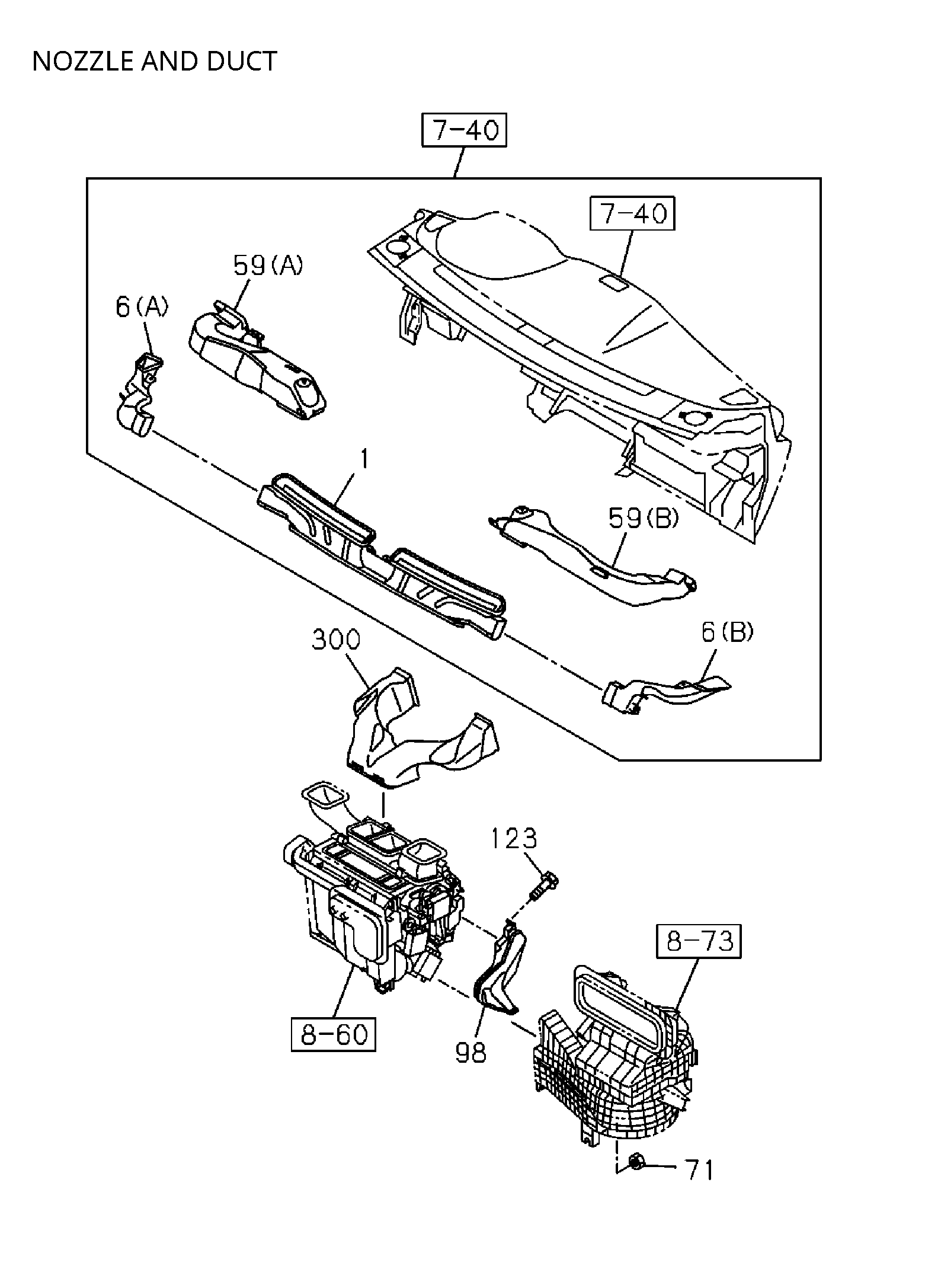

| 006 | I8-97553 765-0 | DUCT; SIDE DEFROSTER | 1 | 2410- | AB | AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) | ||

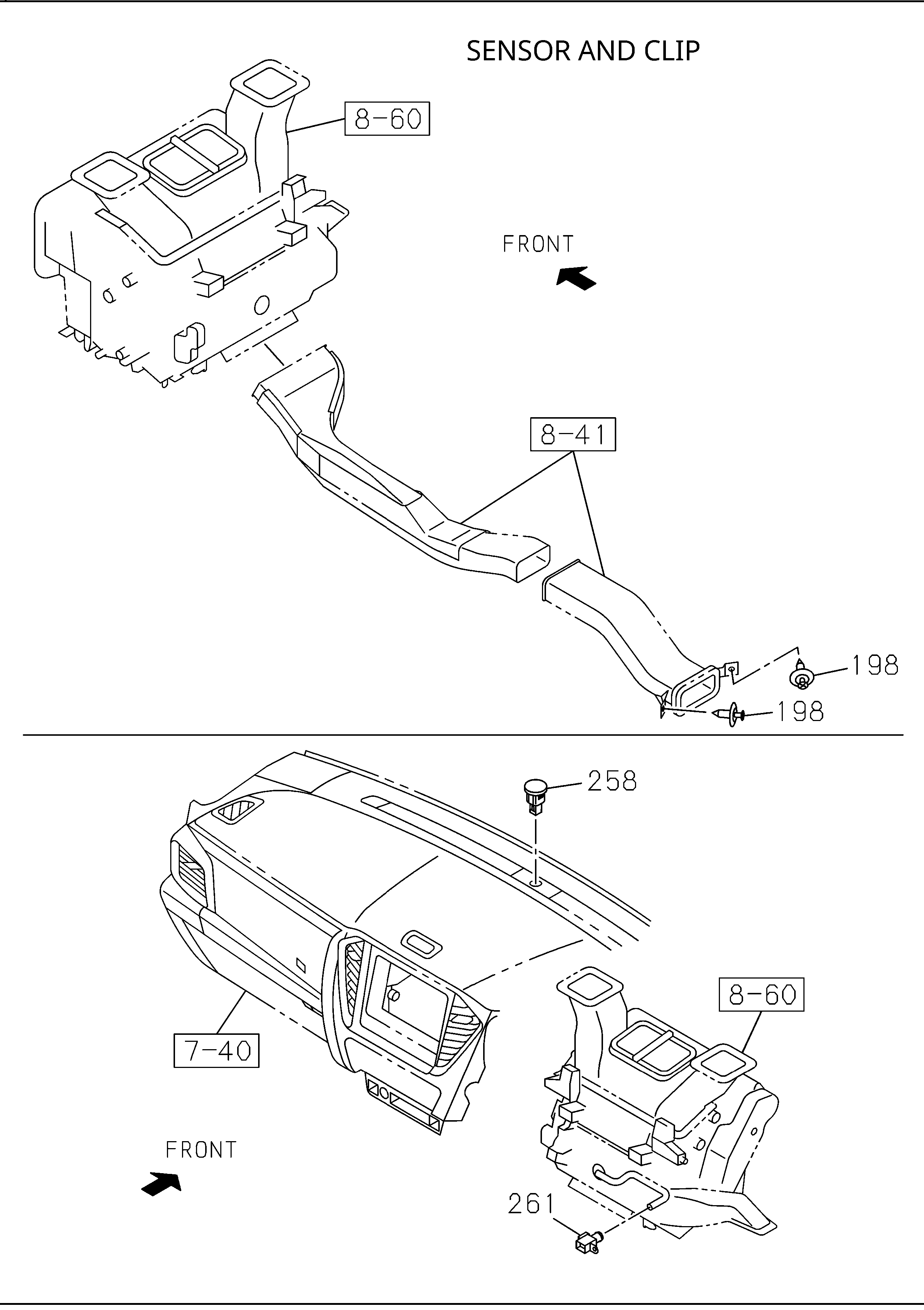

| 258 | I8-98394 854-0 | SENSOR; SUN | 1 | 2410- | AB | AIR CONDITIONER AUTOMATIC CONT(C61) | ||
| 006 | I8-97553 764-0 | DUCT; SIDE DEFROSTER | 1 | 2410- | AB | AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) | ||
| 071 | I8-94279 514-0 | NUT; BLOWER UNIT TO DASH | 1 | 2410- | AB | M6 FLANGE | ||
| 198 | I8-97360 070-0 | CLIP; DUCT | 2 | 2410- | AB | REAR HEATER DUCT<S8C> BLACK | ||
| 123 | I8-98167 449-0 | SCREW; DUCT | 1 | 2410- | AB | AIR CONDITIONER AUTOMATIC CONT(C61) M5X16 TAPPING | ||
| 098 | I8-97491 446-1 | DUCT; BLOWER UNIT TO HTR UNIT | 1 | 2410- | AB | AIR CONDITIONER AUTOMATIC CONT(C61) | ||
| 261 | I8-98394 853-0 | SENSOR; IN CAR | 1 | 2410- | AB | AIR CONDITIONER AUTOMATIC CONT(C61) | ||
| 001 | I8-97553 763-2 | NOZZLE; DEFROSTER,INST PNL | 1 | 2410- | AB | AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) | ||
| 059 | I8-97553 767-0 | DUCT; VENT,ASSIST SIDE | 1 | 2410- | AB | (B) | ||
| 300 | I8-98398 503-0 | DUCT; VENT,CENTER | 1 | 2410- | AB | |||
| 059 | I8-97553 766-0 | DUCT; VENT,ASSIST SIDE | 1 | 2410- | AB | (A) |
