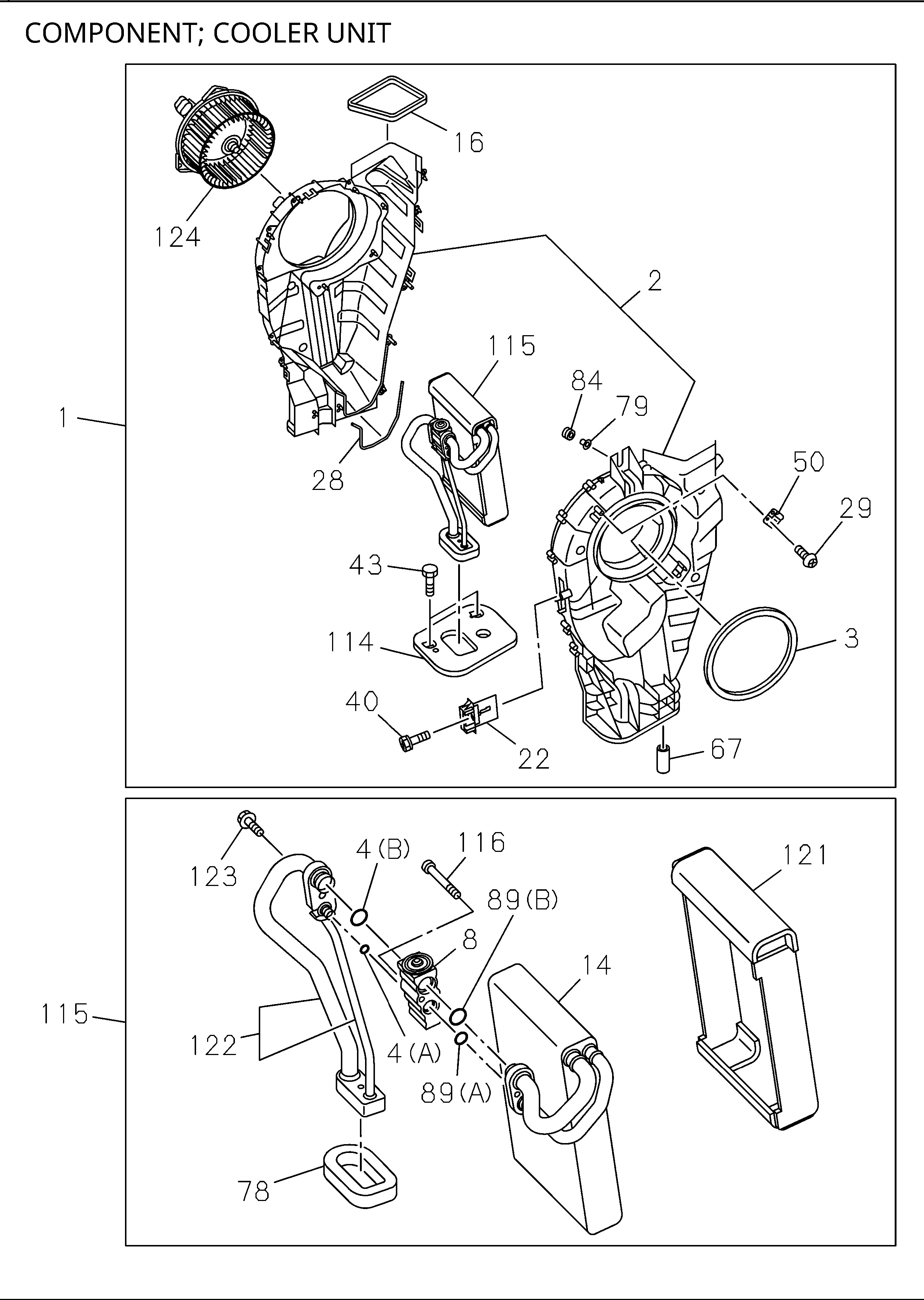

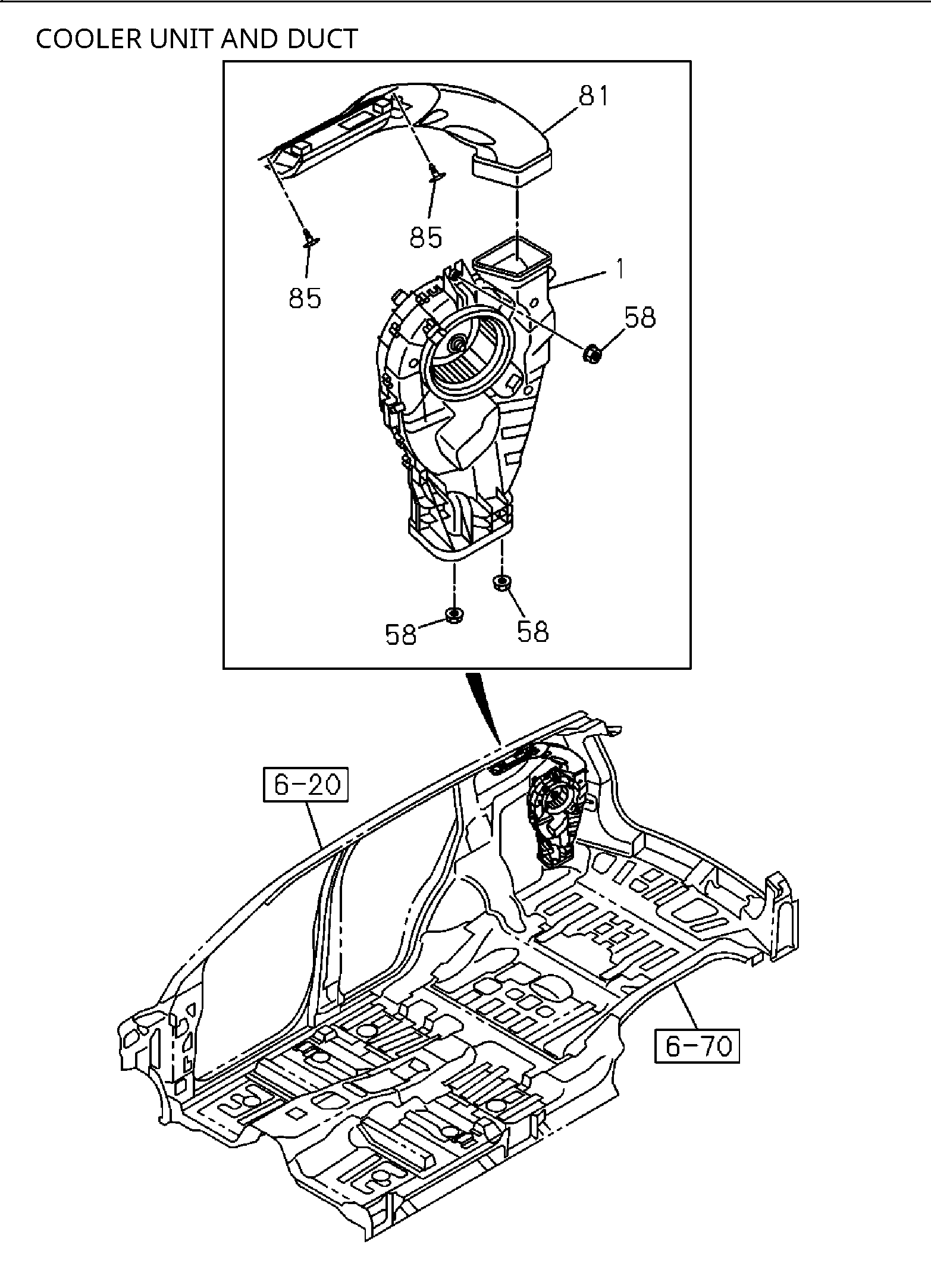

8-72 | 8-72A COOLER UNIT
MUX
MU-X 2025
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 028 | I8-98249 815-0 | lining; casi | 1 | 2410- | AB | |||
| 124 | I8-97685 809-í | blower asm | 1 | 24í0- | AB | |||
| 089 | I8-97685 80í-0 | gasket; evap to vlv | 1 | 24í0- | AB | (A) | ||
| 014 | I8-97842 998-0 | evaporatof | 1 | 2410- | AB | |||
| 114 | I8-97685 790-0 | seal; case | 1 | 24í0- | AB | |||
| 121 | I8-9825í 842-0 | insulator; evap | 1 | 24í0- | AB | |||
| 081 | I8-97844 802-0 | duct; rr co | 1 | 2410- | AB | |||
| 116 | I8-97842 999-0 | bolt; expansion valve | 2 | 24í0- | AB | |||
| 040 | I8-98139 395-0 | screw; resii | 2 | 2410- | AB | |||
| 003 | I8-97685 791-0 | lining; casi | 1 | 2410- | AB | |||
| 004 | I8-97550 281-0 | gasket; vlv | 1 | 2410- | AB | (A) | ||
| 089 | I8-97685 802-0 | gasket; evap to vlv | 1 | 24í0- | AB | (B) | ||
| 001 | I8-97506 762-3 | cooling un | 1 | 2410- | AB | |||
| 022 | I8-97553 738-0 | resistor; rr | 1 | 2410- | AB | |||
| 085 | I8-97327 3í5-0 | clip; duct | 3 | 24í0- | AB | |||
| 067 | I8-98249 814-0 | hose; drain | 1 | 2410- | AB | |||
| 050 | I8-97685 808-0 | bracket; co | 2 | 2410- | AB | |||
| 078 | I8-98249 827-0 | grommet; c | 1 | 2410- | AB | |||
| 122 | I8-97685 799-0 | pipe asm; evap | 1 | 24í0- | AB | |||
| 029 | I8-98233 593-0 | screw; case | 14 | 2410- | AB | |||
| 058 | I8-98055 704-0 | nut; case | 3 | 2410- | AB | M6 FLANGE | ||
| 004 | I8-97685 803-0 | gasket; vlv | 1 | 2410- | AB | (B) | ||
| 008 | I8-97685 798-0 | valve; expa | 1 | 2410- | AB | |||
| 016 | I8-97685 792-0 | lining; casi | 1 | 2410- | AB | |||
| 079 | I8-98249 813-0 | collar; coo | 1 | 2410- | AB | |||
| 115 | I8-97842 997-0 | evaporator asm; cooling unit | 1 | 24í0- | AB | |||
| 084 | I8-98249 8í2-0 | rubber | 1 | 24í0- | AB | |||
| 002 | I8-97685 784-0 | case; rr coc | 1 | 2410- | AB | |||
| 043 | I8-98249 830-0 | bolt; coole | 2 | 2410- | AB | |||
| 123 | I8-98249 828-0 | screw | 1 | 24í0- | AB |
