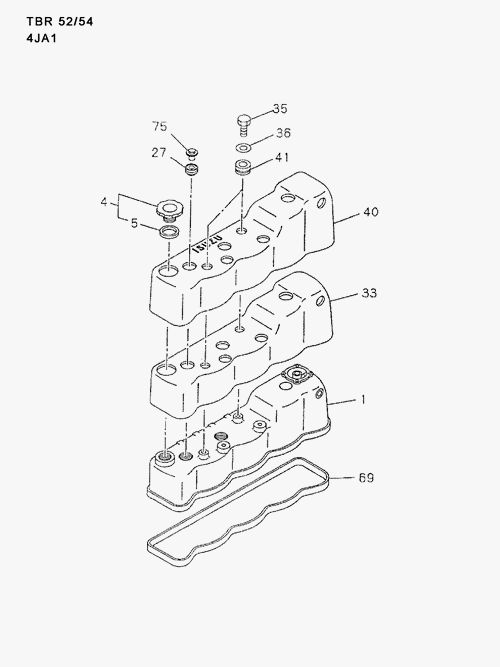

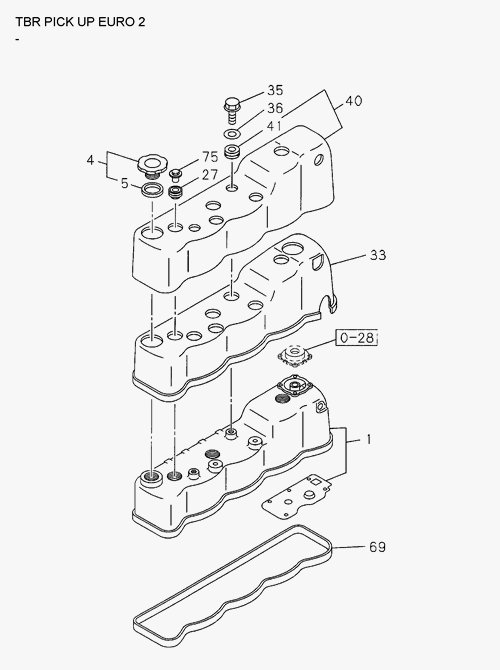

0-10 | CYLINDER HEAD COVER
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 35 | I0-20800 814-0 | BOLT; NOISE SHIELD COVER | 2 | 9602- | AB | M8X14 | ||
| 1 | I8-94433 742-A | COVER; CYL HD | 1 | 9602- | ABC | |||
| 69 | I8-97349 416-1 | GASKET; HD TO COVER | 1 | 9602-0612 | ABC | |||
| 10 | I9-06520 412-0 | RIVET; PLATE, BREATHER | 1 | 9106-9601 | AB | |||
| 69 | I8-97161 131-0 | GASKET; HD TO COVER | 1 | 9602- | AB | |||
| 4 | I8-94133 207-5 | CAP; OIL FILLER | 1 | 9602-0612 | ABC | |||
| 36 | I9-09651 112-0 | WASHER; PL, NOISE SHIELD COVER | 2 | 9602- | B | |||
| 79 | I0-50640 825-0 | BOLT; COVER FIX | 4 | 9602- | B | M8 x 12 | ||
| 27 | I9-11179 808-0 | GASKET; HD COVER | 2 | 9009-9601 | AB | ALSO INCLUDED IN GASKET SET(ENG & HEAD) | ||
| 5 | I8-94123 623-1 | GASKET; OIL FILLER | 1 | 9602-0612 | ABC | ALSO INCLUDED IN GASKET SET(ENG & HEAD) ID=32 OD=40 | ||
| 79 | I0-50140 825-0 | BOLT; COVER FIX | 4 | 9602- | B | M8 x 12 | ||
| 36 | I0-91614 708-0 | WASHER; PL, NOISE SHIELD COVER | 2 | 9602- | BC | |||
| 33 | I8-97920 049-1 | RUBBER; SPACE, CYL HD COVER | 1 | 0612- | BC | |||
| 36 | I9-09164 708-0 | WASHER; PL, NOISE SHIELD COVER | 2 | 9602- | BC | |||
| 4 | I1-11751 005-1 | CAP; OIL FILLER | 1 | 9009-9601 | AB | OD=45 | ||
| 79 | I0-50640 825-0 | BOLT; COVER FIX | 4 | 9602- | B | M8 x 12 | ||
| 7 | I5-11179 046-0 | PLATE; BREATHER, HD COVER | 1 | 9106-9601 | AB | |||
| 1 | I5-11170 211-1 | COVER; CYL HD | 1 | 9009-9601 | AB | |||
| 40 | I8-97043 018-0 | COVER | 1 | 9602-0612 | ABC | |||
| 35 | I0-28050 812-0 | BOLT; NOISE SHIELD COVER | 2 | 0612- | C | |||
| 33 | I8-97920 049-0 | RUBBER; SPACE, CYL HD COVER | 1 | 0612- | BC | |||
| 69 | I8-94447 570-1 | GASKET; HD TO COVER | 1 | 9009-9601 | AB | ALSO INCLUDED IN GASKET SET(ENG & HEAD) | ||
| 75 | I8-94158 108-0 | NUT; CAP, HD COVER | 3 | 9602- | AB | M8 OD=19 | ||
| 68 | I9-11179 132-0 | WASHER; CAP NUT, HD COVER | 2 | 9009-9601 | AB | |||
| 27 | I8-94202 456-3 | GASKET; HD COVER | 3 | 9602- | AB | ID=19. 5 | ||
| 33 | I8-97131 707-3 | RUBBER; SPACE, CYL HD COVER | 1 | 9602- | AB | |||
| 1 | I8-94433 742-2 | COVER; CYL HD | 1 | 9602-0612 | ABC | |||
| 79 | I8-94329 953-1 | BOLT; COVER FIX | 4 | 9602- | B | M8 x 12 | ||
| 33 | I8-97365 746-0 | RUBBER; SPACE, CYL HD COVER | 1 | 9602- | AB | |||
| 15 | I5-11179 048-0 | NIPPLE; BREATHER | 1 | 9009-9601 | AB | |||
| 41 | I8-94256 959-0 | GROMMET; HD COVER.OUTER | 2 | 9602-0612 | ABC | |||
| 27 | I8-97263 801-1 | GASKET; HD COVER | 3 | 9602- | BC | |||
| 28 | I8-94253 760-1 | BOLT; HD COVER | 2 | 9009-9601 | AB | |||
| 36 | I0-91614 708-0 | WASHER; PL, NOISE SHIELD COVER | 2 | 9602- | B |
