| 3 |
I5-87813 245-0 |
|
LINER SET; ENG CYL |
4 |
9009-9601 |
|
A |
|
| 144 |
I0-91180 208-0 |
|
NUT; COVER FIX |
1 |
0612- |
|
C |
|
| 69 |
I9-09571 414-0 |
|
GASKET; PLUG, OIL GALLERY, C/BL |
1 |
9602- |
|
B |
ALSO INCLUDED IN GASKET SET(ENGINE) ID=14.2 OD=20.0 |
| 23 |
I8-97036 550-1 |
|
CUP; SEALING, C/BL FRT & RR |
3 |
0612- |
|
BC |
OD=45 (A) |
| 25 |
I5-11611 008-0 |
|
METAL; CM/SHF |
1 |
9109-9601 |
|
A |
FRONT (DELETION) |
| 107 |
I8-97045 360-0 |
|
GASKET; BREATHER PIPE, TAPPET CHAMBER |
1 |
9110-9601 |
|
A |
DELETION |
| 23 |
I5-11219 018-0 |
|
CUP; SEALING, C/BL FRT & RR |
3 |
9602- |
|
BC |
OD=36 (C) |
| 8 |
I8-94432 642-0 |
|
BOLT; BRG CAP |
10 |
9009- |
|
ABC |
M14X89 FLANGE |
| 4 |
I8-97176 677-0 |
|
LINER; C /BL |
1 |
9009-9601 |
|
A |
|
| 99 |
I9-09571 414-0 |
|
GASKET; OIL PIPE ADAPTER |
1 |
9009-9601 |
|
A |
ALSO INCLUDED IN GASKET SET(ENGINE) ID=14,2 OD=20. 0 |
| 121 |
I8-97188 507-0 |
|
RUBBER; MTG COVER, C/BL |
1 |
0612- |
|
C |
OD=16 (B) |
| 109 |
I0-91510 505-0 |
|
WASHER; LK, BAFFLE PLATE, TAPPET COVER |
2 |
9009- |
|
A |
ID=5 |
| 50 |
I9-08161 032-0 |
|
PIN; STRAIGHT, RR PLATE |
1 |
9009- |
|
ABC |
OD=10 L=32 |
| 103 |
I9-09902 299-0 |
|
NIPPLE; OIL FEED |
1 |
9009-9601 |
|
A |
|
| 167 |
I8-94140 427-1 |
|
TUBE; DIST, SIDE COVER |
5 |
0612- |
|
C |
(A) |
| 22 |
I5-09600 013-0 |
|
CUP; SEALING, DUCT HOLE |
1 |
0612- |
|
C |
OD= 12. 3 |
| 300 |
I0-41010 830-0 |
|
STUD; COVER |
1 |
0612- |
|
C |
|
| 25 |
I8-97378 148-0 |
|
METAL; CM/SHF |
1 |
9602- |
|
BC |
FRONT |
| 104 |
I0-28080 625-0 |
|
BOLT; BREATHER NIPPLE |
2 |
9009-9601 |
|
A |
M6X25 W/LK WASHER |
| 113 |
I5-11129 003-0 |
|
CUP; SEALING |
1 |
9602- |
|
B |
OD=15. 6 |
| 104 |
I0-50040 625-0 |
|
BOLT; BREATHER NIPPLE |
2 |
9009-9601 |
|
A |
M6X25 W/LK WASHER |
| 55 |
I5-09605 019-2 |
|
PLUG; OIL GALLERY |
3 |
9206-9601 |
|
A |
PT1/8 |
| 7 |
I9-09809 097-0 |
|
PLUG; WATER DRAIN |
1 |
9602- |
|
B |
(B) M10X1.25 |
| 117 |
I8-94460 820-5 |
|

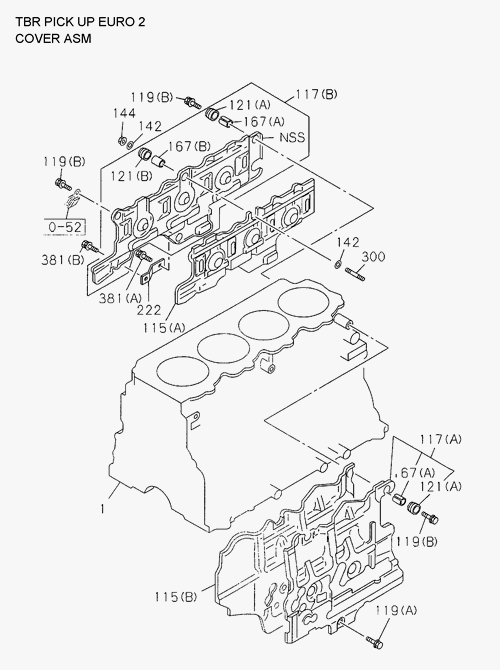

COVER ASM; C/BL |
1 |
9602- |
|
B |
|
| 111 |
I8-94254 596-0 |
|
BAFFLE; BREATHER, TAPPET CHAMBER COVER |
1 |
9009-9601 |
|
A |
|
| 115 |
I8-97264 913-0 |
|
RUBBER; SPACE |
1 |
0612- |
|
C |
(A) |
| 115 |
I8-97131 902-2 |
|
RUBBER; SPACE |
1 |
9602- |
|
B |
(B) |
| 98 |
I9-09878 597-0 |
|
PIN; C/BL TO CRANKCASE |
2 |
9009-9601 |
|
A |
|
| 55 |
I8-97369 552-1 |
|
PLUG; OIL GALLERY |
3 |
9206- |
|
A |
PT1/8 |
| 104 |
I0-28050 625-0 |
|
BOLT; BREATHER NIPPLE |
2 |
9009- |
|
A |
M6X25 W/LK WASHER |
| 63 |
I8-94419 436-2 |
|
DUCT; WATER C/BL |
1 |
9602- |
|
BC |
|
| 117 |
I8-97188 108-0 |
|
COVER ASM; C/BL |
1 |
0612- |
|
BC |
|
| 179 |
I5-11292 015-0 |
|
GASKET; COVER TO BOLT |
1 |
9009-9109 |
|
A |
ALSO INCLUDED IN GASKET SET(ENGINE) |
| 381 |
I0-50541 020-0 |
|
BOLT; BRAKT |
1 |
0612- |
|
C |
(B) M8X20 |
| 23 |
I5-11219 008-0 |
|
CUP; SEALING, C/BL FRT & RR |
3 |
9602- |
|
BC |
OD=18 (B) |
| 97 |
I8-97036 335-1 |
|
CUP; SEALING |
1 |
9009-9601 |
|
A |
OD=12. 3 |
| 381 |
I0-28050 810-0 |
|
BOLT; BRAKT |
1 |
0612- |
|
C |
(A) M8X10 |
| 95 |
I8-94232 115-2 |
|
UNIT; OIL PRESSURE |
1 |
9409-9601 |
|
A |
WAGON(TB*OV*) |
| 51 |
I8-94336 292-0 |
|
GASKET; OIL PRESS WARNING SW, C/BL |
1 |
9602- |
|
B |
ALSO INCLUDED IN GASKET SET(ENGINE) |
| 97 |
I5-11219 008-0 |
|
CUP; SEALING |
2 |
9009-9601 |
|
A |
OD=18 |
| 115 |
I8-97106 521-1 |
|
RUBBER; SPACE |
1 |
9602- |
|
B |
(A) |
| 4 |
I8-97176 693-0 |
|
LINER; C /BL |
1 |
9602- |
|
BC |
|
| 97 |
I5-11219 018-0 |
|
CUP; SEALING |
1 |
9009-9601 |
|
A |
OD=36 |
| 108 |
I5-09666 010-0 |
|
NIPPLE; BREATHER HOSE, TAPPET COVER |
1 |
9009-9601 |
|
A |
|
| 106 |
I5-11740 115-0 |
|
PIPE; BREATHER TAPPET CHAMBER |
1 |
9009-9601 |
|
A |
|
| 119 |
I0-50640 825-0 |
|
BOLT; COVER FIX |
4 |
9602- |
|
BC |
M8X22 |
| 25 |
I8-94427 206-2 |
|
METAL; CM/SHF |
1 |
9602- |
|
B |
FRONT |
| 1 |
I8-94438 404-4 |
|

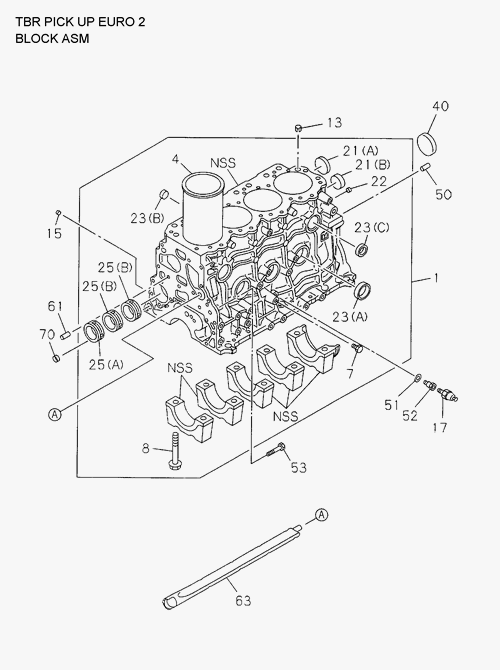

BLOCK ASM- CYL |
1 |
9602- |
|
BC |
|
| 38 |
I9-08151 024-0 |
|
PIN; TIMING GEAR CASE |
2 |
9009-9601 |
|
A |
|
| 25 |
I8-94454 839-0 |
|
METAL; CM/SHF |
2 |
9009-9108 |
|
A |
FRONT&CENTER (DELETION) |
| 21 |
I5-11219 018-0 |
|
CUP; SEALING, RR |
1 |
9602- |
|
BC |
OD=36 |
| 74 |
I0-50040 818-0 |
|
BOLT; COVER TO C/BL |
14 |
9009-9601 |
|
A |
M8X18 W/LK WASHER |
| 137 |
I8-94422 600-0 |
|
COCK; DRAIN WATER |
1 |
9602- |
|
B |
|
| 52 |
I8-94167 750-2 |
|
NIPPLE; OIL PRESS WARNING SW, C/BL |
1 |
9602- |
|
BC |
|
| 1 |
I8-94103 317-9 |
|
BLOCK ASM- CYL |
1 |
9009-9601 |
|
A |
|
| 119 |
I8-94329 952-1 |
|
BOLT; COVER FIX |
1 |
9602- |
|
BC |
M10X28 |
| 109 |
I9-09150 505-0 |
|
WASHER; LK, BAFFLE PLATE, TAPPET COVER |
2 |
9009-9601 |
|
A |
ID=5 |
| 25 |
I8-97378 147-0 |
|
METAL; CM/SHF |
2 |
9602- |
|
BC |
CENTER&REAR |
| 4 |
I8-94462 130-0 |
|
LINER; C /BL |
1 |
9602- |
|
B |
|
| 63 |
I8-94454 832-1 |
|
DUCT; WATER C/BL |
1 |
9009-9601 |
|
A |
|
| 179 |
I8-97045 328-0 |
|
GASKET; COVER TO BOLT |
1 |
9110-9601 |
|
A |
|
| 117 |
I8-97106 516-1 |
|
COVER ASM; C/BL |
1 |
9602- |
|
B |
|
| 55 |
I5-09605 019-2 |
|
PLUG; OIL GALLERY |
3 |
9009-9205 |
|
A |
PT1/8 |
| 102 |
I5-11129 006-0 |
|
CUP; SEALING OIL GALLERY |
2 |
9009-9601 |
|
A |
OD=16 |
| 115 |
I8-97204 194-0 |
|
RUBBER; SPACE |
1 |
0612- |
|
BC |
(B) |
| 25 |
I8-94427 201-2 |
|
METAL; CM/SHF |
2 |
9602- |
|
B |
CENTER&REAR |
| 142 |
I0-91614 808-0 |
|
WASHER; PL |
1 |
0612- |
|
C |
|
| 97 |
I1-09600 012-2 |
|
CUP; SEALING |
2 |
9009- |
|
A |
OD=32 |
| 167 |
I8-97188 506-0 |
|
TUBE; DIST, SIDE COVER |
1 |
0612- |
|
C |
(B) |
| 104 |
I0-28050 625-0 |
|
BOLT; BREATHER NIPPLE |
2 |
9009- |
|
A |
M6X25 W/LK WASHER |
| 3 |
I5-87813 245-1 |
|
LINER SET; ENG CYL |
4 |
9009- |
|
A |
|
| 97 |
I8-97036 550-1 |
|
CUP; SEALING |
3 |
9009-9601 |
|
A |
OD=45 |
| 24 |
I8-94419 728-0 |
|
NIPPLE; OIL FEED, VAC PUMP |
1 |
9602- |
|
B |
|
| 8 |
I8-97941 068-0 |
|
BOLT; BRG CAP |
10 |
9009- |
|
ABC |
M14X89 FLANGE |
| 101 |
I8-94250 514-1 |
|
CUP; SEALING CAM END |
1 |
9009-9601 |
|
A |
OD=56 |
| 3 |
I5-87813 170-4 |
|
LINER SET; ENG CYL |
4 |
9602- |
|
B |
|
| 13 |
I8-94453 344-0 |
|
DOWEL; C/BL TO HD |
2 |
9009- |
|
AB |
|
| 70 |
I5-11129 006-0 |
|
CUP; SEALING, FRT 8 RR |
2 |
9602- |
|
BC |
OD=16 |
| 105 |
I5-09709 095-0 |
|
CLIP; ENG HARNESS, TAPPET COVER |
3 |
9009-9601 |
|
A |
(B) ID=8 5 |
| 55 |
I8-97369 552-1 |
|
PLUG; OIL GALLERY |
3 |
9206- |
|
A |
PT1/8 |
| 96 |
I8-94203 071-0 |
|
ADAPTER; PRESS UNIT 8 SW |
1 |
9409-9601 |
|
A |
WAGON(TB*OV*) |
| 107 |
I5-11292 017-0 |
|
GASKET; BREATHER PIPE, TAPPET CHAMBER |
1 |
9009-9109 |
|
A |
|
| 97 |
I5-11219 017-0 |
|
CUP; SEALING |
1 |
9009-9601 |
|
A |
OD=38 |
| 120 |
I8-94140 427-1 |
|
BUSHING; MTG RUBBER |
9 |
9602- |
|
B |
RUBBER BUSH |
| 15 |
I8-97369 552-1 |
|
PLUG; OIL GALLERY |
3 |
9602- |
|
BC |
PT1/8 |
| 61 |
I9-08151 020-0 |
|
PIN; STRAIGHT |
2 |
9602- |
|
B |
OD=10 L=20 |
| 22 |
I8-97036 335-1 |
|
CUP; SEALING, DUCT HOLE |
1 |
9602- |
|
B |
OD= 12. 3 |
| 97 |
I1-09600 012-2 |
|
CUP; SEALING |
2 |
9009- |
|
A |
OD=32 |
| 114 |
I8-94133 968-1 |
|
NIPPLE; WATER DRAIN |
1 |
9602- |
|
B |
|
| 15 |
I5-09605 019-2 |
|
PLUG; OIL GALLERY |
3 |
9602- |
|
BC |
PT1/8 |
| 119 |
I8-94329 953-1 |
|
BOLT; COVER FIX |
4 |
9602- |
|
BC |
M8X22 |
| 15 |
I1-09605 050-0 |
|
PLUG; OIL GALLERY |
3 |
9602- |
|
BC |
PT1/8 |
| 3 |
I5-87813 170-1 |
|
LINER SET; ENG CYL |
4 |
9602- |
|
B |
|
| 115 |
I8-97264 913-1 |
|
RUBBER; SPACE |
1 |
0612- |
|
C |
(A) |
| 100 |
I5-09650 020-0 |
|
ADAPTER; OIL FEED PIPE |
1 |
9009-9601 |
|
A |
|
| 25 |
I5-11691 009-0 |
|
METAL; CM/SHF |
1 |
9109-9601 |
|
A |
CENTER |
| 222 |
I8-97209 129-0 |
|
BRACKET; COVER, C/BL |
1 |
0612- |
|
C |
|
| 72 |
I8-94254 652-0 |
|
COVER; TAPPET CHAMBER |
1 |
9009-9601 |
|
A |
|
| 112 |
I5-11299 013-0 |
|
BAFFLE; BREATHER, TAPPET CHAMBER COVER |
1 |
9009-9601 |
|
A |
|
| 55 |
I8-97369 552-1 |
|
PLUG; OIL GALLERY |
3 |
9009- |
|
A |
PT1/8 |
| 25 |
I5-11693 001-0 |
|
METAL; CM/SHF |
1 |
9109-9601 |
|
A |
REAR |
| 117 |
I8-97188 108-1 |
|
COVER ASM; C/BL |
1 |
0612- |
|
BC |
|
| 25 |
I5-11693 001-1 |
|
METAL; CM/SHF |
1 |
9109- |
|
A |
REAR |
| 116 |
I8-94460 822-1 |
|
SEAL; COVER C/BL |
1 |
9602- |
|
B |
|
| 40 |
I8-94250 514-1 |
|
CUP; SEALING, C/BL RR |
1 |
9602- |
|
BC |
OD=56 |
| 105 |
I8-94225 185-0 |
|
CLIP; ENG HARNESS, TAPPET COVER |
1 |
9009-9601 |
|
A |
(A) ID=6. 5 |
| 53 |
I9-09806 020-0 |
|
BOLT; REAMER |
1 |
9602- |
|
BC |
M10X52 |
| 61 |
I8-97135 423-0 |
|
PIN; STRAIGHT |
2 |
0612- |
|
C |
OD=10 L=20 |
| 121 |
I8-94140 428-1 |
|
RUBBER; MTG COVER, C/BL |
6 |
9602-0612 |
|
BC |
OD=22 (A) |
| 21 |
I5-11219 017-0 |
|
CUP; SEALING, RR |
1 |
9602- |
|
BC |
OD=38 |
| 97 |
I5-11219 015-0 |
|
CUP; SEALING |
2 |
9009-9601 |
|
A |
OD=32 |
| 97 |
I1-09600 012-1 |
|
CUP; SEALING |
2 |
9009-9601 |
|
A |
OD=32 |
| 7 |
I9-09664 001-0 |
|
PLUG; WATER DRAIN |
1 |
9009- |
|
AB |
(A) PT1/4 |
| 17 |
I9-82720 209-3 |
|
SWITCH; OIL PRESSURE |
1 |
9009- |
|
ABC |
|
| 119 |
I0-50140 825-0 |
|
BOLT; COVER FIX |
4 |
9602- |
|
BC |
M8X22 |
| 110 |
I8-97024 319-0 |
|
SCREW; BAFFLE PLATE, TAPPET COVER |
2 |
9009-9601 |
|
A |
M5X10 PAN-HD |
| 117 |
I8-97188 107-3 |
|
COVER ASM; C/BL |
1 |
0612- |
|
BC |
|
| 25 |
I8-94454 838-0 |
|
METAL; CM/SHF |
1 |
9009-9108 |
|
A |
REAR (DELETION) |
| 51 |
I8-97912 498-0 |
|
GASKET; OIL PRESS WARNING SW, C/BL |
1 |
0008- |
|
BC |
|
| 17 |
I9-82720 209-2 |
|
SWITCH; OIL PRESSURE |
1 |
9009- |
|
ABC |
|
| 55 |
I1-09605 050-0 |
|
PLUG; OIL GALLERY |
3 |
9206-9601 |
|
A |
PT1/8 |
| 15 |
I8-97369 552-1 |
|
PLUG; OIL GALLERY |
3 |
9602- |
|
BC |
PT1/8 |
| 63 |
I8-94419 436-1 |
|
DUCT; WATER C/BL |
1 |
9602- |
|
BC |
|
| 1 |

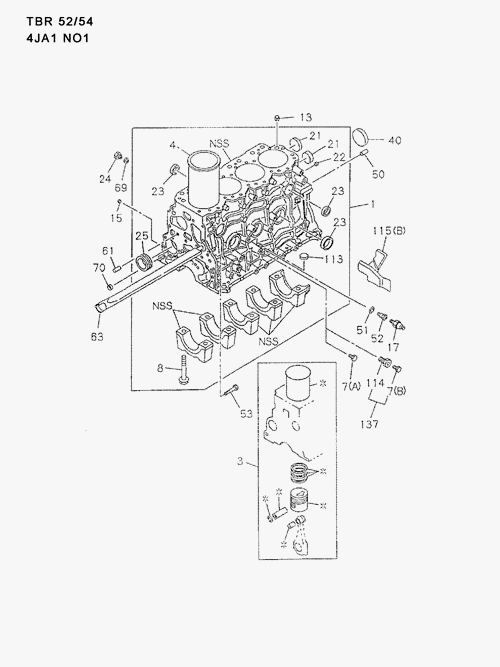

I8-97956 635-A |
|
BLOCK ASM- CYL |
1 |
9602- |
|
BC |
|

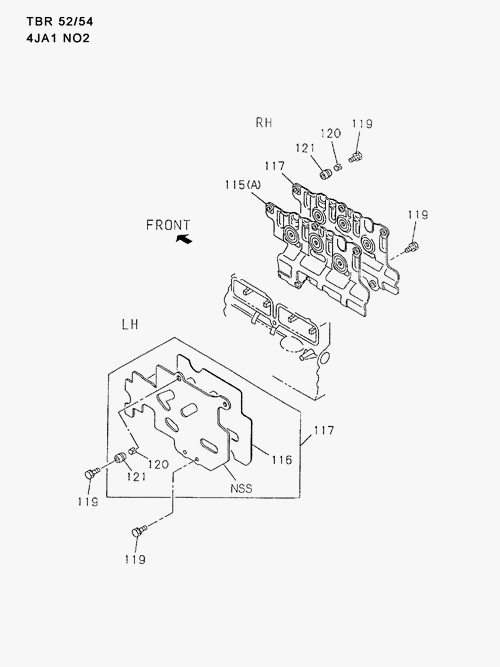

| 119 |
I0-50640 825-0 |
|
BOLT; COVER FIX |
4 |
9602- |
|
BC |
M8X22 |
