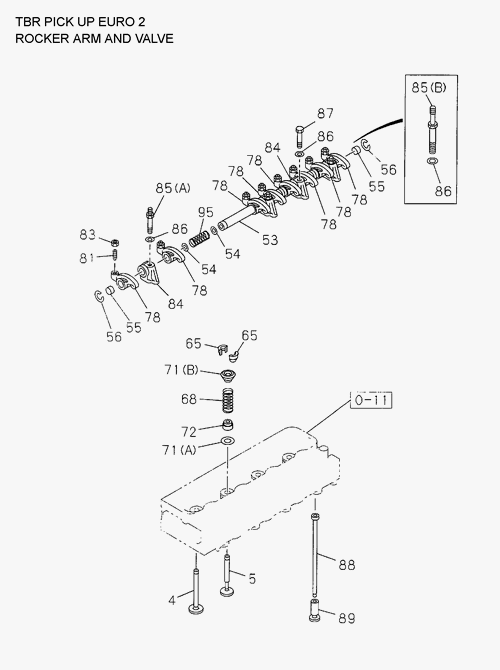

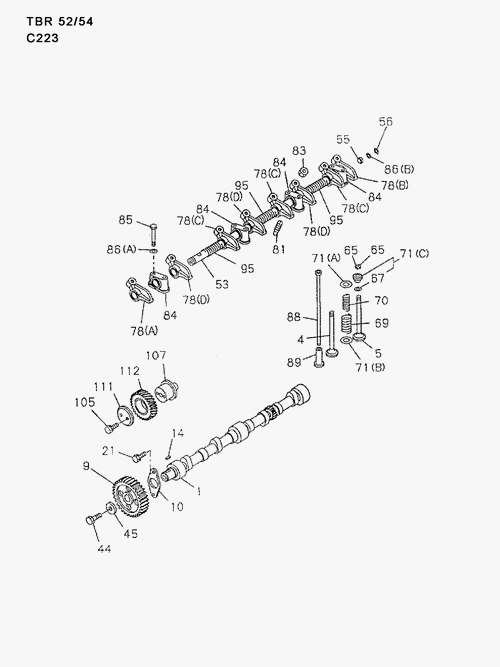

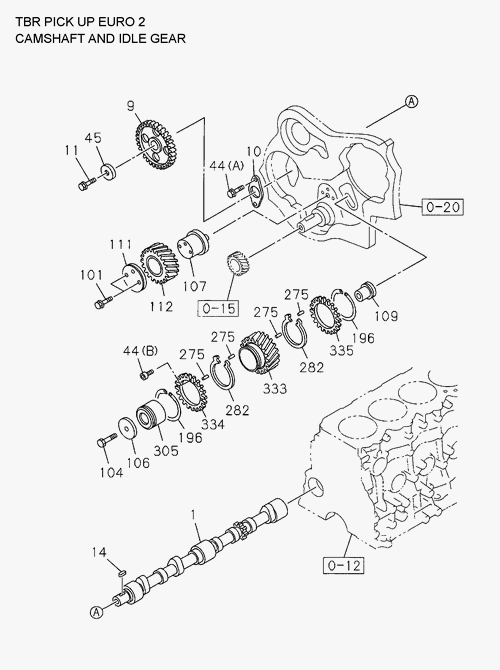

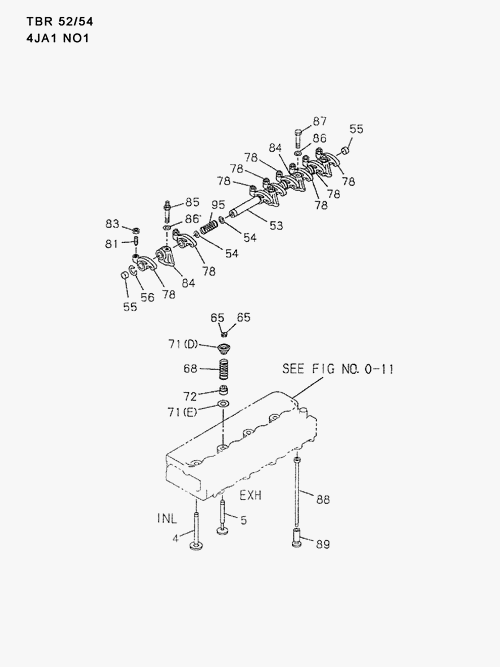

0-14 | CAMSHAFT AND VALVE
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 67 | I9-12559 008-0 | RING; SEALING VALVE | 8 | 9009-9601 | A | (ALSO INCLUDED IN GASKET SET(ENG & HEAD) | ||
| 95 | I8-94341 905-0 | SPRING; ROCKER SHAFT | 3 | 9602- | BC | |||
| 45 | I5-12519 002-1 | WASHER; GEAR CAM | 1 | 9009- | ABC | |||
| 85 | I0-10810 850-0 | BOLT; BRKT | 8 | 9009-9601 | A | M8X50 | ||
| 54 | I8-94341 906-0 | WASHER; ROCKER SPR | 6 | 9602- | BC | |||
| 87 | I8-94433 302-0 | BOLT; ROCKER SHAFT | 1 | 9602- | BC | M10X60 | ||
| 78 | I9-12611 347-0 | ARM; ROCKER | 3 | 9009-9601 | A | (C) | ||
| 88 | I8-94420 625-0 | ROD; PUSH | 8 | 9009- | A | |||
| 95 | I9-09940 607-0 | SPRING; ROCKER SHAFT | 3 | 9009-9601 | A | |||
| 83 | I9-09111 508-A | NUT; ADJ SCREW, LK | 8 | 9009- | ABC | M8 | ||
| 112 | I8-97166 030-0 | GEAR; IDLER | 1 | 9009-9601 | A | |||
| 1 | I8-94127 797-A | CAMSHAFT | 1 | 9602- | BC | |||
| 95 | I8-94341 905-A | SPRING; ROCKER SHAFT | 3 | 9602- | BC | |||
| 71 | I9-09851 842-0 | SEAT; SPR | 8 | 9009-9601 | A | (B) | ||
| 21 | I0-50540 816-0 | BOLT; CM/SHF METAL, NO 7 | 2 | 9009- | A | MSX16 W/LK WASHER | ||
| 88 | I8-97378 496-0 | ROD; PUSH | 8 | 9602- | BC | |||
| 21 | I0-50040 816-0 | BOLT; CM/SHF METAL, NO 7 | 2 | 9009-9601 | A | MSX16 W/LK WASHER | ||
| 106 | I9-09164 712-0 | WASHER; IDLE GEAR SHAFT | 2 | 9602- | B | ID=12 | ||
| 70 | I5-12562 007-0 | SPRING; VLV INNER | 8 | 9009-9601 | A | |||
| 44 | I0-50540 816-0 | BOLT | 2 | 9602- | BC | M8X16 W/LK WASHER | ||
| 89 | I8-94438 305-1 | TAPPET; VALVE | 8 | 9602- | BC | |||
| 68 | I8-94433 247-0 | SPRING; VL V | 8 | 9602- | BC | OD=30. 6 | ||
| 86 | I9-09851 931-0 | WASHER; ROCKER ARM FIX | 2 | 9009-9601 | A | (B) ID=19 | ||
| 113 | I8-97138 717-1 | GEAR; IDLE | 1 | 9602- | B | |||
| 334 | I8-97245 232-2 | GEAR; IDLE, FRT | 1 | 0612- | C | |||
| 81 | I8-94152 283-1 | SCREW; ADJ, ROCKER ARM | 8 | 9009- | ABC | M8X30 | ||
| 305 | I8-97240 019-1 | BEARING; IDLE GEAR | 1 | 0612- | C | |||
| 78 | I5-12611 020-1 | ARM; ROCKER | 1 | 9009-9601 | A | (A) | ||
| 65 | I5-12565 004-0 | COLLAR; SPLIT | 16 | 9009- | ABC | (ALSO INCLUDED IN GASKET SET(ENG & HEAD) | ||
| 105 | I8-94150 045-1 | BOLT; IDLE GEAR SHAFT | 2 | 9009-9601 | A | M8X55 W/LK WASHER | ||
| 81 | I8-94152 283-A | SCREW; ADJ, ROCKER ARM | 8 | 9009- | ABC | M8X30 | ||
| 71 | I5-12563 017-0 | SEAT; SPR | 8 | 9009-9601 | A | (C) 00=22 5 | ||
| 10 | I9-11681 010-1 | PLATE; THRUST | 1 | 9009-9601 | A | |||
| 4 | I8-97940 024-0 | VALVE; INL | 4 | 0612- | C | |||
| 44 | I0-50040 816-0 | BOLT | 2 | 9602- | BC | M8X16 W/LK WASHER | ||
| 4 | I8-94133 275-2 | VALVE; INL | 4 | 9602- | B | |||
| 78 | I5-12611 022-1 | ARM; ROCKER | 1 | 9009-9601 | A | (B) | ||
| 106 | I0-91614 712-0 | WASHER; IDLE GEAR SHAFT | 2 | 9602- | B | ID=12 | ||
| 44 | I8-94433 407-0 | BOLT | 1 | 9009-9601 | A | IM12X47 | ||
| 88 | I8-94143 203-0 | ROD; PUSH | 8 | 9602- | BC | |||
| 4 | I5-12551 030-0 | VALVE; INL | 4 | 9009-9601 | A | |||
| 71 | I8-94133 731-2 | SEAT; SPR | 8 | 9602- | BC | (D) OD=32 8 | ||
| 5 | I8-94247 875-2 | VALVE; EXH | 4 | 9602- | BC | |||
| 78 | I9-12611 349-0 | ARM; ROCKER | 3 | 9009-9601 | A | (D) | ||
| 104 | I8-94129 384-1 | BOLT; SHAFT IDLE | 1 | 0612- | C | M12X77 | ||
| 53 | I8-97036 197-0 | SHAFT; ROCKER ARM | 1 | 9602- | BC | |||
| 112 | I8-97131 605-0 | GEAR; IDLER | 1 | 9602- | B | |||
| 196 | I8-97245 684-1 | RING; SNAP | 2 | 0612- | C | |||
| 84 | I9-12628 093-0 | BRACKET; ROCKER SHAFT, INTER | 4 | 9009-9601 | A | |||
| 104 | I1-09040 044-0 | BOLT; SHAFT IDLE | 1 | 9602- | B | M12X57 | ||
| 55 | I9-12626 005-0 | PLUG; ROCKER SHAFT END | 2 | 9009- | ABC | |||
| 106 | I5-12519 002-1 | WASHER; IDLE GEAR SHAFT | 1 | 0612- | C | ID=13 OD=36 | ||
| 282 | I8-97245 337-0 | SPRING; GEAR | 2 | 0612- | C | |||
| 335 | I8-97245 231-1 | GEAR; IDLE, RR | 1 | 0612- | C | |||
| 107 | I8-97943 224-0 | SHAFT; IDLE GEAR | 1 | 0612- | C | |||
| 85 | I8-94433 304-0 | BOLT; BRKT | 2 | 9602- | BC | M8X15 8 M10X60 L=82 | ||
| 109 | I8-97131 632-0 | SHAFT; IDLE GEAR | 1 | 9602- | B | |||
| 88 | I5-12575 015-0 | ROD; PUSH | 8 | 9009-9601 | A | |||
| 53 | I8-94100 291-0 | SHAFT; ROCKER ARM | 1 | 9009-9601 | A | |||
| 14 | I9-08000 718-0 | KEY; FEATHER, CM/SHF | 1 | 9009- | ABC | |||
| 56 | I9-09180 019-0 | RING; SNAP, ROCKER ARM | 2 | 9009- | ABC | |||
| 86 | I9-09164 510-0 | WASHER; ROCKER ARM FIX | 4 | 9602- | BC | |||
| 72 | I8-97120 307-0 | SEAL; VLV GUIDE | 8 | 9602- | BC | ALSO INCLUDED IN GASKET SET(ENG & HEAD) | ||
| 333 | I8-97240 018-2 | GEAR; IDLE, MAIN | 1 | 0612- | C | |||
| 112 | I8-97957 110-A | GEAR; IDLER | 1 | 9602- | B | |||
| 89 | I9-12571 801-1 | TAPPET; VALVE | 8 | 9009-9601 | A | |||
| 86 | I9-09164 008-0 | WASHER; ROCKER ARM FIX | 8 | 9009-9601 | A | (A) DELETION | ||
| 111 | I5-12535 005-1 | COLLAR; THRUST, IDLER GEAR | 1 | 9009-9601 | A | |||
| 69 | I5-12561 011-0 | SPRING; VLV OUTER | 8 | 9009-9601 | A | |||
| 78 | I8-94152 344-A | ARM; ROCKER | 8 | 9602- | BC | |||
| 84 | I8-94152 345-A | BRACKET; ROCKER SHAFT, INTER | 4 | 9602- | BC | |||
| 1 | I8-94127 797-4 | CAMSHAFT | 1 | 9602- | B | |||
| 85 | I8-94437 493-1 | BOLT; BRKT | 1 | 9602- | BC | M8X37 8 M10X60 L=104 | ||
| 9 | I8-97240 012-2 | GEAR; CM/SHF | 1 | 0612- | C | Z=60 | ||
| 44 | I9-05820 630-0 | BOLT | 1 | 0612- | C | M6X30 | ||
| 9 | I8-97138 729-A | GEAR; CM/SHF | 1 | 9602- | B | Z=60 | ||
| 72 | I5-12569 006-0 | SEAL; VLV GUIDE | 8 | 9602- | BC | ALSO INCLUDED IN GASKET SET(ENG & HEAD) | ||
| 1 | I5-12511 078-4 | CAMSHAFT | 1 | 9009-9601 | A | |||
| 111 | I8-94171 289-0 | COLLAR; THRUST, IDLER GEAR | 1 | 0612- | C | |||
| 86 | I9-09164 010-0 | WASHER; ROCKER ARM FIX | 4 | 9602- | BC | |||
| 1 | I8-97287 657-1 | VALVE; INL | 1 | 9602- | BC | |||
| 53 | I8-97307 674-0 | SHAFT; ROCKER ARM | 1 | 9009-9601 | A | |||
| 5 | I5-12552 038-1 | VALVE; EXH | 4 | 9009-9601 | A | |||
| 112 | I8-97240 014-1 | GEAR; IDLER | 1 | 0612- | C | |||
| 9 | I9-12522 144-1 | GEAR; CM/SHF | 1 | 9009-9601 | A | Z=42 | ||
| 107 | I9-12531 024-1 | SHAFT; IDLE GEAR | 1 | 9009-9601 | A | |||
| 71 | I5-12563 001-0 | SEAT; SPR | 8 | 9602- | BC | (E) OD=34 | ||
| 107 | I8-94139 758-1 | SHAFT; IDLE GEAR | 1 | 9602- | B | |||
| 84 | I8-94152 345-1 | BRACKET; ROCKER SHAFT, INTER | 4 | 9602- | BC | |||
| 111 | I8-94141 937-1 | COLLAR; THRUST, IDLER GEAR | 1 | 9602- | B | |||
| 275 | I8-97245 683-0 | PIN; IDLE GEAR | 4 | 0612- | C | |||
| 9 | I8-97138 729-0 | GEAR; CM/SHF | 1 | 9602- | B | Z=60 | ||
| 101 | I8-97223 999-0 | BOLT; THRUST COLLAR | 2 | 0612- | C | M8X53 | ||
| 83 | I9-09111 508-0 | NUT; ADJ SCREW, LK | 8 | 9009- | ABC | M8 | ||
| 10 | I8-94110 480-1 | PLATE; THRUST | 1 | 9602- | BC | |||
| 11 | I8-94433 407-0 | BOLT; THRUST PLATE TO C/BL | 1 | 9602- | BC | M12X47 | ||
| 78 | I8-94152 344-0 | ARM; ROCKER | 8 | 9602- | BC | |||
| 101 | I8-94150 045-1 | BOLT; THRUST COLLAR | 2 | 9602- | B | M8X55 W/LK WASHER | ||
| 109 | I8-97943 225-0 | SHAFT; IDLE GEAR | 1 | 0612- | C |
