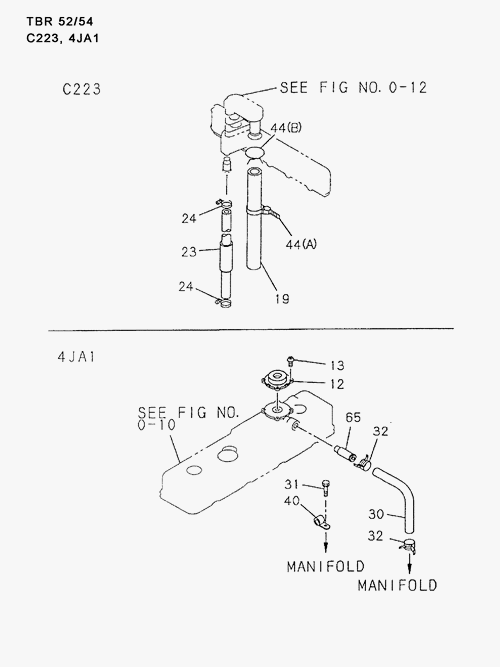

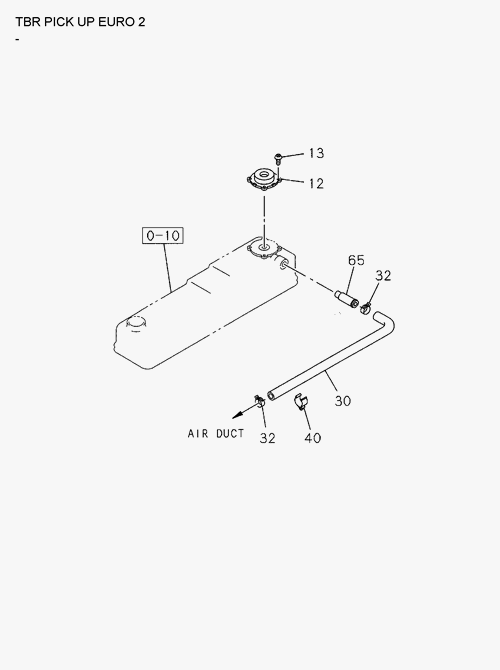

0-28 | VENTILATION SYSTEM
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 24 | I8-98150 356-0 | CLIP; RUBBER HOSE, VENTILATOR | 2 | 9009- | A | ID=19. 0 | ||
| 44 | I5-09707 030-0 | CLIP; HOSE, PCV | 1 | 9009-9601 | A | (A) L=250 | ||
| 19 | I8-94246 605-1 | HOSE; RUBBER BREATHER | 1 | 9009-9601 | A | L=490 | ||
| 32 | I8-94242 034-0 | CLIP; VENT HOSE | 2 | 9602- | BC | ID=20. 4 | ||
| 44 | I8-97029 905-0 | CLIP; HOSE, PCV | 1 | 9009-9601 | A | (B) ID=31 | ||
| 12 | I8-94250 172-0 | VENTILATOR; AIR | 1 | 9602- | BC | |||
| 12 | I8-97119 887-0 | VENTILATOR; AIR | 1 | 9602- | BC | |||
| 32 | I8-94121 113-0 | CLIP; VENT HOSE | 2 | 9602- | BC | ID=20. 4 | ||
| 32 | I8-98150 355-0 | CLIP; VENT HOSE | 2 | 9602- | BC | ID=20. 4 | ||
| 30 | I8-94475 222-1 | HOSE; VENTILATOR, CYL HD COVER | 1 | 9602- | B | |||
| 44 | I9-09715 106-0 | CLIP; HOSE, PCV | 1 | 9009-9601 | A | (B) ID=31 | ||
| 31 | I8-97378 075-0 | BOLT; HOSE CLIP | 1 | 9602- | B | M8X12 FLANGE | ||
| 30 | I8-94437 494-A | HOSE; VENTILATOR, CYL HD COVER | 1 | 0612- | C | |||
| 40 | I8-94422 733-0 | CLIP; PCV HOSE | 1 | 0612- | C | |||
| 24 | I8-94238 569-0 | CLIP; RUBBER HOSE, VENTILATOR | 2 | 9009-9601 | A | ID=19. 0 | ||
| 44 | I5-09707 030-1 | CLIP; HOSE, PCV | 1 | 9009- | A | (A) L=250 | ||
| 23 | I5-09361 084-1 | HOSE; RUBBER, VENTILATOR PIPE | 1 | 9009-9601 | A | |||
| 40 | I9-09916 078-0 | CLIP; PCV HOSE | 1 | 9602- | B | DELETION | ||
| 13 | I9-03910 408-0 | SCREW; VENTILATOR TO HD COVER | 4 | 9602- | BC | M4X8 W/PL WASHER | ||
| 32 | I8-98150 355-0 | CLIP; VENT HOSE | 2 | 9602- | BC | ID=20. 4 | ||
| 31 | I0-28080 812-0 | BOLT; HOSE CLIP | 1 | 9602- | B | M8X12 FLANGE | ||
| 65 | I8-94250 615-1 | PIPE; BREATHER | 1 | 9602- | BC | |||
| 13 | I0-36220 408-0 | SCREW; VENTILATOR TO HD COVER | 4 | 9602- | BC | M4X8 W/PL WASHER |
