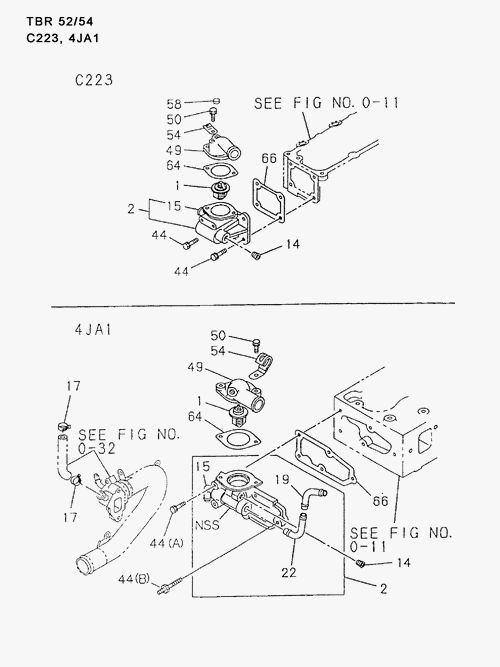

0-31 | THERMOSTAT AND HOUSING
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 54 | I5-09709 095-0 | CLIP; THERMO SWITCH, OUTLET PIPE | 1 | 9602- | BC | ID=8. 5 | ||
| 1 | I8-97089 891-0 | THERMOSTAT | 1 | 9405- | B | 82°C | ||
| 44 | I0-50040 830-1 | BOLT; HSG TO HD | 5 | 9602- | B | EXC. POWER STEERING<N40> (A) M8X30 W/LK WASHER | ||
| 58 | I5-09605 005-0 | PLUG; WATER OUTLET PIPE | 1 | 9009-9601 | A | PT3/8 | ||
| 15 | I8-97910 083-0 | PIPE; BYPASS | 1 | 0612- | C | |||
| 15 | I5-13719 047-0 | PIPE; BYPASS | 1 | 9009-9601 | A | |||
| 15 | I8-94343 211-1 | PIPE; BYPASS | 1 | 9602- | B | |||
| 44 | I0-50740 820-0 | BOLT; HSG TO HD | 2 | 9009- | A | M8X20 W/LK WASHER | ||
| 44 | I0-50040 822-0 | BOLT; HSG TO HD | 2 | 9009-9601 | A | M8X22 W/LK WASHER | ||
| 2 | I8-97117 243-0 | HOUSING; THERMOSTAT | 1 | 9602- | B | W/PIPE=BYPASS & FEED & RETURN | ||
| 54 | I5-09700 331-0 | CLIP; THERMO SWITCH, OUTLET PIPE | 1 | 9602- | B | ID=8. 5 | ||
| 66 | I8-97216 156-0 | GASKET; THERMOSTAT HSG | 1 | 9602- | BC | |||
| 49 | I8-97123 047-A | PIPE; WATER OUTLET | 1 | 9602- | B | |||
| 1 | I8-97361 770-0 | THERMOSTAT | 1 | 9405- | ABC | 82°C | ||
| 64 | I8-94365 674-2 | GASKET; OUTLET PIPE TO HSG | 1 | 9010- | ABC | |||
| 50 | I0-50140 830-0 | BOLT; OUTLET PIPE | 2 | 9009- | ABC | M8X30 W/LK&PL WASHER | ||
| 44 | I0-50040 820-0 | BOLT; HSG TO HD | 2 | 9009-9601 | A | M8X20 W/LK WASHER | ||
| 66 | I8-97113 741-0 | GASKET; THERMOSTAT HSG | 1 | 9009-9601 | A | ALSO INCLUDED IN GASKET SET(ENG & HEAD) | ||
| 44 | I8-94479 011-1 | BOLT; HSG TO HD | 1 | 9602- | BC | POWER STEERING<N40> (B) M8X28 8 M8X34 | ||
| 14 | I5-09605 005-0 | PLUG; SW | 1 | 9009- | AB | JPT3/8 | ||
| 49 | I8-94254 601-1 | PIPE; WATER OUTLET | 1 | 9009-9601 | A | |||
| 19 | I8-94478 870-1 | PIPE; HSG TO HTR | 1 | 9602- | B | |||
| 54 | I5-09700 275-0 | CLIP; THERMO SWITCH, OUTLET PIPE | 1 | 9009-9601 | A | ID=8. 5 | ||
| 66 | I8-94365 675-1 | GASKET; THERMOSTAT HSG | 1 | 9602- | BC | |||
| 2 | I8-97916 700-0 | HOUSING; THERMOSTAT | 1 | 0612- | C | |||
| 44 | I0-50040 830-1 | BOLT; HSG TO HD | 4 | 9602- | BC | POWER STEERING<N40> (A) M8X30 W/LK WASHER | ||
| 1 | I8-94214 962-0 | THERMOSTAT | 1 | 9009-9404 | A | 82° C | ||
| 49 | I8-97123 047-0 | PIPE; WATER OUTLET | 1 | 9602- | B | |||
| 49 | I8-97921 733-0 | PIPE; WATER OUTLET | 1 | 0612- | C | |||
| 22 | I8-94478 869-2 | PIPE; HTR, RETURN | 1 | 9602- | B | |||
| 50 | I0-50640 830-0 | BOLT; OUTLET PIPE | 2 | 9009- | ABC | M8X30 W/LK&PL WASHER | ||
| 19 | I8-97910 082-0 | PIPE; HSG TO HTR | 1 | 0612- | C | |||
| 2 | I8-94254 603-1 | HOUSING; THERMOSTAT | 1 | 9009-9601 | A | |||
| 17 | I8-94125 862-1 | CLIP; WATER HOSE | 2 | 9602- | BC | JID=20.8 | ||
| 54 | I8-94225 185-0 | CLIP; THERMO SWITCH, OUTLET PIPE | 1 | 9009-9601 | A | ID=8. 5 | ||
| 22 | I8-94478 869-1 | PIPE; HTR, RETURN | 1 | 9602- | B | |||
| 2 | I8-97372 994-1 | HOUSING; THERMOSTAT | 1 | 9602- | B | W/PIPE=BYPASS & FEED & RETURN |
