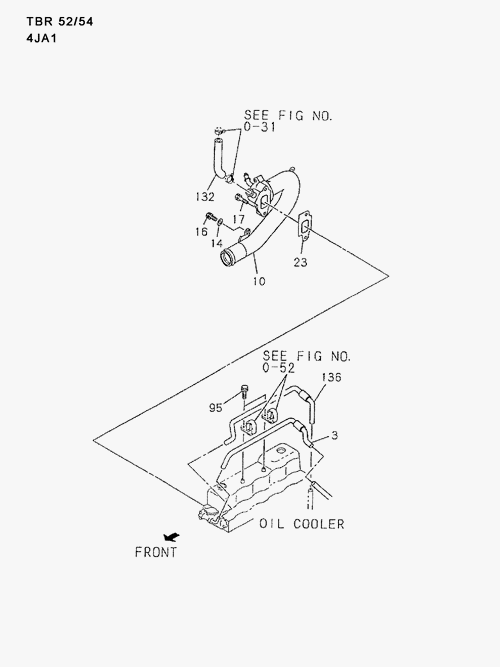

0-32 | WATER PIPING; ENGINE
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 95 | I0-28080 812-0 | BOLT; CLIP | 1 | 9602- | AB | M8X12 FLANGE | ||
| 19 | I5-09709 072-0 | CLIP; OIL COOLER HOSE | 1 | 9009-9601 | AB | |||
| 14 | I8-94174 537-0 | WASHER; PL, INL PIPE TO BRKT | 1 | 9602- | ABC | |||
| 3 | I8-94326 753-0 | HOSE; WATER OIL COOLER | 1 | 9009-9409 | AB | |||
| 132 | I8-94382 246-A | HOSE; WATER PIPE | 1 | 9602- | BC | |||
| 17 | I0-50540 850-0 | BOLT; SUCTION PIPE | 2 | 0612- | C | M8X50 | ||
| 95 | I8-97378 075-0 | BOLT; CLIP | 1 | 9602- | AB | M8X12 FLANGE | ||
| 16 | I0-50740 820-0 | BOLT; INL PIPE TO BRKT | 1 | 9602- | ABC | M8X20 W/LK WASHER | ||
| 2 | I5-09361 024-0 | HOSE; WATER BY-PASS | 1 | 9009-9601 | AB | |||
| 17 | I0-50740 845-0 | BOLT; SUCTION PIPE | 1 | 9602- | AB | M8X45 W/LK WASHER | ||
| 23 | I8-94365 676-3 | GASKET; SUCTION PIPE TO BLOCK | 1 | 9602- | AB | |||
| 16 | I0-50040 820-0 | BOLT; INL PIPE TO BRKT | 1 | 9602- | ABC | M8X20 W/LK WASHER | ||
| 68 | I8-94413 822-0 | CLIP; WATER HOSE, OIL COOLER | 2 | 9009-9601 | AB | ID=21. 7 | ||
| 122 | I5-09660 031-2 | CONNECTOR; OIL COOLER | 1 | 9009-9601 | AB | 3WAY | ||
| 3 | I8-94475 205-1 | HOSE; WATER OIL COOLER | 1 | 9602- | AB | |||
| 136 | I8-94475 206-A | HOSE; OIL COOLER, RETURN | 1 | 9602- | B | |||
| 9 | I5-09360 934-1 | HOSE; RUBBER, PIPE TO WATER PUMP | 1 | 9009-9601 | AB | |||
| 10 | I8-97264 248-1 | PIPE; SUCTION | 1 | 0612- | C | |||
| 17 | I0-50040 822-0 | BOLT; SUCTION PIPE | 1 | 9602- | AB | M8X22 W/LK WASHER | ||
| 68 | I8-98038 371-0 | CLIP; WATER HOSE, OIL COOLER | 2 | 9009- | AB | ID=21. 7 | ||
| 148 | I9-09915 644-1 | CLIP; BYPASS HOSE | 2 | 9009-9601 | A | |||
| 3 | I8-94475 205-A | HOSE; WATER OIL COOLER | 1 | 9602- | AB | |||
| 17 | I0-50040 845-0 | BOLT; SUCTION PIPE | 1 | 9602- | AB | M8X45 W/LK WASHER | ||
| 10 | I8-94340 787-3 | PIPE; SUCTION | 1 | 9602- | AB | |||
| 3 | I8-97119 516-0 | HOSE; WATER OIL COOLER | 1 | 9409-9601 | AB | |||
| 10 | I8-97353 467-1 | PIPE; SUCTION | 1 | 9602- | AB | |||
| 136 | I8-94475 206-2 | HOSE; OIL COOLER, RETURN | 1 | 9602- | B | |||
| 183 | I5-09700 350-0 | CLIP; VACUUM HOSE | 1 | 0612- | C |
