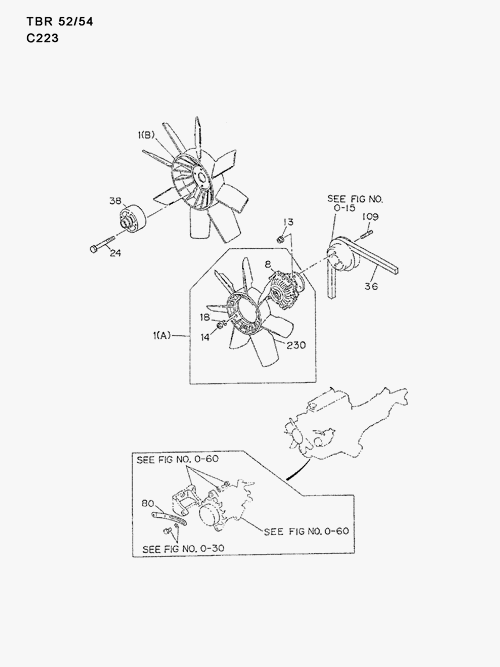

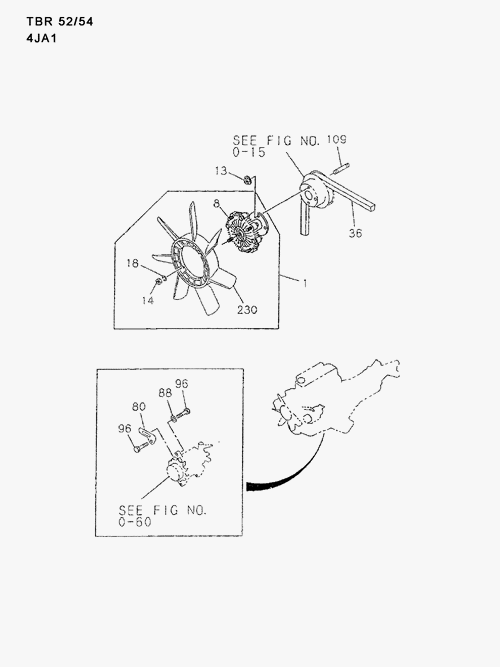

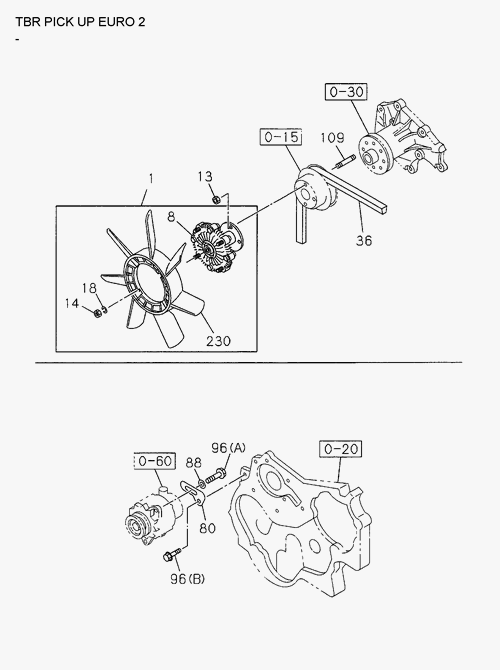

0-33 | FAN AND FAN BELT
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 109 | I0-41010 618-0 | STUD; FAN CLU | 4 | 9602- | BC | M6X18 L=27 | ||
| 13 | I5-09440 004-0 | NUT; COOLING FAN | 4 | 9602- | BC | M6 FLANGE | ||
| 36 | I8-97957 509-A | BELT; COOLING FAN | 1 | 0612- | C | |||
| 88 | I9-09164 708-0 | WASHER; PL, ADJ PLATE | 1 | 9602- | BC | ID=8 OD=22 | ||
| 96 | I0-50540 825-0 | BOLT; ADJ PLATE | 1 | 9602- | BC | M8X25 W/LK WASHER | ||
| 109 | I9-04110 618-0 | STUD; FAN CLU | 4 | 9602- | BC | M6X18 L=27 | ||
| 24 | I0-50040 645-0 | BOLT; FAN | 4 | 9009-9408 | AB | |||
| 36 | I2-94240 372-0 | BELT; COOLING FAN | 1 | 9010-9601 | A | DELETION | ||
| 80 | I8-97122 821-0 | PLATE; A DJ | 1 | 9602- | B | |||
| 230 | I5-13660 300-0 | FAN; COOLING | 1 | 9009-9601 | A | PICK UP(TB*OS*) AIR CON PREPARATORY PACK(S6D) | ||
| 36 | I8-94232 282-0 | BELT; COOLING FAN | 1 | 9009-9009 | A | DELETION | ||
| 38 | I9-13642 078-0 | SPACER; FAN | 1 | 9009-9408 | A | EXC. AIR CON PREPARATORY PACK(S6D) | ||
| 1 | I5-13660 285-0 | FAN; COOLING | 1 | 9009-9601 | A | B | ||
| 96 | I0-50740 845-0 | BOLT; ADJ PLATE | 1 | 9602- | B | M8X45 W/LK WASHER | ||
| 14 | I9-09110 506-0 | NUT; FAN TO CLU | 4 | 9602- | ABC | M6 | ||
| 1 | I8-94103 469-0 | FAN; COOLING | 1 | 0612- | C | OD=410 | ||
| 96 | I0-50040 845-0 | BOLT; ADJ PLATE | 1 | 9602- | B | M8X45 W/LK WASHER | ||
| 1 | I8-97131 736-0 | FAN; COOLING | 1 | 9602- | B | |||
| 1 | I8-94239 651-0 | FAN; COOLING | 1 | 9009-9601 | A | A | ||
| 109 | I8-94340 628-0 | STUD; FAN CLU | 4 | 9009-9408 | A | M6X25 L=33 | ||
| 8 | I8-97145 322-0 | CLUTCH; COOLING FAN | 1 | 9602- | B | |||
| 88 | I0-91614 708-0 | WASHER; PL, ADJ PLATE | 1 | 9602- | BC | ID=8 OD=22 | ||
| 18 | I1-09985 179-0 | WASHER; FAN TO CLU | 4 | 9602- | ABC | ID=6 | ||
| 80 | I8-97192 461-1 | PLATE; A DJ | 1 | 0612- | C | |||
| 36 | I8-97043 551-B | BELT; COOLING FAN | 1 | 9602- | B | L=1041 | ||
| 96 | I0-50040 825-0 | BOLT; ADJ PLATE | 1 | 9602- | BC | M8X25 W/LK WASHER | ||
| 13 | I8-98049 362-0 | NUT; COOLING FAN | 4 | 9602- | BC | M6 FLANGE | ||
| 80 | I8-94240 446-0 | PLATE; A DJ | 1 | 9009-9601 | A | |||
| 8 | I8-94244 409-0 | CLUTCH; COOLING FAN | 1 | 9009-9601 | A C | |||
| 18 | I9-09150 506-0 | WASHER; FAN TO CLU | 4 | 9602- | ABC | ID=6 | ||
| 36 | I8-94479 101-0 | BELT; COOLING FAN | 1 | 9602- | B | L=1041 | ||
| 230 | I8-94117 866-0 | FAN; COOLING | 1 | 9602- | BC | |||
| 36 | I2-94232 282-0 | BELT; COOLING FAN | 1 | 9009-9009 | A |
