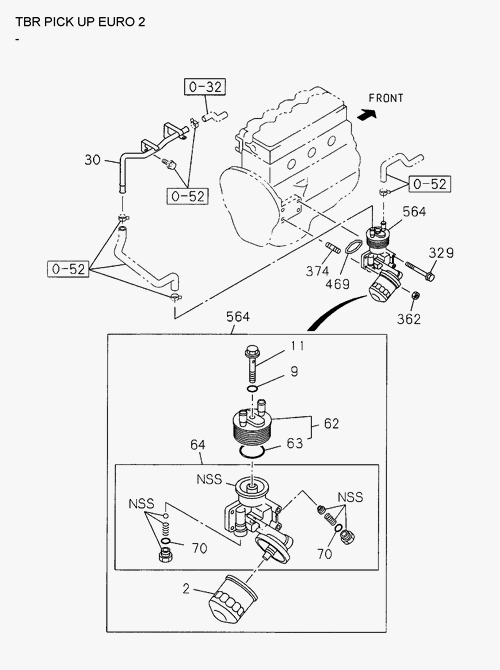

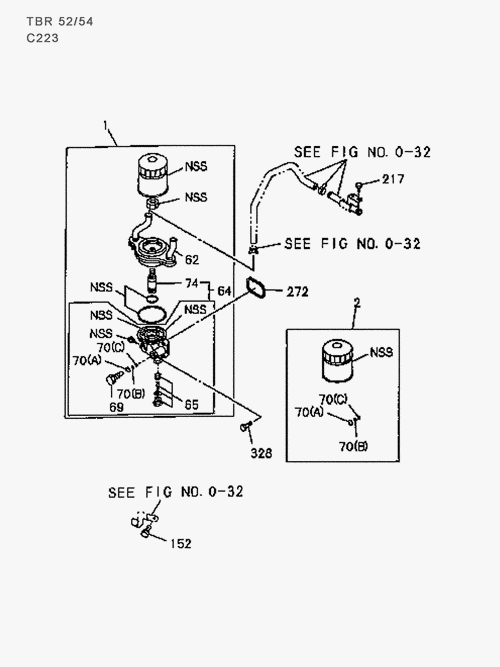

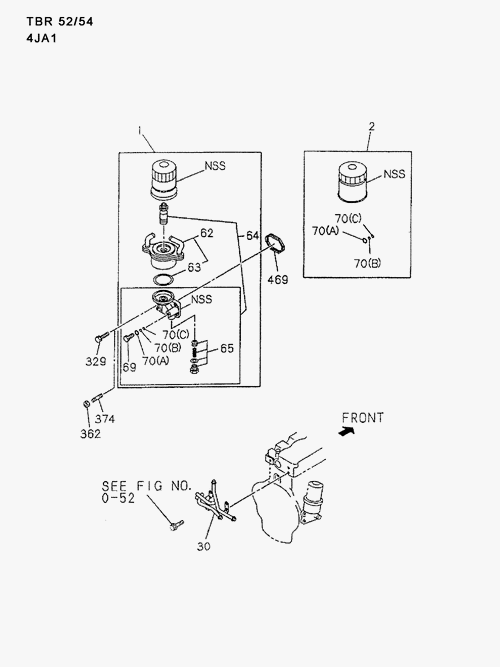

0-50 | OIL COOLER AND OIL FILTER
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 70 | I8-94167 885-0 | GASKET; PLUG, OIL FILTER | 1 | 9009- | AB | (B) ID=8 8 | ||
| 70 | I8-94167 884-0 | GASKET; PLUG, OIL FILTER | 1 | 9009- | AB | (A) ID=13. 6 | ||
| 70 | I8-94125 113-0 | GASKET; PLUG OIL FILTER | 1 | 0612- | C | |||
| 152 | I0-50040 812-0 | BOLT; CLIP, OIL COOLER HOSE | 1 | 9205-9601 | A | M8X12 W/LK WASHER | ||
| 9 | I8-97288 938-0 | BOLT; CENTER | 1 | 0612- | C | |||
| 329 | I1-09044 075-1 | BOLT; OIL FILTER | 2 | 0612- | C | M8X95 FLANGE | ||
| 69 | I8-94167 883-0 | PLUG; BODY, OIL FILTER | 1 | 9009- | AB | |||
| 272 | I8-97065 983-0 | GASKET; OIL FILTER TO C/BL | 1 | 9308-9601 | A | |||
| 30 | I8-97136 009-1 | PIPE ASM; OIL COOLER | 1 | 0612- | C | |||
| 564 | I8-97287 474-1 | COOLER ASM; OIL W/O FILTER | 1 | 0612- | C | |||
| 564 | I8-97373 137-1 | COOLER ASM; OIL W/O FILTER | 1 | 0612- | C | |||
| 328 | I0-50040 830-1 | BOLT; OIL FILTER | 4 | 9009-9601 | A | M8X30 W/LK WASHER | ||
| 217 | I0-50040 612-0 | BOLT; CONNECTOR | 2 | 9009-9601 | A | M6X12 W/LK WASHER | ||
| 2 | I8-94430 983-1 | ELEMENT; OIL FILTER | 1 | 9602- | B | |||
| 62 | I8-94325 768-0 | COOLER ASM; OIL | 1 | 9009-9601 | A | |||
| 62 | I8-97117 254-1 | COOLER ASM; OIL | 1 | 9602- | B | |||
| 329 | I0-50040 830-1 | BOLT; OIL FILTER | 2 | 9602- | B | M8X30 W/LK WASHER | ||
| 469 | I8-97065 983-0 | GASKET; OIL COOLER TO C/BL | 1 | 9602- | BC | ALSO INCLUDED IN GASKET SET(ENGINE) | ||
| 64 | I8-97942 933-0 | BODY; OIL FILTER & OIL COOLER | 1 | 0612- | C | |||
| 217 | I0-50540 612-0 | BOLT; CONNECTOR | 2 | 9009- | A | M6X12 W/LK WASHER | ||
| 30 | I8-94475 204-1 | PIPE ASM; OIL COOLER | 1 | 9602- | B | |||
| 1 | I8-94454 858-2 | FILTER & COOLER ASM; OIL | 1 | 9009-9601 | A | |||
| 64 | I8-94334 903-1 | BODY; OIL FILTER & OIL COOLER | 1 | 9009-9601 | A | |||
| 63 | I8-94383 720-0 | GASKET; COOLER TO BRKT | 1 | 9602- | B | |||
| 62 | I8-97943 622-0 | COOLER ASM; OIL | 1 | 0612-0911 | C | |||
| 64 | I8-97135 351-0 | BODY; OIL FILTER & OIL COOLER | 1 | 9602- | AB | |||
| 2 | I2-13211 018-0 | ELEMENT; OIL FILTER | 1 | 9009-9601 | A | |||
| 70 | I8-94167 886-0 | GASKET; PLUG, OIL FILTER | 1 | 9009- | AB | (C) ID=8 6 | ||
| 1 | I8-97117 255-1 | FILTER & COOLER ASM; OIL | 1 | 9602- | B | |||
| 469 | I8-98087 965-0 | GASKET; OIL COOLER TO C/BL | 1 | 9602- | BC | ALSO INCLUDED IN GASKET SET(ENGINE) | ||
| 62 | I8-97319 556-1 | COOLER ASM; OIL | 1 | 0912- | C | |||
| 63 | I8-94450 917-0 | GASKET; COOLER TO BRKT | 1 | 0612- | C | |||
| 152 | I0-50540 812-0 | BOLT; CLIP, OIL COOLER HOSE | 1 | 9205- | A | M8X12 W/LK WASHER | ||
| 2 | I8-97309 927-A | ELEMENT; OIL FILTER | 1 | 0612- | C | |||
| 362 | I0-91180 108-0 | NUT; OIL FILTER | 2 | 0612- | C | M8 FLANGE | ||
| 65 | I8-94450 772-0 | VALVE; OIL COOLER | 1 | 9009- | AB | |||
| 374 | I9-04110 825-0 | STUD; OIL FILTER | 2 | 9602- | BC | M8X25 L=37 | ||
| 62 | I8-97319 556-1 | COOLER ASM; OIL | 1 | 0912- | C | |||
| 362 | I0-91180 208-0 | NUT; OIL FILTER | 2 | 9602- | B | M8 FLANGE | ||
| 70 | I8-97914 706-0 | GASKET; PLUG OIL FILTER | 1 | 0612- | C | |||
| 272 | I8-98087 965-0 | GASKET; OIL FILTER TO C/BL | 1 | 9308- | A | |||
| 74 | I8-94334 904-0 | PIPE ASM; CENTER | 1 | 9009-9601 | A |
