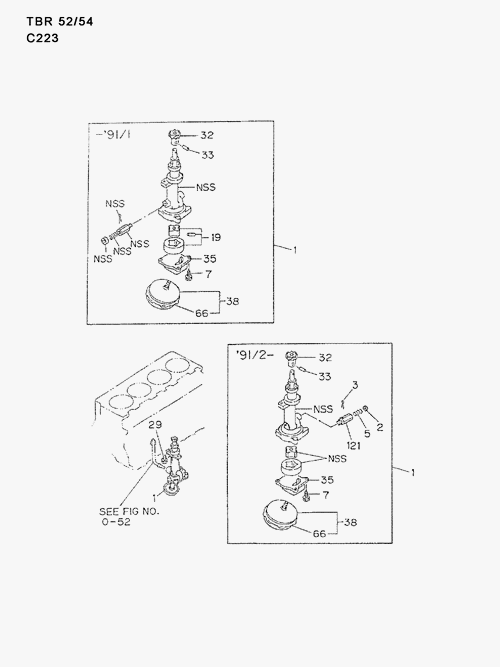

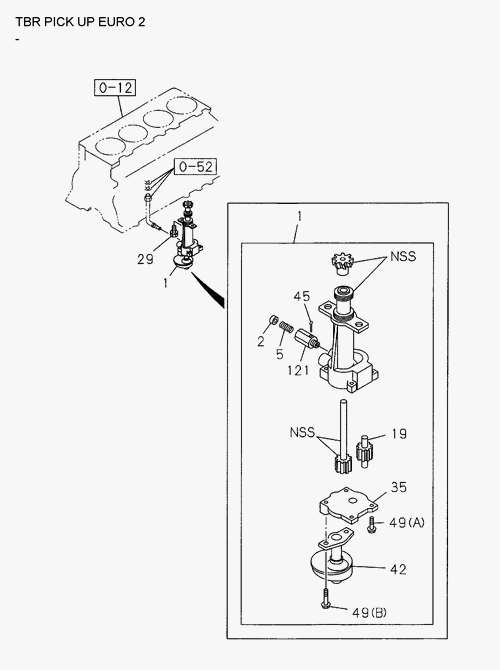

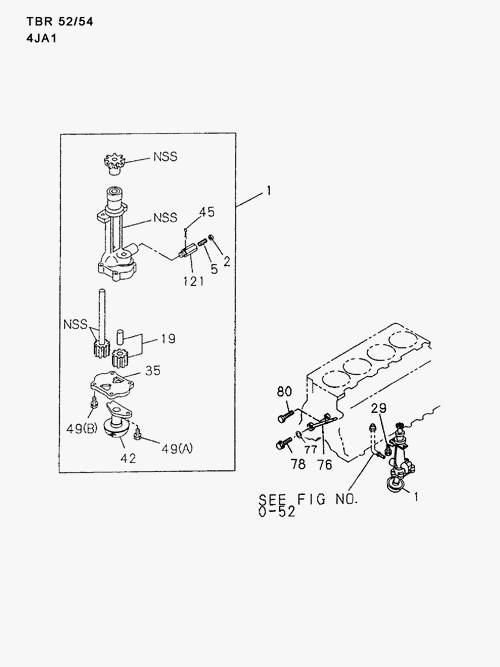

0-51 | OIL PUMP AND OIL STRAINER
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 66 | I9-13143 010-0 | GAUZE; OIL STRAINER | 1 | 9009-9601 | A | |||
| 2 | I5-13165 004-0 | SEAT; SPR | 1 | 9102- | AB | |||
| 5 | I8-97036 834-0 | SPRING; COIL | 1 | 9102- | ABC | |||
| 45 | I9-08114 030-0 | PIN; SPLIT, RELIEF VALVE | 1 | 9602- | BC | |||
| 3 | I9-08114 030-0 | PIN; SPLIT | 1 | 9102-9601 | A | |||
| 33 | I9-09878 084-0 | PIN; DRIVE PINION TO SHAFT, OIL PUMP | 1 | 9009-9203 | A | |||
| 3 | I0-81124 030-0 | PIN; SPLIT | 1 | 9102- | A | |||
| 45 | I0-81124 030-0 | PIN; SPLIT, RELIEF VALVE | 1 | 9602- | BC | |||
| 1 | I8-97385 985-0 | PUMP ASM; OIL | 1 | 9602- | BC | |||
| 19 | I8-94384 778-1 | GEAR SET; OIL PUMP | 1 | 9602- | BC | |||
| 49 | I0-28080 830-0 | BOLT; STRAINER, OIL PUMP | 2 | 9602- | B | (A) M8X30 FLANGE | ||
| 42 | I8-97089 824-0 | STRAINER; OIL, OIL PUMP | 1 | 0612- | C | |||
| 49 | I0-28080 825-0 | BOLT; STRAINER, OIL PUMP | 2 | 9602- | BC | (B) M8X25 FLANGE | ||
| 29 | I0-50640 830-0 | BOLT; OIL PUMP | 2 | 9602- | B | M8X30 W/LKBPL WASHER | ||
| 32 | I8-97312 593-0 | PINION; OIL PUMP DRIVING | 1 | 9204-9601 | A | |||
| 78 | I8-94146 582-0 | BOLT; EYE JOINT, OIL PIPE | 1 | 9602- | B | M8X23 | ||
| 35 | I5-13113 002-0 | COVER; OIL PUMP | 1 | 9009-9601 | A | |||
| 19 | I8-97044 948-0 | GEAR SET; OIL PUMP | 1 | 9009-9101 | A | |||
| 42 | I8-97036 837-0 | STRAINER; OIL, OIL PUMP | 1 | 9602- | B | |||
| 7 | I0-50540 825-0 | BOLT; COVER OIL PUMP | 3 | 9204-9601 | A | M8X25 W/LK WASHER | ||
| 121 | I8-94235 567-1 | VALVE; RELIEF, OIL PUMP | 1 | 9102- | ABC | |||
| 76 | I8-97160 706-0 | PIPE ASM; OIL | 1 | 9602- | B | |||
| 45 | I0-81124 030-0 | PIN; SPLIT, RELIEF VALVE | 1 | 9602- | BC | |||
| 78 | I5-09675 043-0 | BOLT; EYE JOINT, OIL PIPE | 1 | 9602- | B | M8X23 | ||
| 80 | I0-50040 822-0 | BOLT; OIL PIPE FIX | 1 | 9602- | B | M8X22 W/LK WASHER | ||
| 38 | I5-13140 001-0 | CASE; OIL STRAINER | 1 | 9009-9601 | A | |||
| 77 | I9-09571 403-0 | GASKET; JOINT BOLT | 1 | 9602- | B | |||
| 29 | I0-50140 825-0 | BOLT; OIL PUMP | 2 | 9009-9601 | A | M8X25 W!LKBPL WASHER | ||
| 32 | I8-97312 593-0 | PINION; OIL PUMP DRIVING | 1 | 9009-9203 | A | |||
| 29 | I0-50640 825-0 | BOLT; OIL PUMP | 2 | 9009- | A | M8X25 W!LKBPL WASHER | ||
| 35 | I8-97203 876-0 | COVER; OIL PUMP | 1 | 9602- | BC | |||
| 45 | I9-08104 030-0 | PIN; SPLIT, RELIEF VALVE | 1 | 9602- | BC | |||
| 7 | I5-09030 031-0 | BOLT; COVER OIL PUMP | 1 | 9009-9601 | A | M8X50 | ||
| 35 | I8-97036 830-0 | COVER; OIL PUMP | 1 | 9602- | BC | |||
| 29 | I0-50140 830-0 | BOLT; OIL PUMP | 2 | 9602- | B | M8X30 W/LKBPL WASHER | ||
| 1 | I8-97033 179-3 | PUMP ASM; OIL | 1 | 9102-9601 | A |
