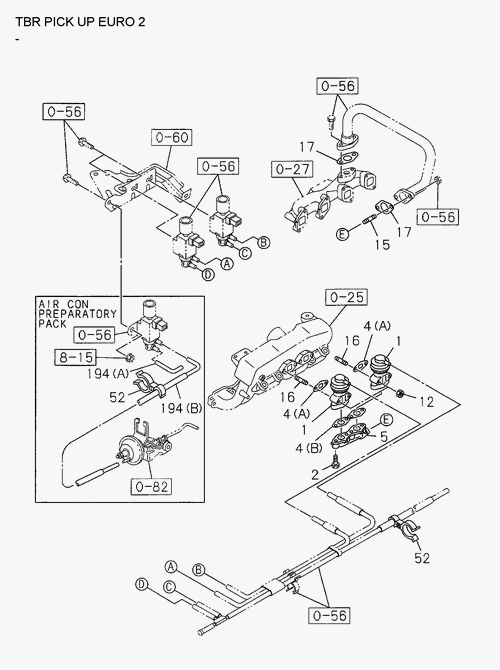

0-57 | EMISSION PIPING
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 15 | I0-41010 825-0 | STUD; EGR PIPE | 2 | 0612- | C | |||
| 2 | I0-28050 840-0 | BOLT; EGR VLV | 4 | 0612- | C | M8X40 | ||
| 12 | I0-91180 208-0 | NUT; EGR VLV | 4 | 0612- | C | |||
| 52 | I8-97226 171-0 | CLIP; VSV HOSE | 2 | 0612- | C | |||
| 1 | I8-97132 802-5 | VALVE; EGR | 2 | 0612- | C | |||
| 194 | I0-04920 300-0 | HOSE; VAC | 1 | 0612- | C | |||
| 4 | I8-94334 338-1 | GASKET; EGR VLV | 2 | 0612- | C | (A) | ||
| 194 | I0-04930 300-0 | HOSE; VAC | 1 | 0612- | C | |||
| 4 | I8-94334 338-0 | GASKET; EGR VLV | 2 | 0612- | C | (A) | ||
| 5 | I8-98025 558-0 | ADAPTER ASM | 1 | 0612- | C | |||
| 17 | I8-97324 052-0 | GASKET; EGR PIPE | 2 | 0612- | C | |||
| 4 | I8-94379 754-0 | GASKET; EGR VLV | 1 | 0612- | C | (B) | ||
| 16 | I8-97019 478-0 | STUD; EGR VLV | 4 | 0612- | C | |||
| 17 | I8-97942 749-0 | GASKET; EGR PIPE | 2 | 0612- | C |
