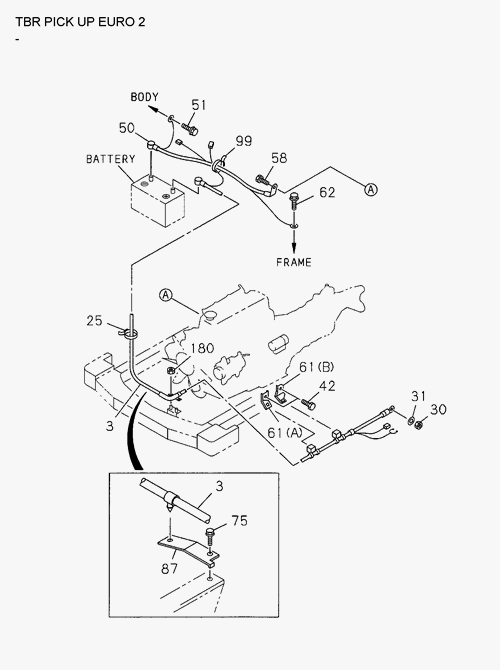

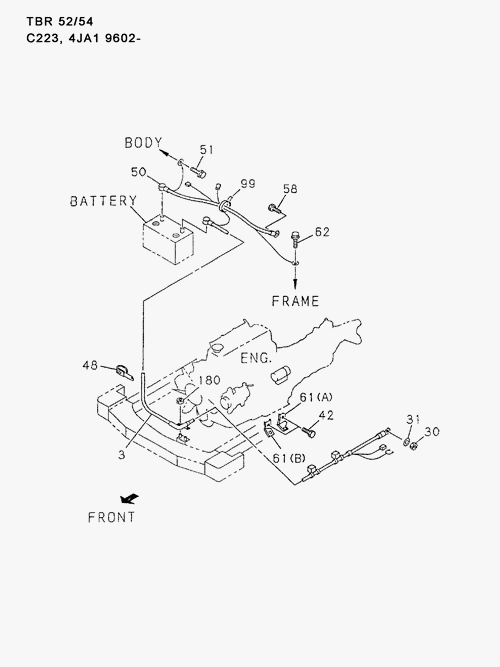

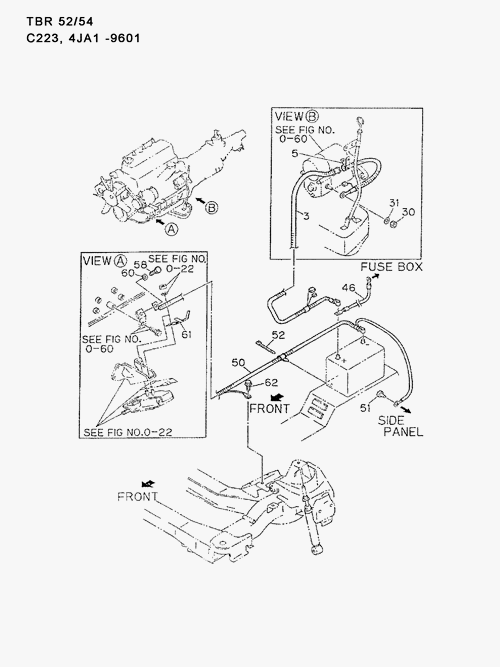

0-61 | BATTERY AND BATTERY CABLE
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 46 | I8-94369 927-0 | CABLE; BATTERY TO FUSE BOX | 1 | 9009-9408 | A | |||
| 51 | I8-97087 055-0 | BOLT; CABLE TO FRAME | 1 | 9409- | ABC | M8X16 W/LK&PL WASHER | ||
| 180 | I8-98049 362-0 | NUT; COVER | 2 | 9602- | BC | M6 FLANGE | ||
| 60 | I1-09985 180-0 | WASHER; LK, BATTERY CABLE | 1 | 9009-9601 | A | ID=10. 2 | ||
| 99 | I5-09707 031-1 | CLIP; BATTERY CABLE | 1 | 9602- | BC | L=140 | ||
| 42 | I0-50040 614-0 | BOLT; BRKT, BATTERY CABLE | 2 | 9602- | B | M6X14 W/LK WASHER | ||
| 31 | I0-91510 508-0 | WASHER; LK, CABLE, STARTER TO BATTERY | 1 | 9009- | ABC | M8 | ||
| 5 | I8-94169 650-0 | CLIP; BATTERY CABLE TO BODY | 1 | 9009-9601 | A | |||
| 3 | I8-94385 371-2 | HARNESS; CABLE, BATTERY TO STARTER | 1 | 9009-9601 | A | |||
| 3 | I8-97149 250-0 | HARNESS; CABLE, BATTERY TO STARTER | 1 | 9602- | BC | |||
| 51 | I8-94122 771-0 | BOLT; CABLE TO FRAME | 1 | 9009-9408 | A | M8X22 | ||
| 75 | I0-28450 616-0 | BOLT; BRKT | 1 | 0612- | C | M6X16 FLANGE | ||
| 60 | I1-09985 345-0 | WASHER; LK, BATTERY CABLE | 1 | 9009-9601 | A | ID=10. 2 | ||
| 62 | I8-97086 823-0 | BOLT; EARTH CABLE FIX | 1 | 9409- | ABC | M6X16 W/WASHER | ||
| 30 | I9-09111 408-0 | NUT; CABLE. STARTER TO BATTERY | 1 | 9009- | ABC | M8 | ||
| 52 | I5-09707 031-1 | CLIP; BATTERY CABLE TO BODY | 1 | 9009-9601 | A | L=140 | ||
| 48 | I8-94225 185-0 | CLIP; CABLE | 1 | 9602- | B | ID=12 | ||
| 87 | I8-97956 338-0 | BRACKET; HARNESS | 1 | 0612- | C | |||
| 58 | I0-20851 016-0 | BOLT; CABLE BATTERY | 1 | 9205- | ABC | M10X16 | ||
| 58 | I0-20801 016-0 | BOLT; CABLE BATTERY | 1 | 9205- | ABC | M10X16 | ||
| 50 | I8-97145 201-1 | CABLE; BATTERY TO BODY (-) | 1 | 9602- | B | |||
| 61 | I8-97077 656-0 | BRACKET; BATTERY CABLE | 1 | 9602- | BC | (B) | ||
| 42 | I0-28050 612-0 | BOLT; BRKT, BATTERY CABLE | 2 | 0612- | C | M6X12 FLANGE | ||
| 50 | I8-94385 372-2 | CABLE; BATTERY TO BODY (-) | 1 | 9009-9601 | A | |||
| 61 | I8-94315 286-0 | BRACKET; BATTERY CABLE | 1 | 9602- | BC | (A) | ||
| 31 | I9-09150 508-0 | WASHER; LK, CABLE, STARTER TO BATTERY | 1 | 9009- | ABC | M8 | ||
| 25 | I5-09707 031-1 | CLIP; BATTERY CABLE TO BRKT | 1 | 0612- | C | L=140 | ||
| 61 | I8-97016 478-0 | BRACKET; BATTERY CABLE | 1 | 9009-9601 | A | |||
| 180 | I5-09440 004-0 | NUT; COVER | 2 | 9602- | BC | M6 FLANGE | ||
| 50 | I7-42501 183-A | CABLE; BATTERY TO BODY (-) | 1 | 9602- | B | |||
| 30 | I9-09111 508-A | NUT; CABLE. STARTER TO BATTERY | 1 | 9009- | ABC | M8 |
