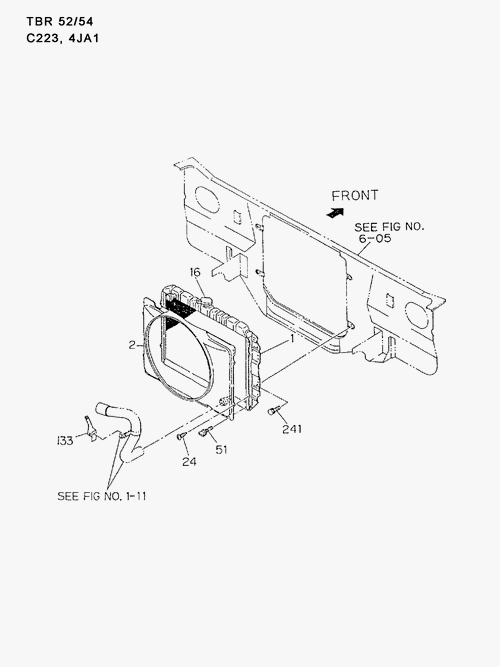

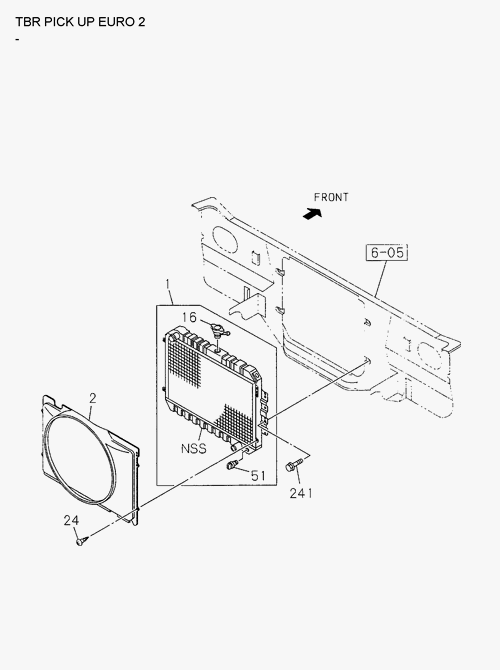

1-10 | RADIATOR
PANTHER
PICKUP
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I8-97011 991-0 | GUIDE; FAN | 1 | 9009-9601 | AB | |||
| 24 | I9-07066 508-0 | SCREW; RAD FAN GUIDE | 4 | 9009- | ABC | M5X8 | ||
| 1 | I2-94368 831-0 | RADIATOR ASM | 1 | 9009- | ABC | |||
| 241 | I8-97034 130-0 | BOLT; RAD TO BODY | 4 | 9107-9402 | AB | M8X24 | ||
| 1 | I2-94368 931-0 | RADIATOR ASM | 1 | 9009- | AB | |||
| 241 | I0-28080 816-0 | BOLT; RAD TO BODY | 4 | 9403- | ABC | M8X16 FLANGE | ||
| 2 | I8-97123 557-0 | GUIDE; FAN | 1 | 9602- | ABC | |||
| 16 | I8-94228 748-1 | CAP; RAD | 1 | 9009- | ABC | Big diameter Small diameter | ||
| 51 | I8-97300 188-A | PLUG; RAD DRAIN | 1 | 9009- | AB | Singel drat | ||
| 51 | I9-09809 098-A | PLUG; RAD DRAIN | 1 | 9009- | ABC | Double drat | ||
| 16 | I8-94228 748-A | CAP; RAD | 1 | 9009- | ABC | Big diameter Small diameter | ||
| 51 | I9-09809 097-A | PLUG; RAD DRAIN | 1 | 9009- | AB | Singel drat | ||
| 133 | I8-97019 242-0 | BRACKET; WATER HOSE | 1 | 9009-9601 | AB |
